AN8000 Orange Digital Multimeter Voltmeter Ammeter Ohmmeter Volt AC DC Ohm Tester Meter + Test Lead Set

Based on 0 reviews. - Write a review

$16.38

Ex Tax: $16.38

Stock: In Stock
Model: EB004287
SKU: EB004287

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

Auto ranges.

550V protection in Resistance,Capacitance and Frequency ranges.

Large LCD display,MAX display 4000 counts.

Sample rate: 3 times per second.

Backlight.

Data hold.

Relative measurement.

Polarity identification.

Low voltage indication.

10A high current and low current measurement.

Auto power off.

Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,Diode and Continuity Testing,Frequency and duty cycle.

Specifications:

♦Capacitance :4nF(±5.0%+4),40nF(±2.5%+4),400nF/4.000uF/40.00uF/400.0uF/1000uF /4000uF(±3.5%+4)

♦DC volts: 400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4)

♦AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4)

♦DC current: 40mA/400mA(±1.0%+4),10A(±1.5%+4)

♦AC current: 40mA/400mA/10A(±2.0%+4 ,50-200Hz)

♦Resistance: 400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4)

♦Frequency: 99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2)

♦Duty cycle: 0.1% to 99.9%(±0.08%+2)

♦Measurement mode: mode

♦Over range indication: OL

♦Working environment: 0~40℃, relative humidity< 80%

♦Supply power: 3V (1.5V AAA batteries * 2 Pcs)(Not included)

♦Frequency: 1Hz to 10MHz

♦Capacitance : 10pF to 4000uF

♦AC volts: 0.1mV to 750V

♦DC volts: 0.1mV to 1000V

♦AC current: 0.1uA to 10A

♦DC current: 0.1uA to 10A

♦Resistanc: 0.1Ω to 40MΩ

♦Duty cycle: 1% to 99%

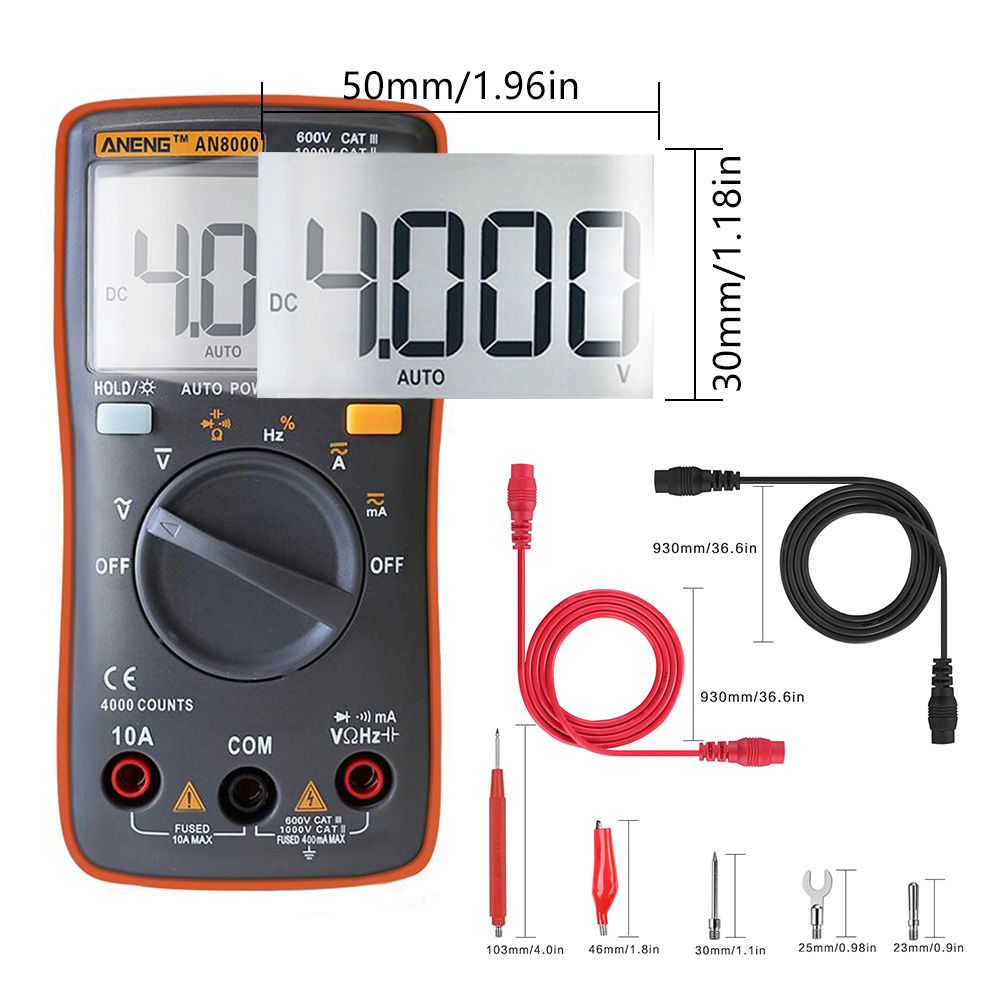

♦Product size: approx. 130*65*30mm

Special note: (when the digital multimeter is in the millivolt position, the value jumps.)

Millivolts value jump is a normal phenomenon.

The display of the multimeter MV gear is not 0, mainly the following.

1: If the ambient temperature and humidity in the air change too much.

2: There is a strong electric field or magnetic field interference around.

3: The multimeter itself has failed.

When the MV gear of multimeter appears to be non-zer'o, it can be judged as follows:

Dial the multimeter to the mV position.The corresponding input hole is inserted into the red and black pen line.Directly connect the red and black test leads.At this time, the multimeter displays "0000" to judge that the non-return phenomenon of the multimeter is due to environmental factors. The non-return to zer'o in this state does not affect the use of the multimeter, but it is recommended to eliminate environmental interference factors so as not to affect the measurement accuracy and produce erroneous measurements result.

ANENG-AN8000-Orange-Digital-Multimeter-Voltmeter-Ammeter-Ohmmeter-Volt-AC-DC-Ohm-Tester-Meter--Test--1451181

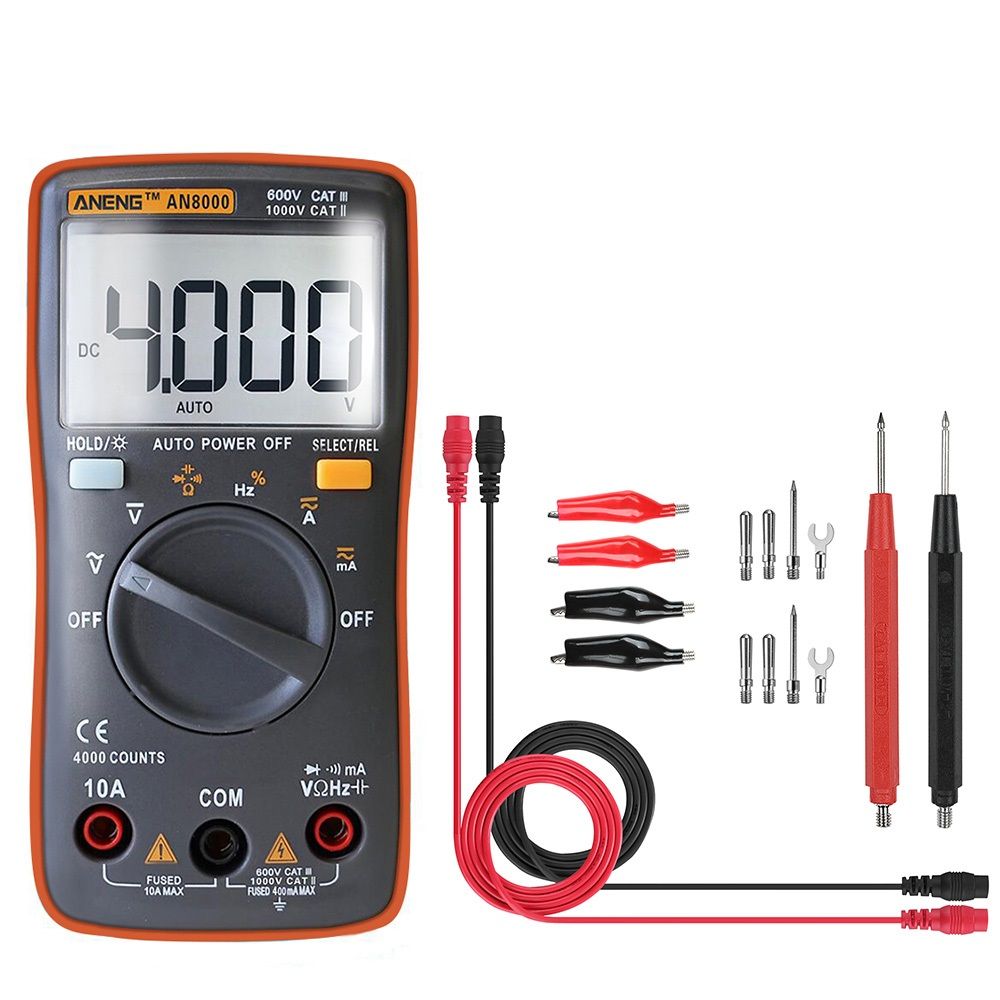

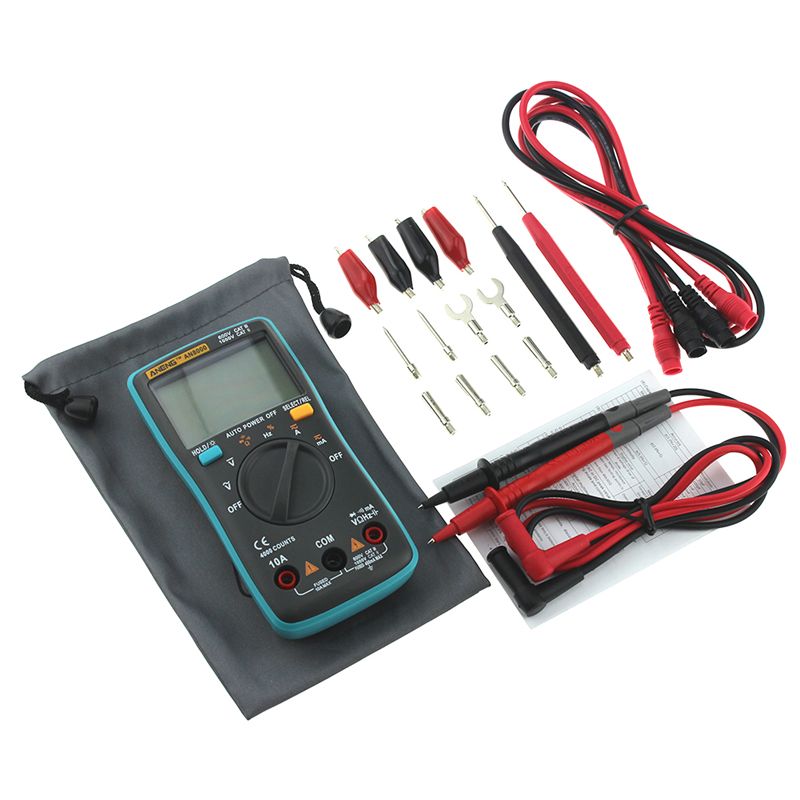

Package includes:

1 x Digital Multimeter

2 x Test Lead

1 x Storage Bag

1 x User Manual

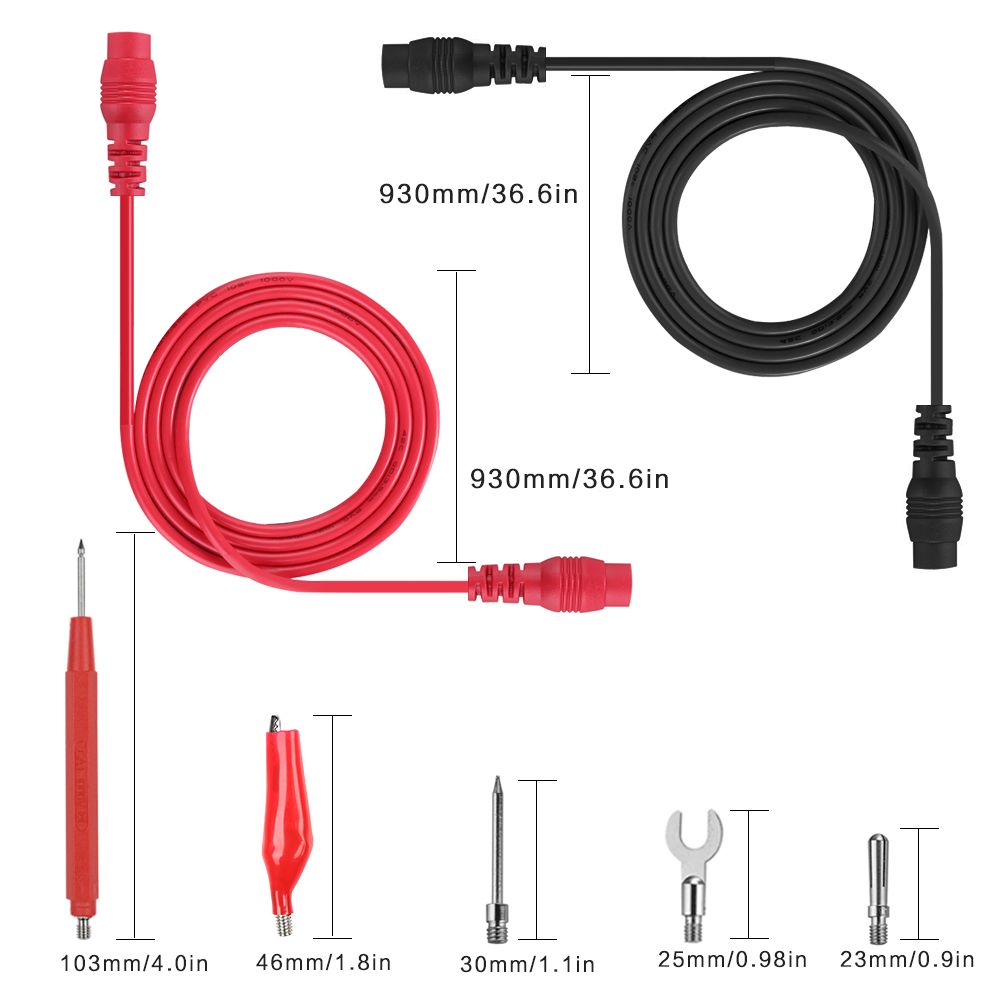

1 Set Multifunction Digital Multimeter Probe Test Leads / Alligator Clip

Detail pictures:
