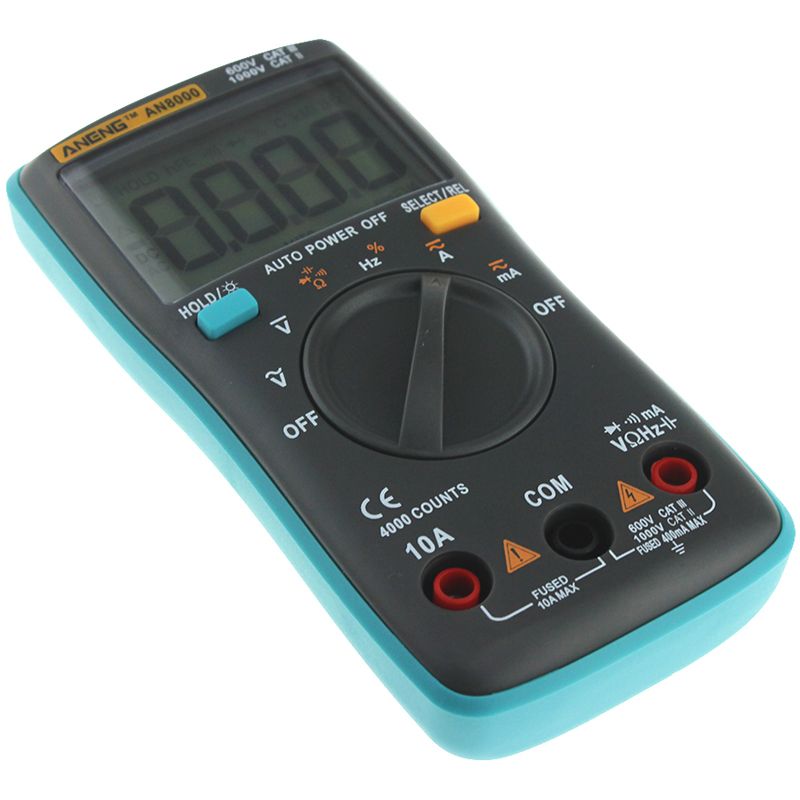

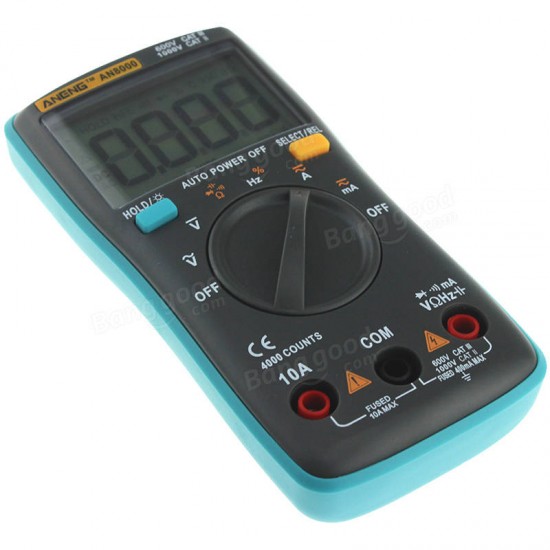

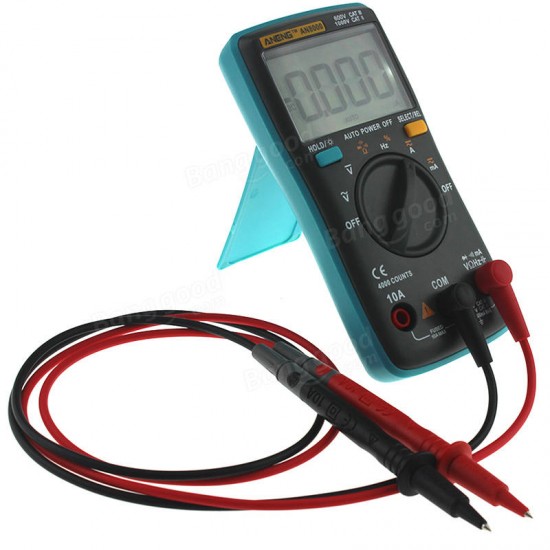

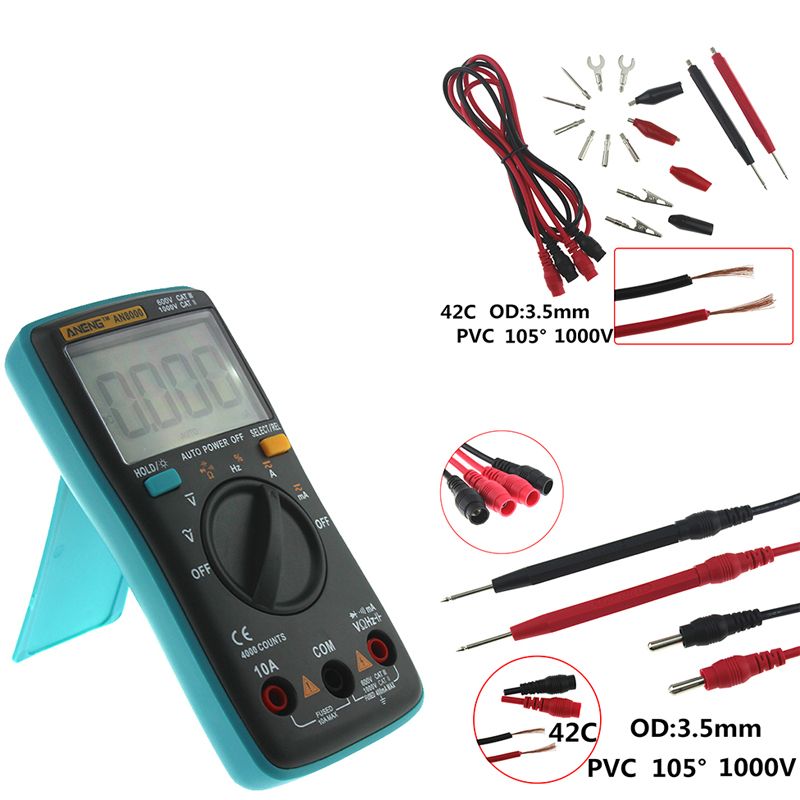

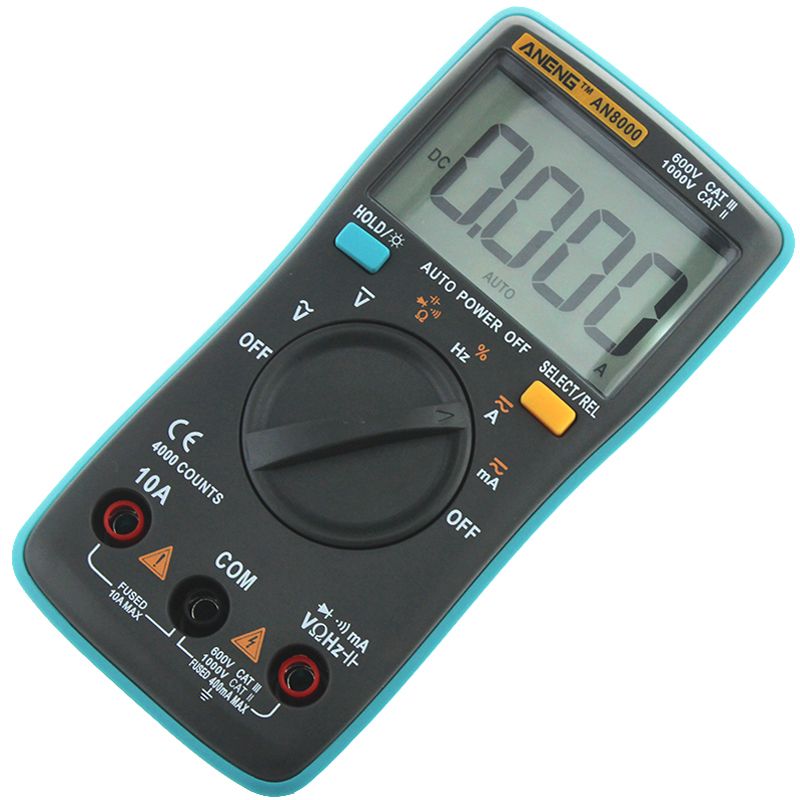

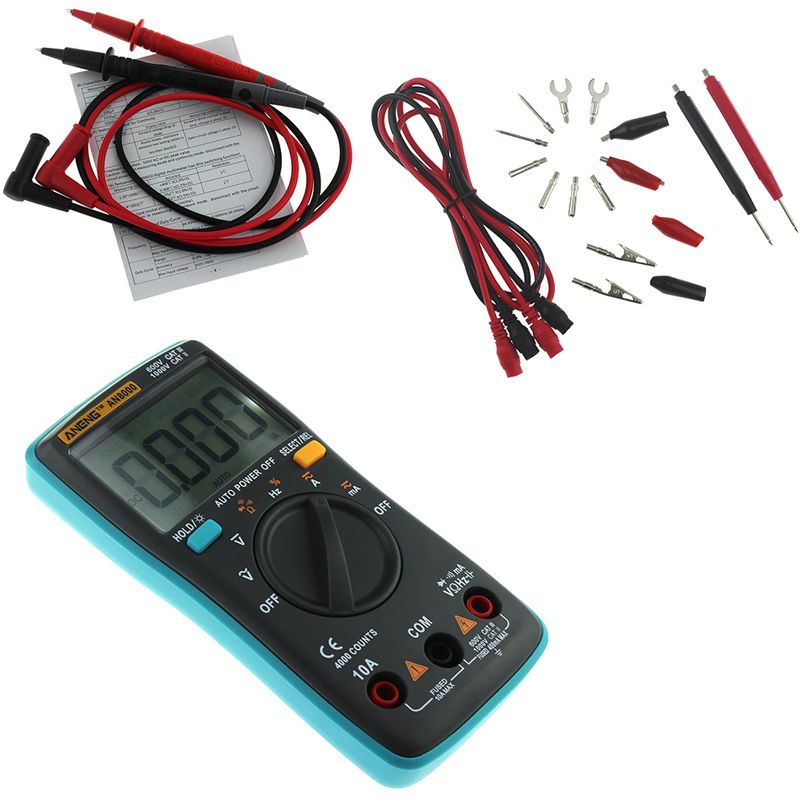

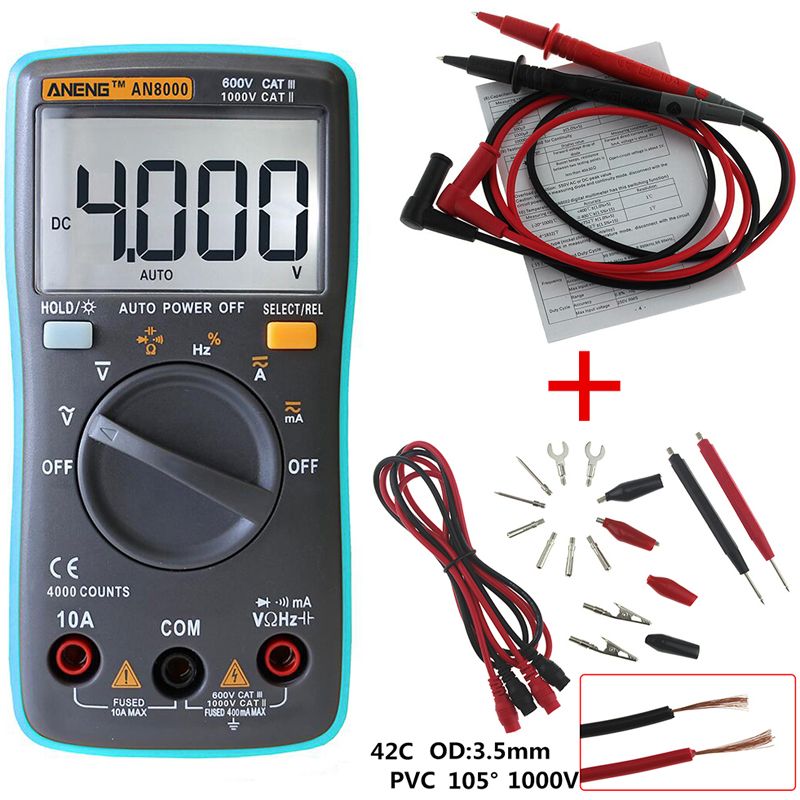

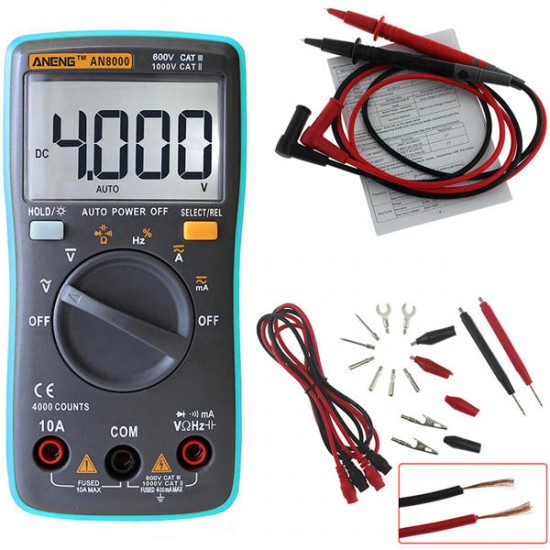

AN8000 Digital Multimeter 4000 Counts Backlight AC/DC Ammeter Voltmeter Capacitance Resistance Frequency Tester + Test Lead Set
- Stock: In Stock
- Model: EB004437
- SKU: EB004437
Specification:
| Function | Range | Resolution | Accuracy | MAX.Value | Other |
| DC Voltage | 400.0mV | 0.1mV | ±(0.5%+4) | 1000V | |
| 4.000V | 0.001V | ||||
| 40.00V | 0.01V | ||||
| 400.0V | 0.1V | ±(0.8%+4) | |||
| 1000V | 1V | ||||
| AC Voltage | 400.0mV | 0.1mV | ±(1.2%+4) | 750V | 40Hz-400Hz |
| 4.000V | 0.001V | ||||
| 40.00V | 0.01V | ||||
| 400.0V | 0.1V | ||||
| 750V | 1V | ±(1.5%+4) | |||
| DC Current (A) | 4.000A | 0.001A | ±(1.5%+4) | 10A | |
| 10.00A | 0.01A | ||||
| DC Current (mA) | 40.00mA | 0.01mA | 400mA | ||
| 400.0mA | 0.1mA | ||||
| AC Current (A) | 4.000A | 0.001A | ±(2.0%+4) | 10A | 40Hz-400Hz |
| 10.00A | 0.01A | ||||
| AC Current (mA) | 40.00mA | 0.01mA | 400mA | ||
| Resistance | 400.0Ω | 0.1Ω | ±(0.8%+4) | 40MΩ | |
| 4.000kΩ | 0.001kΩ | ||||
| 40.00kΩ | 0.01kΩ | ||||
| 400.0kΩ | 0.1kΩ | ||||
| 4.000MΩ | 0.001MΩ | ||||
| 40.00MΩ | 0.01MΩ | ±(2.0%+4) | |||
| Capacitance | 4.000nF | 0.001nF | ±(5.0%+20) | 200μF | |
| 40.00nF | 0.01nF | ±(3.5%+4) | |||
| 400.0nF | 0.1nF | ||||
| 4.000μF | 0.001μF | ||||
| 40.00μF | 0.01μF | ||||
| 200.0μF | 0.1μF | ||||
| Frequency | 99.99Hz | 0.01Hz | ±(0.1%+2) | 9.999MHz | |
| 999.9Hz | 0.1Hz | ||||
| 9.999kHz | 0.001kHz | ||||
| 99.99kHz | 0.01kHz | ||||
| 999.9kHz | 0.1kHz | ||||
| 9.999MHz | 0.001MHz | ||||
| Duty Cycle | 1%~99% | 0.1% | ±(0.1%+2) | ||
| Diode | √ | ||||
| Continuity | √ | ||||
| General Specifications | |||
| Dimension | 130*65*32mm | ||
| Weight | 130g | ||
| Battery Type | 2 x 1.5V AAA Battery (NOT included) | ||
| Warranty | One years | ||
| Environmental Specifications | |||
| Operating | Temperature | 0~40℃ | |
| Humidity | <75% | ||
| Storage | Temperature | -20~60℃ | |
| Humidity | <80% | ||
| Safety Specifications | |||
| EN 61010-1: 2010; EN 61326-1: 2013; FCC Part 15 Sbupart: 2016 | |||

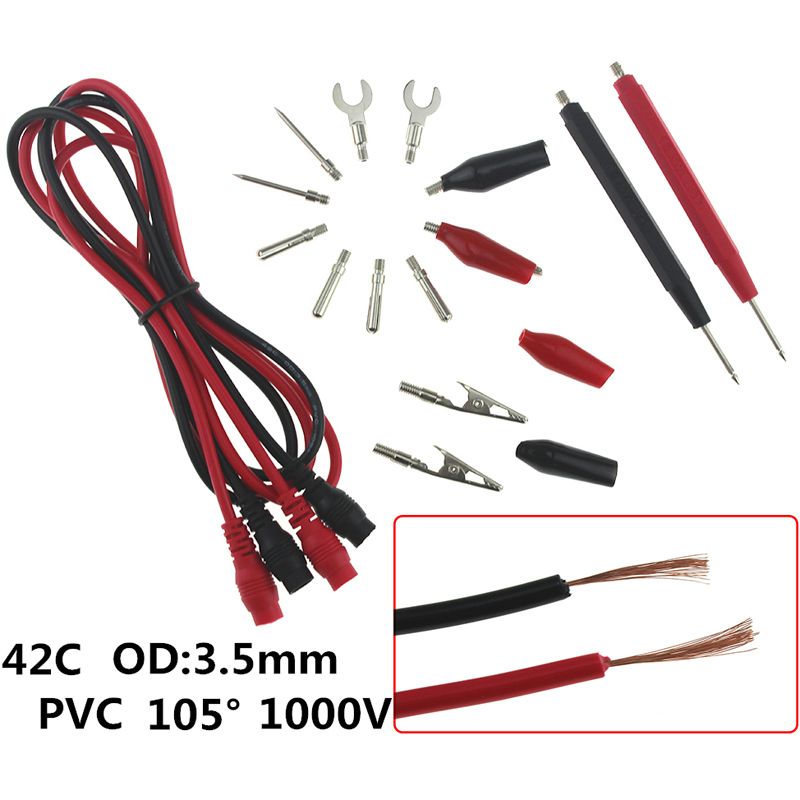

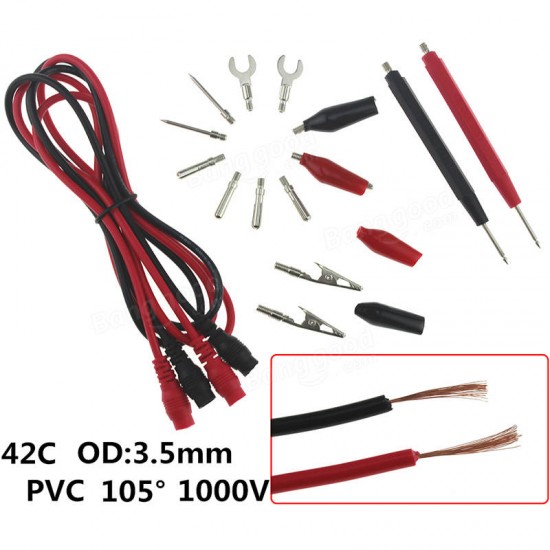

1 x Test Lead Set

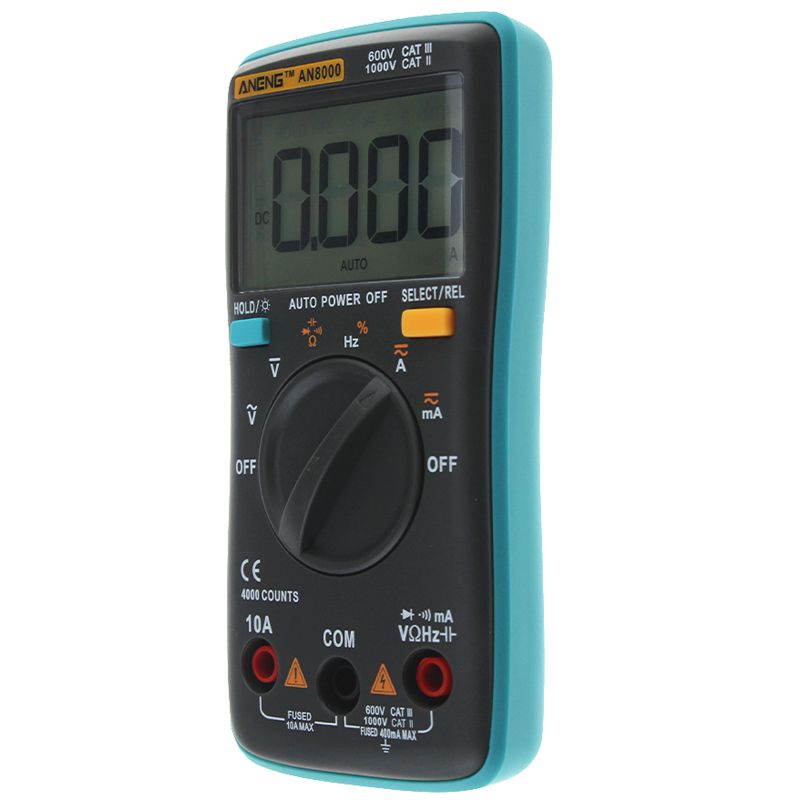

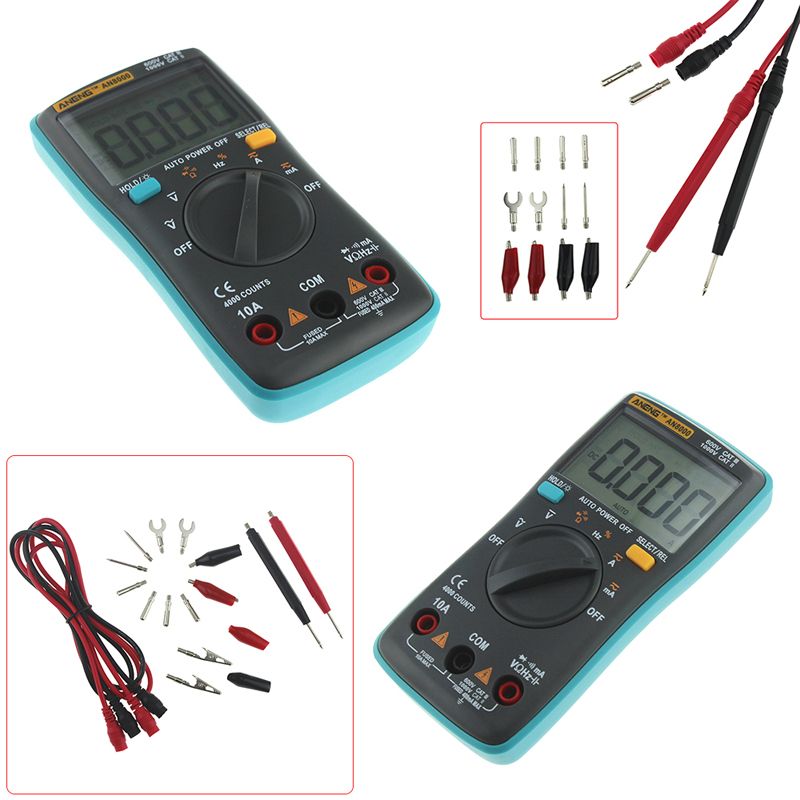

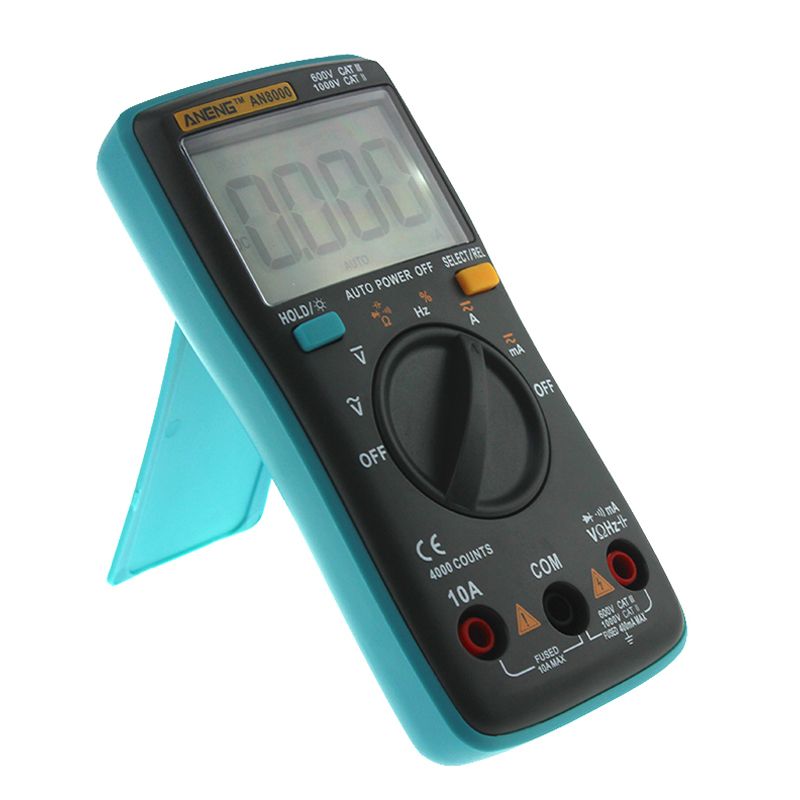

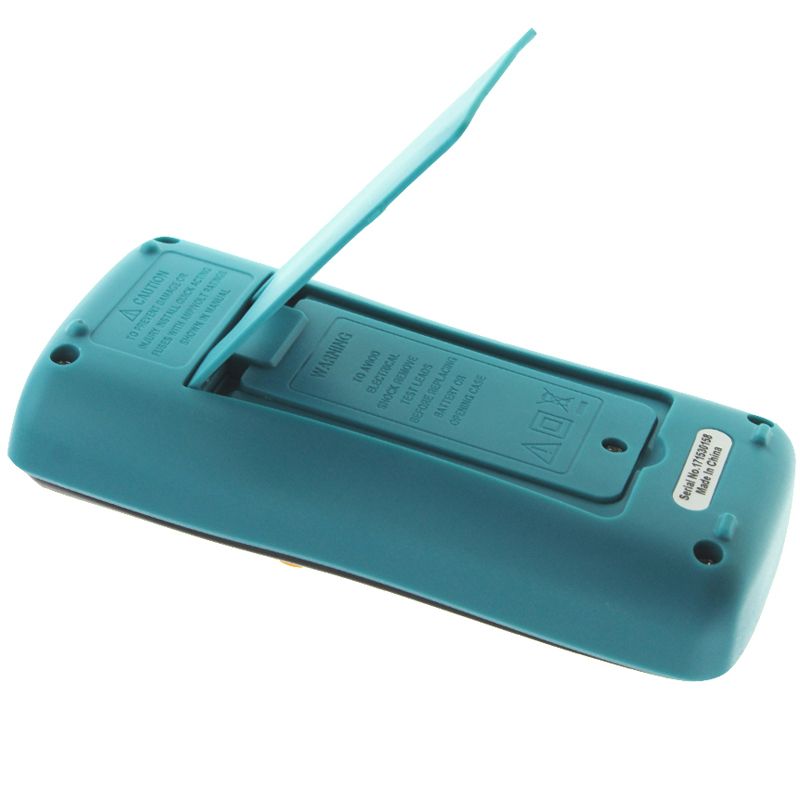

Detail Pictures:
