ADS2050H Handheld Oscilloscope High Precision 5MHz Bandwidth 20M Sampling Rate 2.4 Inch LCD Screen One Key Auto Built-in Lithium Battery

Based on 0 reviews. - Write a review

$51.99

Ex Tax: $51.99

Stock: In Stock
Model: EB004580
SKU: EB004580

Available Options

Model

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

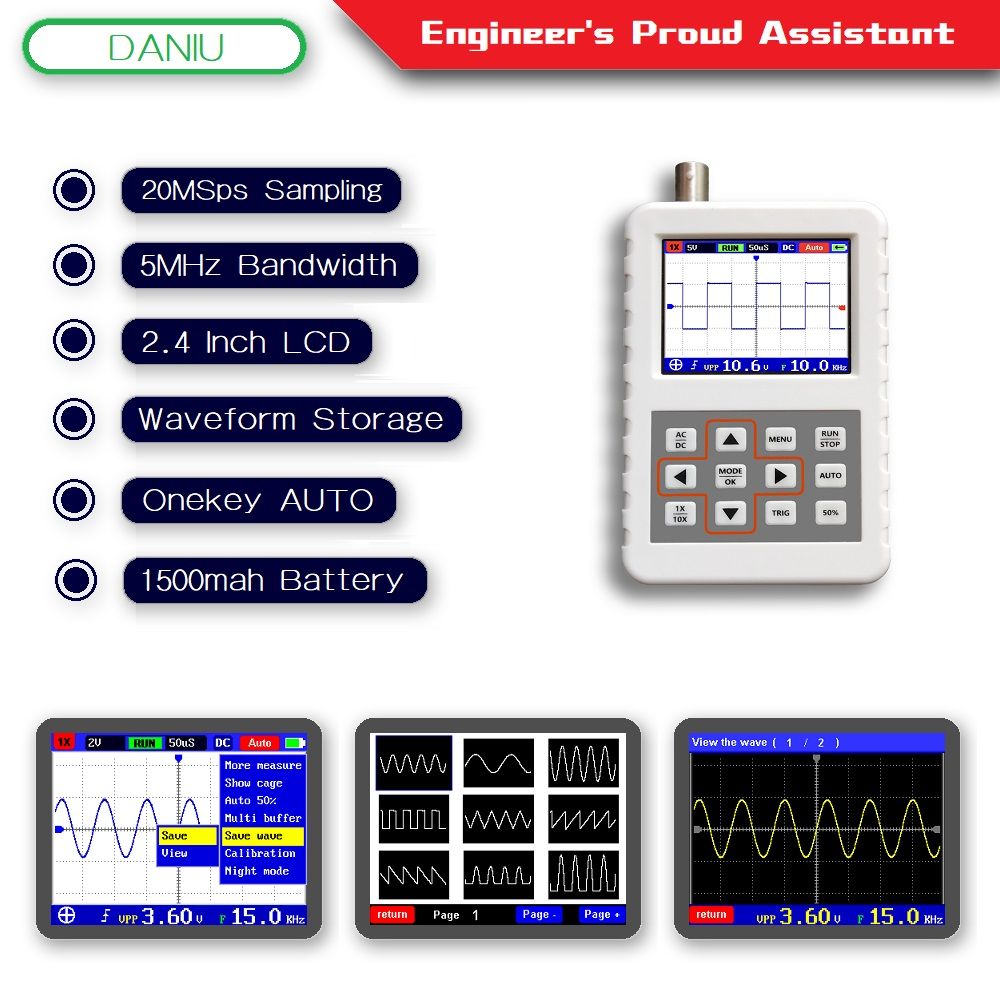

Key Features:

1:Memory compression technology, waveform refresh screen does not flicker

2:Afterglow display technology

3:2.4 inch color display screen

4: ADS2050H: 5MHz analog bandwidth @ 20MS/s sampling rate

5:Fast waveform storage

6:Built-in 16M storage space, the maximum storage of 500 waveform pictures

7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions

8:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V

9:Up to 11 parameters measurement:VPP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time

10:At any time, the waveform display (pause function) is frozen

11:Equipped with high efficiency one button AUTO

12:Complete triggering function (single, normal, automatic)

13:Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time

14:Day mode and night mode

15:Ultra small volume, easy to carry

Specifications:

1:Analog band width: 5MHz(ADS2050H),30MHz( ADS2031H)

2:Maximum real time sampling rate: 20MS/s(ADS2050H), 200MS/s ( ADS2031H)

3:Vertical sensitivity: 50 mV/div ~ 200 V/div

4:Horizontal time base range: 50S/div ~ 250nS/div

5:Maximum input voltage: 40 V (1X probe), 800 V (10X probe)

6:Storage depth: 40KB

7:Input resistance: 1M

8:ADC precision: 8bits

9:Coupling mode: AC/DC

10:Trigger mode: Single, Normal, Automatic

11:Trigger edge: Ascending/descending edge

12:External trigger voltage 0 – 40 V

13:Display: 2.4 inch @ 320 * 240

14:Power supply: 1200 mAh lithium battery

15:Size: 107 x 70 x 24mm

16:Weight: 150g

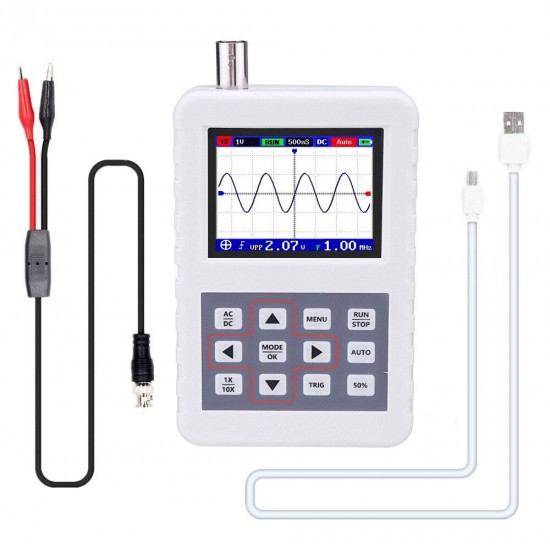

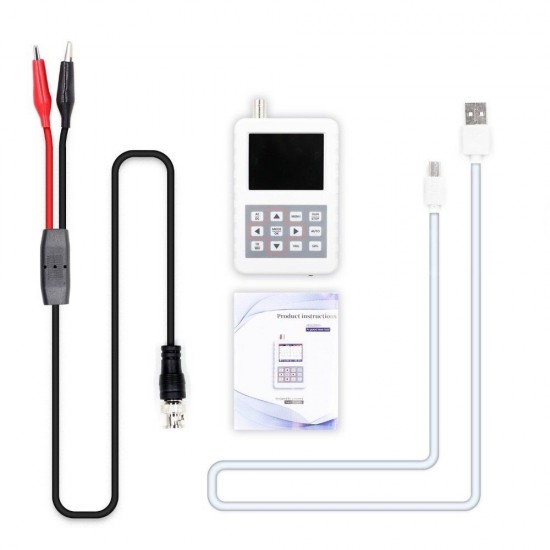

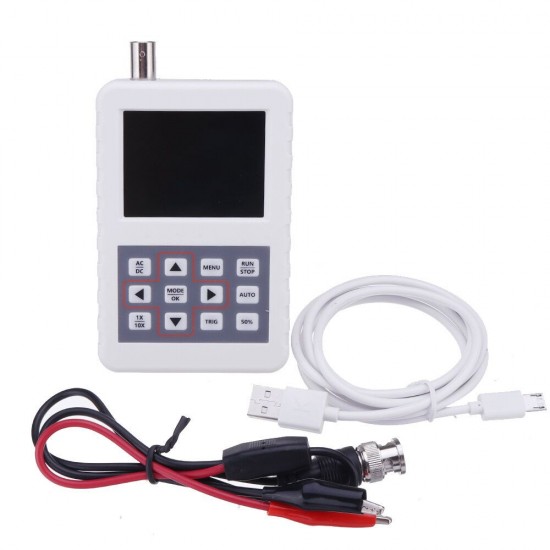

Package Includes:

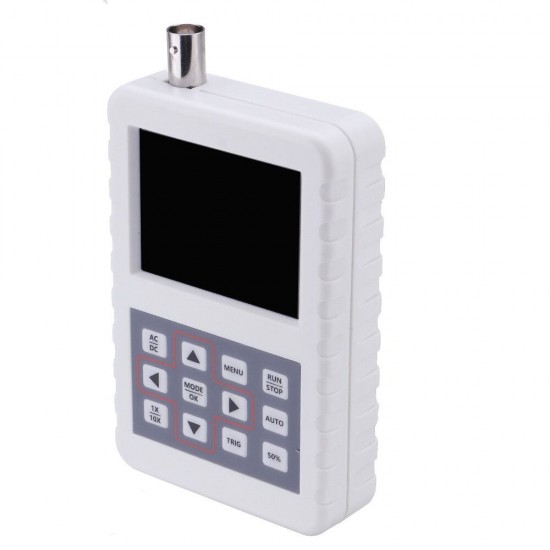

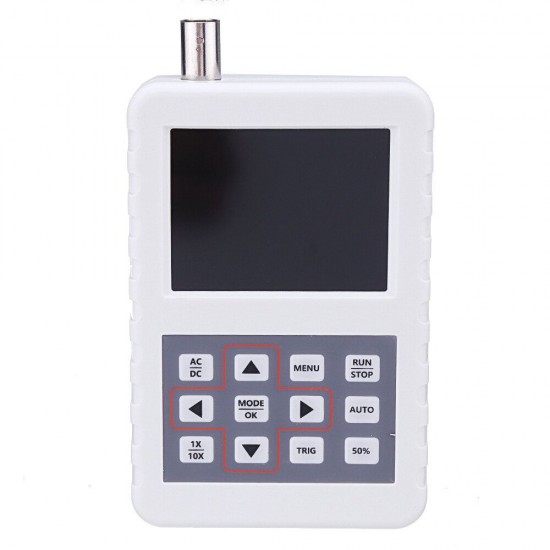

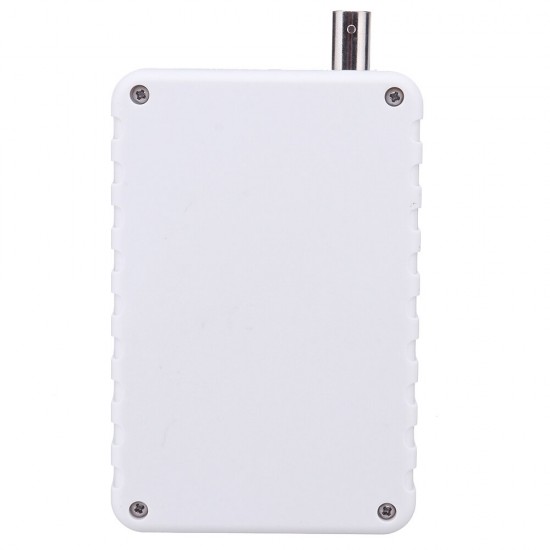

1 x Oscilloscope host

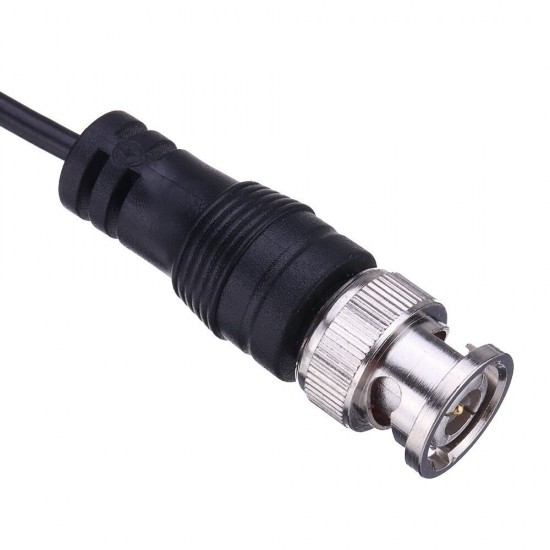

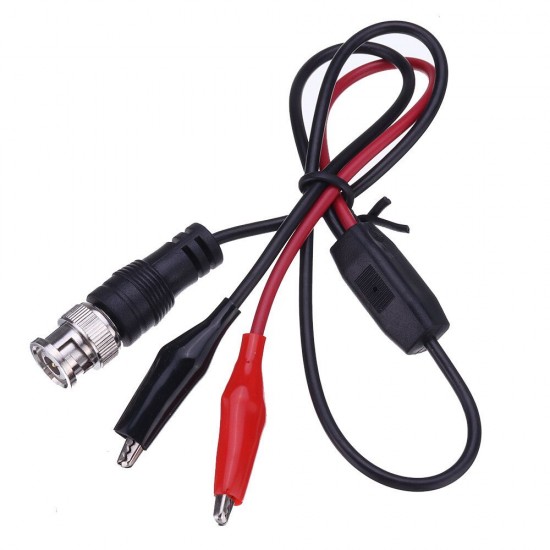

1 x Crocodile clip probe

1 x Micro USB data line

1 x User manual (English)

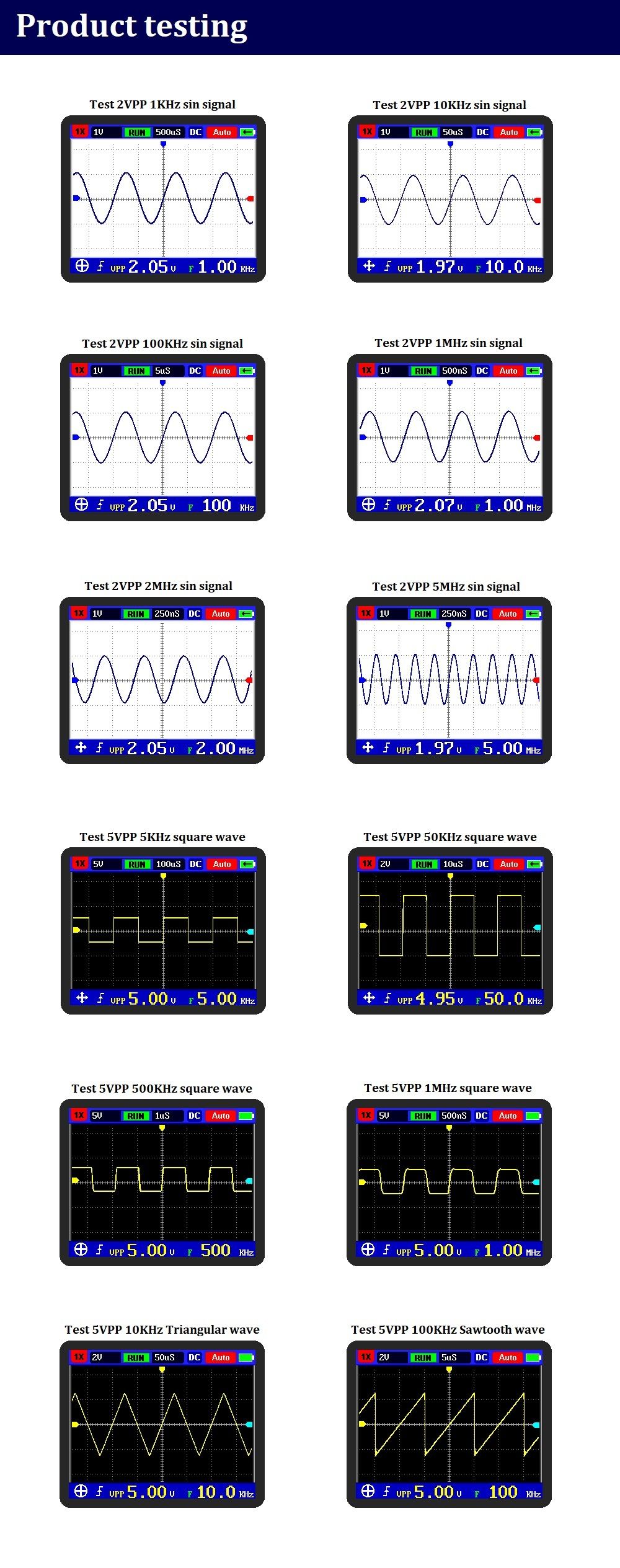

Detail Pictures:

DANIU-ADS2050H-Handheld-Oscilloscope-High-Precision-5MHz-Bandwidth-20M-Sampling-Rate-24-Inch-LCD-Scr-1426883
