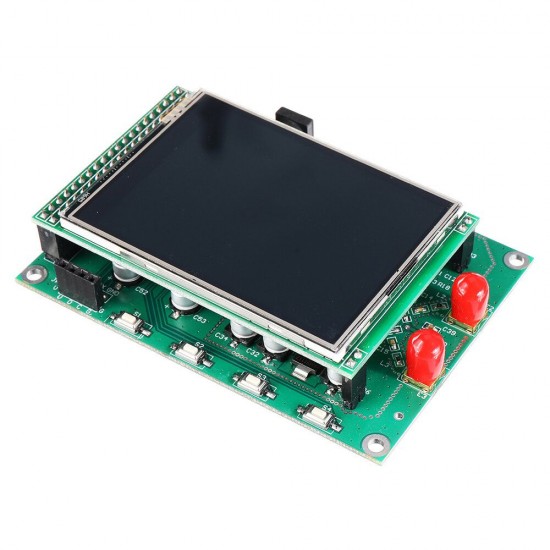

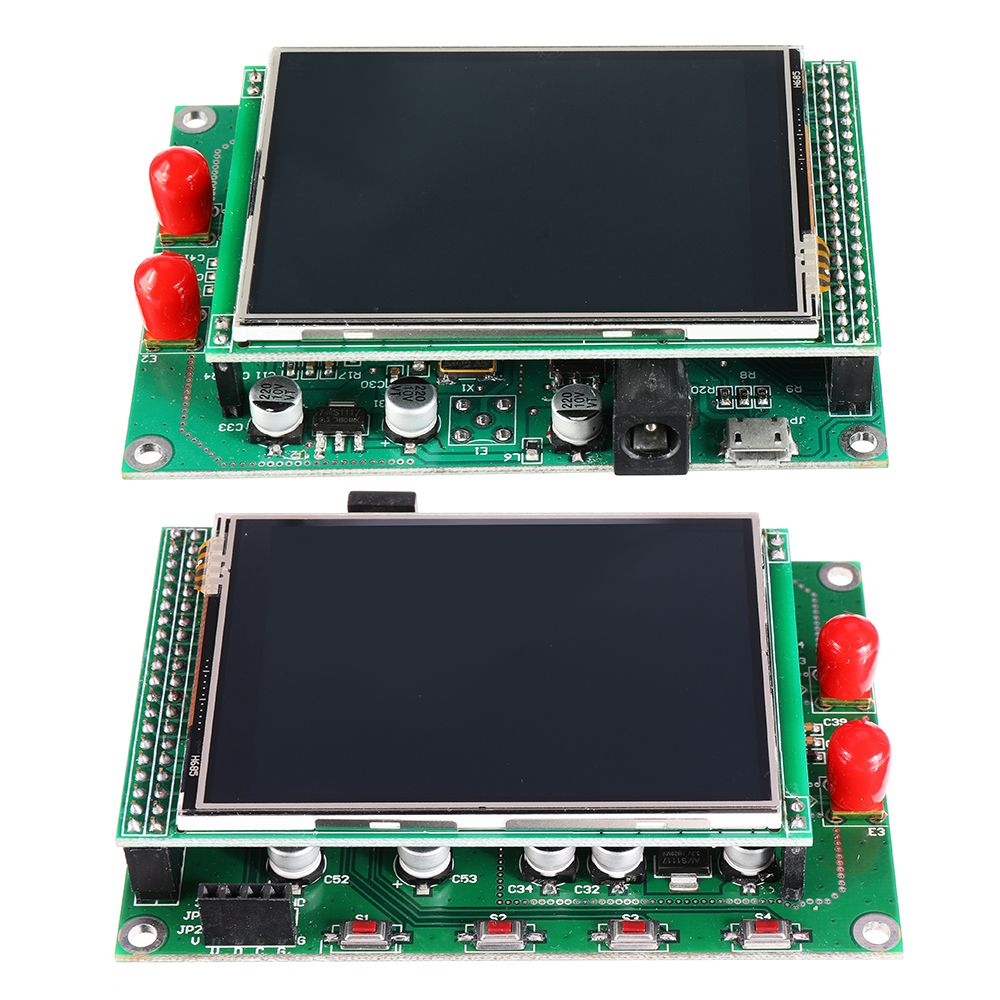

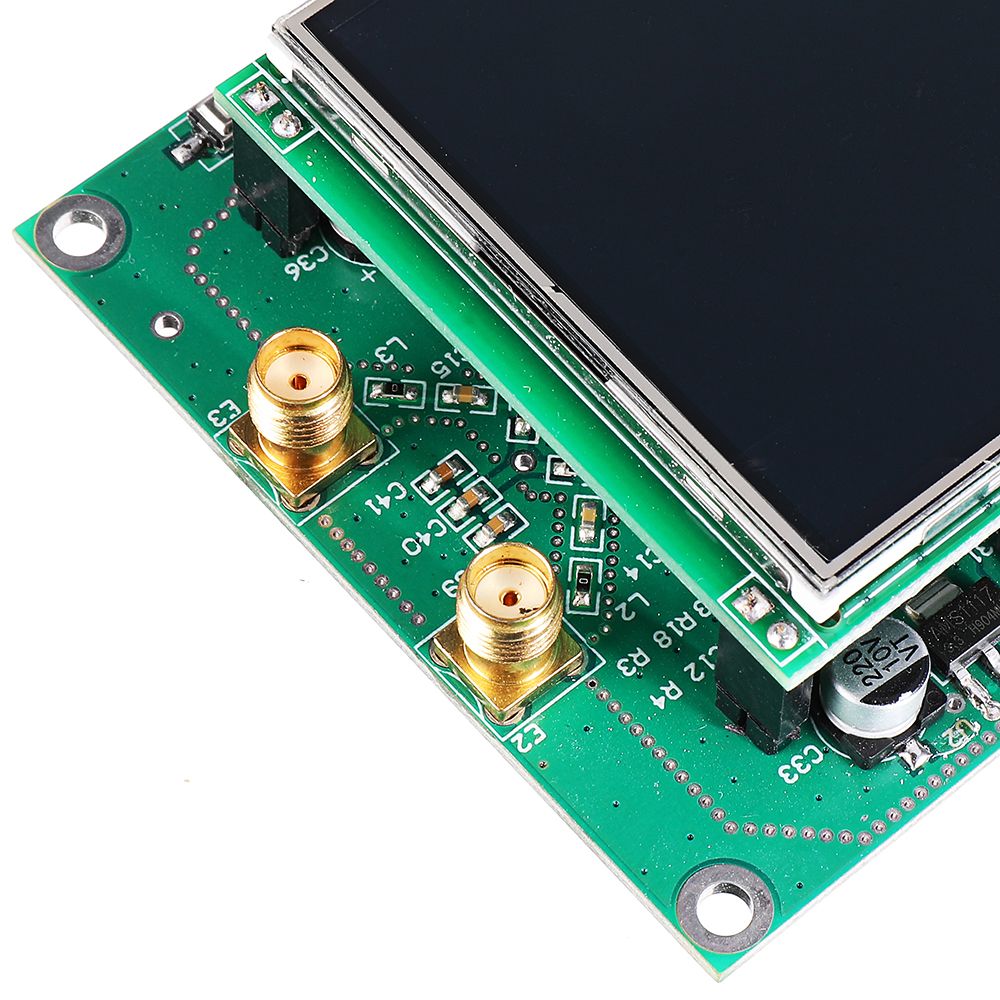

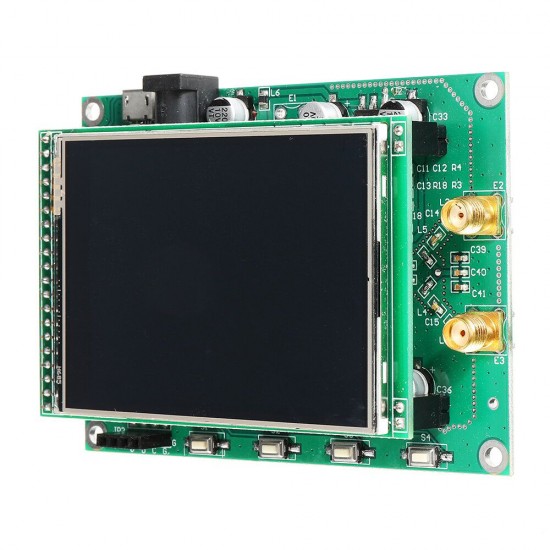

ADF4350 ADF4351 RF Sweep Signal Source Generator Board 138M-4.4G/ 35M-4.4G STM32 with TFT Touch LCD

Based on 0 reviews. - Write a review

$94.99

Ex Tax: $94.99

Stock: In Stock
Model: EB0041507
SKU: EB0041507

Available Options

frequency

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Click here to download Manual: ADF4350/ADF4351 (password:x12345678)

Features:

ADF4350/ADF4351 module is a senior engineer to build, fully refer to the official version of the design. PCB board has beautiful appearance, reasonable layout and design, standard materials.

The output frequency range: 138M-4.4G/ 35M-4.4G. Fractional N points frequency synthesizer and integer N frequency synthesizer.

VCO with low phase noise. Programmable 1/2/4/8/16 divider output.

Mode of power supply: 5V power supply, can use the USB power supply directly.

Color screen display, touch screen operation, can realize frequency, frequency sweep.

Chip Introduce:

ADF4350/ADF4351 combined with external loop filter and external reference frequency when using, it can realize the decimal N points frequency or integer N frequency and phase lock loop frequency synthesizer.

ADF4351 have an integrated voltage controlled oscillator (VCO), its fundamental wave output frequency range to 2200 MHz to 4400 MHz. In addition, the use of 1/2/4/8/16 points frequency circuit, the user can generate as low as 35 MHz / 137.5 MHz RF output frequency. For the isolation of application, the RF output stage can be mute.Mute function can be controlled by pin, can also be controlled by software. At the same time provide auxiliary RF output, and can be shut off when not in use.

Specifications:

Output Frequency Range: 138M-4.4G/ 35M-4.4G

The Root Mean Square (RMS) Jitter: Less Than 0.4 ps RMS (Typical)

Power Supply Voltage: 3.0 V to 3.6 V

Logical Compatibility: 1.8 V

Programmable Dual-mode Preassigned Frequency Counter: 4/5 or 8/9

Programmable Power Output: Yes

The RF Output Mute Function: Yes

Three Wire Serial Interface: Yes

Analog And Digital Lock Detection: Yes

Within The Wide Bandwidth Quickly Lock Mode: Yes

Reduce The Cycle Slip: Yes

Size: Approx. 93 x 66 x 20mm/ 3.66 x 2.59 x 0.78inch

Measured Waveform:

1Ghz

200Mhz

4.4Ghz

500Mhz

3Ghz

4Ghz

2Ghz

Application:

Wireless infrastructure (w-cdma, td-scdma, WiMAX, GSM, PCS, DCS, DECT)

Test equipment

The wireless local area network (LAN), cable television equipment

Clock

Note:

Please do not tear off the protective film on the display screen. This touch screen is the resistive screen, and scratching can cause the touch function to fail.

Circuit diagram in PDF format, underlying driver (not providing the project's source code), other information are provided.

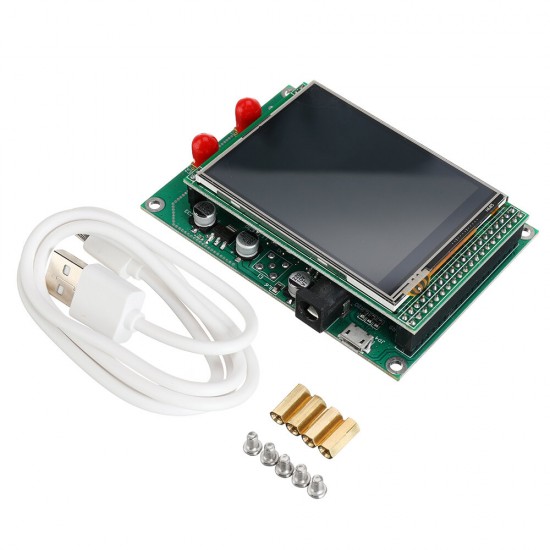

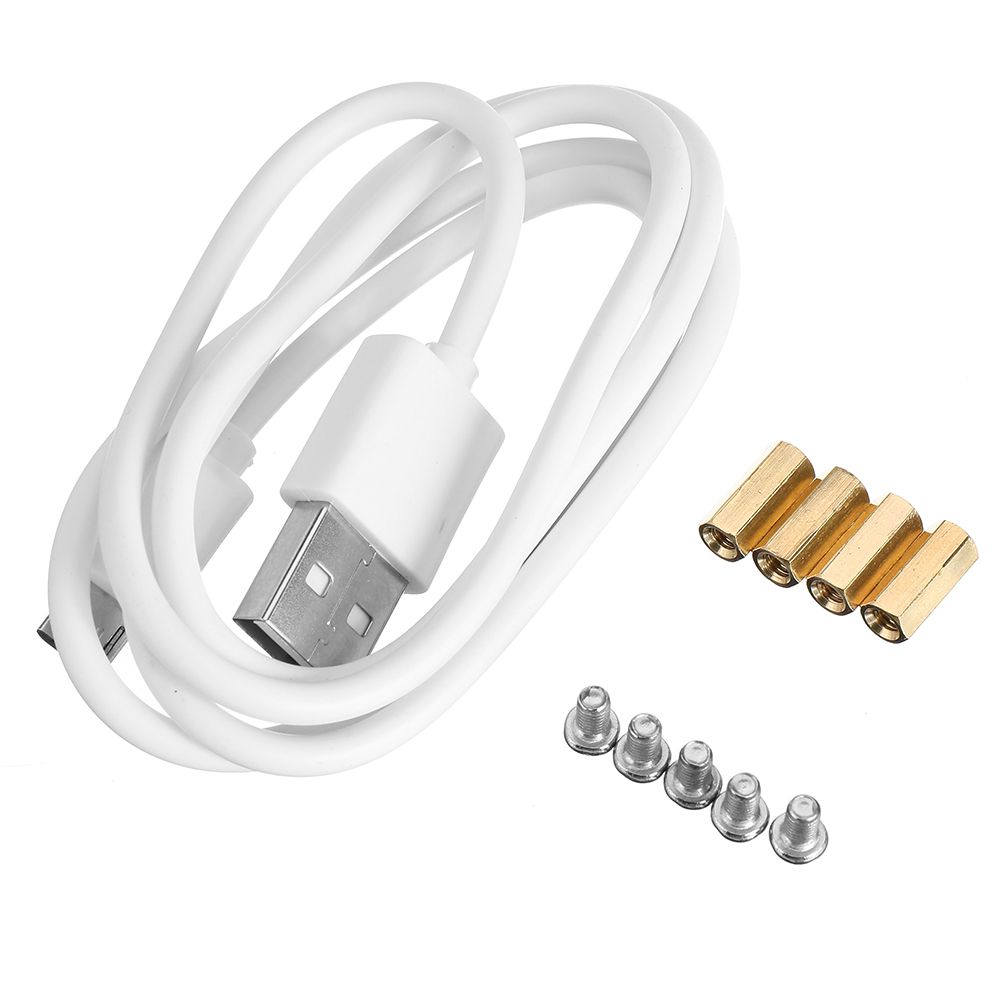

Package Included:

1 x ADF4350/ADF4351

1 x USB Cable
