AC85-250V 433MHz 2CH Channel Wireless Remote Control Switch with 2 Key Transmitter 1000W

Based on 0 reviews. - Write a review

$14.99

Ex Tax: $14.99

Stock: In Stock
Model: EB0042855
SKU: EB0042855

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Feature:

Product name	Two-way controller AC85-220V
Product number	AK-RX220V-2C
Specifications	Circuit board 68 * 48 * 17mm with shell 75 * 50 * 28mm
RF frequency	433 M
Operating Voltage	AC 85V-250V
Stand-by current	<8.5MA
Operating mode	Jog, self-locking, interlocking
Operating temperature	-40- + 85 ° C
Receiving sensitivity	> 97 dbm
Remote control distance	Above 20m (in open environment) depends on different remote controls
Application area	Electric doors, windows, lifting equipment, elevators and security industry, etc.
Product weight	64.2g

Product operation instructions:

Function mode description:

Jog mode: press the remote control relay to close, release the remote control and the relay is disconnected;

Self-locking mode: press the remote control relay to close, and then press again the remote control relay to open;

Interlocking mode: press the remote control A button, the relay close, and then press the remote control B button, the relay is off.

Jog mode description:

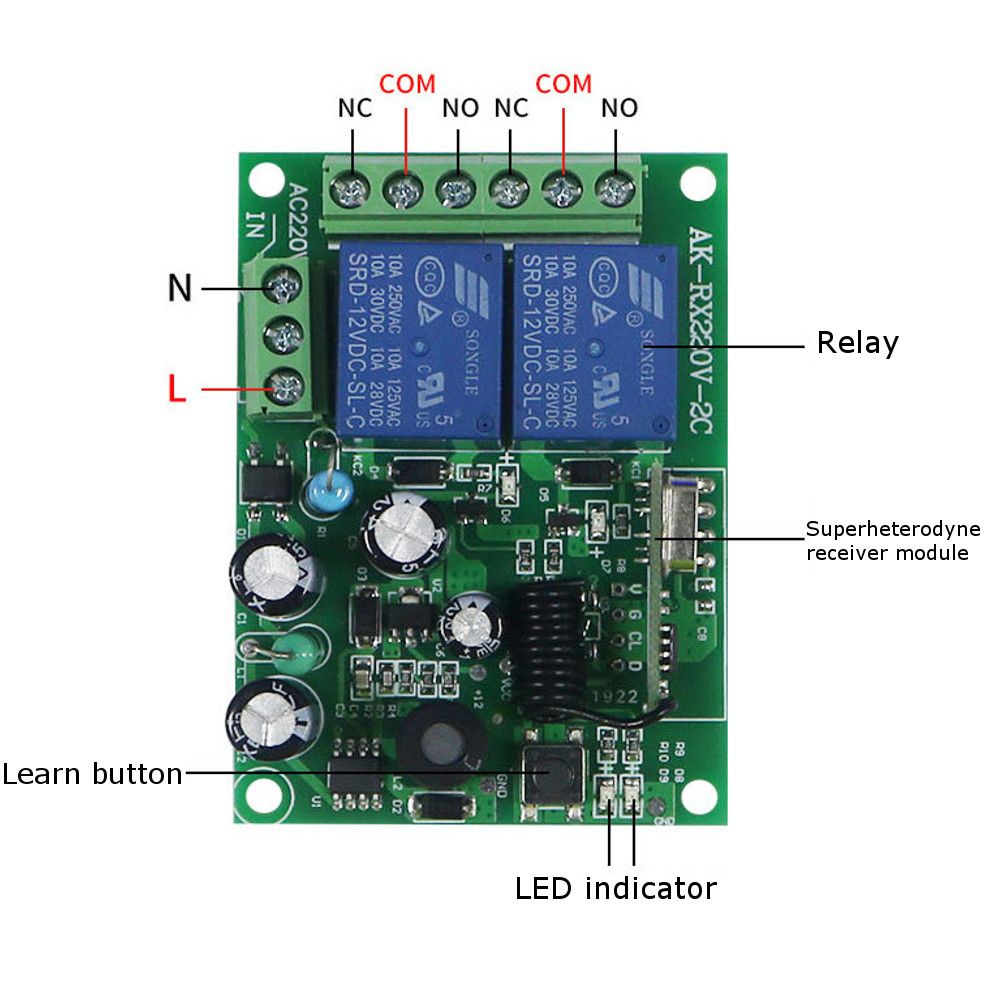

Press the learning button once, the indicator light will turn on, short press the A button, and then short press the B button.

Self-locking mode description:

Press the learning button twice, the indicator light will turn on, short press the A key, the indicator light will turn on, and shortly press the B key, the learning in "self-lock mode" will be successful.

Interlock mode description:

Press the learning button three times, the indicator light is on, press the A button to keep the indicator light blinking, then immediately press and hold the B button, and the indicator light blinks twice, then the "interlock mode" is successful.

Code clearing operation:

Long press the learning button for about 8 seconds. The indicator light turns on (flashes 4 times) to off, which means the code is cleared successfully.

Tips: You must clear the code before you switch any work mode to learn.

Controller use precautions:

1. Do not install the receiver in an iron box. Keep it away from electrical appliances such as motors and contactors that may cause magnetic fields to avoid interference with remote control signals.

2. When you feel that the distance of the remote control is significantly shortened, please replace the remote control battery in time.

3. When installing and wiring, please disconnect the power supply to ensure your own safety; when the relay is working, the indicator light accompanies the indication; pay attention to the range of the vibration resistance of the remote control.

4. Try not to operate the buttons of the remote control frequently, because the chip of the wireless receiver receives the signal of the remote control with a response time of about one second.

5.The maximum storage quantity of the remote control is 20PCS; EV1527, PT2262 fixed code and learning code are compatible.

Package includes:

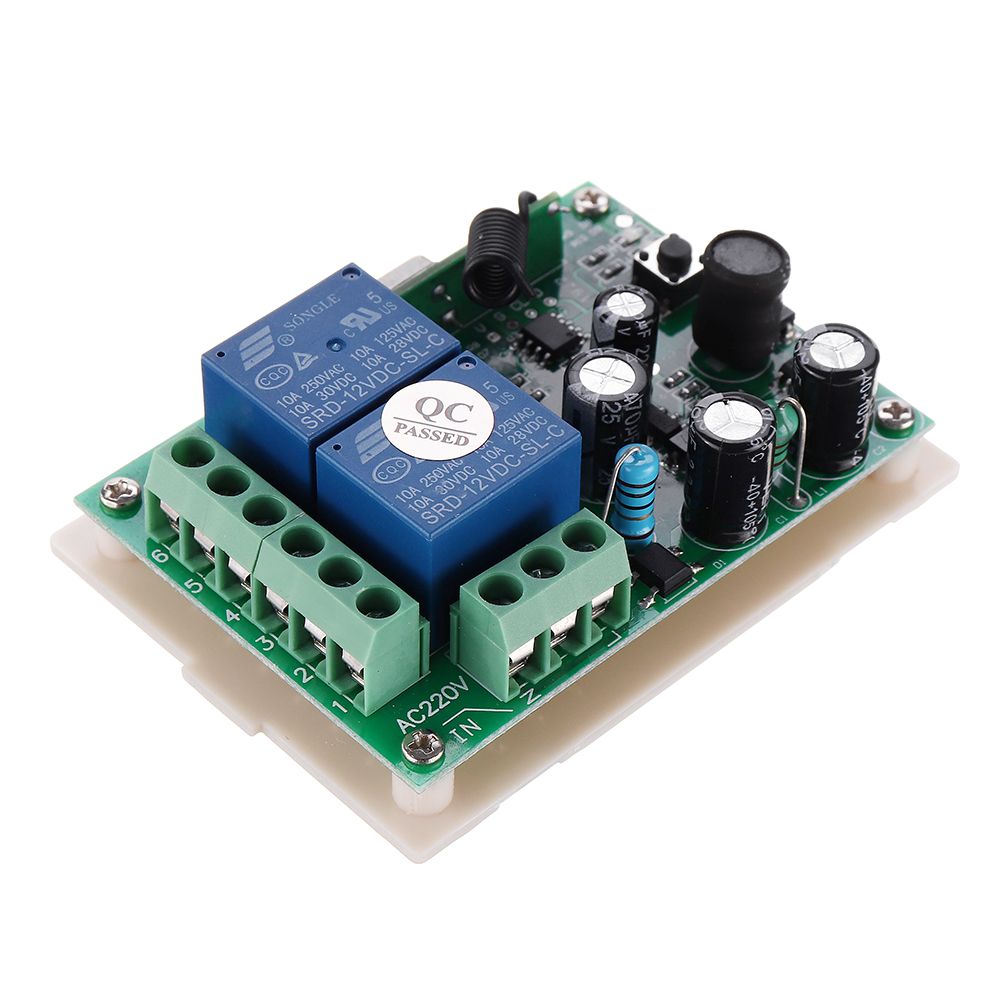

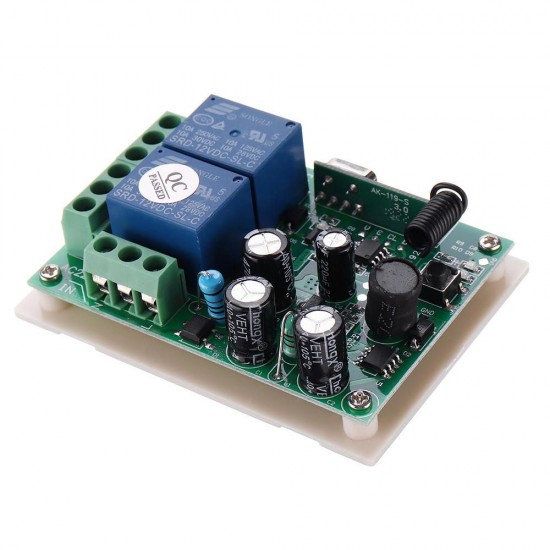

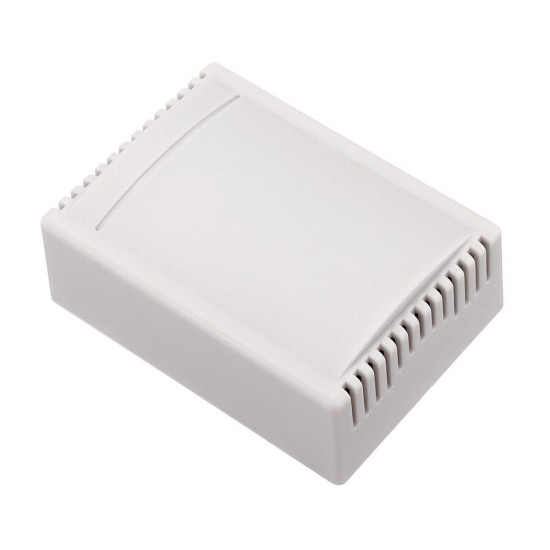

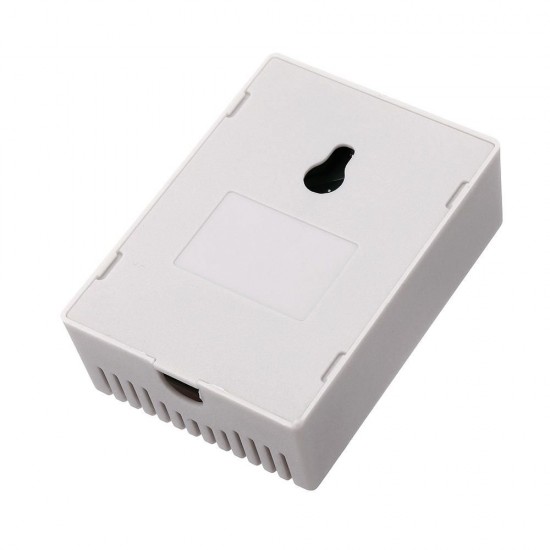

1 x Receiver board with case

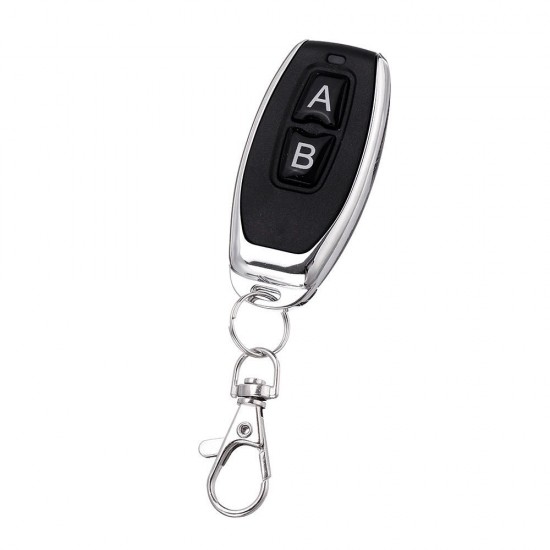

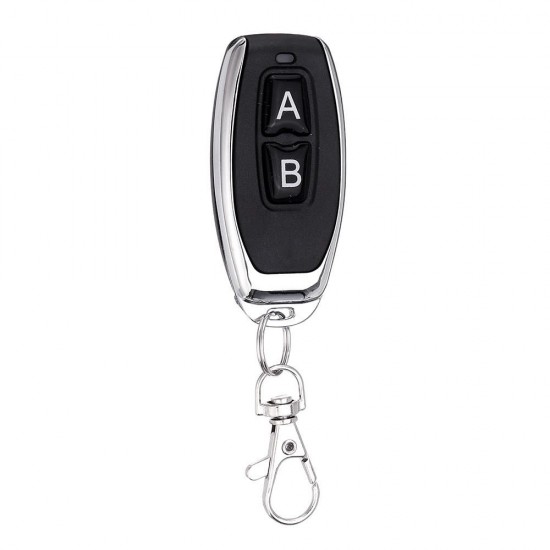

1 x Remote control with battery
