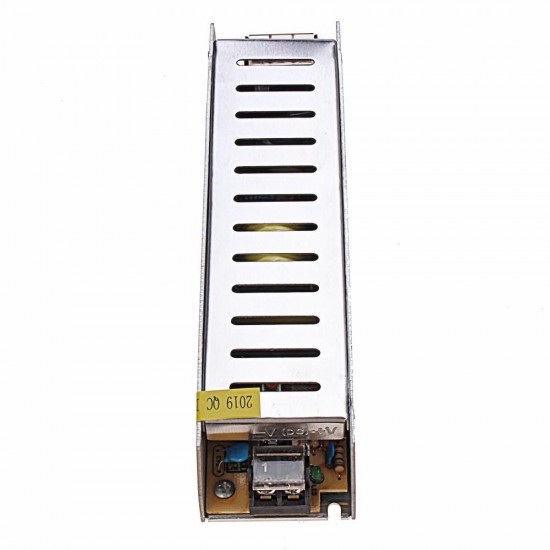

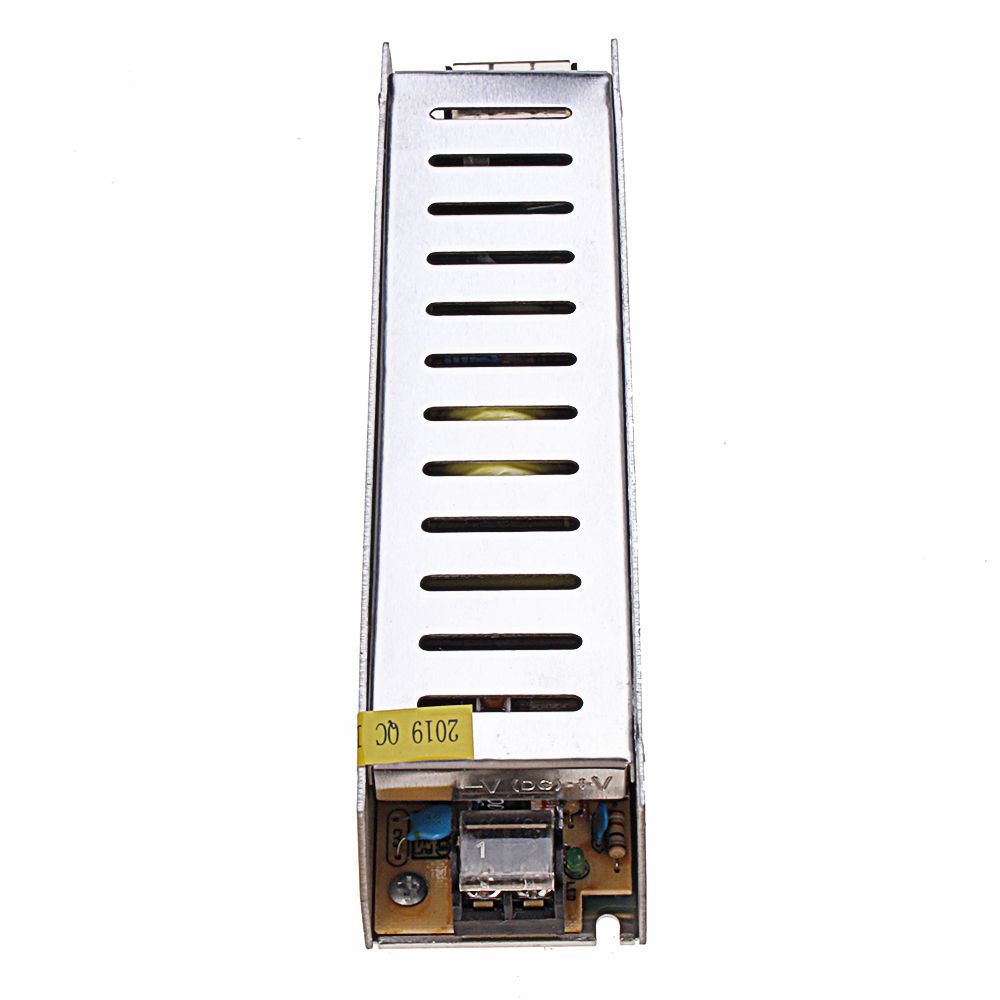

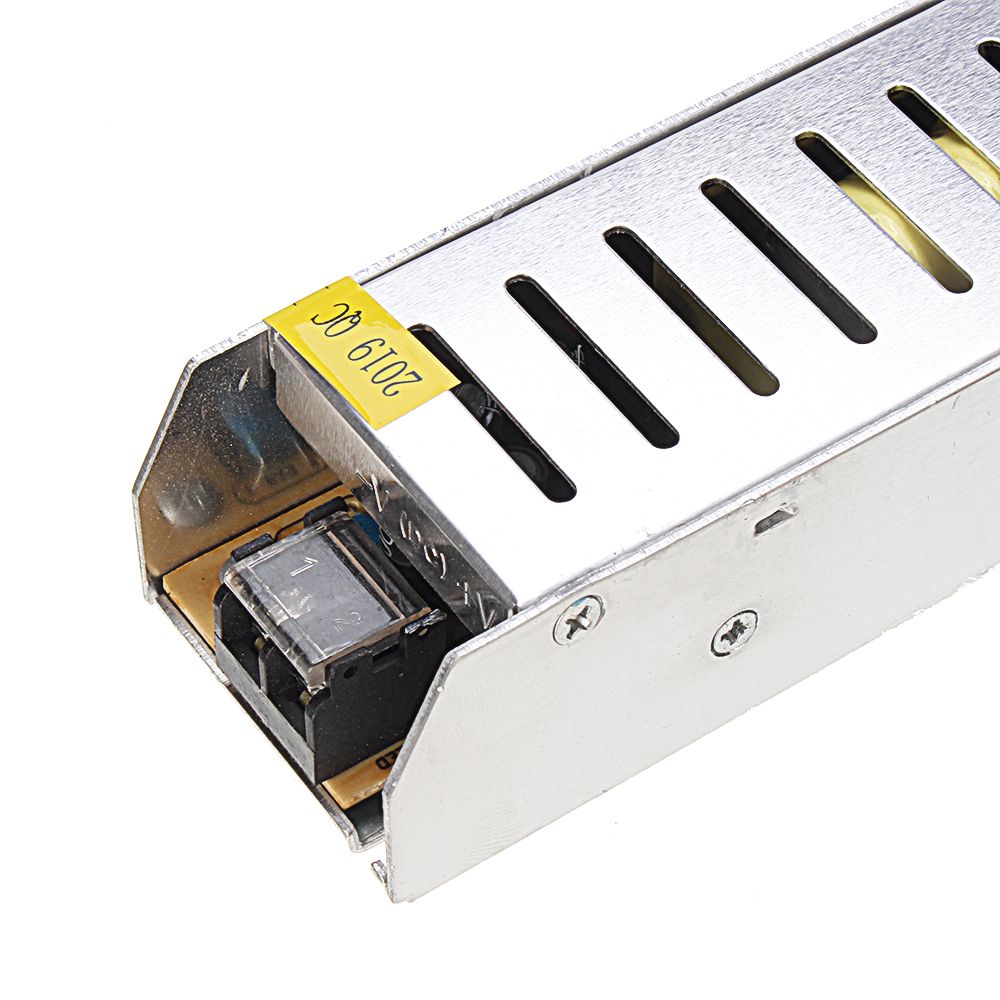

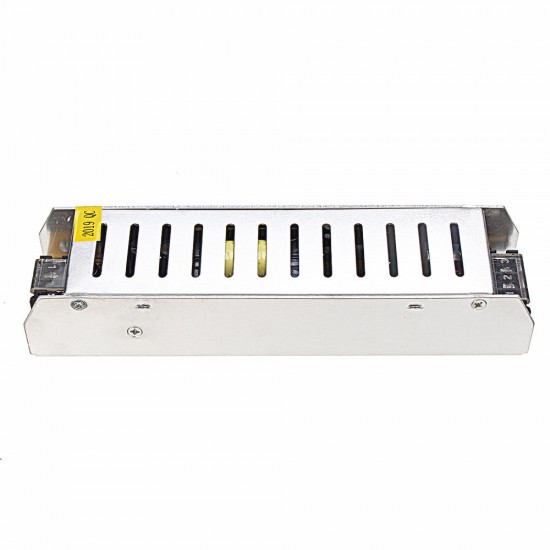

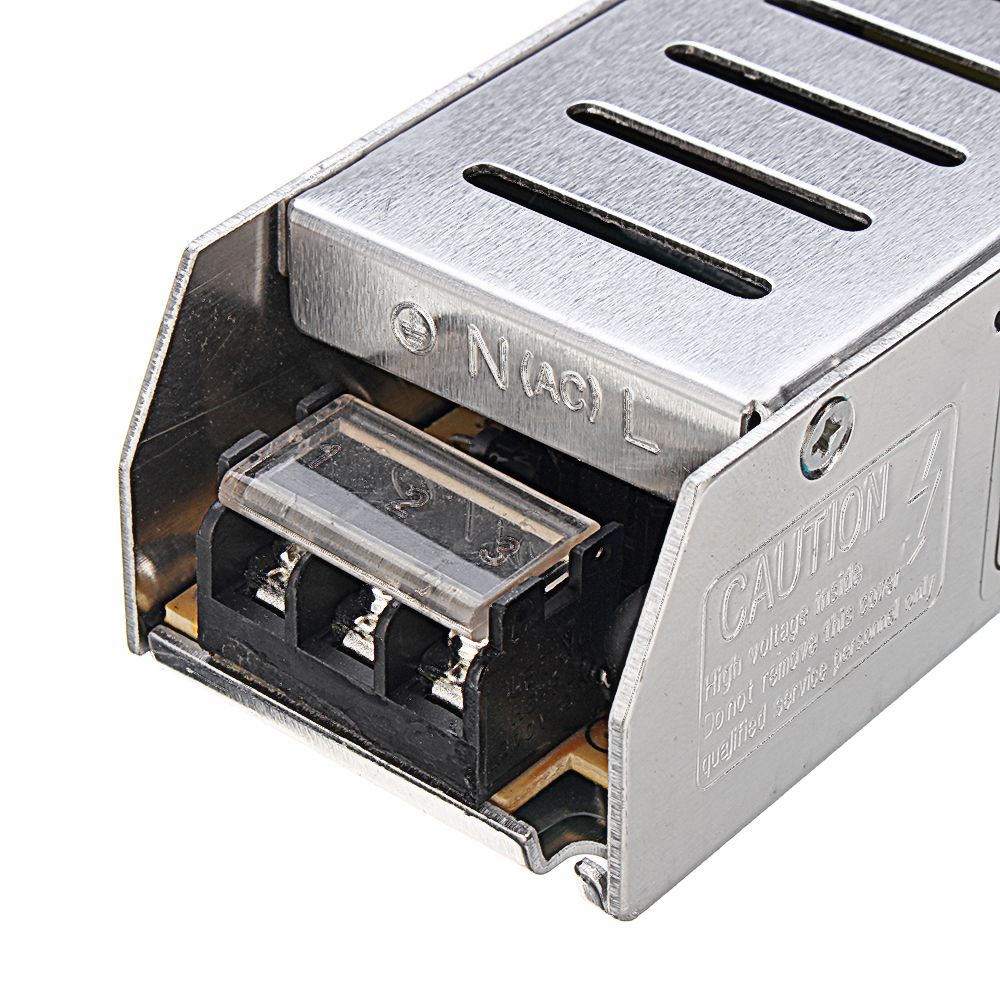

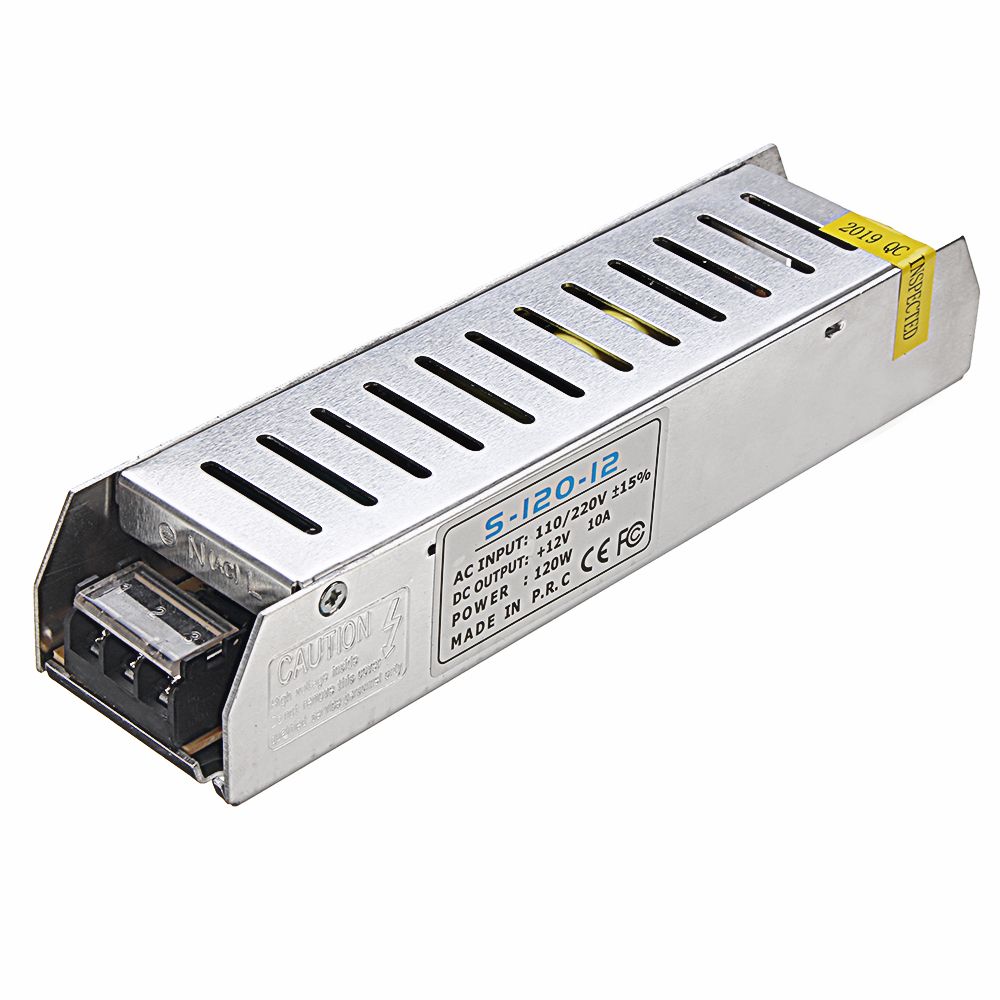

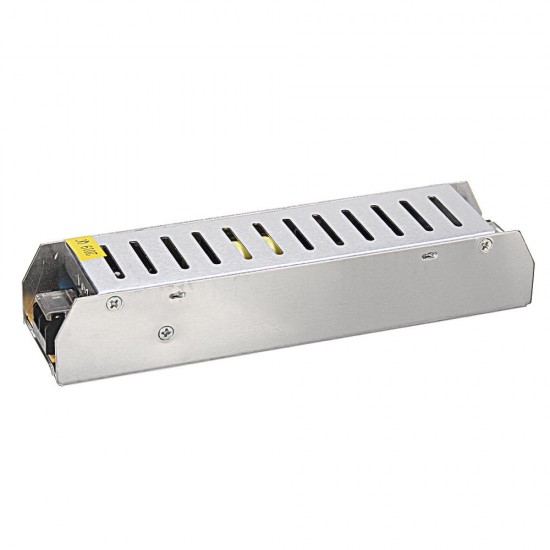

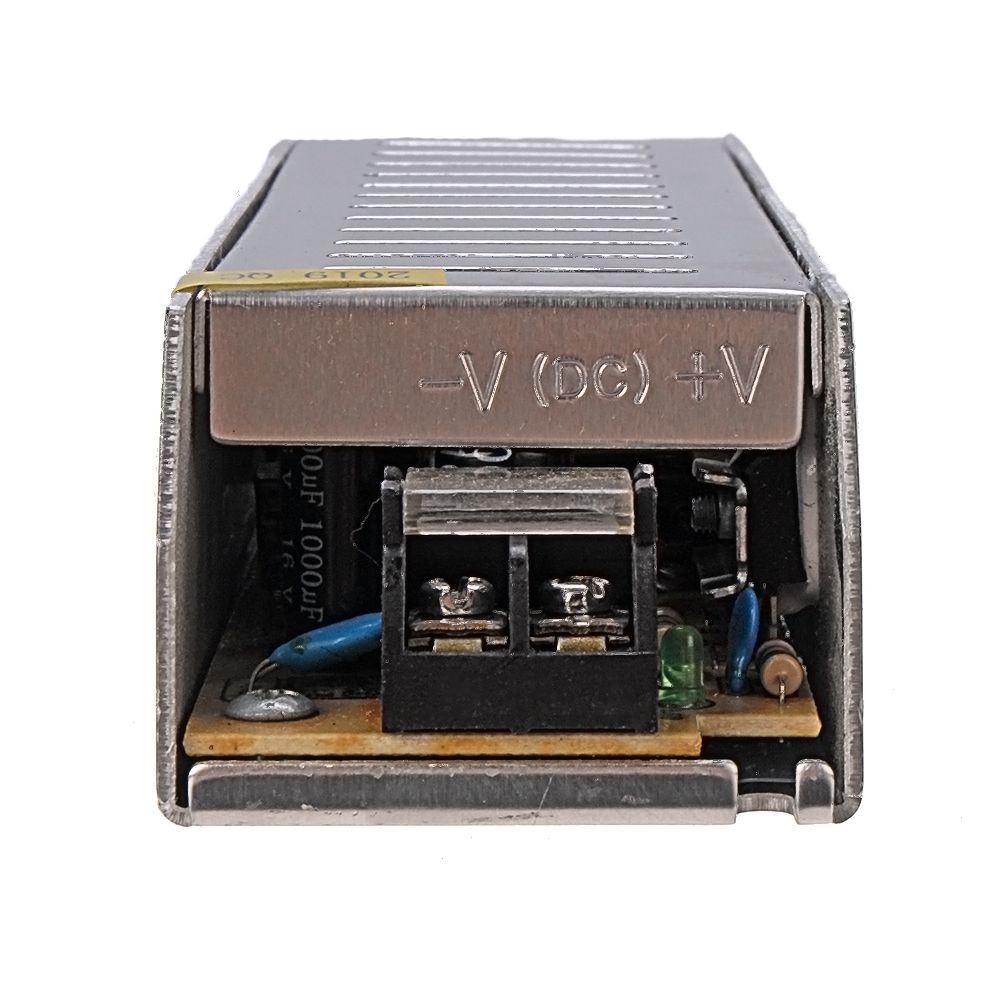

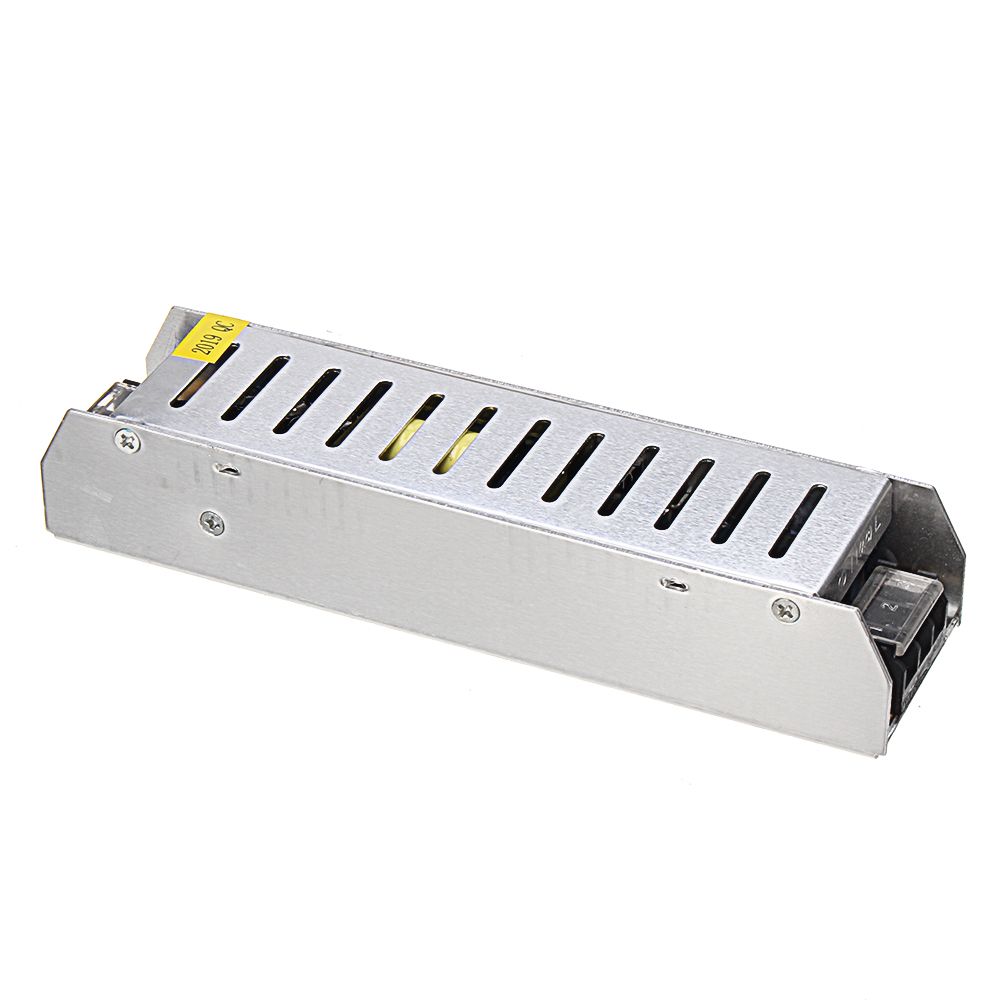

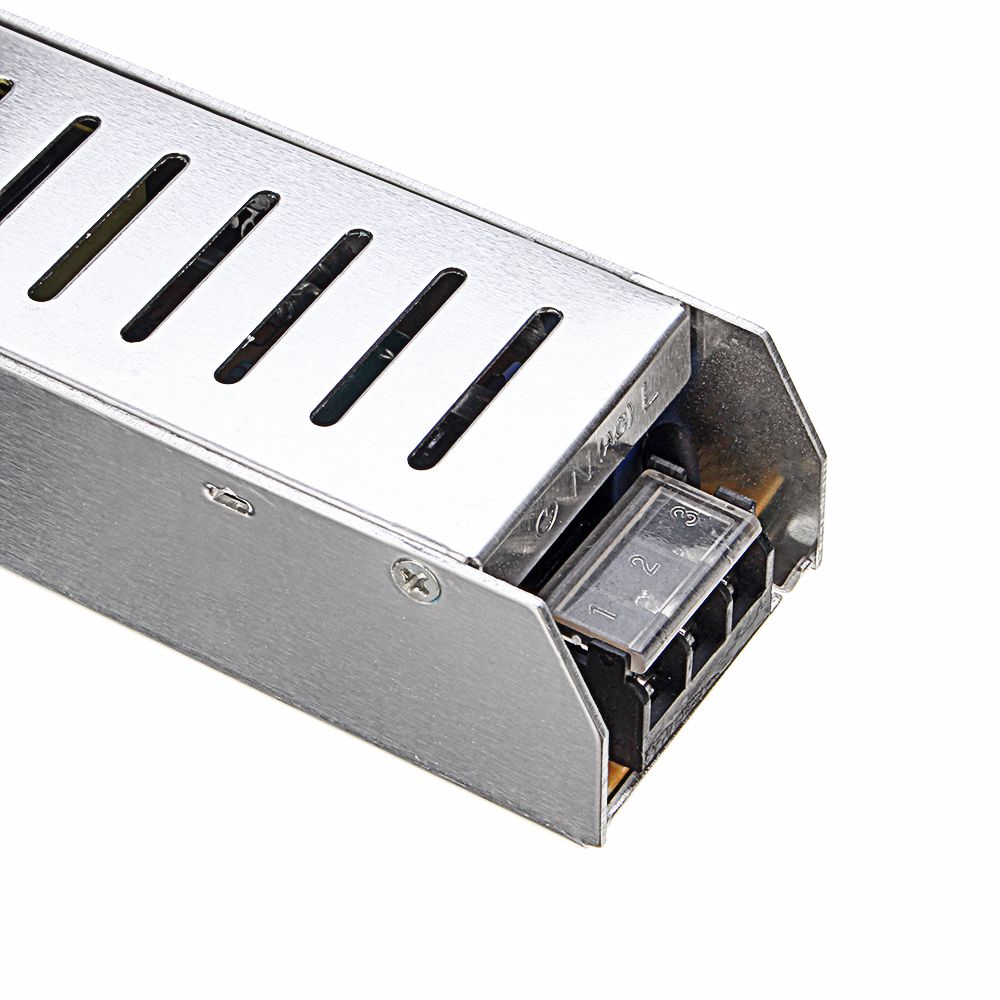

AC110V-240V to DC12V 10A 120W Switching Power Supply 187*45*35mm
- Stock: In Stock
- Model: EB0043696
- SKU: EB0043696

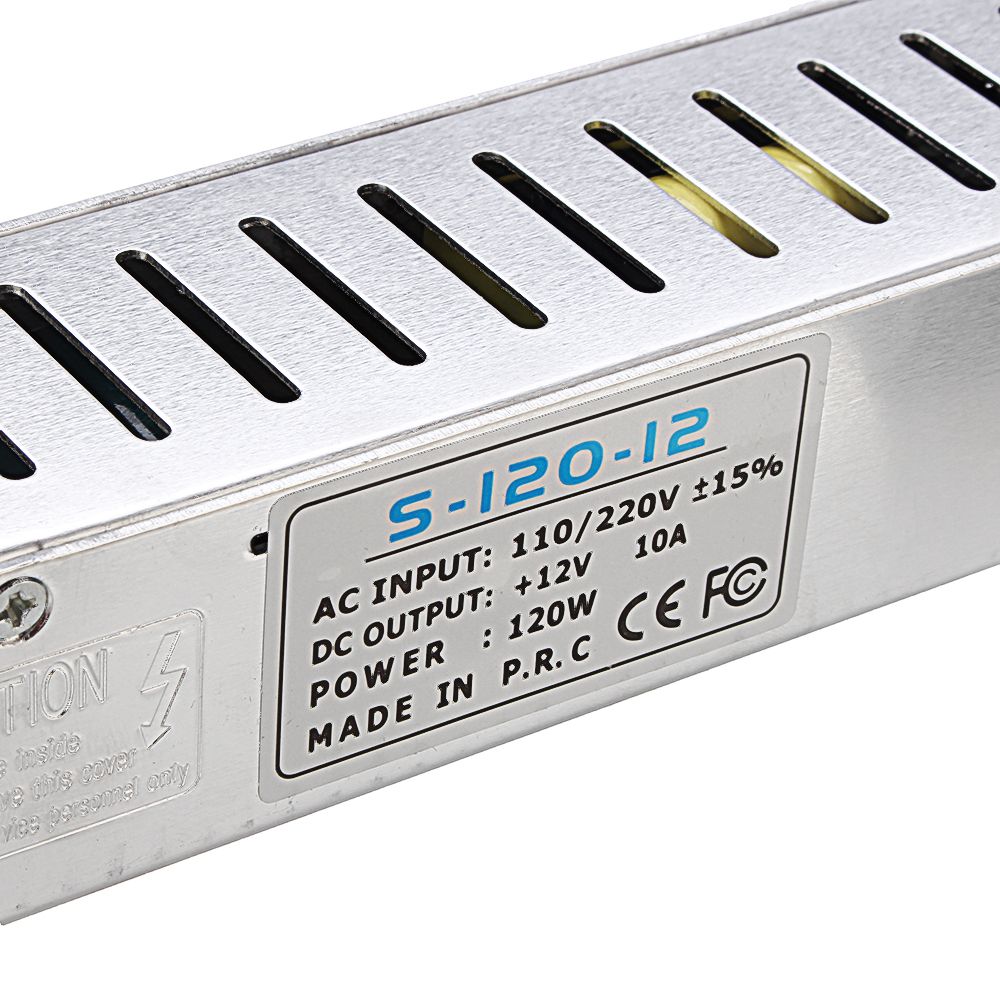

| Model | S-120-12 |
| AC input voltage range | 220VAC |
| Input current | 0.5A/230V |
| AC impulse current | Cold-start current 9A/230V |
| DC output voltage | 12V |
| DC output power | 120W |
| Rated output current | 10A |
| Output voltage error | ±1% |
| Efficiency | 85% |
| Wave and noise | 150mVp-p |
| Inlet stability | ±0.5% |
| Load stability | ±0.5% |
| Leakage current | <0.5mA/230VAC |
| Overload protection | 105% - 150% rated power, automatically recovery |
| Vibration | 10500Hz,2G 10min./1cycle,Period for 60min,Each axes |
| Cooling method | Fan assisted cooling |
| Working temperature and humidity | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
| Store temperature and humidity | - 30 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
| Safety standards | CE(EMC+LVD), FCC. |
| Dimension | 187x45x35mm |
| Weight | 0.3kg |
Feature:
1 x Power supply
