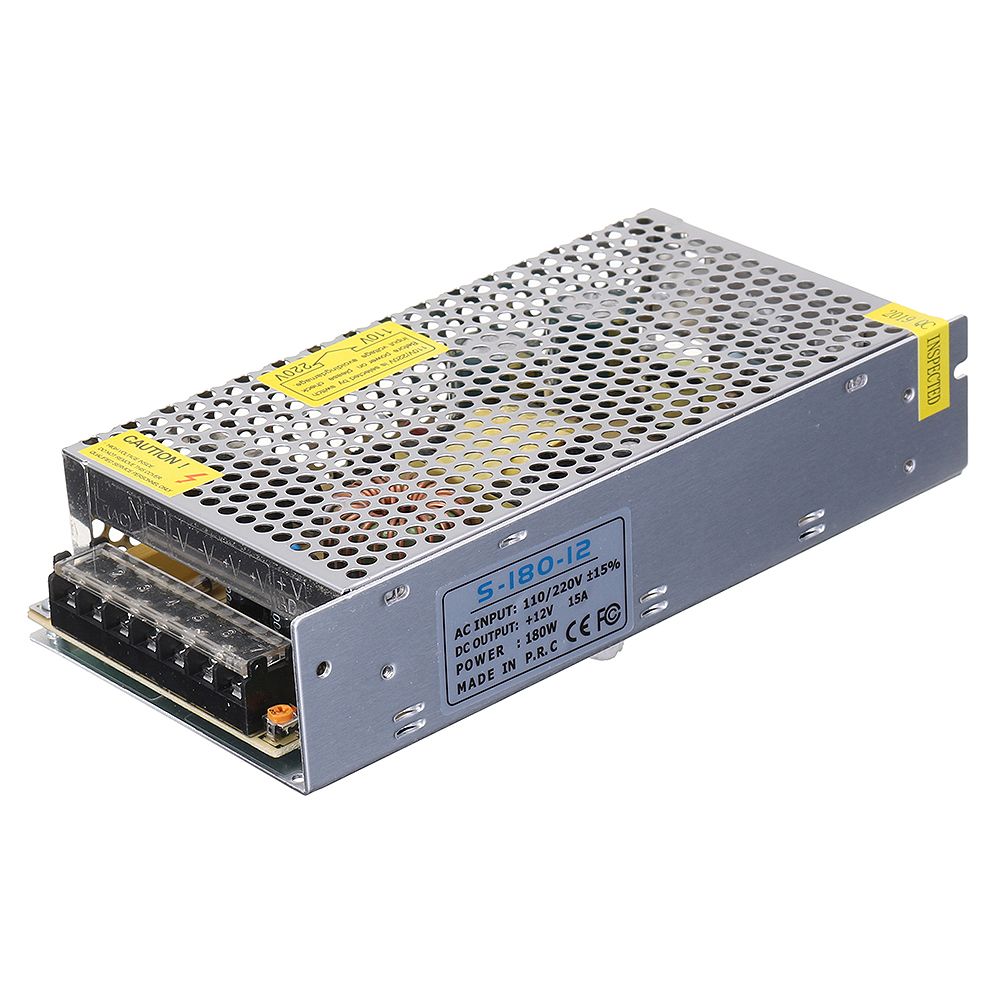

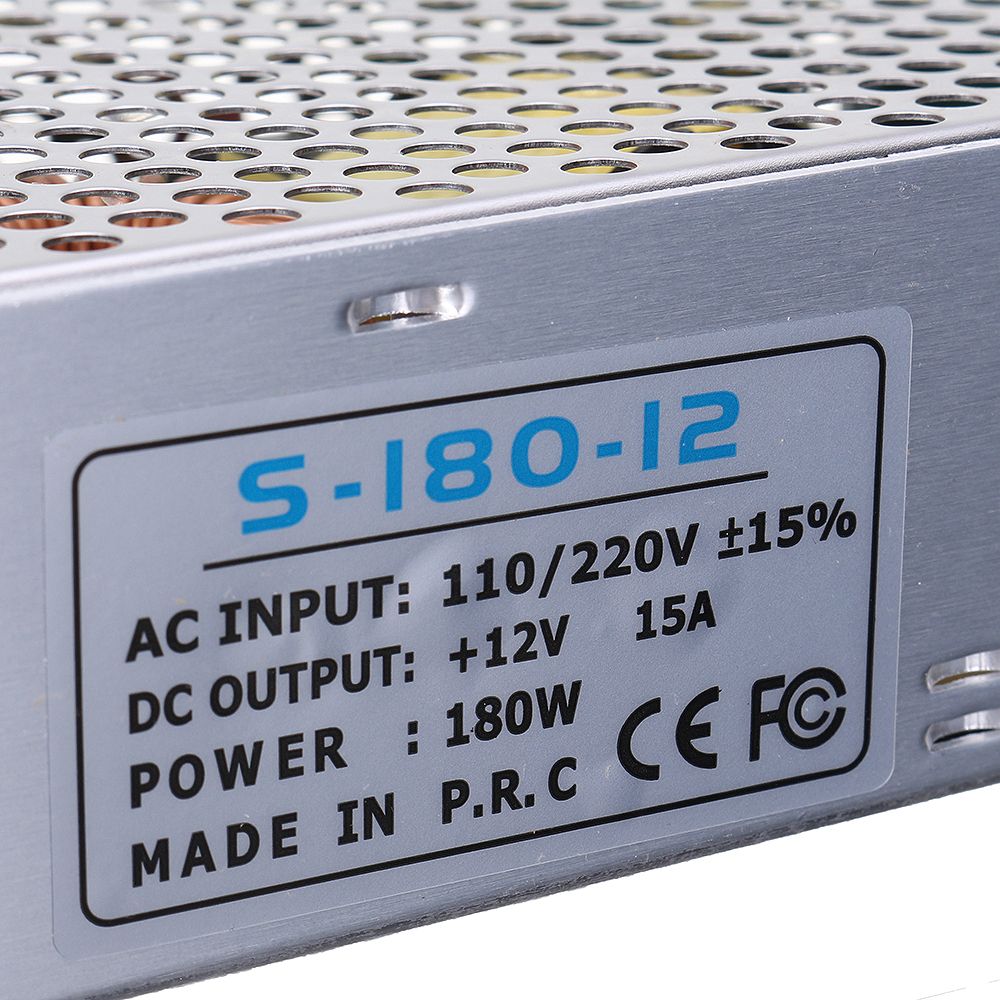

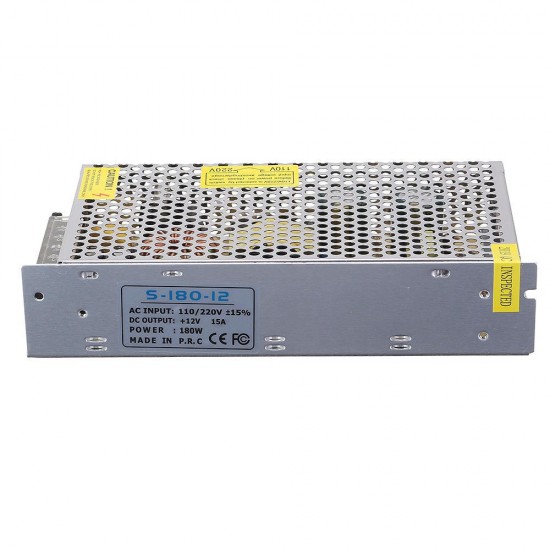

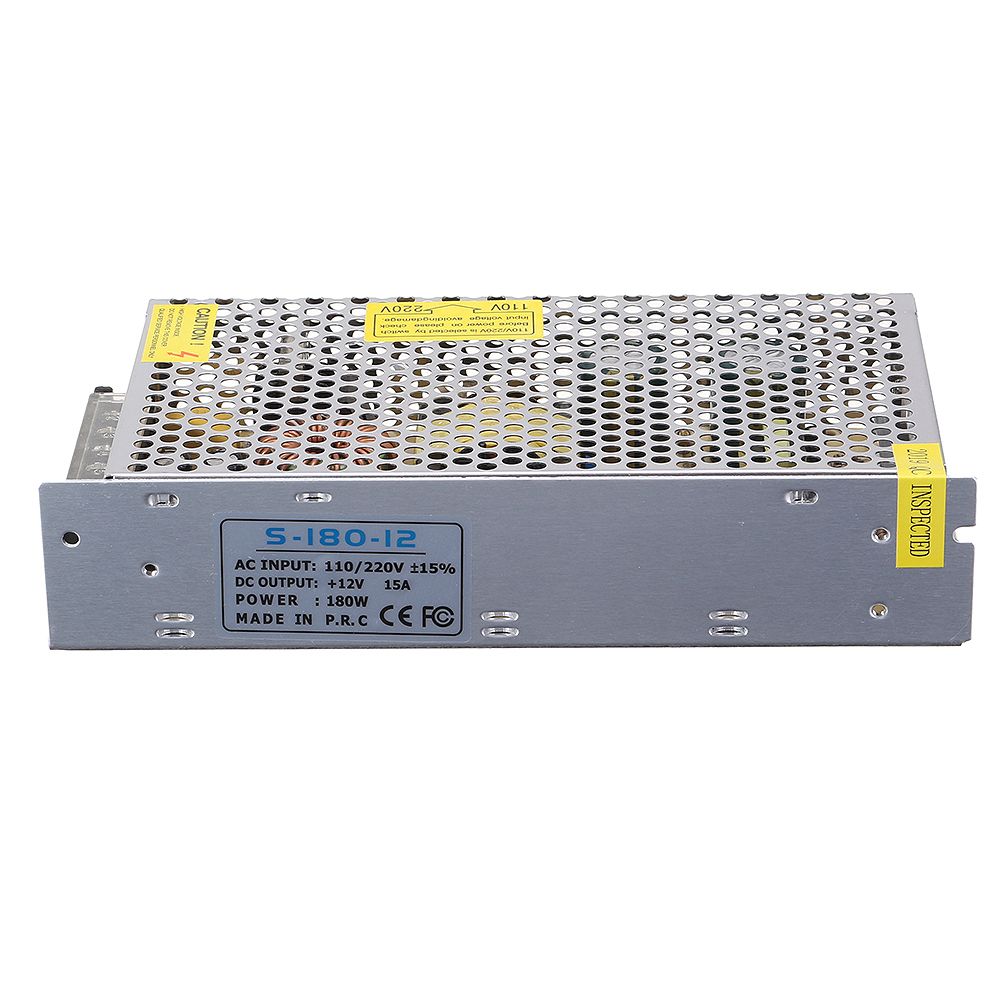

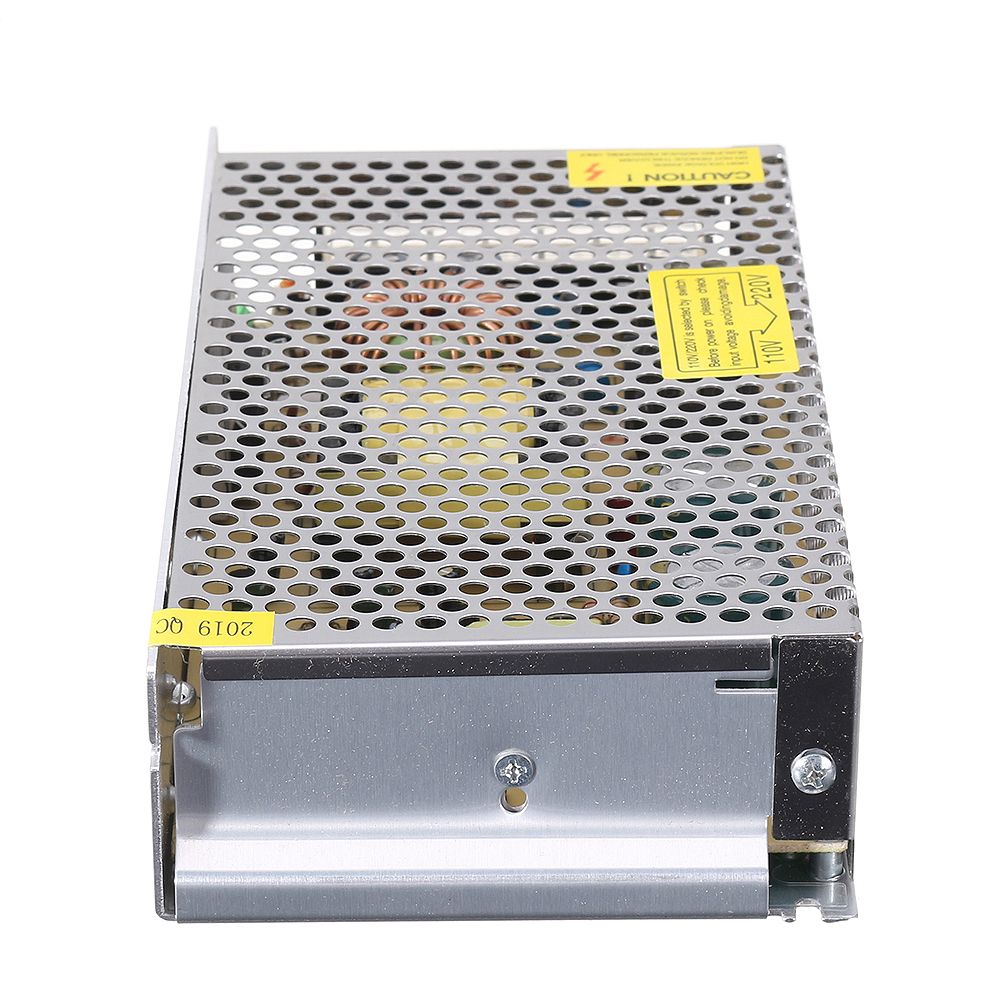

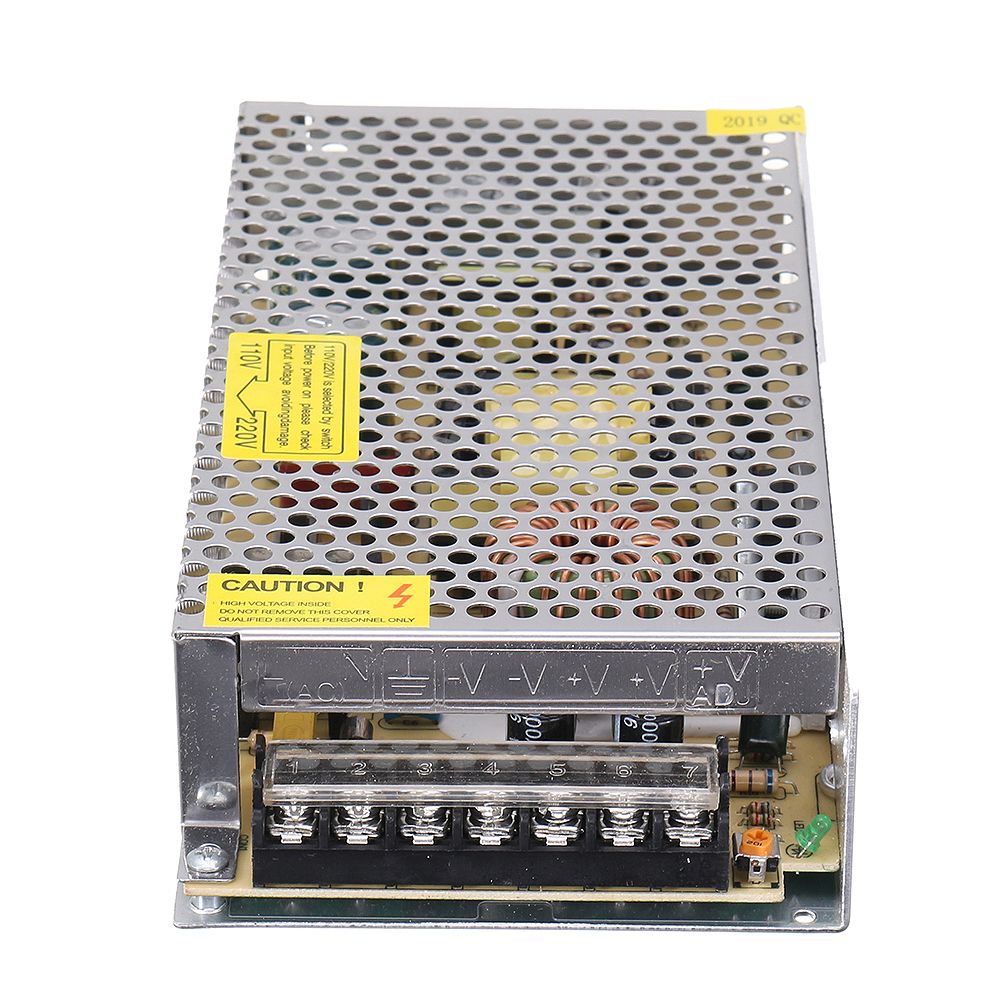

AC110V/220V to DC12V 15A 180W Switching Power Supply 198*98*42mm
- Stock: In Stock
- Model: EB0045207
- SKU: EB0045207
- Voltage: Buck
Precise details:
| Project | Technical indicators | Remarks | |
| Basic requirements | 12V 15A 180W | Common | |
| Dimensions | 198*98*42mm | ||
| Operating temperature | -10°C to +50°C, 20% to 95% RH (no condensation) | ||
| Storage temperature | -20°C to +85°C, 20% to 95% RH (no condensation) | ||
| Temperature Coefficient | 0.02~0.05%/°C | ||
| Heat dissipation method | Natural cooling | ||
| Rated voltage range | 220VAC | AC | |
| Input voltage range | 170-260V | AC | |
| Input frequency range | 47~63Hz | Except DC input | |
| Input undervoltage protection | 115 to 150% intermittent mode | ||
| Input undervoltage recovery | Automatic recovery | ||
| Input overvoltage protection | 115 to 150% intermittent mode | ||
| Input overvoltage recovery | Automatic recovery | ||
| Electric shock | ≤1% | Maximum input voltage full load | |
| Machine efficiency | ≤0.5% | Rated input full load | |
| Output voltage range | 12V ± 0.5% | Two channel output | |
| Output current | 15A | Two channel output | |
| Ripple and noise | ≤100 mVp-p | ||
| Rise Time | ≤50 ms | ||
| Output delay | / | ||
| Voltage regulation | ≤0.5% | ||
| Load Regulation | ≤1% | ||
| Output overcurrent protection | Current drooping | ||
| Output short circuit protection | IGBT | ||
| Output overvoltage protection | Soft start protection | ||
| Insulation resistance | Input to output | >30MΩ | |
| Input to the earth | >30MΩ | ||
| Output to the earth | >30MΩ | ||
| Insulation resistance | >50MΩ | ||
| MTBF | 100,000H | ||
Feature:
| Project | Technical indicators | Remarks | |
| Basic requirements | 12V 15A 180W | Common | |
| Dimensions | 198*98*42mm | ||
| Operating temperature | -10°C to +50°C, 20% to 95% RH (no condensation) | ||
| Storage temperature | -20°C to +85°C, 20% to 95% RH (no condensation) | ||
| Temperature Coefficient | 0.02~0.05%/°C | ||
| Heat dissipation method | Natural cooling | ||
| Rated voltage range | 220VAC | AC | |
| Input voltage range | 170-260V | AC | |
| Input frequency range | 47~63Hz | Except DC input | |
| Input undervoltage protection | 115 to 150% intermittent mode | ||
| Input undervoltage recovery | Automatic recovery | ||
| Input overvoltage protection | 115 to 150% intermittent mode | ||
| Input overvoltage recovery | Automatic recovery | ||
| Electric shock | ≤1% | Maximum input voltage full load | |
| Machine efficiency | ≤0.5% | Rated input full load | |
| Output voltage range | 12V ± 0.5% | Two channel output | |
| Output current | 15A | Two channel output | |
| Ripple and noise | ≤100 mVp-p | ||
| Rise Time | ≤50 ms | ||
| Output delay | / | ||
| Voltage regulation | ≤0.5% | ||
| Load Regulation | ≤1% | ||
| Output overcurrent protection | Current drooping | ||
| Output short circuit protection | IGBT | ||
| Output overvoltage protection | Soft start protection | ||
| Insulation resistance | Input to output | >30MΩ | |
| Input to the earth | >30MΩ | ||
| Output to the earth | >30MΩ | ||
| Insulation resistance | >50MΩ | ||
| MTBF | 100,000H | ||
