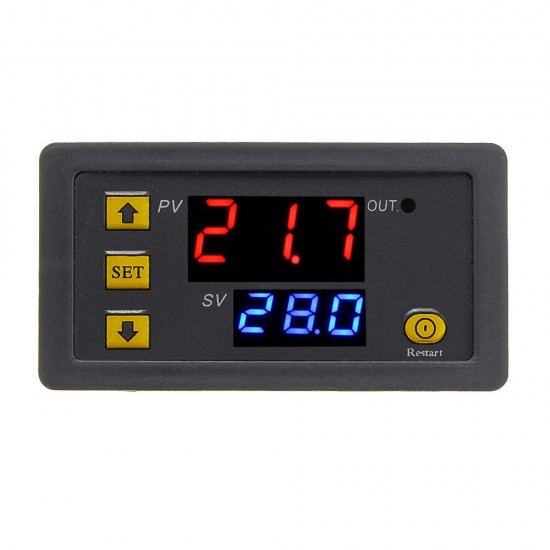

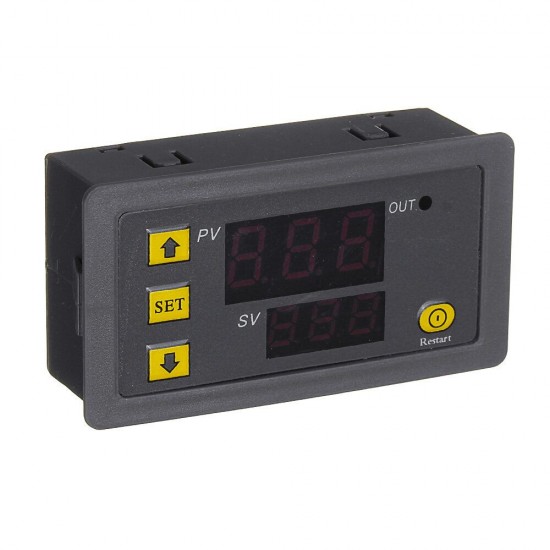

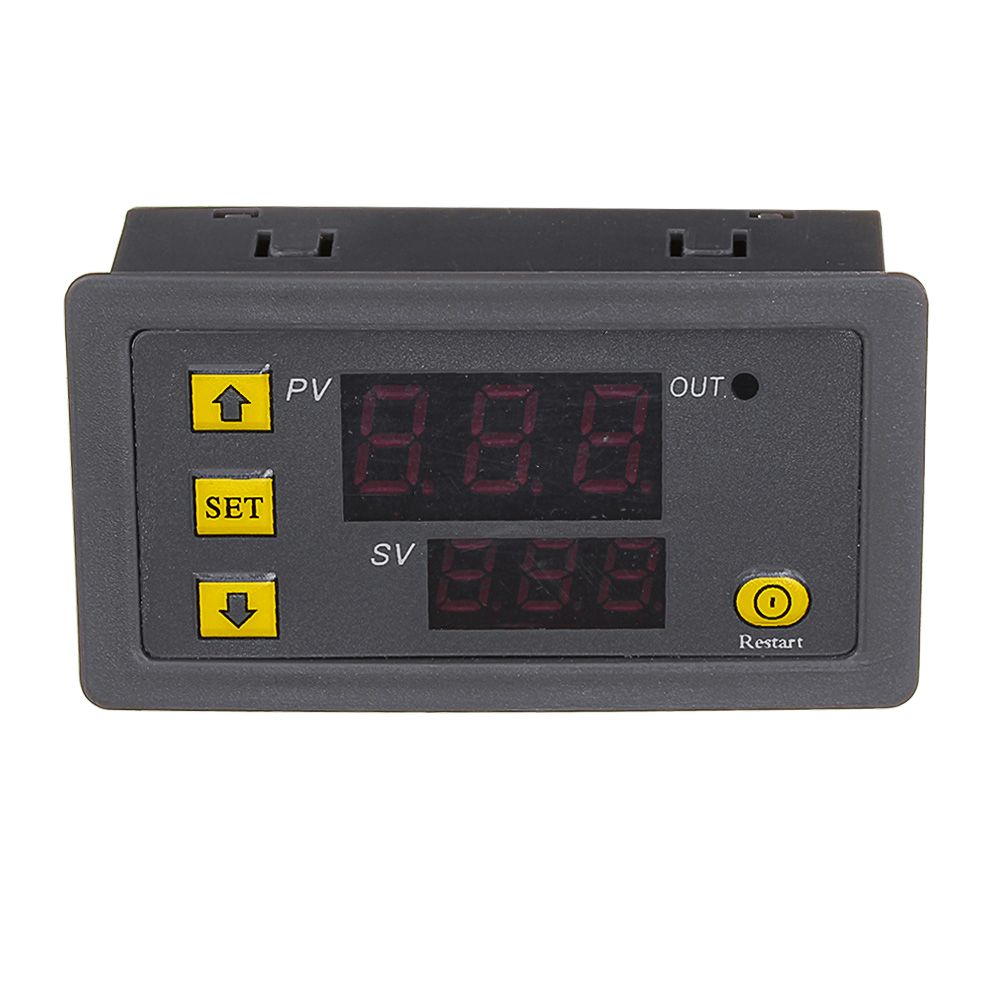

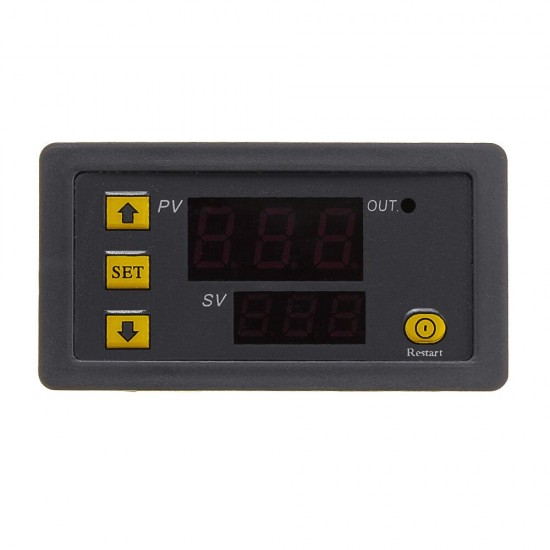

AC110V-220V Digital Display Time Relay Automation Delay Timer Control Switch Relay Module

Based on 0 reviews. - Write a review

$5.83

Ex Tax: $5.83

Stock: In Stock
Model: EB0046410
SKU: EB0046410

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: 110V - 230V

Precise details>>

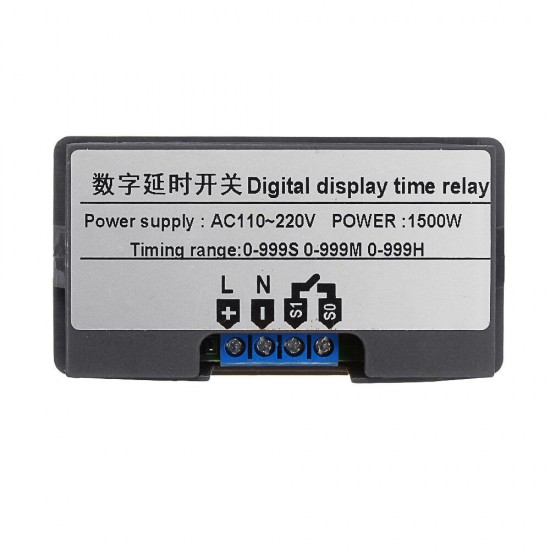

Specifications:

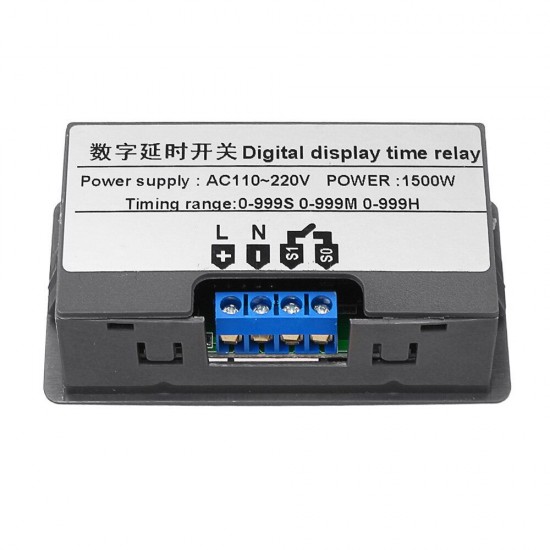

Timing range: 0-999s 0-999m 0-999h

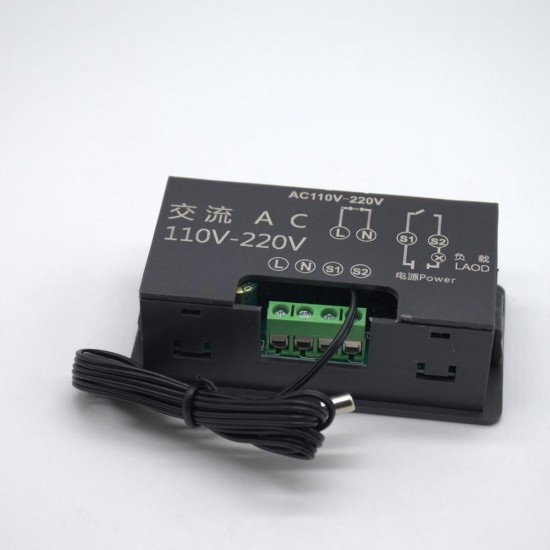

Supply voltage: AC110V-220V

Relay:20A

Working current:10A(max)

Power:500W(max)

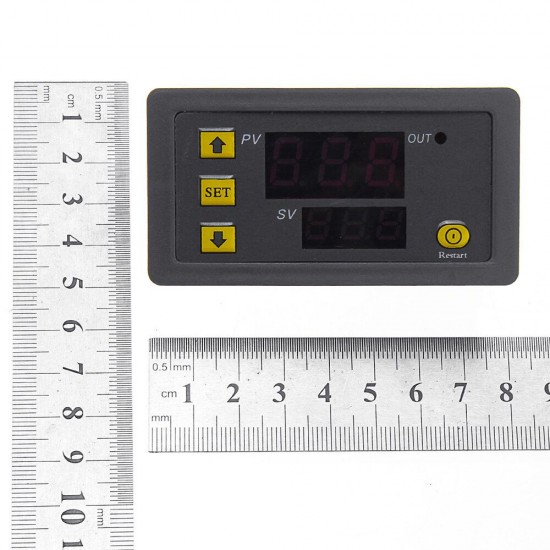

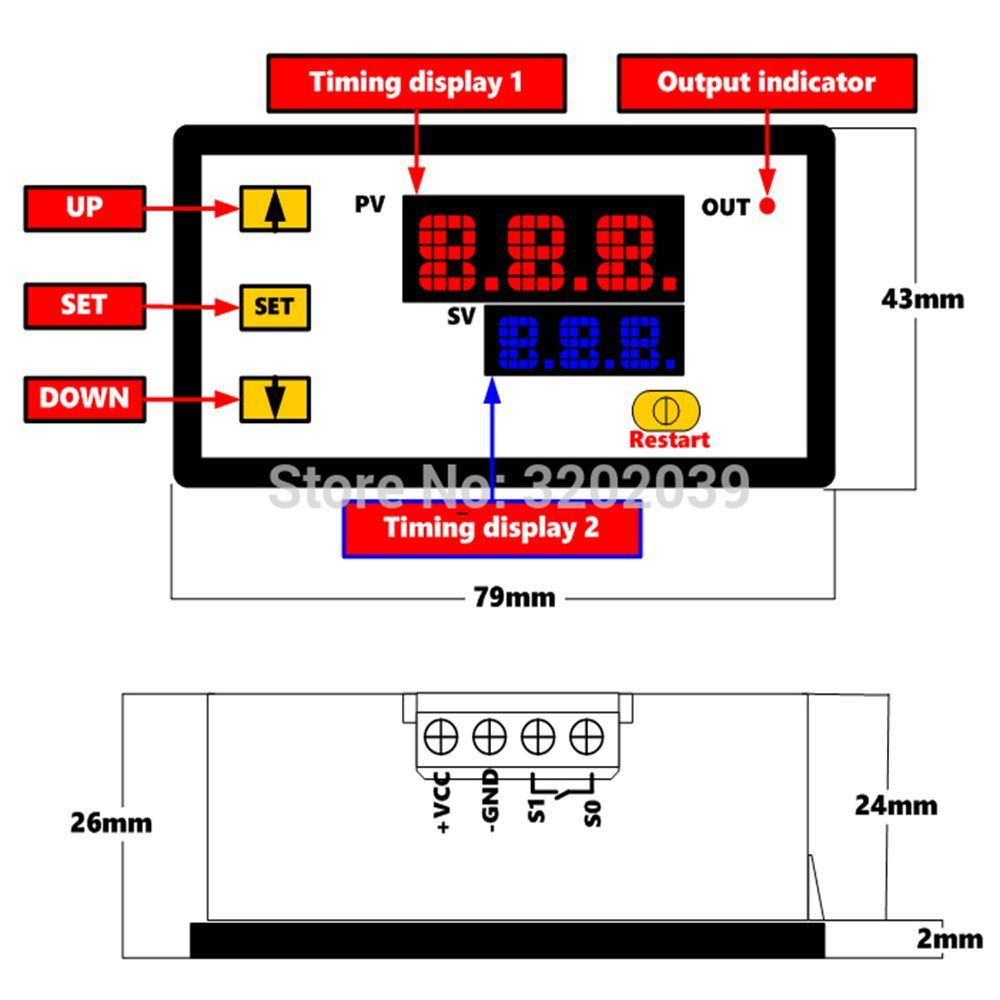

Size :79*26*43mm

Hole size:72*40mm

Instructions:

Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s.

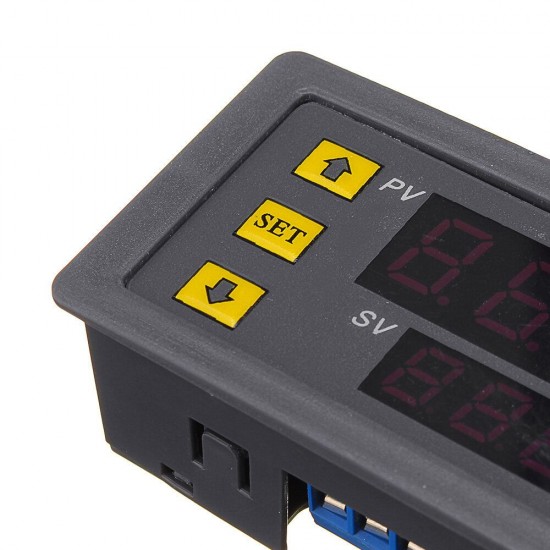

Short press button SET: If you start the time setting mode , Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module will save the date you have set after 5s .

Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-.

P0--0: Timing time mode : 0---999s.

P0--1: Timing time mode : 0---999min.

P0--2: Timing time mode : 0---999h.

P1--0: The relay will connect after you delay the T1 time .

P1--1: The relay will disconnect after you delay the T1 time.

P1--2: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it finish.

P1--3: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it finish.

P1--4: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it is cyclic.

P1--5: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it cyclic.

Example: A customer needs 10 seconds to start up and 20 seconds off. Setup is as follows:

T1 set time 10, T2 set time 20

P0 -- 0 (T1 time range is seconds)

P1--5 (timer work mode)

Package Included:

1 x Digital Display Time Relay
