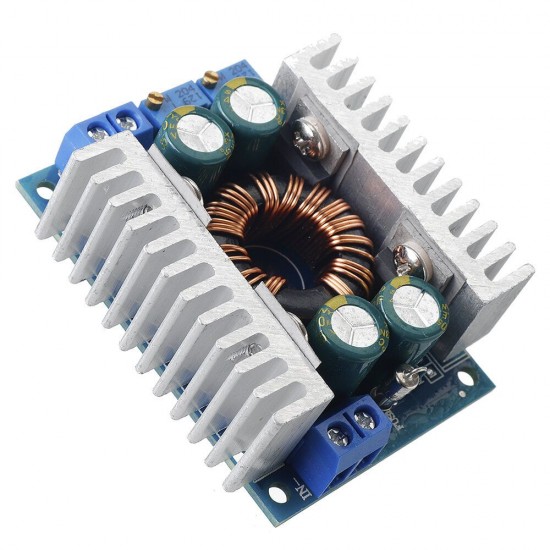

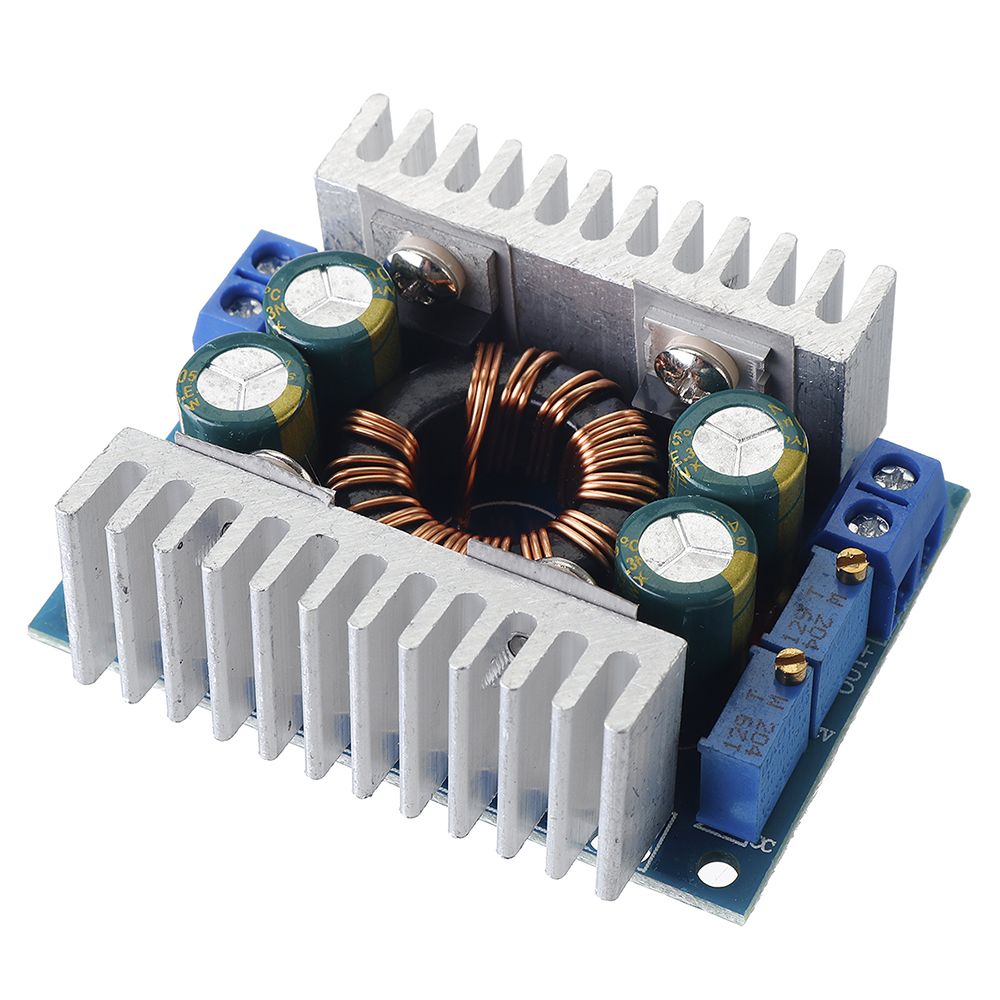

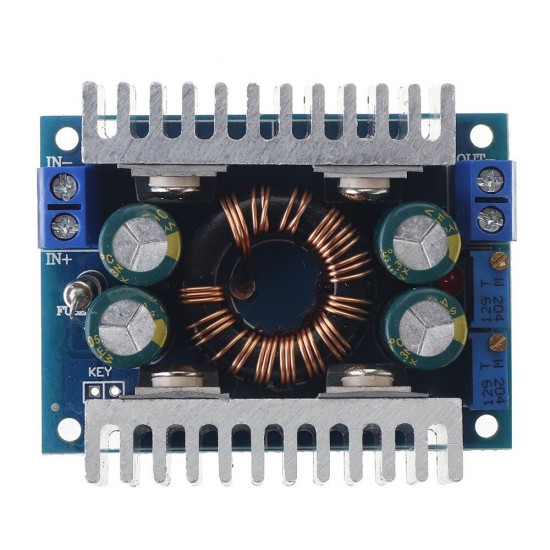

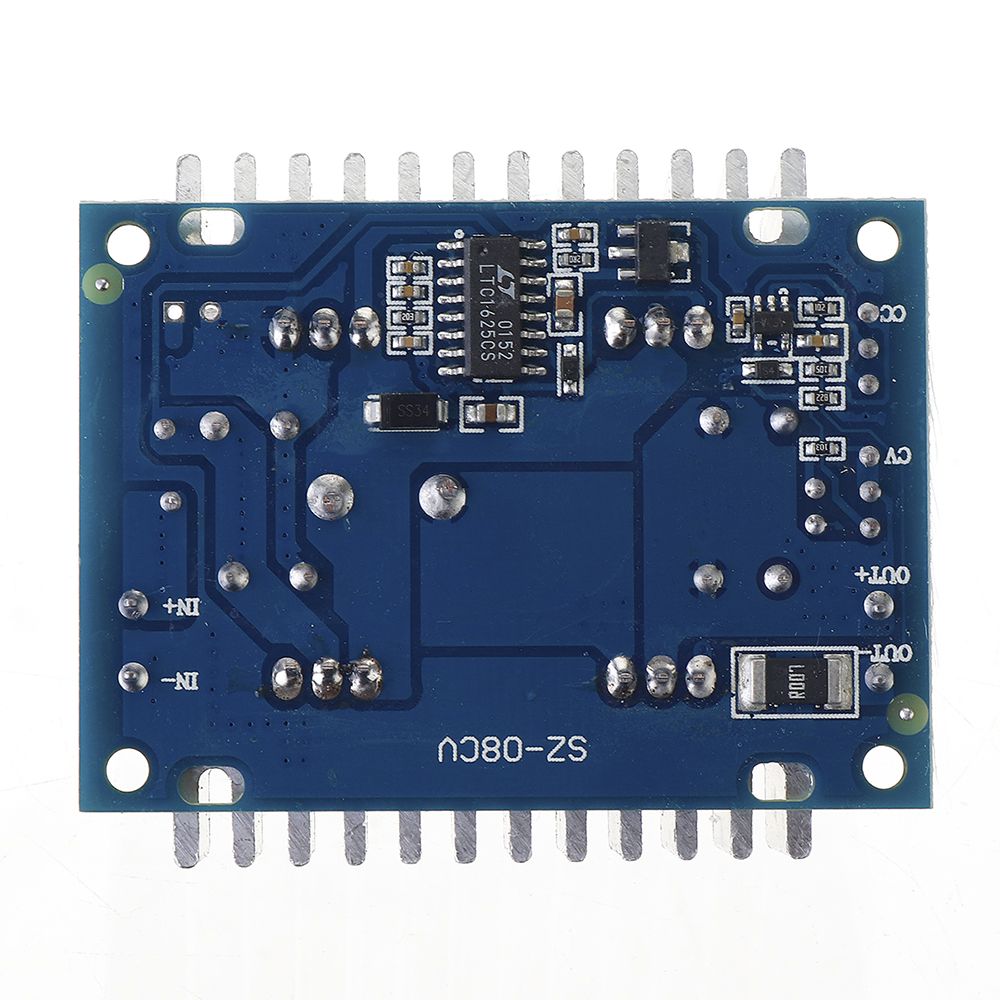

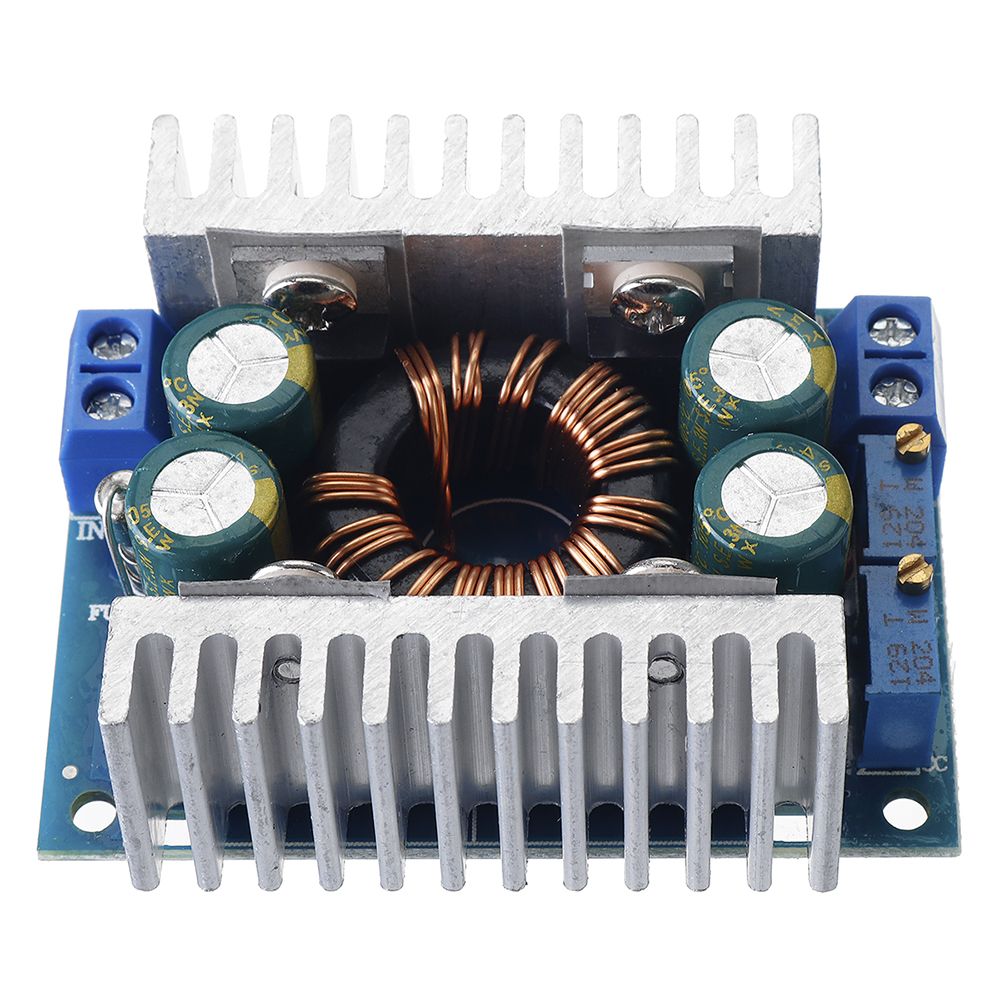

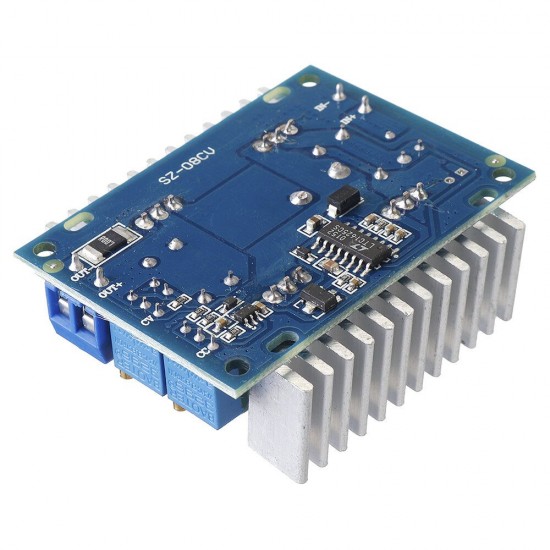

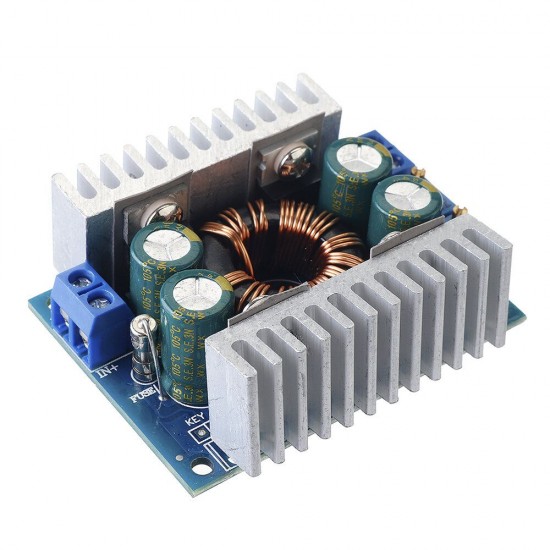

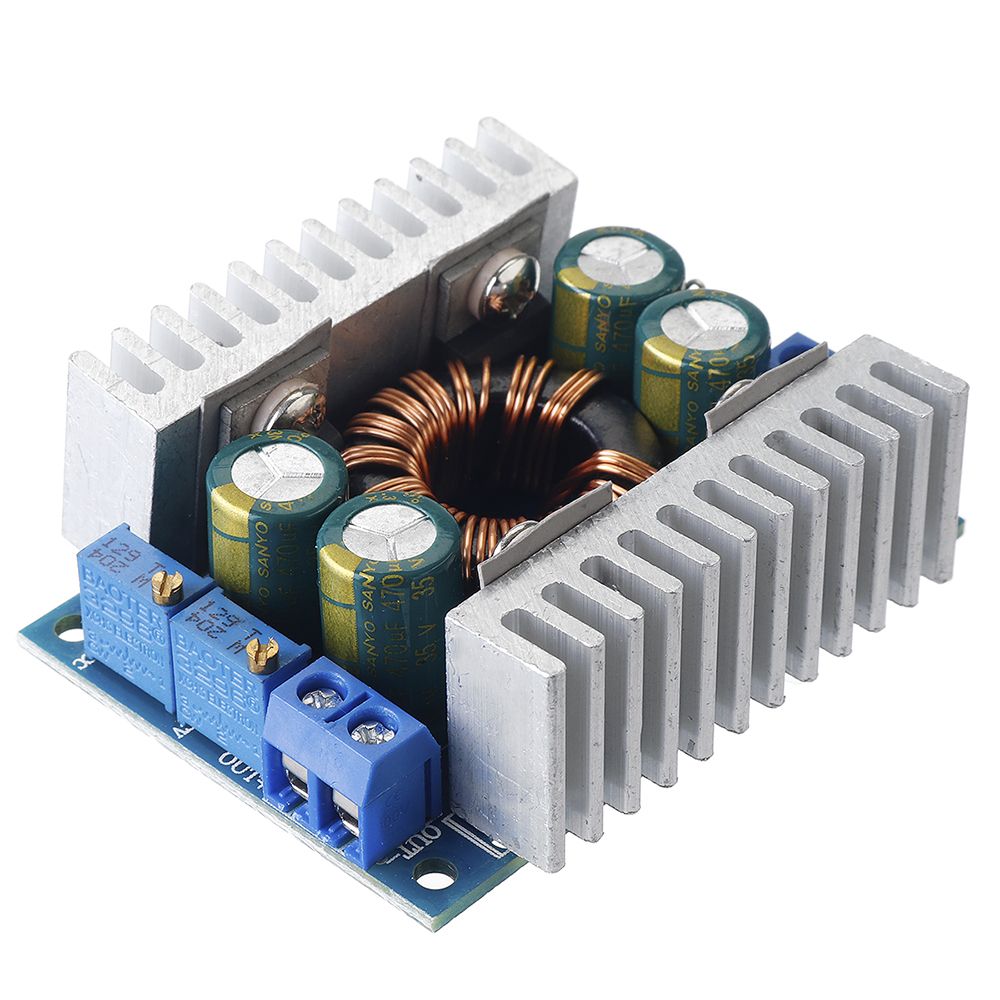

8A DC5-30V to DC1.25-30V 150KHz Automatic Step Up Step Down Adjustable Power Module Voltage Regulation With Short Circuit / Overtemperature Protection
- Stock: In Stock
- Model: EB0045209
- SKU: EB0045209
- Voltage: Constant current
Precise details:
Module parameters:Input voltage: DC5-30V
Input current: 8A (MAX) peak 10A (6A work a long time)
Quiescent current: 4mA (operating voltage is not the same there will be errors)
Output voltage: 1.25-30V continuously adjustable
Output Current: 10A (MAX) (5A long natural heat inside)
Output current range: 0.2-10A
Working temperature: -40 to + 85 degrees
Operating frequency: 150KHz
Conversion efficiency: Typical 91% (12V turn 12V5A) maximum 93%
Overcurrent protection: there
Short circuit protection: (limiting protection)
Overtemperature protection: (automatically reduce the output voltage after overtemperature)
Input reverse polarity protection: None, (if necessary, please enter the string into the diode)
Output anti-anti-irrigation: Yes, no need for charging plus blocking diode.
Connection: Terminal output, (IN is the input, OUT output)
Package included:
1 x Automatic Step Up Step Down Adjustable Power Module
Input voltage: DC5-30V
Input current: 8A (MAX) peak 10A (6A work a long time)
Quiescent current: 4mA (operating voltage is not the same there will be errors)
Output voltage: 1.25-30V continuously adjustable
Output Current: 10A (MAX) (5A long natural heat inside)
Output current range: 0.2-10A
Working temperature: -40 to + 85 degrees
Operating frequency: 150KHz
Conversion efficiency: Typical 91% (12V turn 12V5A) maximum 93%
Overcurrent protection: there
Short circuit protection: (limiting protection)
Overtemperature protection: (automatically reduce the output voltage after overtemperature)
Input reverse polarity protection: None, (if necessary, please enter the string into the diode)
Output anti-anti-irrigation: Yes, no need for charging plus blocking diode.
Connection: Terminal output, (IN is the input, OUT output)
Package included:
1 x Automatic Step Up Step Down Adjustable Power Module
