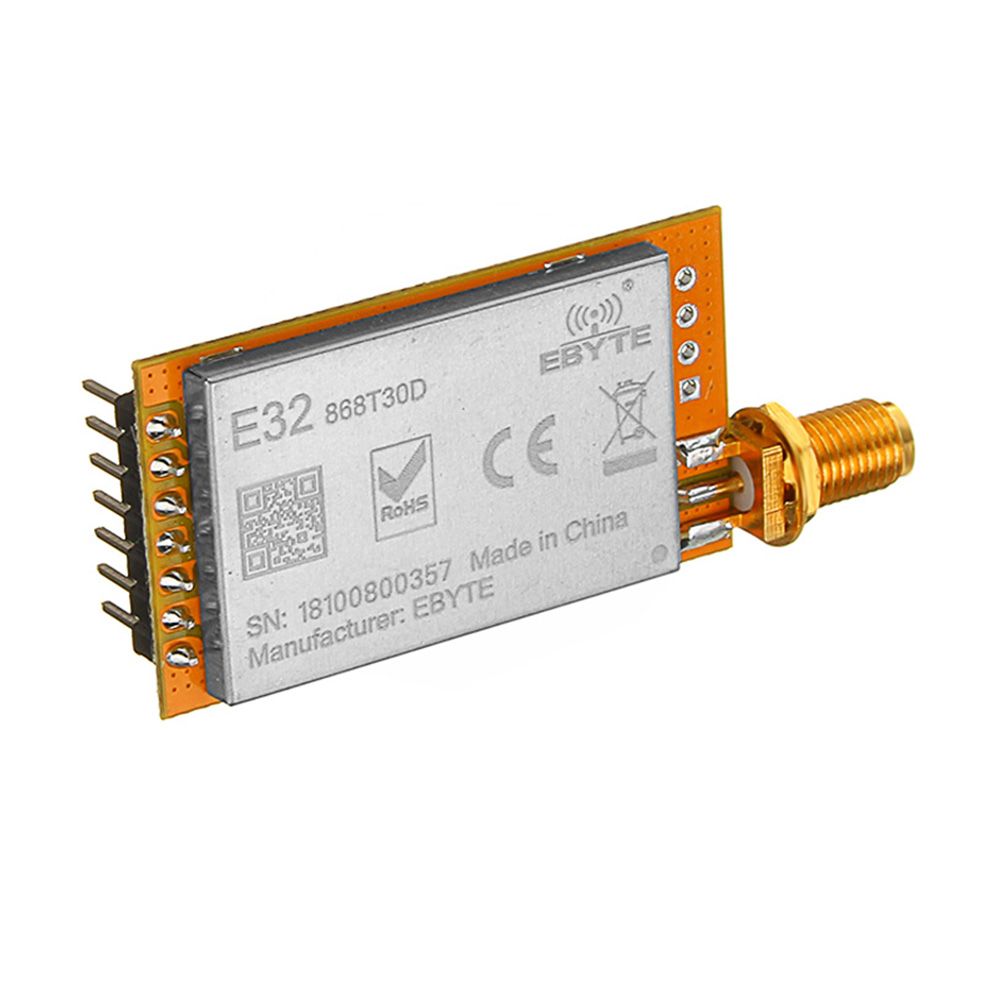

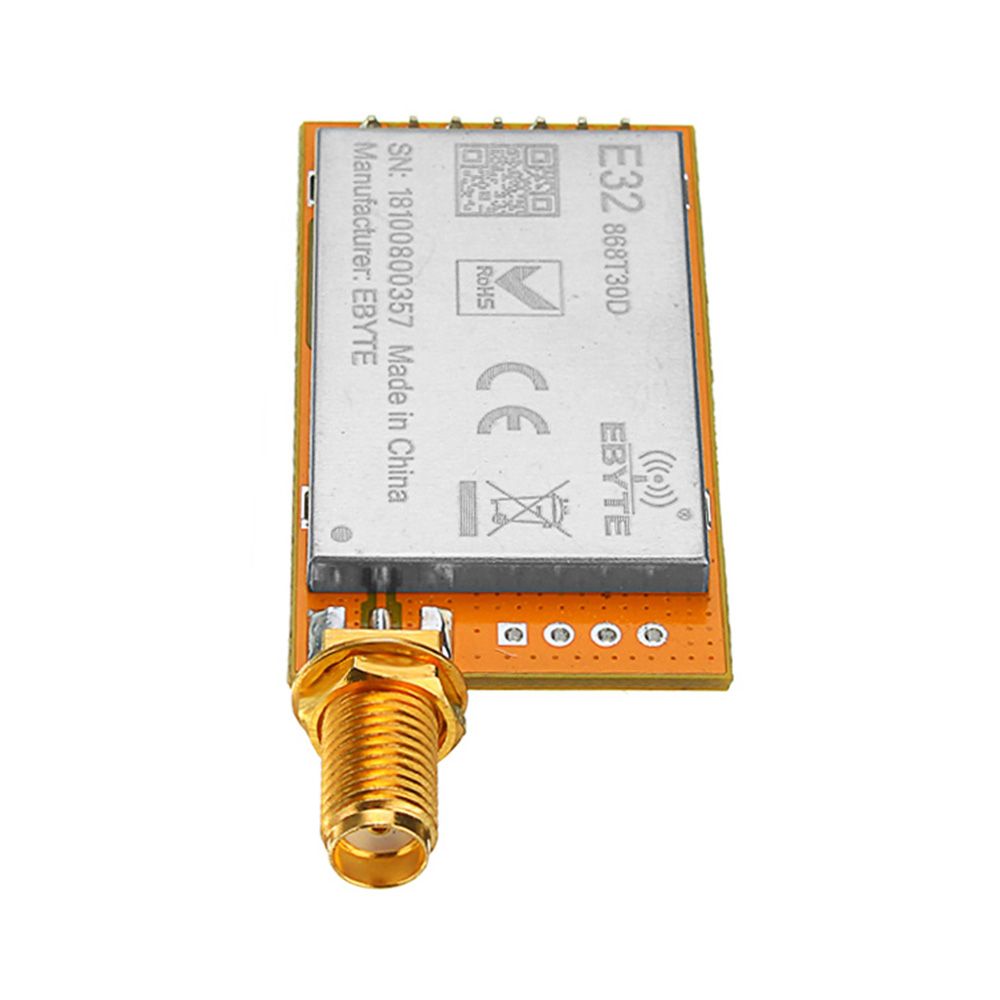

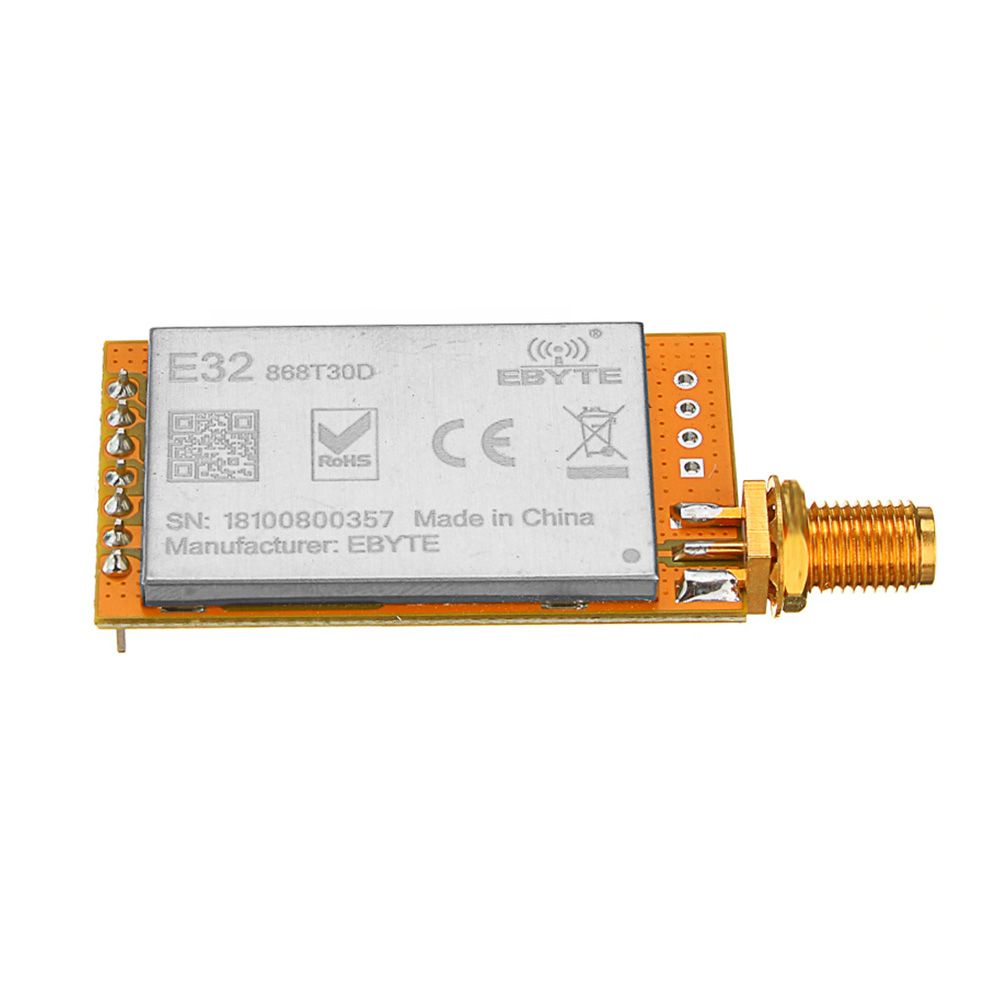

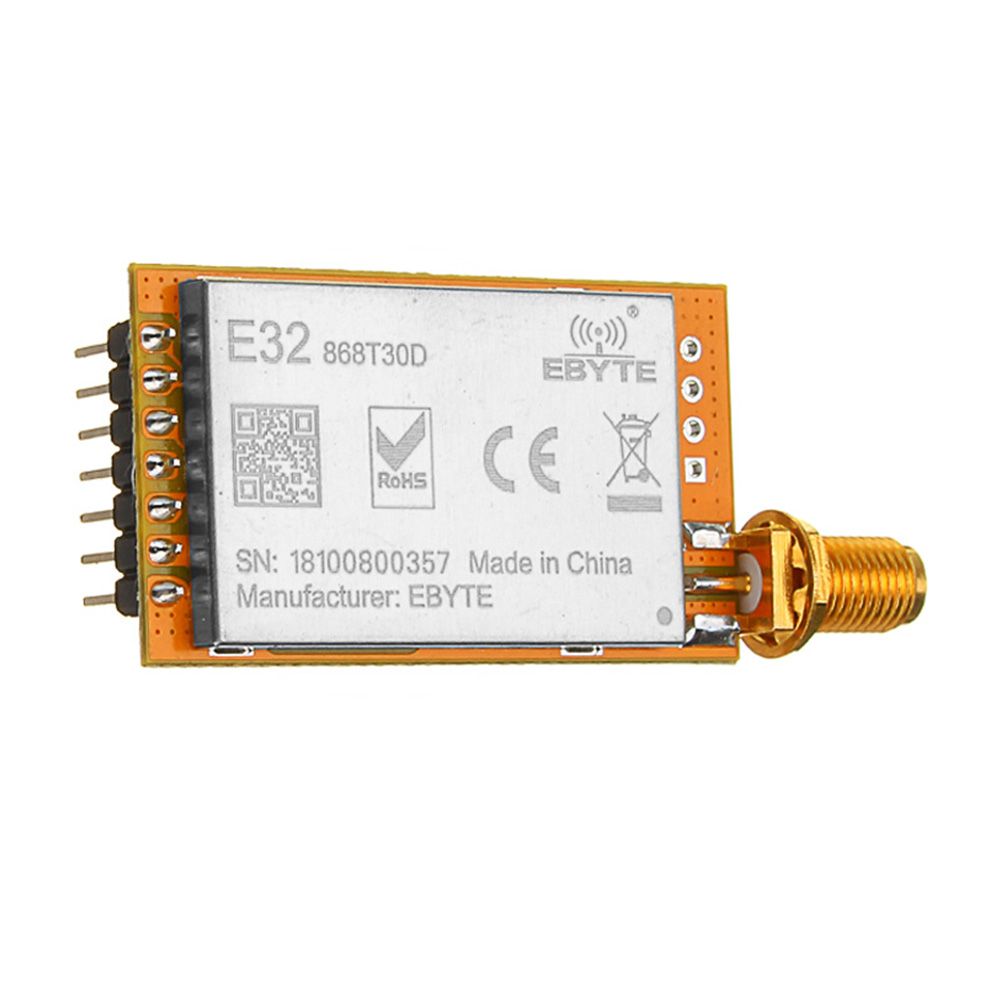

868MHz SX1276 SX1278 Wireless Transmitter and Receiver RF Module E32-868T30D 8000M Long Range 1W UART Transceiver rf Module
- Stock: In Stock
- Model: EB0042730
- SKU: EB0042730
| RF Parameter | Value | Remark |
| Working frequency | 862~893 MHz | Default: 868MHz |
| Transmitting power | 21~30 dBm | Default: 30dBm (About 1W) |
| Receiving sensitivity | -147 dBm | Air data rate: 0.3kbps |
| Air data rate | 0.3k~19.2kbps | Default: 2.4kbps |
| Test distance | 8000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, |
| air data rate: 2.4kbps | ||
| Hardware Parameter | Value | Remark |

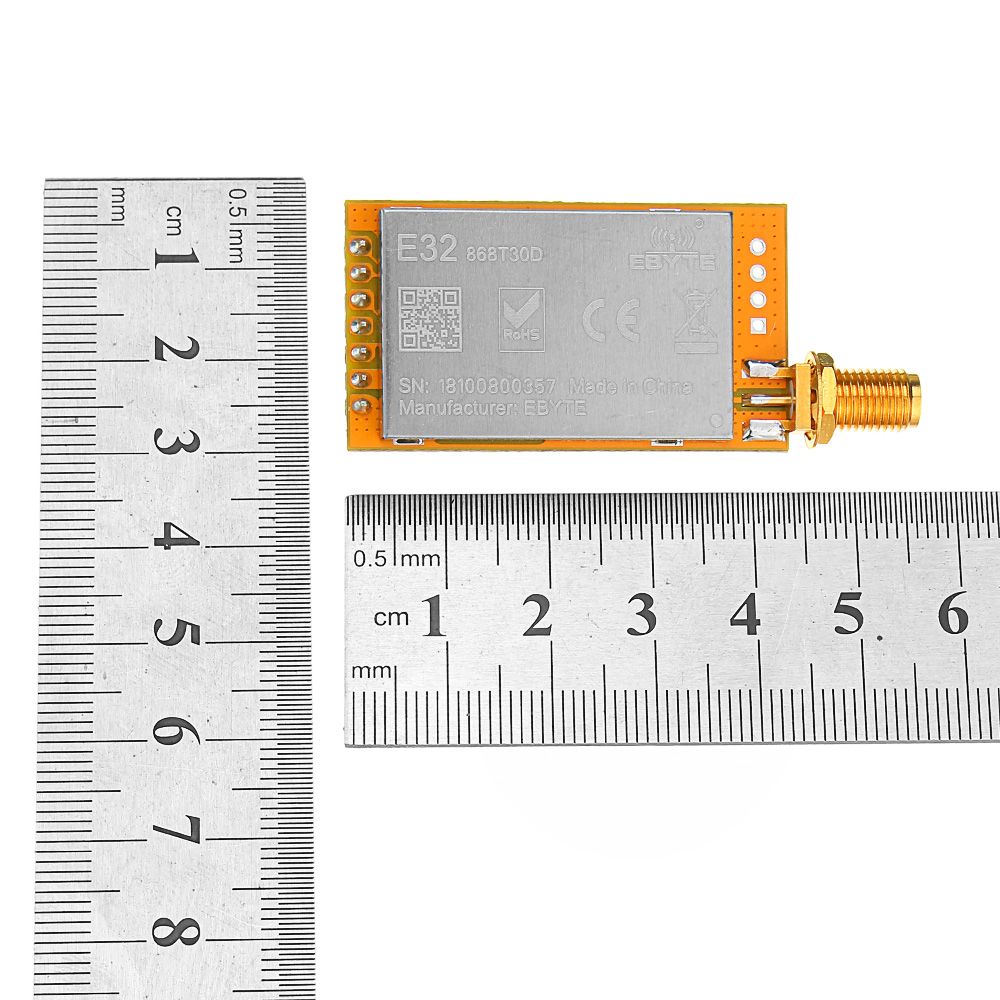

| Size | 24 * 43 mm | Without SMA |
| Antenna type | SMA-K | |
| Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
| Package | DIP | |
| Buffer | 512 bytes buffer | Automatically sub-packaging with 58 bytes per packag |

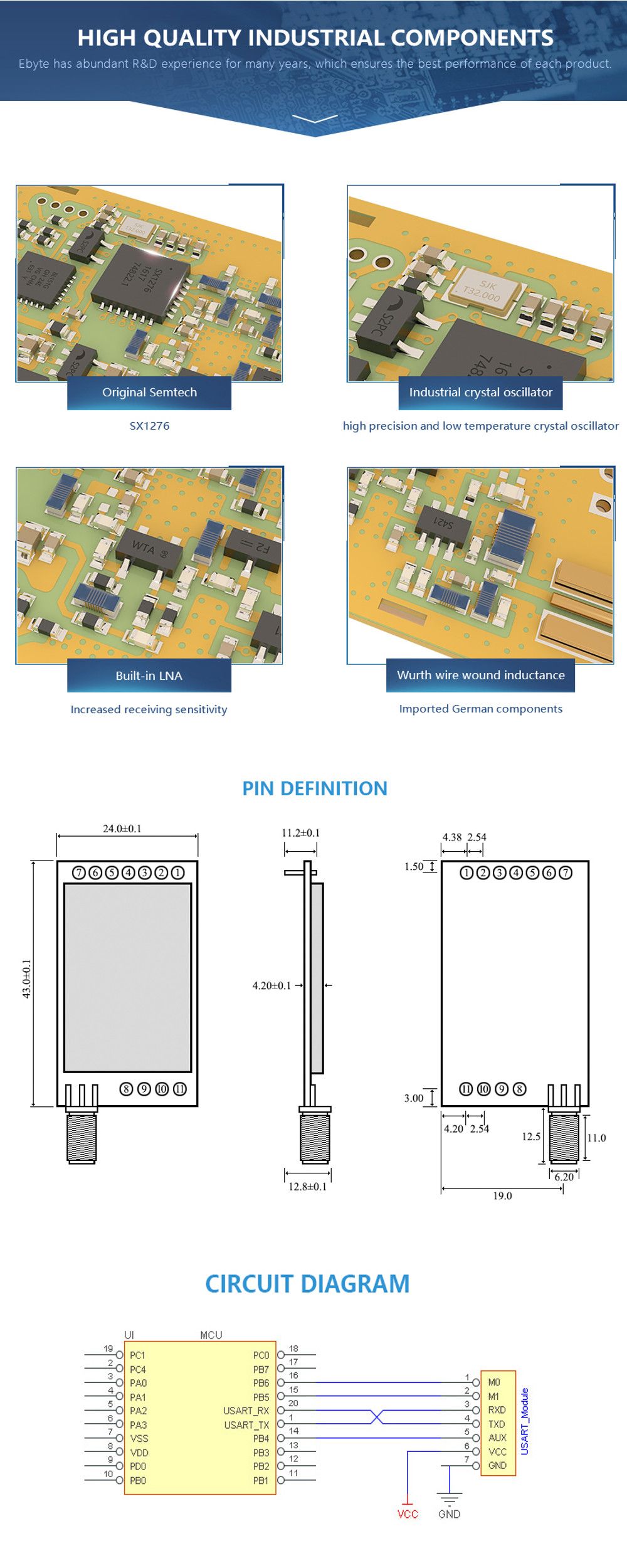

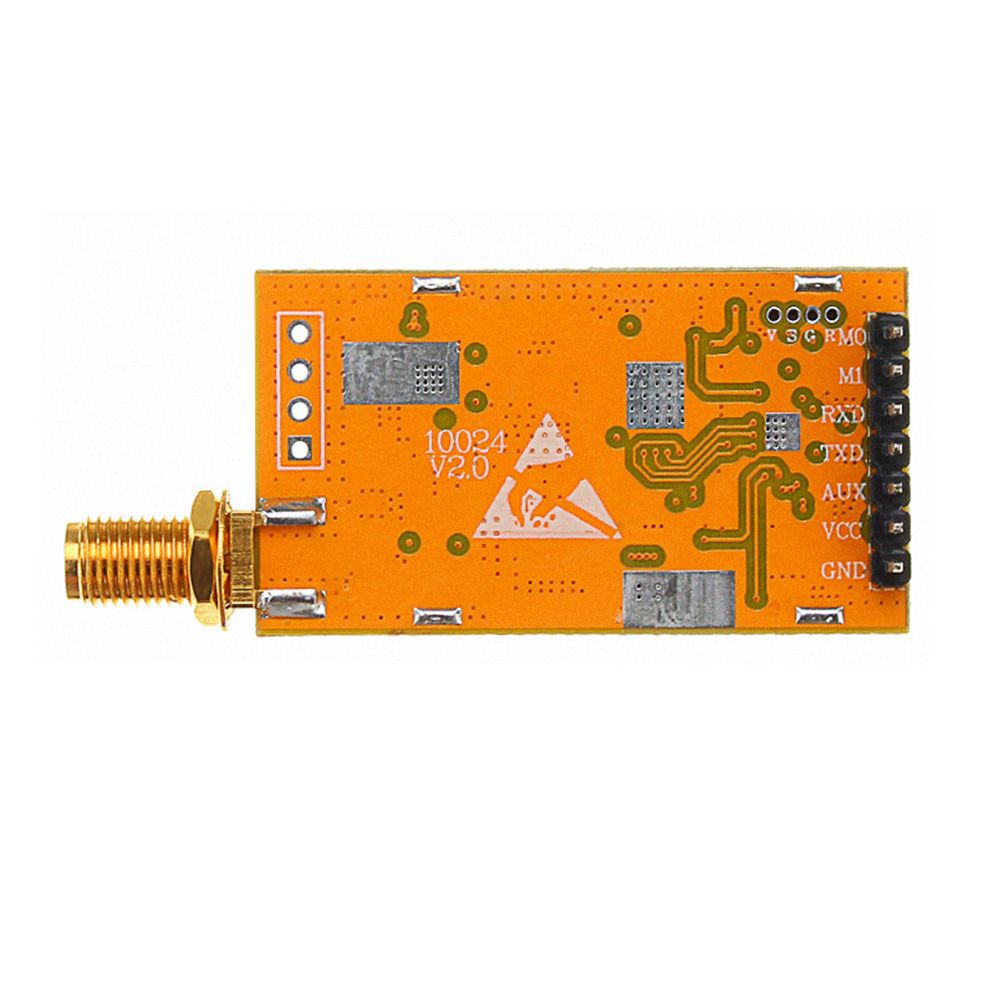

| Number | PIN | Pin direction | Remarks |
| 1 | MO | Input (very weak pull-up) | Cooperate with Ml to determine the working mode of the module (cannot be left floating, if not used to ground) |
| 2 | Ml | Input (very weak pull-up) | Cooperate with M0 to determine the working mode of the module (cannot be left floating, if not used, can be grounded) |
| 3 | RXD | Input | TTL serial input, connected to external TXD pin (can be equipped with S for open or pull-up input) |
| 4 | TXD | Output | TTL serial output, connected to the external RXD pin (can be equipped with S for open or push-pull output) |
| 5 | AUX | Output | Indicates the working status of the module, the user externally calls the MCU, and outputs a low level during the initialization of the power-on self-test. |
| 6 | VCC | Input | Voltage range: 3.3V~5.2VDC |
| 7 | GND | Input | Module ground |
| 8~11 | Fixed hole | - | Fixed hole |
Package includes:
1 x Module
