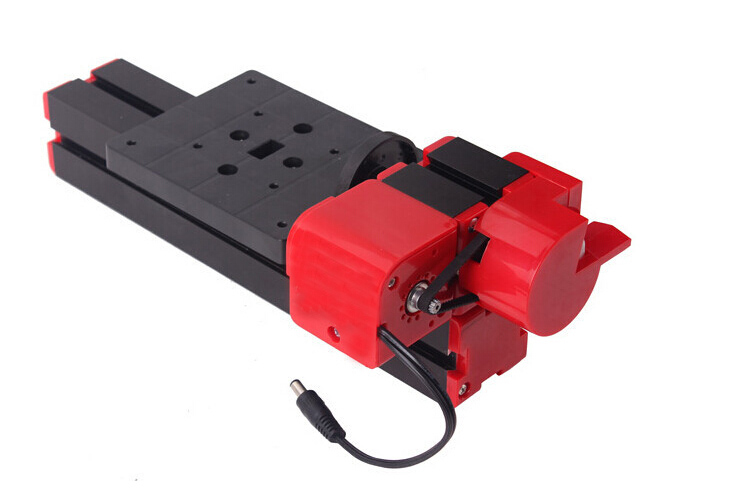

8 In 3 Motorized Mini Machine Jigsaw Grinder Driller Wood Metal Lathe

Description:
8 In 3 Motorized Mini Lathe Machine Jig-saw Grinder Driller Wood Metal Lathe

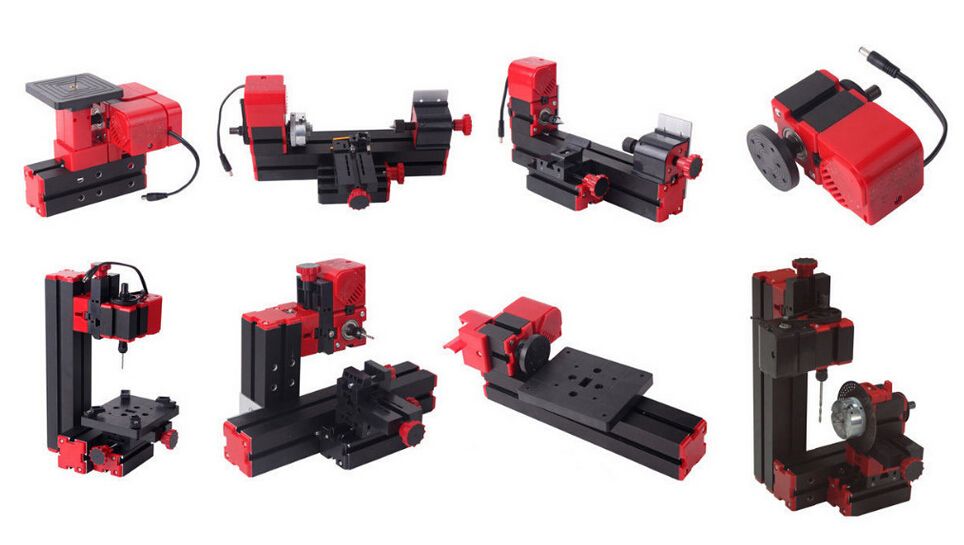

8 in 3 Kits can be assembled machine 8 different functions,(Sawing, Wood Turning Lathe, Lathes, Milling Machines, Drilling Machines, Grinding Machines, Hand Tools, Dividing Drilling), you can only use Three of the eight functions of the machine at the same time.
The Mini Metal Lathe is a tool for DIY,hobby,model making,crafts,small parts processing,ect, not the industry CNC product.

Specification:

Material	Carbon steel, Aluminum, ABS
Headstock speed	2,000rpm
Motor input	DC 12V
Max. Cutting diameter	45mm(bigger diameter is possible with intermediatepiece)
Center distance	135mm(with accessories extra long machine bed can longer to 360mm)
Color	Black + Red
Weight	7.5KG
Recommended types of wood	Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard). All types of wood (also hard wood) can be processed
Scope	1, Can process integrated circuit, acrylics, wood, plastic, gold, silver, copper, steel, aluminum, and so on. 2, Every suitable chisel and gouge can be used

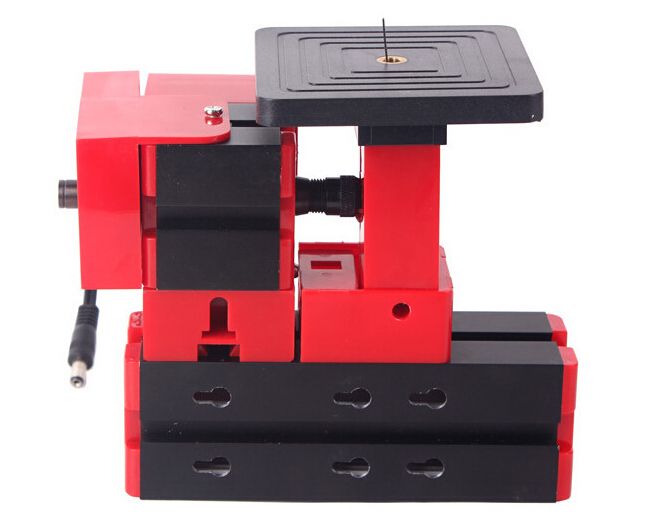

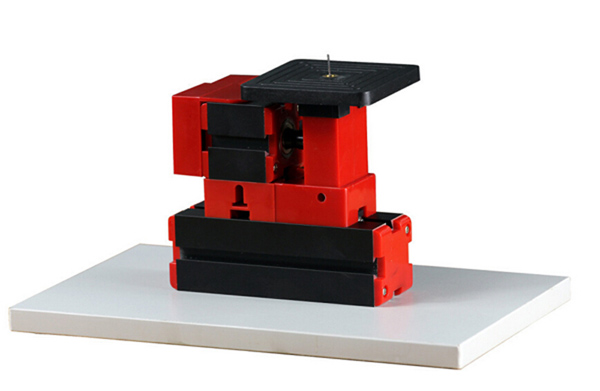

Function 1: Panel Saws

Technique Data:

1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Support power: 14.5VDC/2A/29W, Switching Adapter input 100V-240V
4) Table size: 90 x 90mm
5) Stroke of the jigsaw: 4mm
6) Material: Carbon steel, Aluminum, ABS
7) Max. thickness of cut: hardwood: 4mm, polywood: 7mm, softwood: 18mm, sheet metal: 0.5mm, plexi-glass: 2mm
8) Maximum measurements on 3D (L/W/H cm): 15/10/14
9) Net weight: 0.72kg
10)It is specially designed that it is very safe when operating

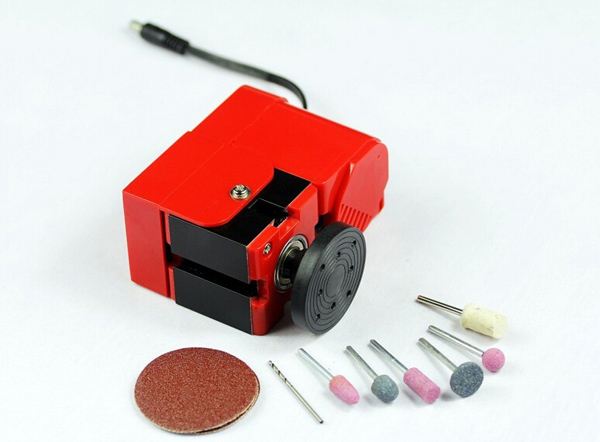

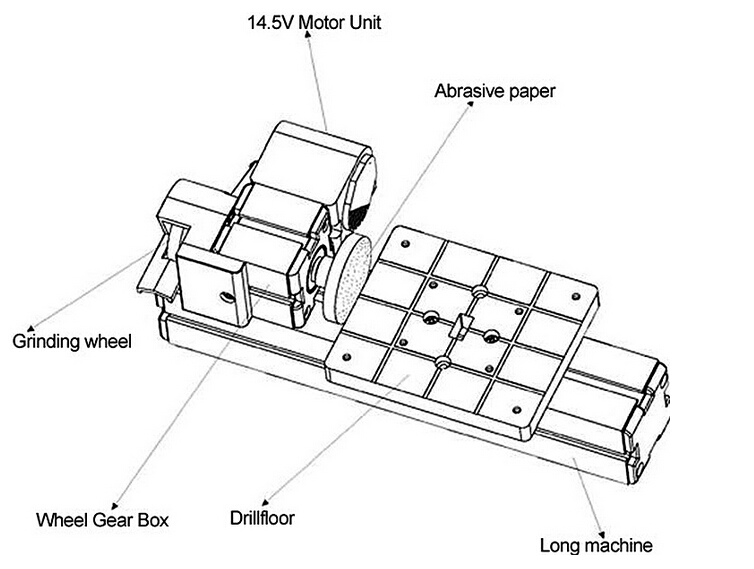

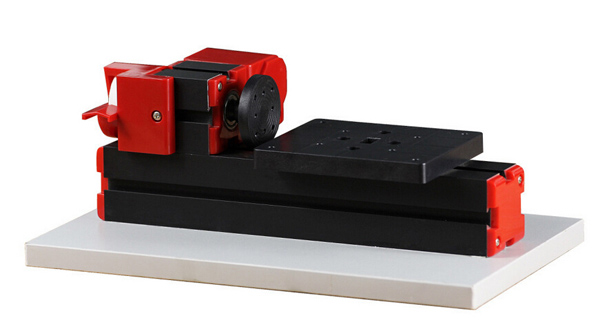

Function 2: GRINDER

Technique Data:

1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Material: Carbon steel, Aluminum, ABS
5) Can sanding paper: diameter 49mm, grain 100
6) Can process everything that is used in model making
7) Maximum measurements on 3D(cm L/W/H): 28/5/10
8) Net weight: 0.75kg

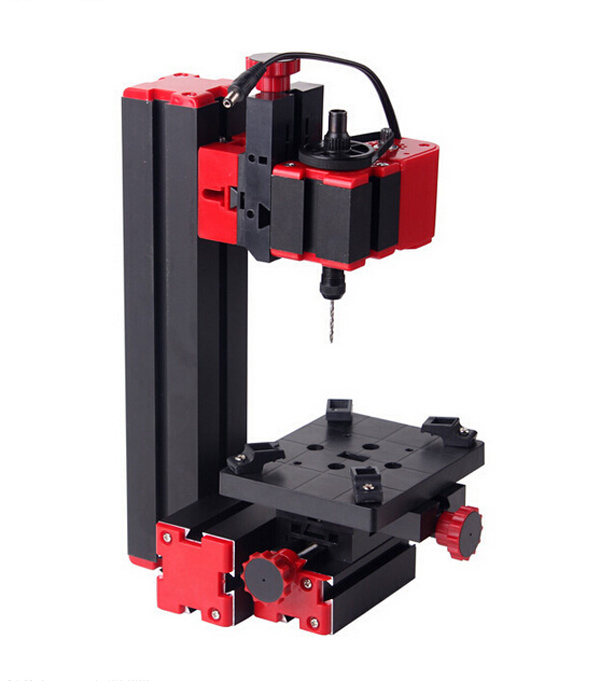

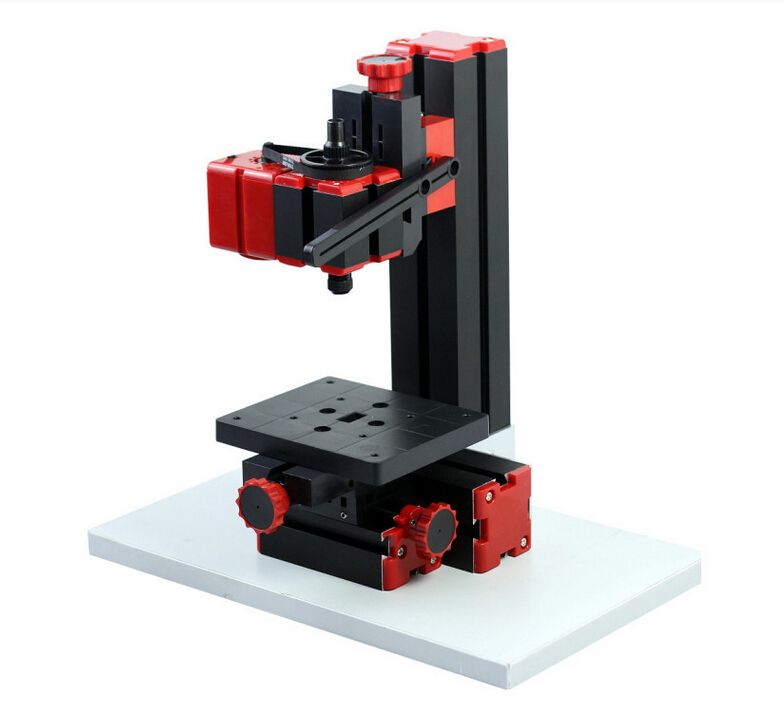

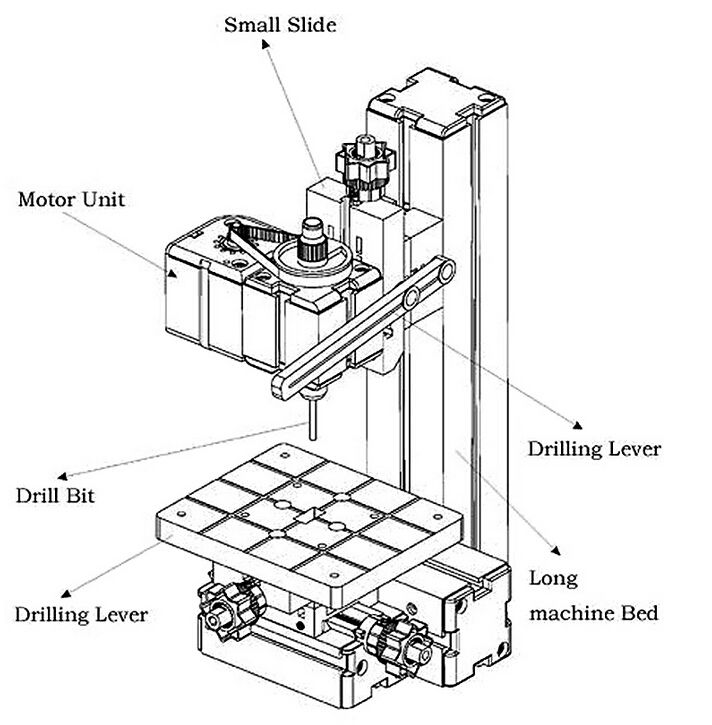

Function 3: DRILLER

Technique Data:

1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Slide travel: 50 and 20 respectively
5) Stroke: 25mm
6) 8 collects from: 0.5 to 6 mm
7) Table size: 123 x 100mm
8) Working radius (distance between drill and machine bed): 71mm
9) Material: Carbon steel, Aluminum, ABS
10) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals
11) Maximum measurements on 3D(cm L/W/H): 15/15/28
12) Net weight: 1.46kg

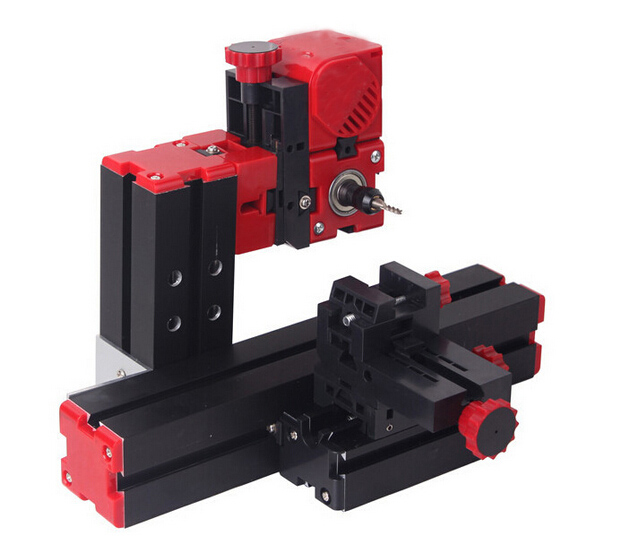

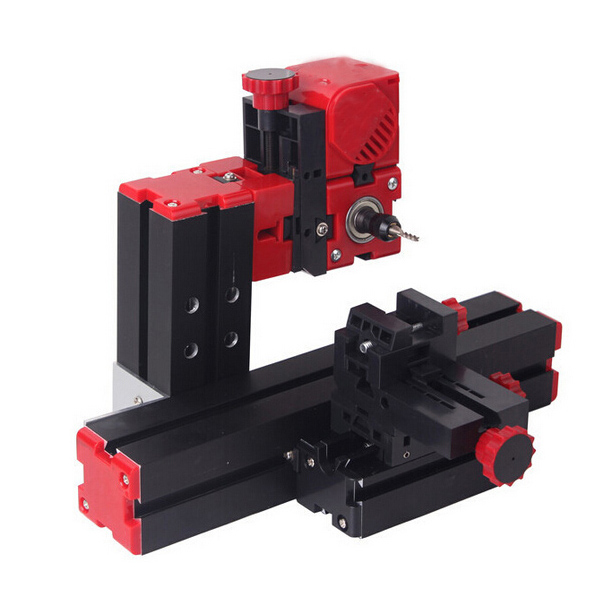

Function 4: Miller

Technique Data:

1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Slide travel: 30 and 50mm
5) Collets from 0.5-6mm milling cutter
6) Vice capacity: 25 x 25mm
7) Material: Carbon steel, Aluminum, ABS
8) Can process hard wood strips (beech-tree, nut-tree), wooden bars (max. 20mm diameter)or plastic and soft metal.
9) Do not touch the turning tools, it is very dangerous
10) Maximum measurements on 3D(cm L/W/H): 28/18/15
11) Net weight: 1.45kg

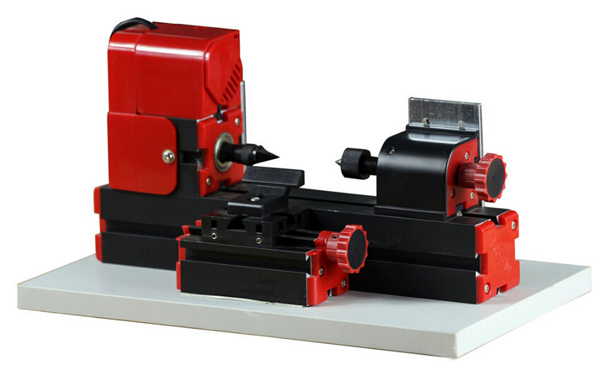

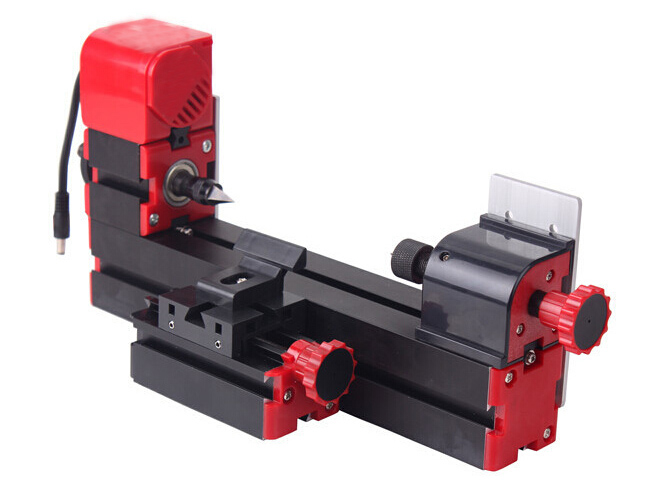

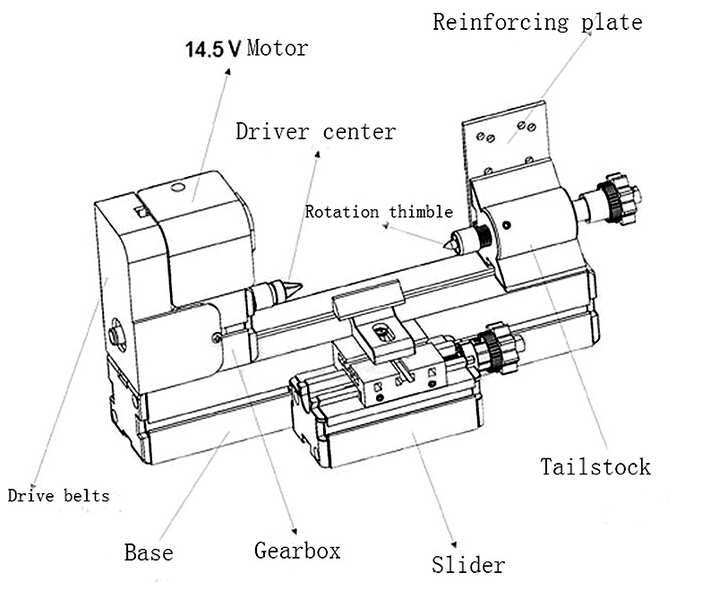

Function 5: Wood Turning Lathe

Technique Data:

1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Max. Cutting diameter: 45mm (bigger diameter is possible with intermediatepiece)
5) Center distance: 135mm (with accessories extra long machine bed can longer to 360mm )
6) Material: Carbon steel, Aluminum, ABS
7) All types of wood (also hard wood) can be processed
8) Recommended types of wood: Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard)
9) Every suitable chisel and gouge can be used
10) Maximum measurements on 3D(cm L/W/H): 28/10/10
11) Net weight: 1.28kg

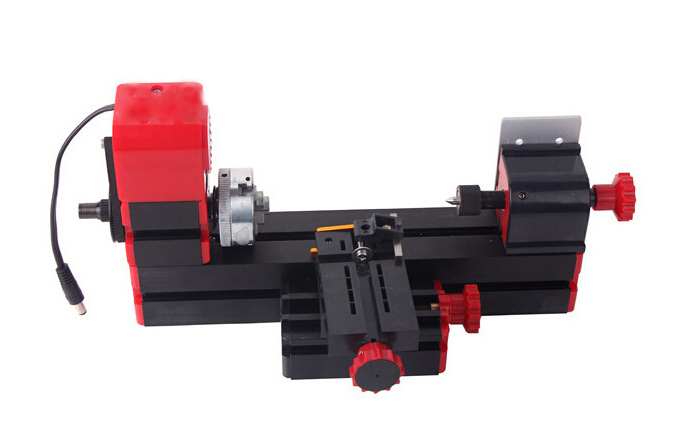

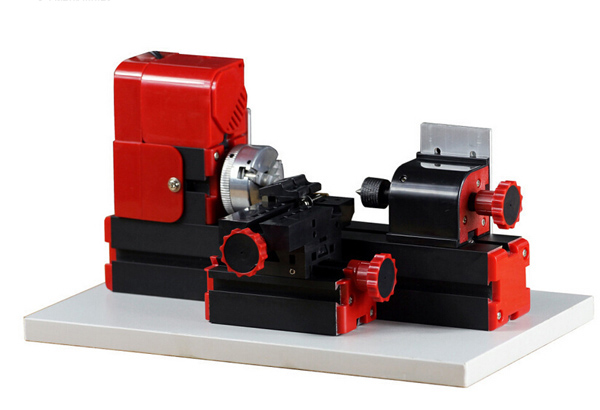

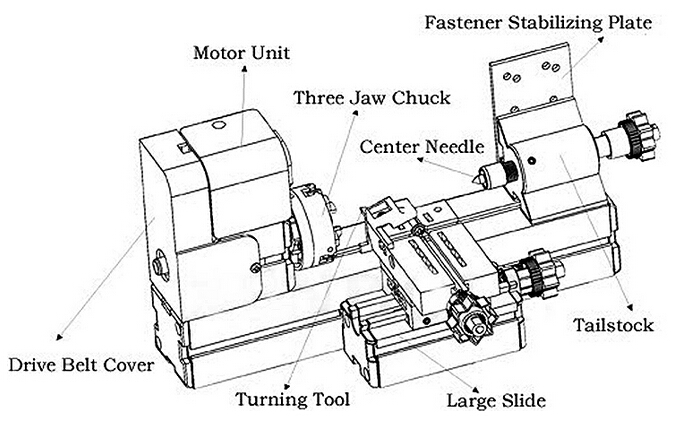

Function 6: Metal Lathe

Technique Data:

1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Tree 3-jaw chuck (self-centering)
5) Max. Cutting diameter: 20mm(bigger diameter is possible with intermediatepiece)
6) Center distance: 135mm(with accessories extra long machine bed can longer to 360mm)
7) Material: Carbon steel, Aluminum, ABS
8) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals
9) Maximum measurements on 3D(cm L/W/H): 28/10/10
10) Net weight: 1.35kg

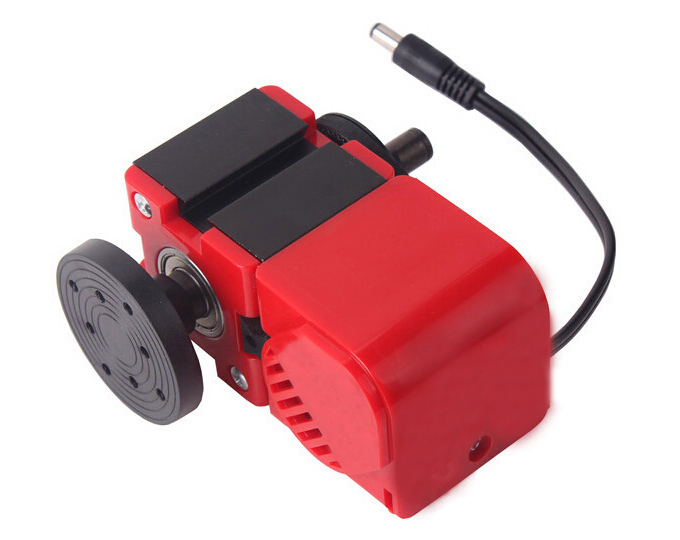

Function 7: Handheld Machine

Machine's major components: such as the headstock, tailstock, base grinding plate, and so all-metal connection block

Technical parameters:
1)Motor speed: 20,000 rpm
2)The input voltage/current/ power: 12VDC/2A/24W.
3)Pransformer has overcurrent, overvoltage, overheating protection.
5)Maximum depth of cutting saw:  Hard wood 4mm;  Tri-ply wood 7mm;  Soft wood 18mm;  Aluminium flake 0.5mm;  Organic Glass 2mm
6)Weight:1.5KG

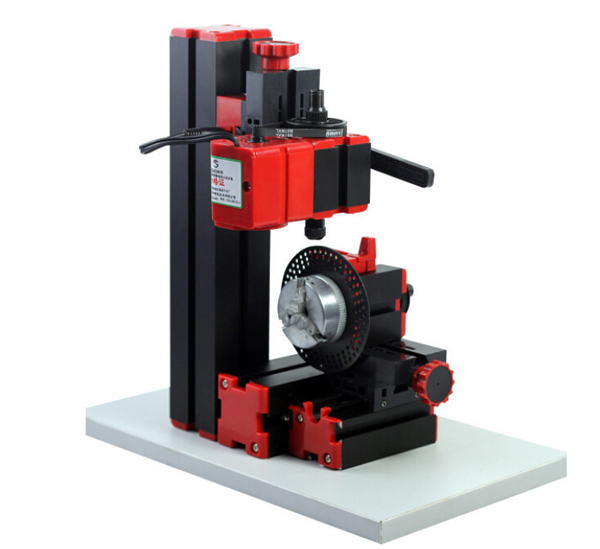

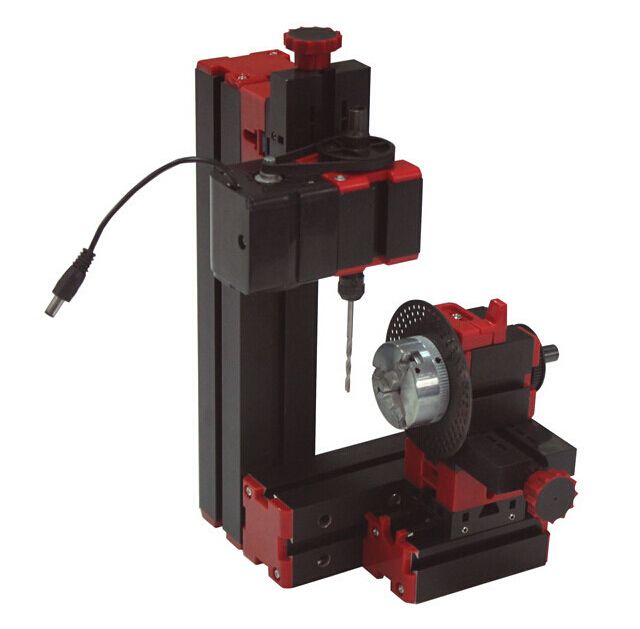

Function 8: Indexing machine with drilling attachment

1, the machine's major components: such as the headstock, tailstock, dock, slider, connecting blocks and so all-metal structure.
2, with the use of indexing plate, you can round workpiece decile drilling.
3, sub-dial has three circumferentially equal distribution holes, respectively 36,40,48 holes can be selected according to the actual needs of groups of indexing holes.
4, the connection block using two dovetail connection block, solid and stable.

Technical parameters:

1)Motor speed: 20,000 rpm
2)The input voltage /current/ power: 12VDC/2A/24W.
3)Processing materials: wood, plastic, soft metals (aluminum, copper, etc.).
4)Three-jaw chuck to clamp the workpiece maximum diameter of 50mm.
5)The transformer has overcurrent, overvoltage, overheating protection.
6)Weight:3.5KG

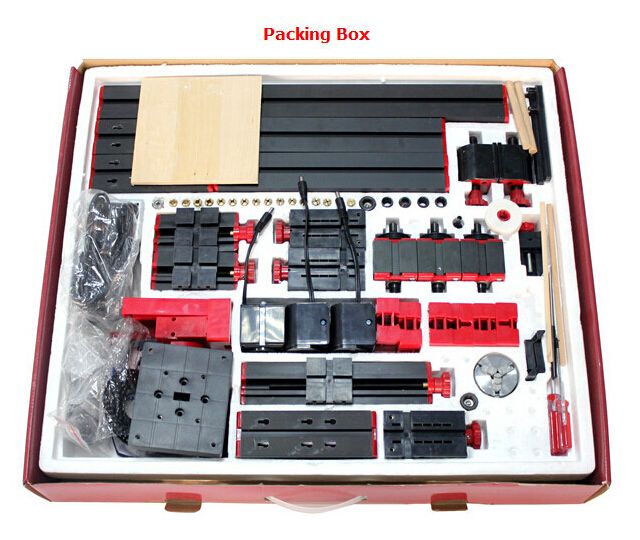

Package included:
1x 8 in 3 DIY Mini Lathe
1x User Manual

FAQ:
Q: What is the mini-machine? What can it do?
A: It is a delicate combination of processing units, suitable for making models or samples, technical education, product creation and invention, DIY and so on.
Q:What functions do Mini-machine have?
A:1,Jigsaw 2,grinder 3,Driller 4,wood lathe 5,metal lathe 6,Miller 7,Handheld machine 8,Dividing drilling.
Q: What power supply does mini machine use?
A: covert from 110-240V DC power to DC14.5V.
Q: What is mini-machine made of?
A: base is made of advanced aluminum alloy, and it`s durable and not deformed, and other shell parts are made of PC plastic, some chucks are made of metal or copper.
Q: How long is the life?
A: Ten years will not be damaged under normal use.
Q: Can it process metal materials ?
A: All the soft metal materials can be processed, such as gold, silver,copper, aluminum etc. In addition, such as acrylic, circuit boards also can be processed.
Q: Is this mini machine heavy and big?
A: The maximum length is 30CM, package weight is 4.5 kg.
Q: Does this machine have the age limit requirement?
A: Our customers are from 6-76 years old.
Q: how long could the machine be used continuously?
A: In theory DC motor can be used continuously for 300 hours,but it is recommended to shutdown to save power and increase the frequency of use or life when you don`t operate it.
Q: What`s the minimum hole which you can drill with the drilling?
A: Standard is 0.5mm hole. 0.4mm or 0.3mm hole is OK but you need to buy special accessories.
Q: How thick material can you choose for the sawing?
A: wood 7.0mm below; aluminum, copper,circuit board 1.2mm below; acrylic board 2.0mm below
Q: Which parts are the consumed ones?
A: 1, belt 2, turning tool 3, drill 4, Mills 5, saw blade6, saw drive box 7,screw 8, motor fan.
Q: Is sawing machine safe?Does it injure the hand?
A: absolutely safe, even if you accidentally touch the saw blade, the hand will be safe.
Q: Why Sawing not injure the hand?
A: Because there is special-stroke design, stroke is only 3mm,it can saw off the hard objects, but the hand is soft and flexible, it will absorb the stroke, so it does not hurt the hand.
