7inch Wireless Wifi RFID Video Door Phone Doorbell Intercom Entry System with NO Electric Door Lock
- Stock: In Stock
- Model: EB0025190
- SKU: EB0025190

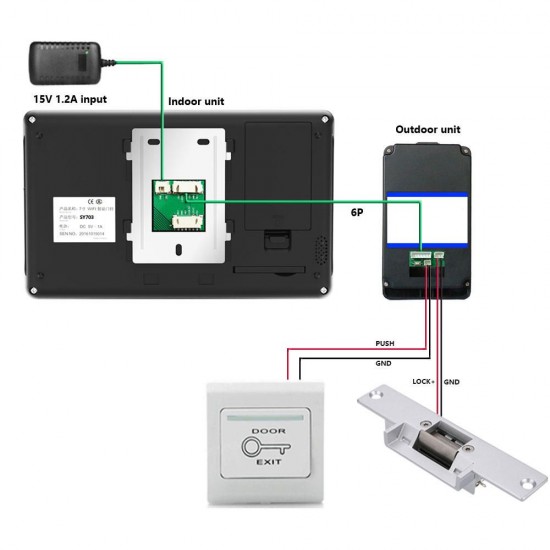

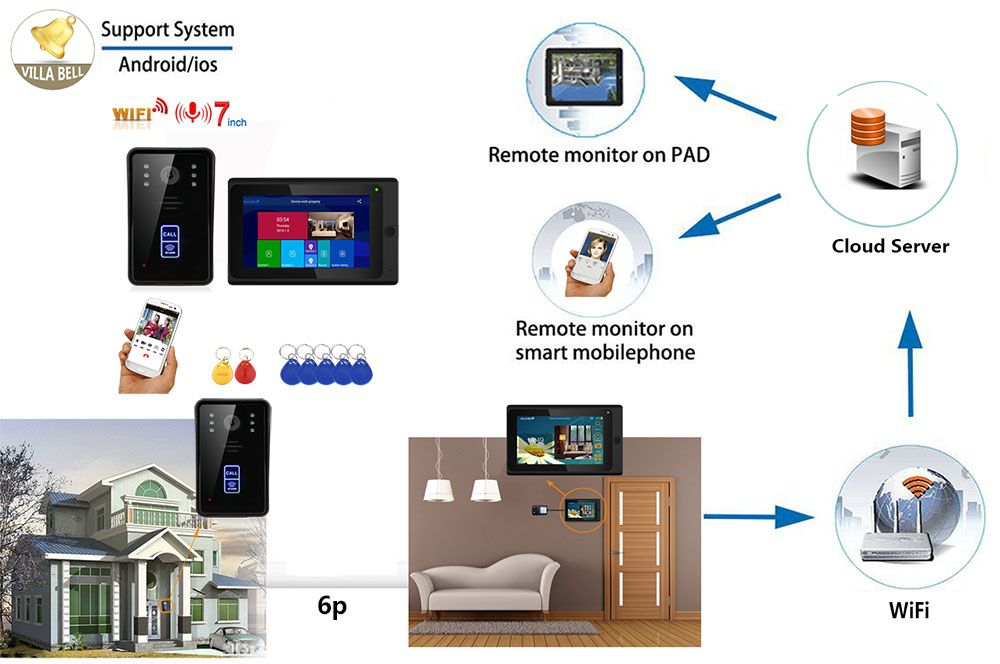

Easy installation by yourself with the adapter and cable we provided in this kit,outdoor unit can connect to indoor monitor by wired 6P cable.When indoor monitor connected to your wireless wifi router,you can connect mobile phone to indoor monitor,then mobile phone also can record video or open the door etc.Widely used in villas, apartments, houses, hotels, offices, public buildings and so on.
Features:
1.Indoor monitor use the multi-point capacitance touch screen,adopt to Android System,steady and easy to operate.
2.7inch High definition digital LCD monitor,with take picture,visitor records and calendar function.
3.Indoor monitor can take picture by manually or automatically,max to support 32G TF card.
4.Indoor monitor with monitor,intercom,unlock,hands-free and Don’t disturb function.
5. The indoor monitor can support to connect 8 mobile phone APP user,Support IOS/Android system mobile phone , then the mobile phone can view and unlock.
6.Outdoor unit use 1080P HD camera,with IR-CUT.
7. RFID type: Support 1000 ID cards unlock
Specification:

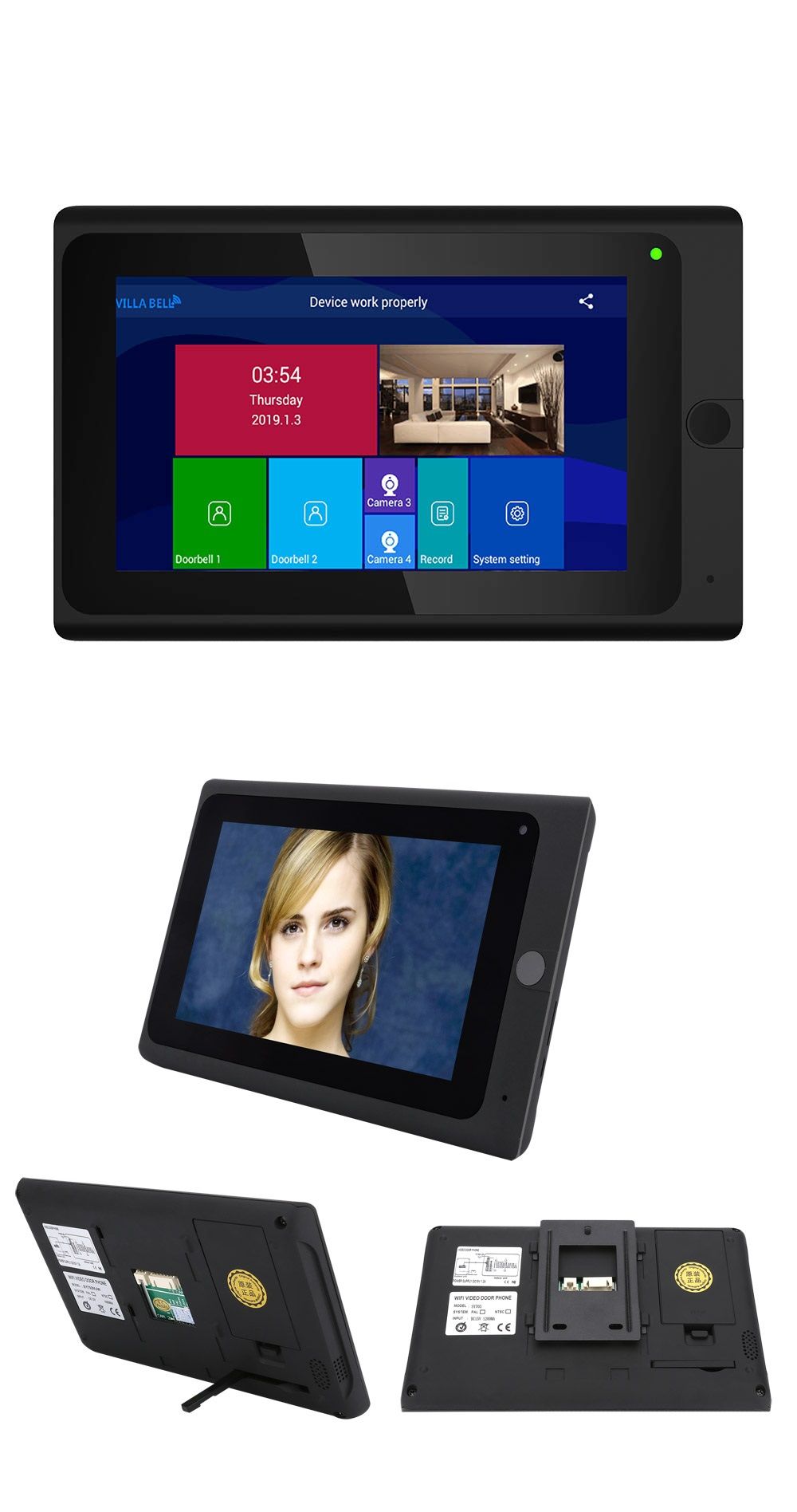

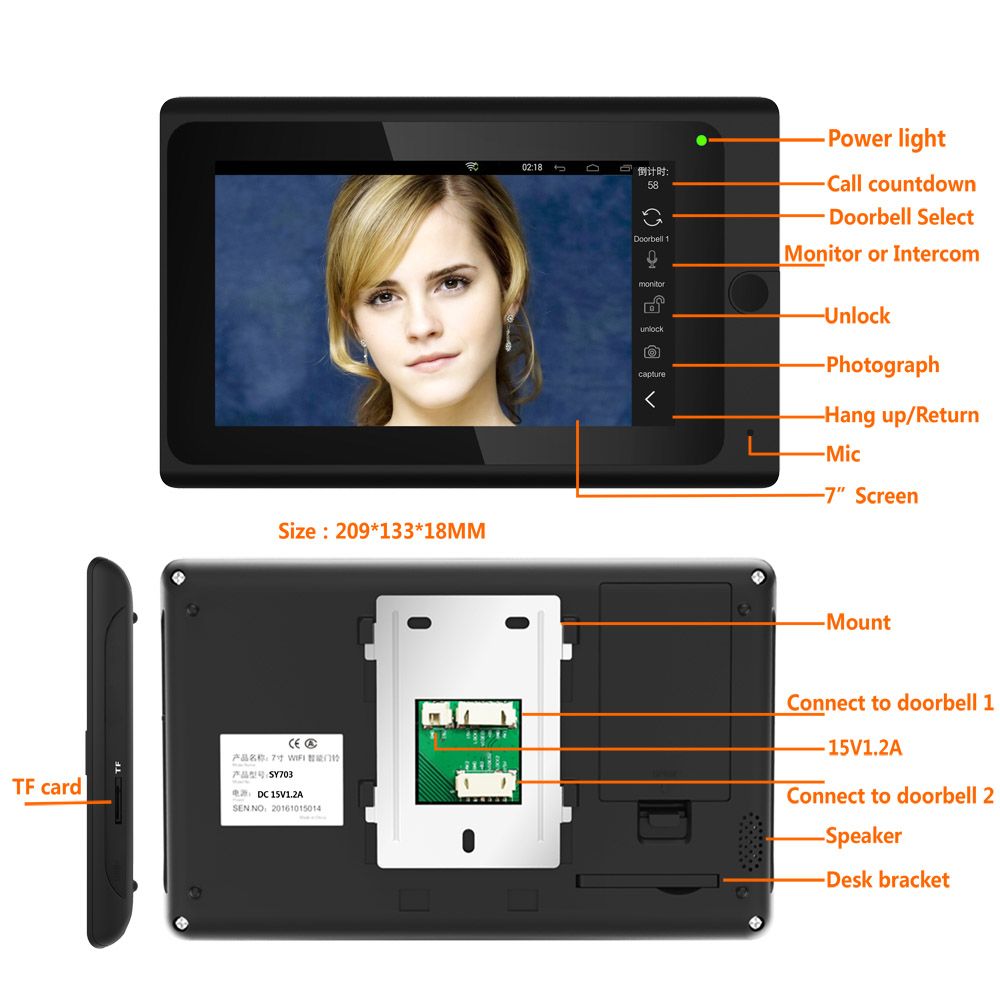

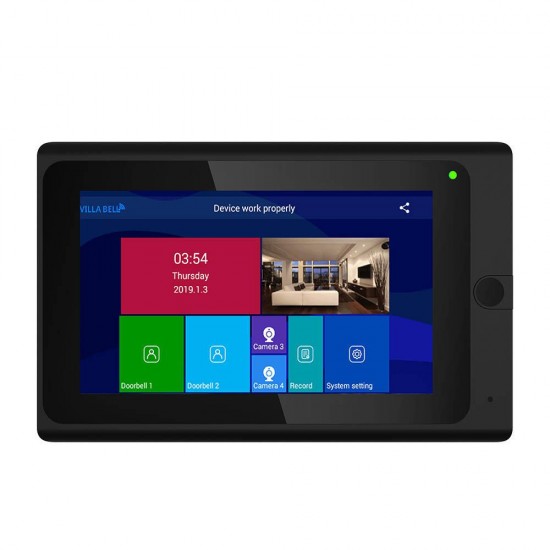

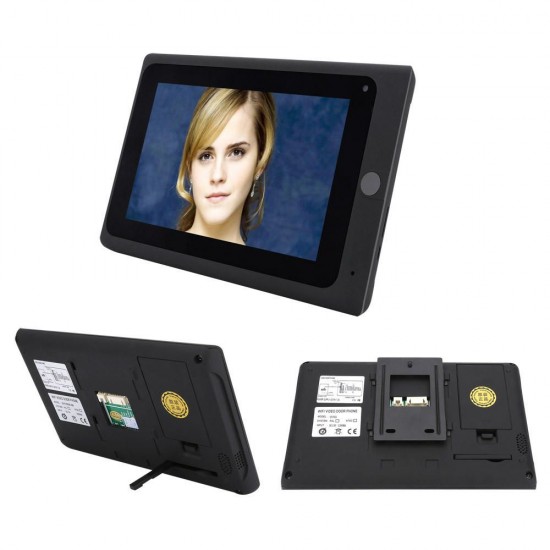

Wired wifi Monitor:
Display:7" TFT LCD(16:9)
Resolution: 1024(H)X600(V)
Additional memory: Support additional TF card (32GB max.)
Touch : Yes
Wifi: Yes
Power supply: DC15V1.2A
Installation: Surface mount
Size:209 x 133 x 18mm

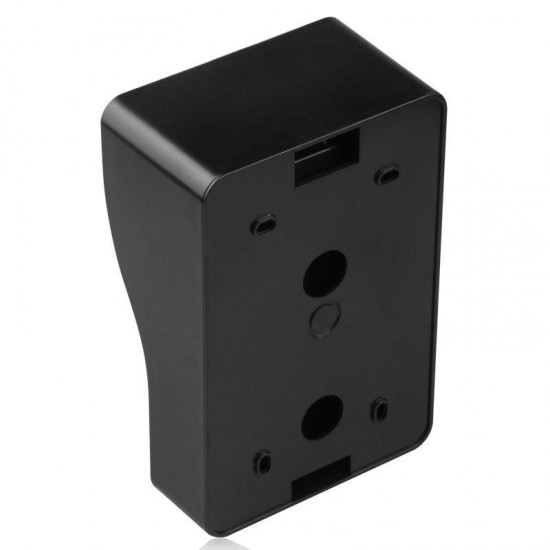

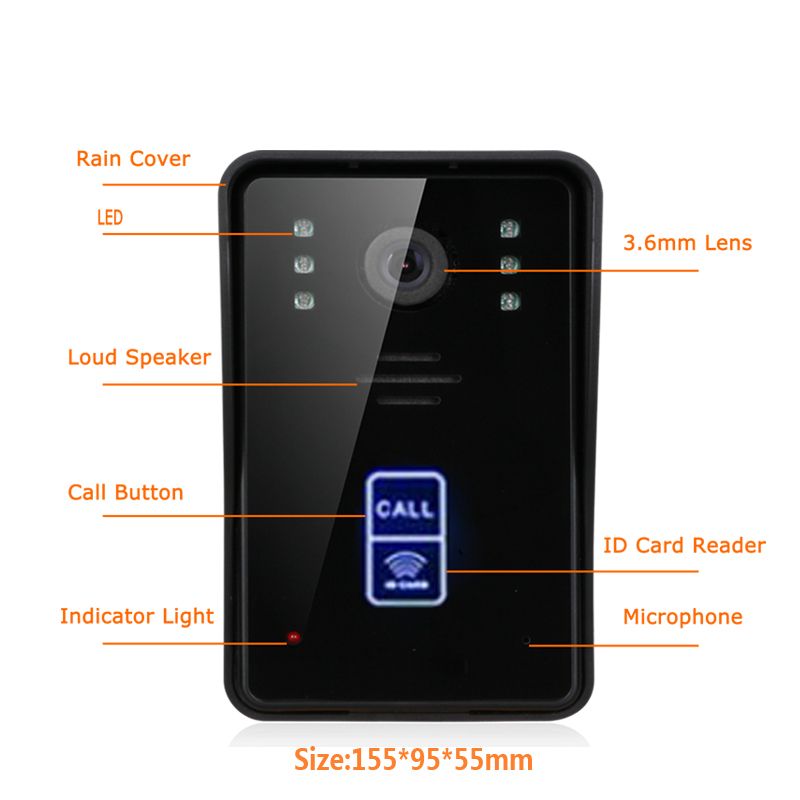

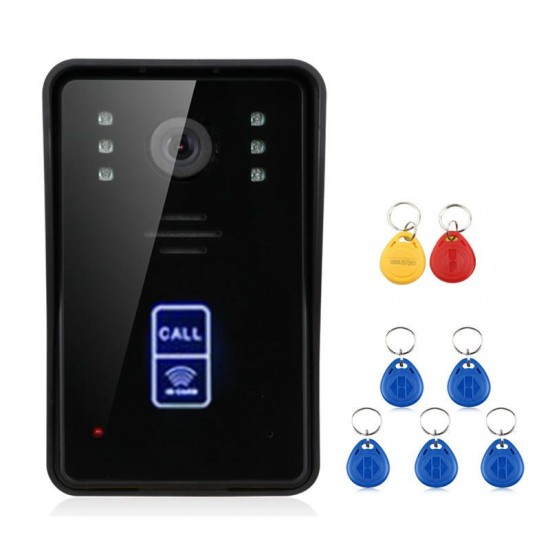

Camera:
Camera sensor: 1/3 inch
View angle: 92°
Definition: 1080P
LEDs for night: IR LEDs (180°)
RFID type: Support 1000 ID cards unlock
Installation: Surface
Size:190 x 95 x 55mm

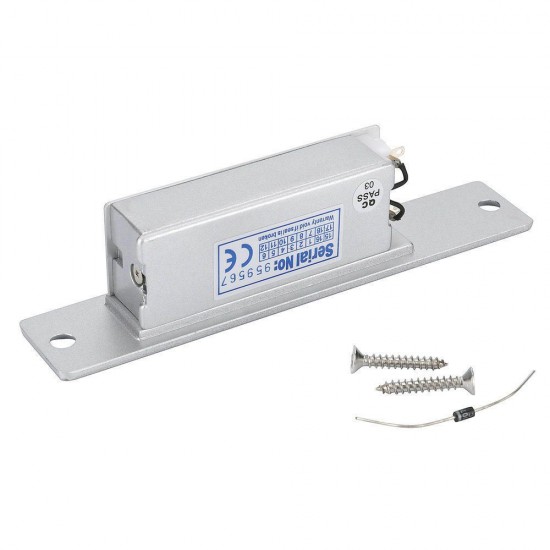

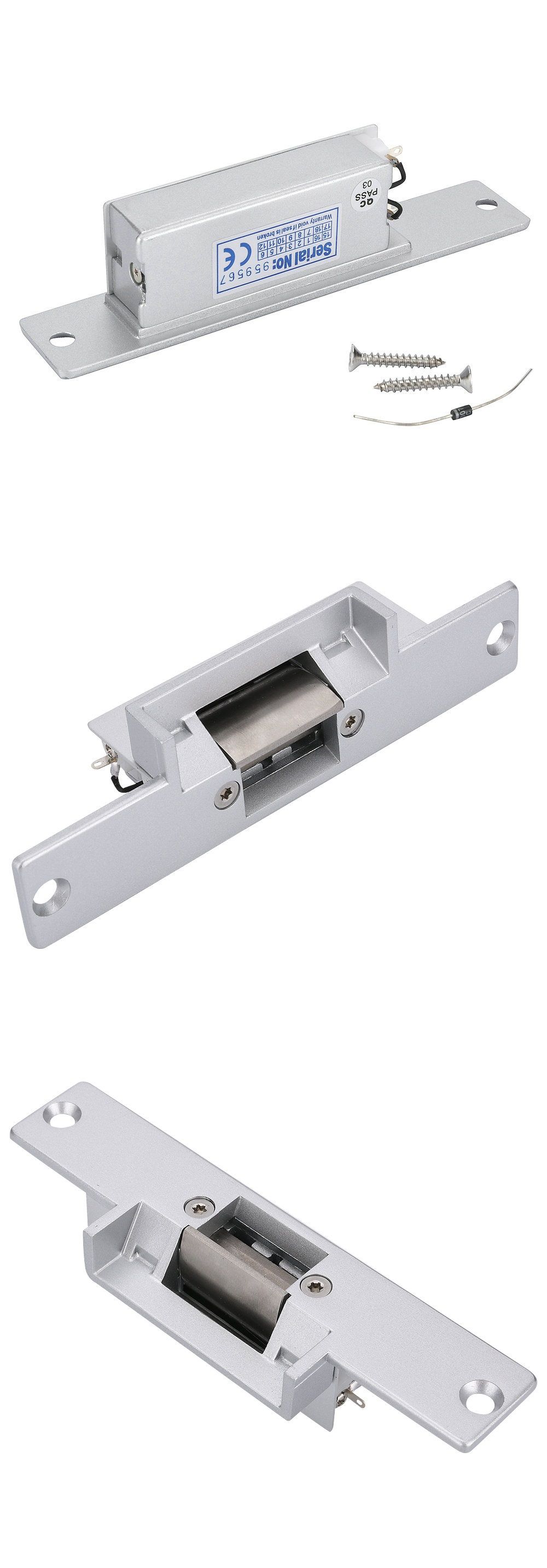

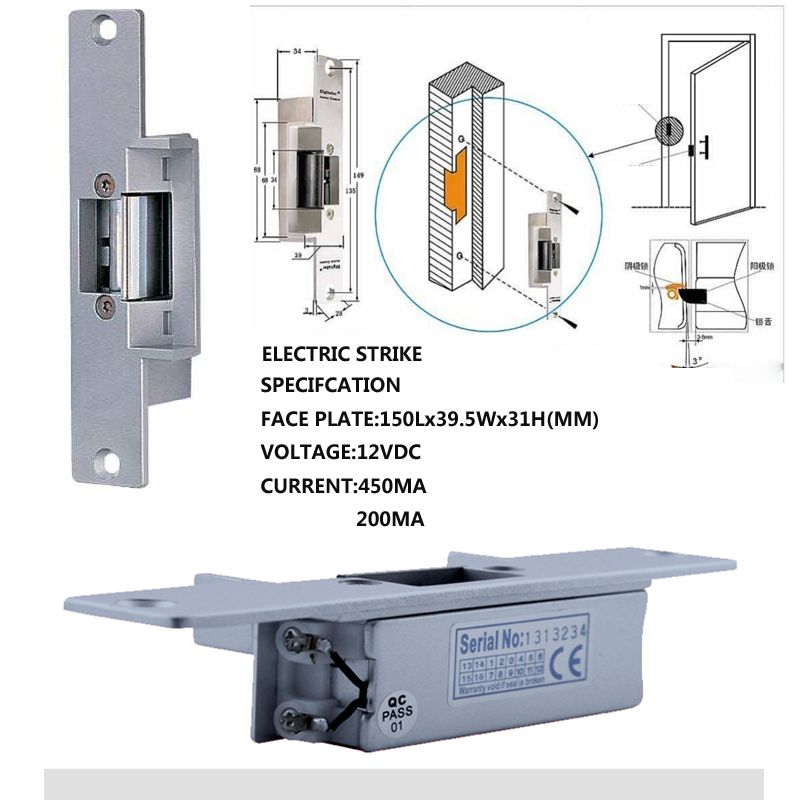

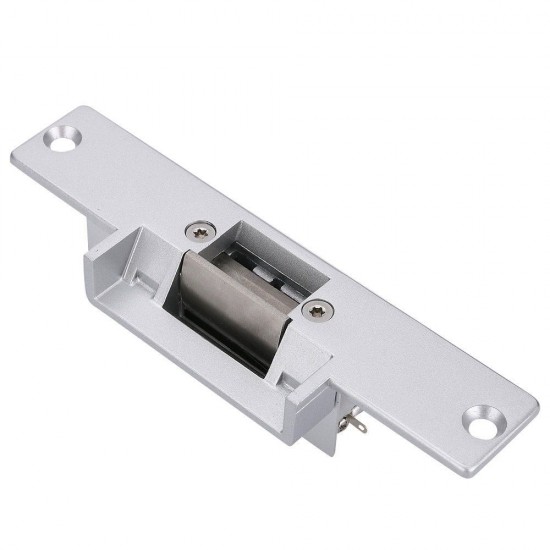

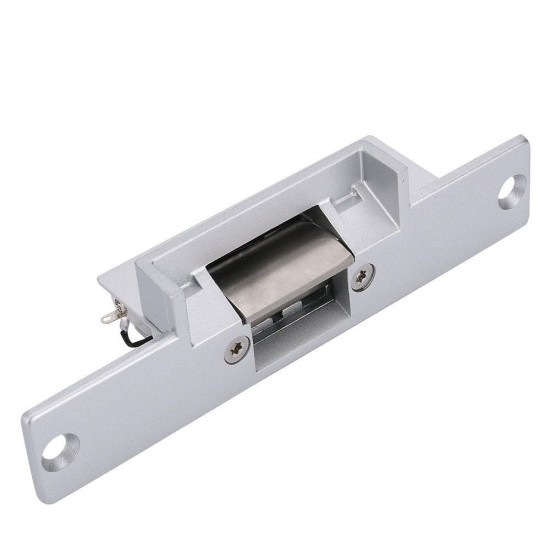

Electric . lock:
This electric . is perfect choice to entry a building with card, biometric, code, or any other remote controlled open/close. Ideal for security doors, building entrance/exits.
NO Mode - (Locked while supplied with power) Unlock Safe Mode
Made of Stainless Steel
Performance Testing: 1000000 times aging test
Opening Mode: 90 degree swinging door
Application: wood doors
Working Voltage: 12VDC
Working Current: 0.2-0.45A
Dimension (Face Plate): 15x3.95x2.8cm
Pack includes: One electric lock.

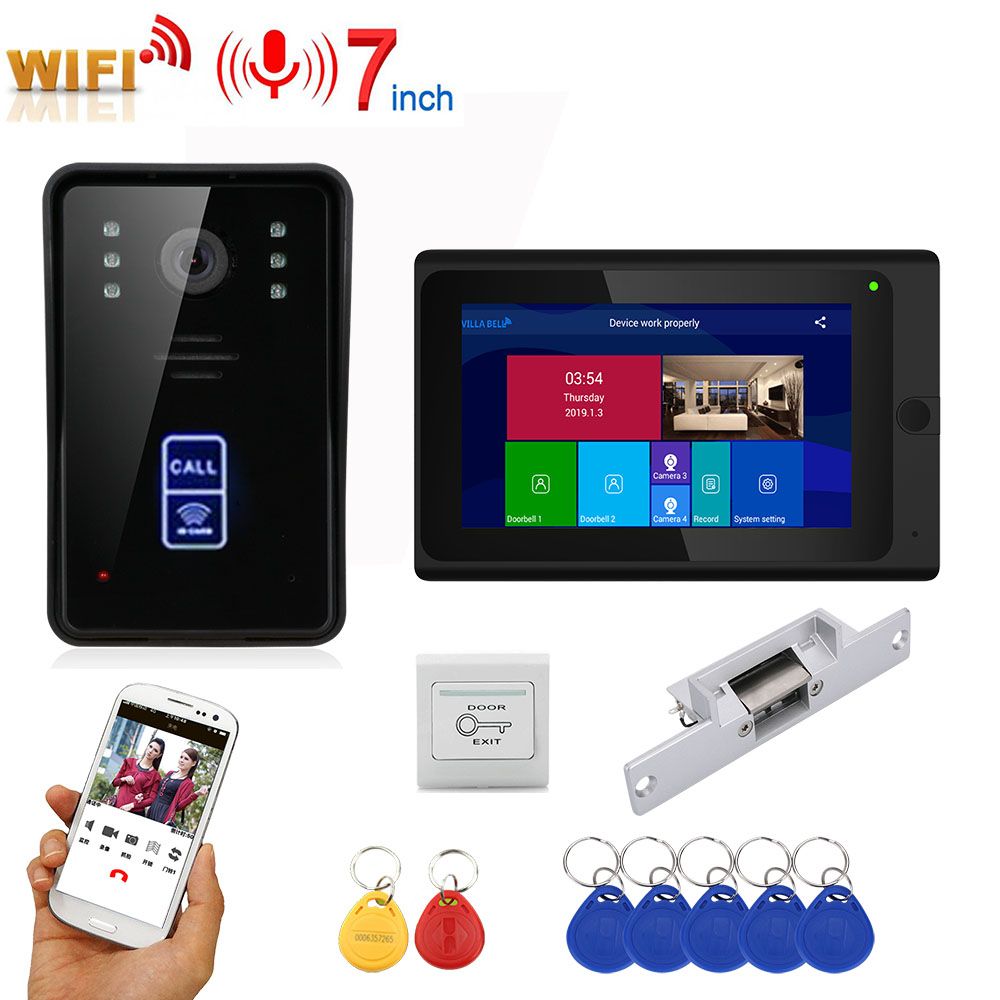

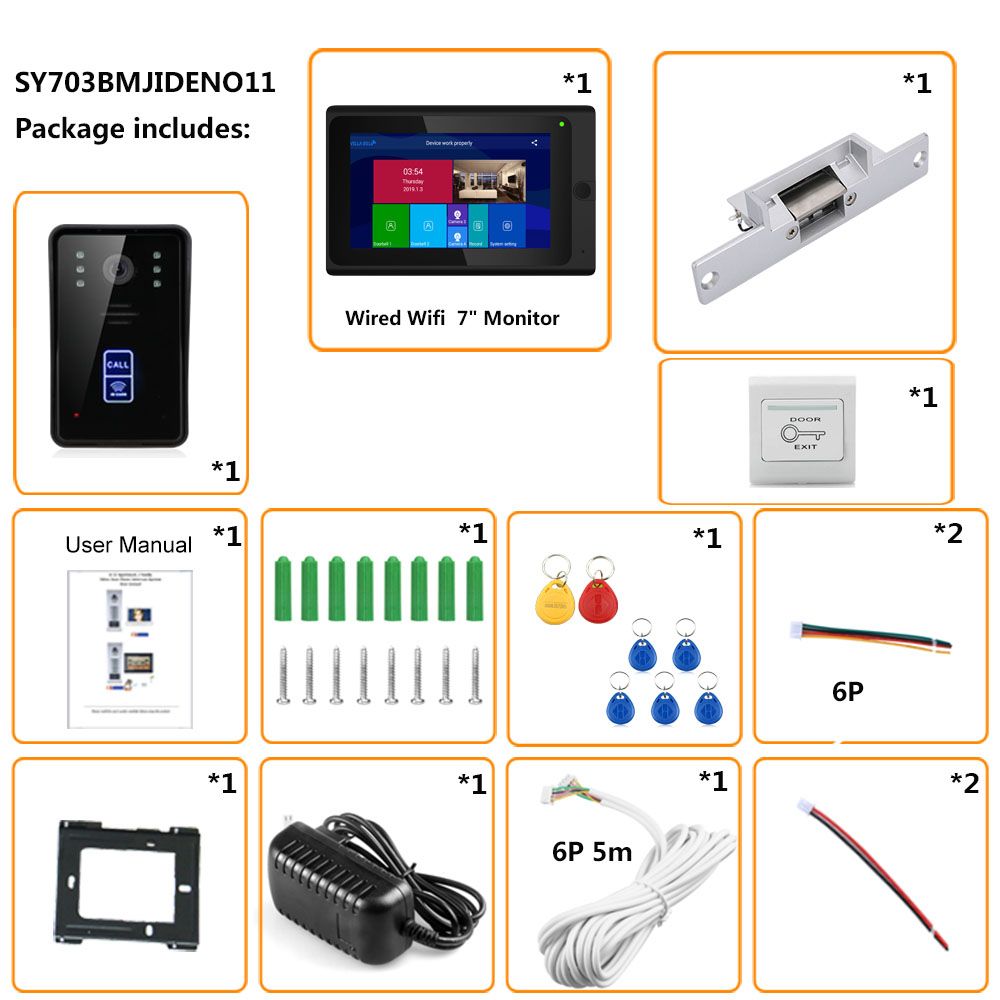

Package includes:
1 x Indoor Monitor (Wired Wifi)
1 x Outdoor Unit
1 x Electric Lock
1 x Push Release Button
1 x 15V/1.2A Power Supply
1 x 6-core terminal wire (5m)
5 x 125KHz RFID Cards
2 x unlock terminal wire
1 x Mounting plate
1 x Screws
1 x Color package
1 x English User Manual

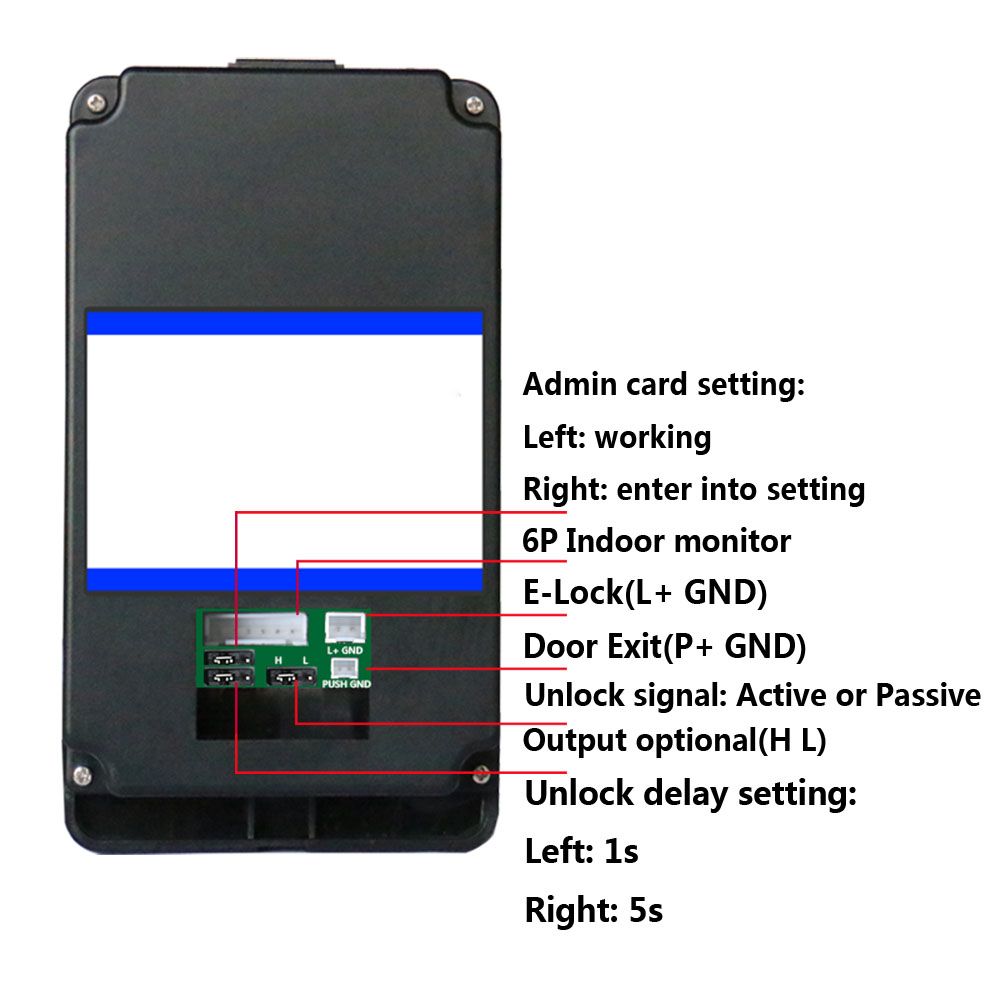

Details Pictures:
