7inch Trcuk LCD Mirror Monitor+IR Wireless Rear View Camera Reversing
- Stock: In Stock
- Model: EB0031774
- SKU: EB0031774

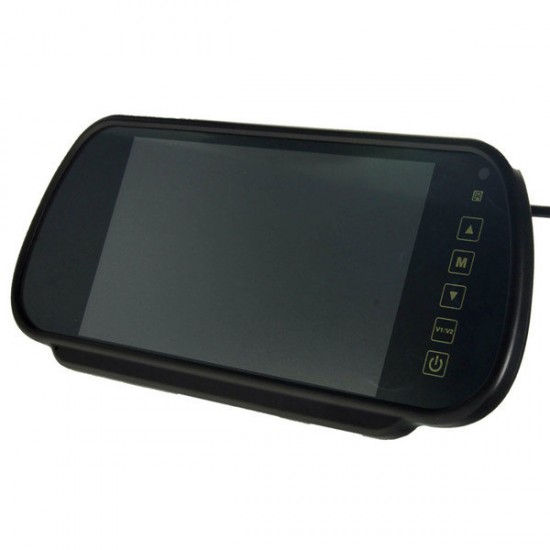

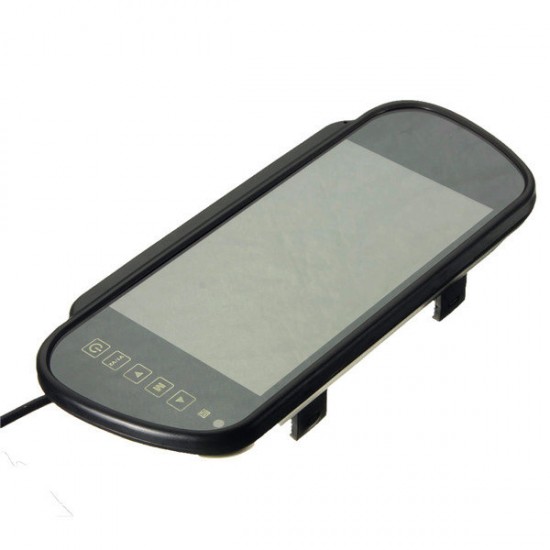

7" LCD Mirror Monitor
Specification:
7inch(16:9)TFT-LCD Wide Screen Panel
Resolution: 480(W)xRGBx234(H)
Contrast Ratio: 100:1
System: PAL/NTSC
Power Supply: DC 12V
Power Conmsumption: 6W
Storage Temperature: 0℃-40℃
Operation Temperature: -20℃-50℃
Video: dual video input(DVD/Camera)
Minimum Iumination: 2 Lux(IR on)
Viewing Angle: U/D90°,L/R120°
Built-in bluetooth(Optional)
With USB/SD Reader(Optional)
Built-in FM Transmitter(Optional)
Car reversing back sight surveillance
Available for VCD/DVD/GPS/Car Reverse Camera
Operate mode: Touch screen and remote control
No audio input ou output
Dimension: 250 x 105 x 40mm / 9.84" x 4.13" x 1.47"(LxWxH)
Package size: 297 x 155 x 73mm(LxWxH)
Feature:
1. Multi-purpose LCD monitor for VCD/DVD/GPS/Camera
2. After installed with camera,the monitors swith to the video 2(from camera);as well as the
monitor will turn on automatically (when the monitor didn't turn on).This visible parking system
could be used as the car parking radar.

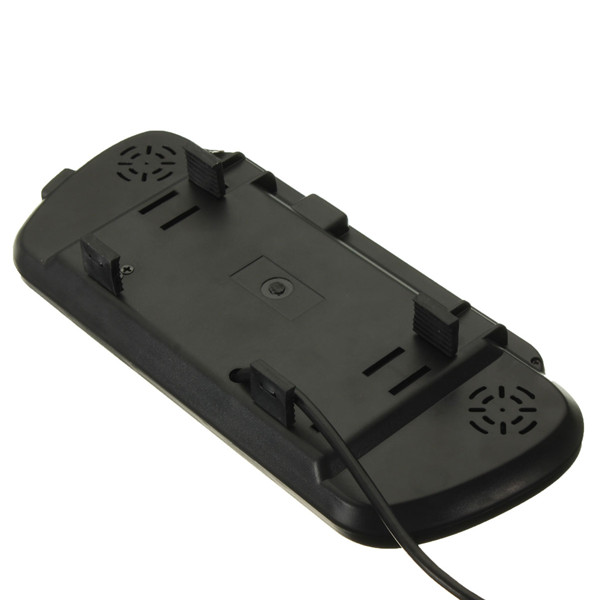

3. Easy installation without damaging to any parts of the car,only clip the monitor on the original one.
Delicate design could match the interior design of car.
4. Anti-glare blue mirror to make safer driving.
5. Delicate design,stable performance,clear picture and excellent color effect.
6. Using imported parts,free from disturbance of the high frequency from motor.
7. Using high quality cable and high brightness backlight to improve clearness and last long.
8. Using imported ABS plastic and painting,free from scratching and alcoholic erosion and lasts long.
9. Rear View Watching: image can be flipped to left or right (for mirrored or non-mirrored parking camera)
10. 7" Car Rear View Monitor helps in preventing accidents while driving in reverse by avoiding children,traffic,
pedestrians,toys and pets while backing out of the driveway or parking space.

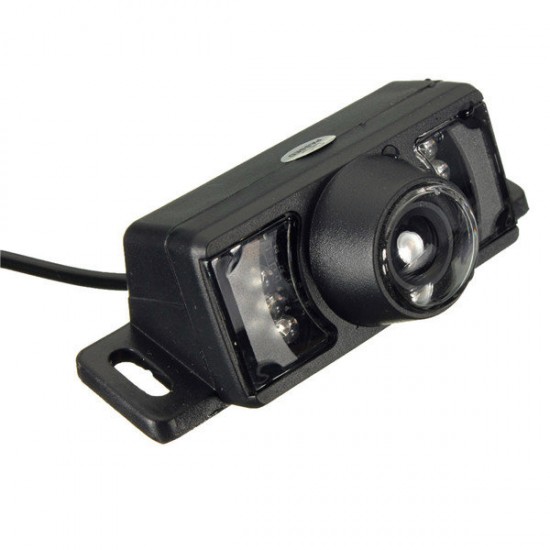

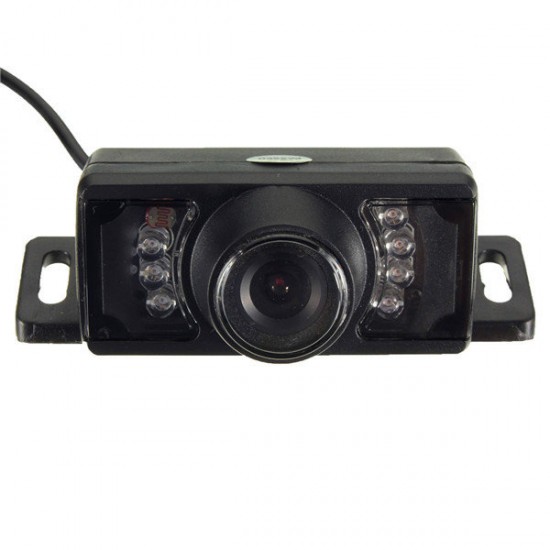

6 LED Car Rear Camera
Specification:
Sensor: CMD
TV System: PAL
Effective Pixel: 622 x 586 pixels
Electronic Shutter: 1/50-1/100,000 sec
Scanning System: 2:1 Interface
Sync System: Internal
Resolution: 420 TV Lines
Lens Angle: 2.8mm/120 degree
Sensor Area: 5.961mm x 4.276mm
Video Output: 1.0Vp-p,75Ohm
S/N Ratio: More than 48db
Waterproof: IP67-IP68
Minimum Illumination: 0.2Lux/F1.8(0 Lux With LED)
Vurrenct Consumpition: No More 300mA
Power Supply: DC 12V+/-10%
Operation Temperature: -20 degree - 60 degree(RH95%Max.)
Storage Temperature: -30 degree - 60 degree(RH95%Max.)
Other Items: Automatic white balance,Agc and BLC
Feature:
Small compact size,Waterproof,Low power consumption,High sensitivity,Low maintenance,
Night Vision Camera,Easy and Comprehen sive installation

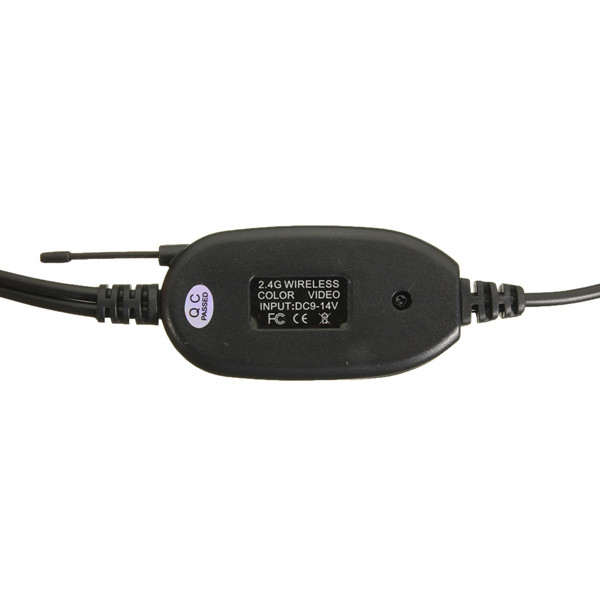

Transmitter / Receiver
Specification:
Take one minute get your camera become a wireless camera
Wireless 2.4GHz transmitter/receiver set (12V for vehicle installation)
Work Range: Up to about 50m (Hollowness)
Connects to rear-view camera and front video screen
Fit all RCA composite video connections
Power: DC 12V
Transmitter/Receiver Cable Length: approx.1.5m

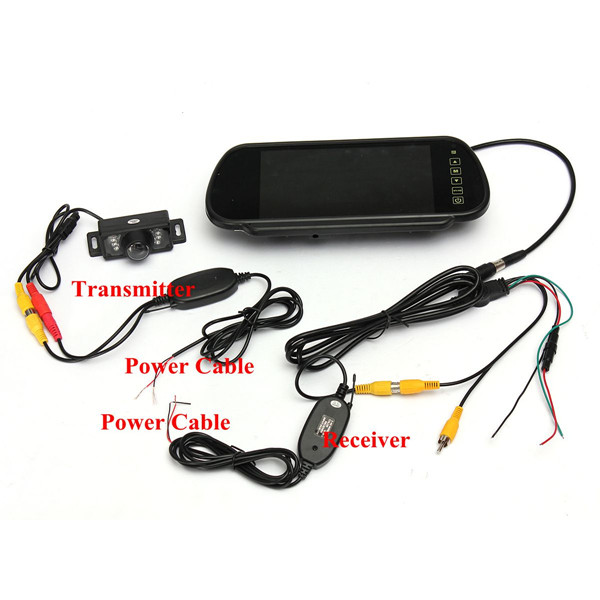

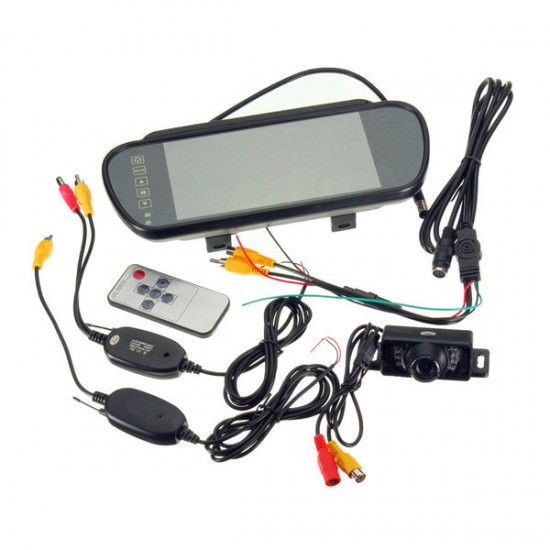

Package Included:
1 x Car Monitor
1 x Video & Power Cable
1 x Remote Controller
2 x User Manual
1 x Car Rear Camera
1 x Power Cable
1 x Transmitter
1 x Receiver
,
,
,
,
,
