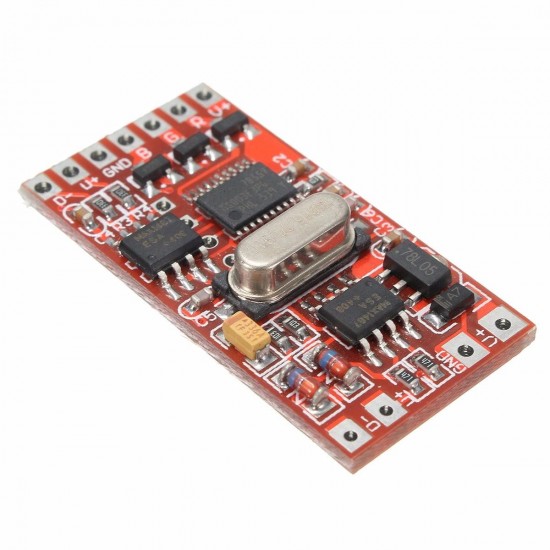

72W 3 Channel DMX512 Encoder Decoder Board Codering Module for RGB LED Stage Light
- Stock: In Stock
- Model: EB0049385
- SKU: EB0049385
Model: DMX512
Name: Decoder Board

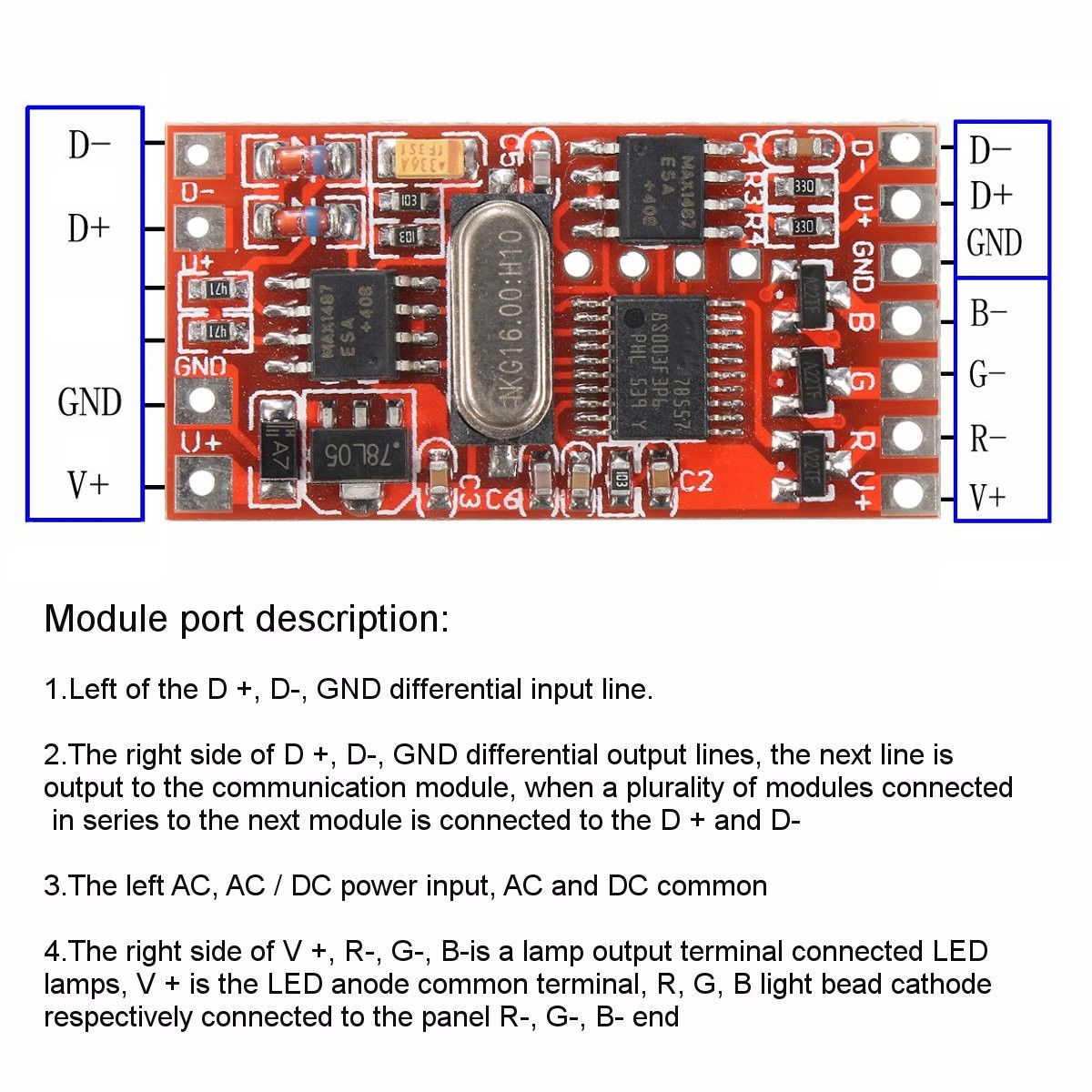

1. Transmission: RS485 differential transmission, with high resistance to dry worries, transmission distance, easy wiring
2. Anti-lightning, anti-static, the circuit is stable and reliable
3. Gray-scale 0-100% dimming, 256 * 256 * 256 gray-scale
4. DC power supply
5. Power-on: Boot no impact (instantaneous power LED body), the protective effect of the LED
6. Applications: Mainly used in high-power full-color wall wash lights, spot lights, buried lights, underwater lights, stage lights, tunnel lights.
Specification:

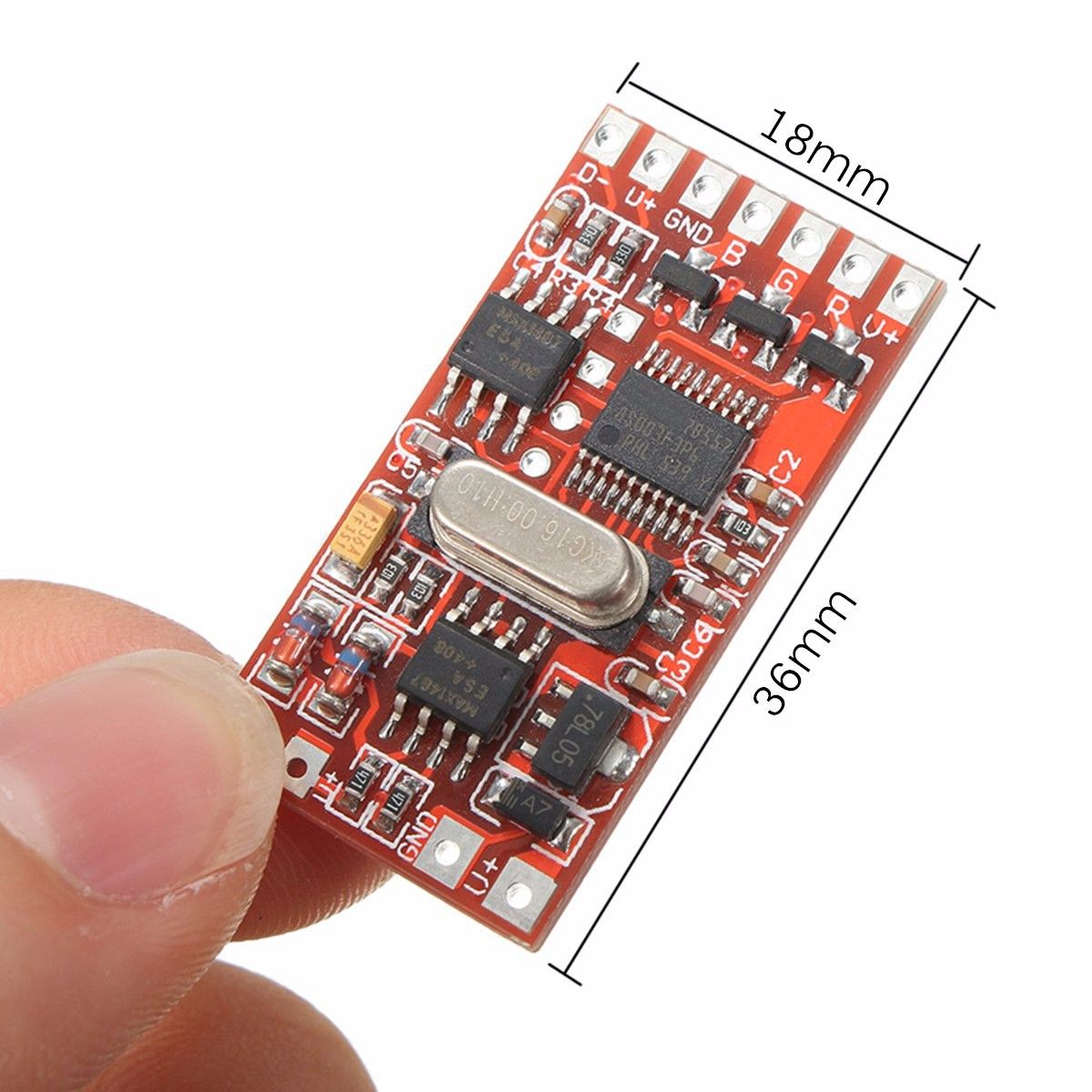

1. Dimensions: 36mm*18mm
2. Input voltage: DC12 ~ 24V
3. Output Current: 2A*3 Channel
4. Output Power: 72W
5. Output channels: three channel

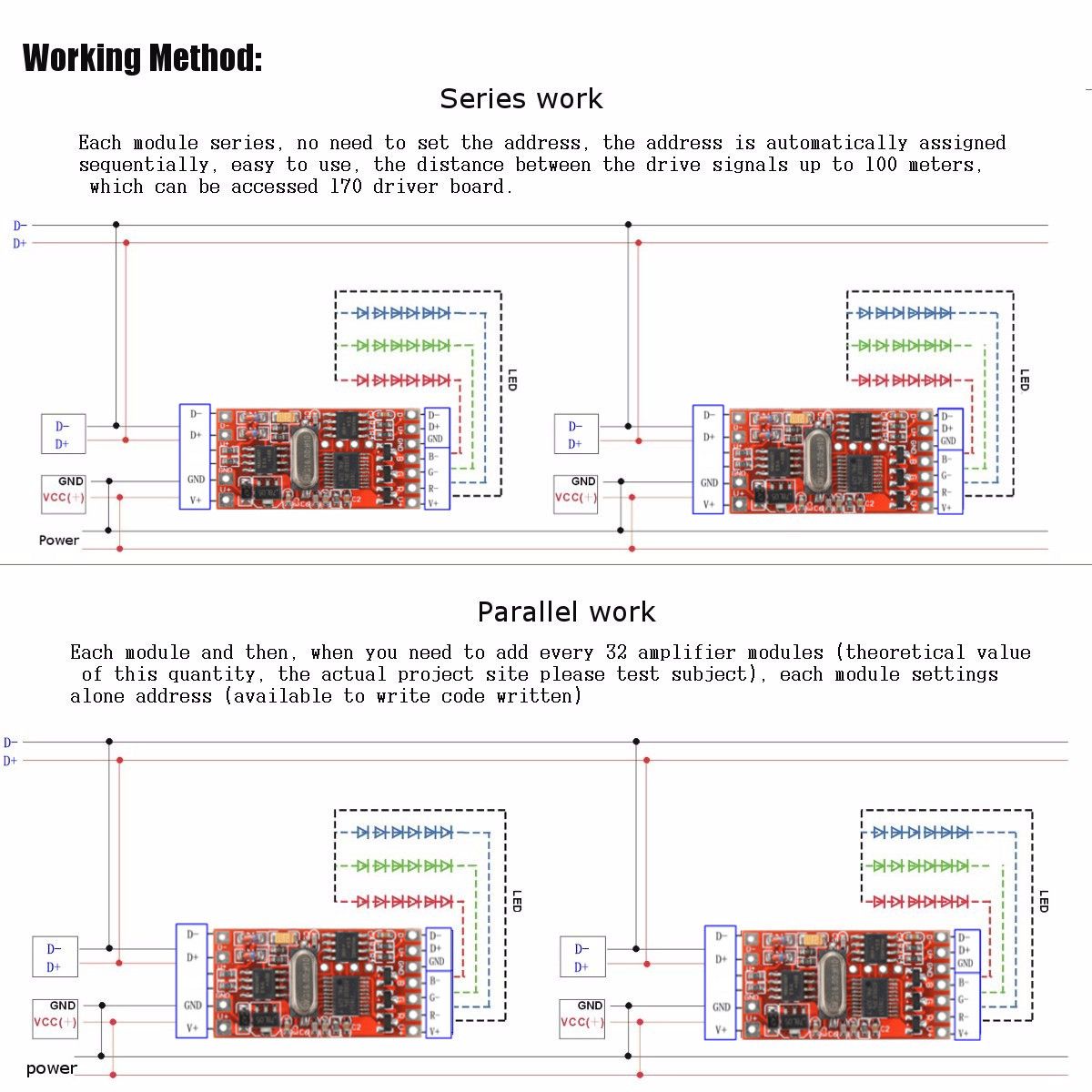

Mode:
Connected with DMX512 controller, the controller will follow the effect of changes
When not associated DMX512 controller will automatically run the built-in effects (colorful hopping, gradient); in serial mode, when not connected to the main controller, the first decoder can automatically becomes the master, synchronize online change.
Package Included:
1 x Decoder Board
