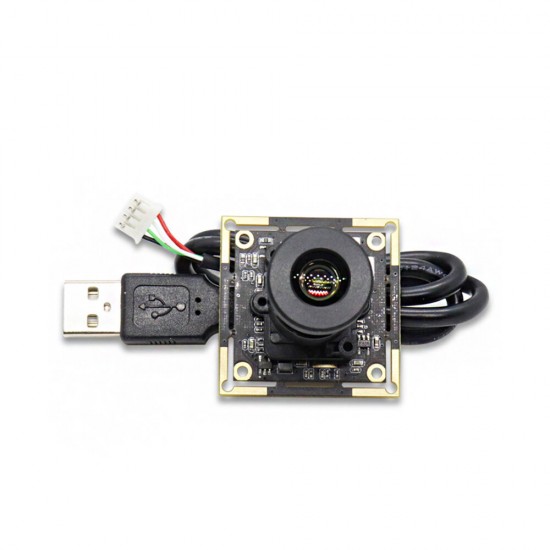

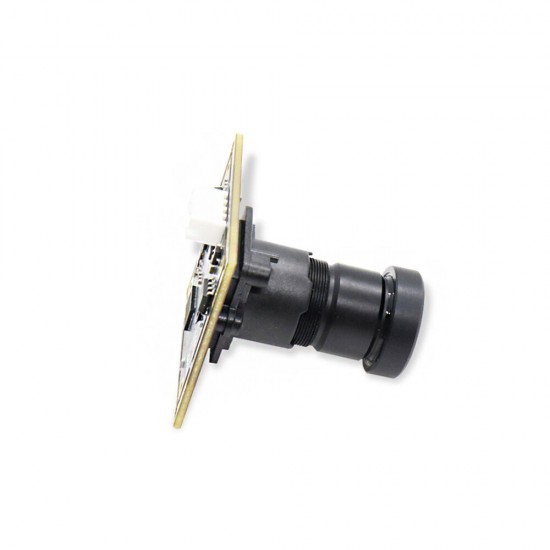

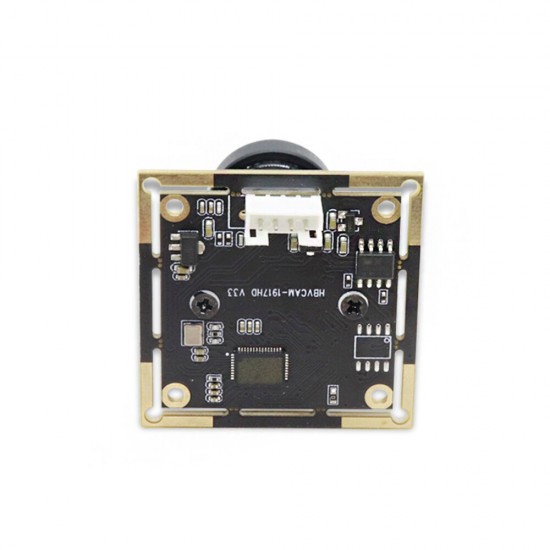

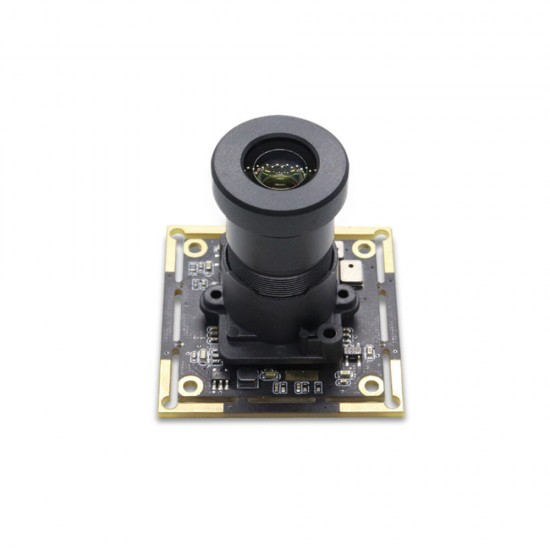

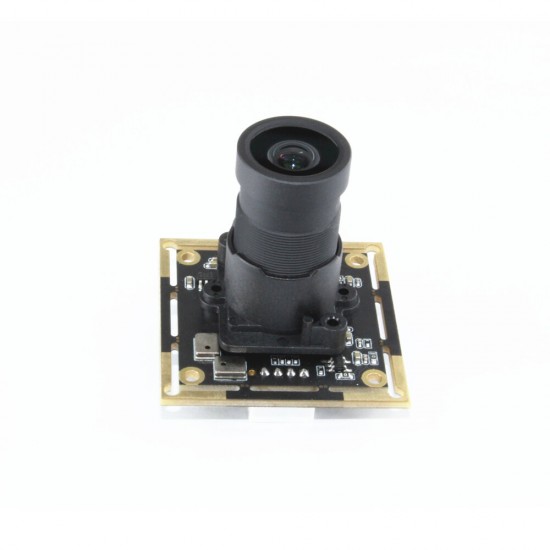

71° 2 Megapixel Cam Module UVC Fixed Focus IMX291 Sensor USB Mini Cmos Camera Module Support Microphone
- Stock: In Stock
- Model: EB0048385
- SKU: EB0048385
- Price Tag: US$ 30.99 - US$ 50.99
- Voltage: DC5V
Precise details:
| Model No. | HBVCAM-1917HD |
| Model Size | 38mm × 38mm × 37.7mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | IMX291 (1/2.8” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 3300mv /(lux-sec) |
| Pixel Size | 2.9m x 2.9μm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS |
| MJPEG 640x480 30FPS / YUY2 640x480 30FPS | |
| MJPEG 1280x720 30FPS / | |
| MJPEG 1920x1080 30FPS / | |
| S/N Ratio | 42db |
| Max Dynamic Range | 72db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4G |
| F/No | 1 |
| EFL | 6.0 mm |
| FOV | 71° |
| TV Distortion | <-20% |
| Relative Illumination (Sensor) | 0.7 |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM |
| Model No. | HBVCAM-1917HD |
| Model Size | 38mm × 38mm × 37.7mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | IMX291 (1/2.8” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 3300mv /(lux-sec) |
| Pixel Size | 2.9m x 2.9μm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS |
| MJPEG 640x480 30FPS / YUY2 640x480 30FPS | |
| MJPEG 1280x720 30FPS / | |
| MJPEG 1920x1080 30FPS / | |
| S/N Ratio | 42db |
| Max Dynamic Range | 72db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4G |
| F/No | 1 |
| EFL | 6.0 mm |
| FOV | 71° |
| TV Distortion | <-20% |
| Relative Illumination (Sensor) | 0.7 |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM |
