$70.99
Ex Tax: $70.99
  • Stock: In Stock
  • Model: EB0051010
  • SKU: EB0051010
>
Note: This product comes with 7.5 Inch Bare ink screen.

Product introduction:

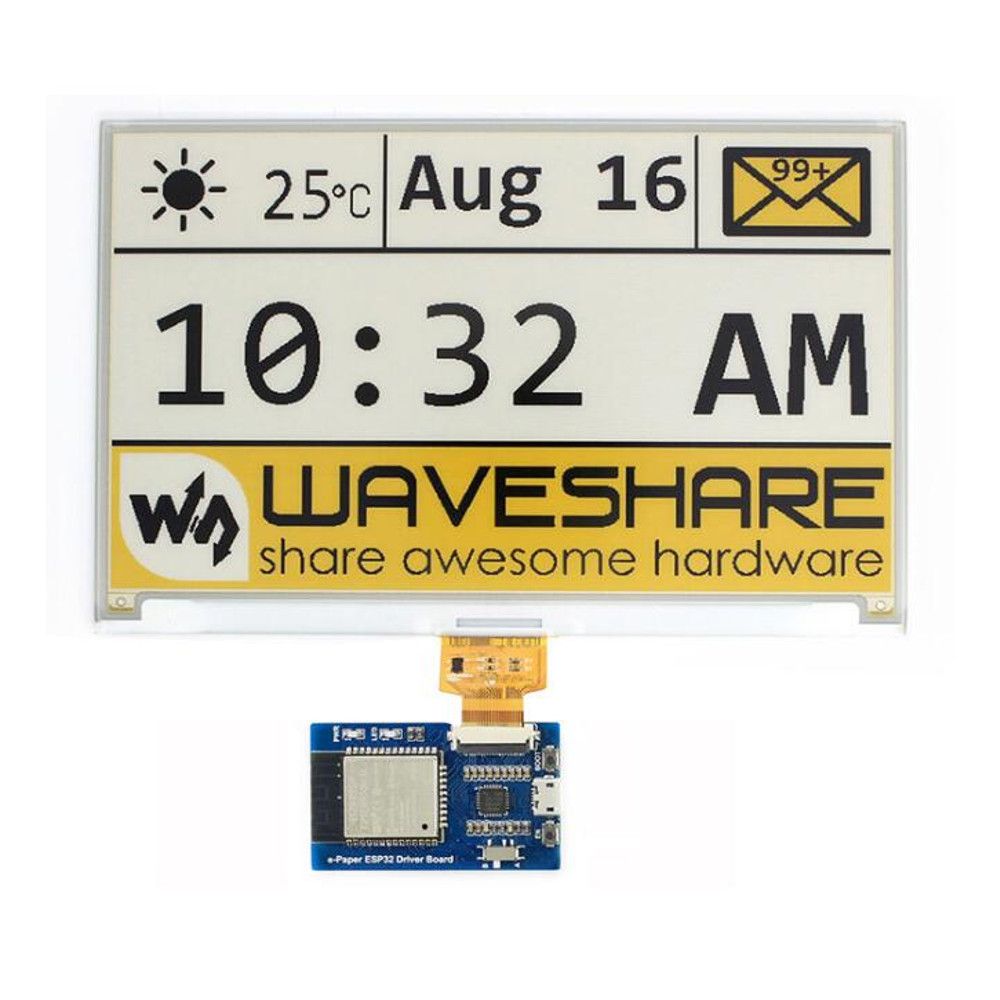

The electronic ink screen network driver board can obtain picture information from a PC or a smart phone via WiFi, and display the information through an electronic ink screen.
Support for development, can be used like other boards.

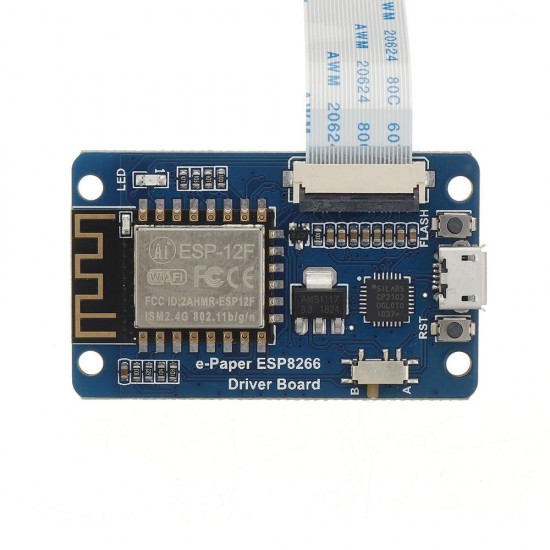

Driver Board Features:

Onboard ESP8266, support for development
Provide HTML host computer program factory built-in electronic ink screen driver (open source)
Support Floyd-Steinberg dithering algorithm to get more color combinations and better shadow rendering of original images
Support a variety of common image formats (BMP, JPEG, GIF, PNG, etc.)
Easy to integrate into a variety of web applications
Provide a complete supporting information manual

Driver Board Parameter:

WiFi standard: 802.11b/g/n
Communication interface: 3-wire SPI, 4-wire SPI (default)
Working voltage: 5V
Working current: 50mA ~ 100mA

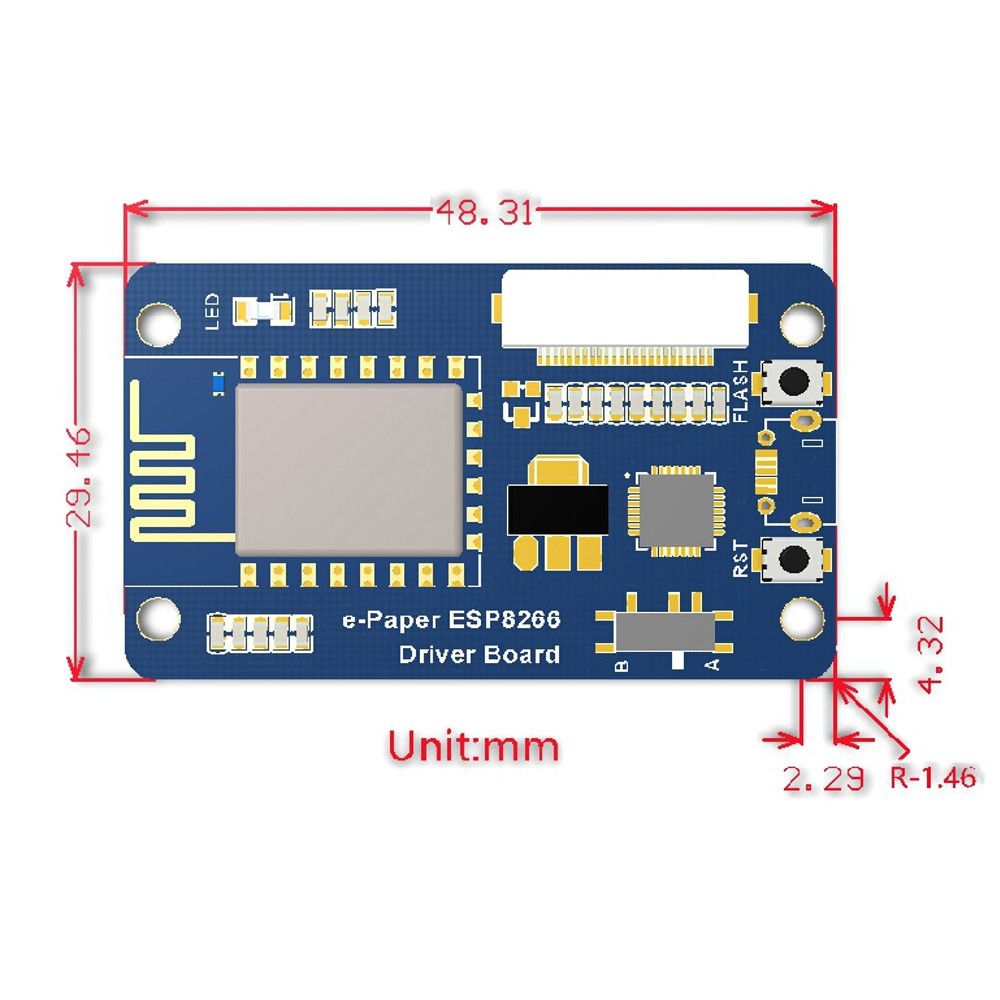

Dimensions: 29.57mm x 48.26mm
Through hole diameter: 2.9mm

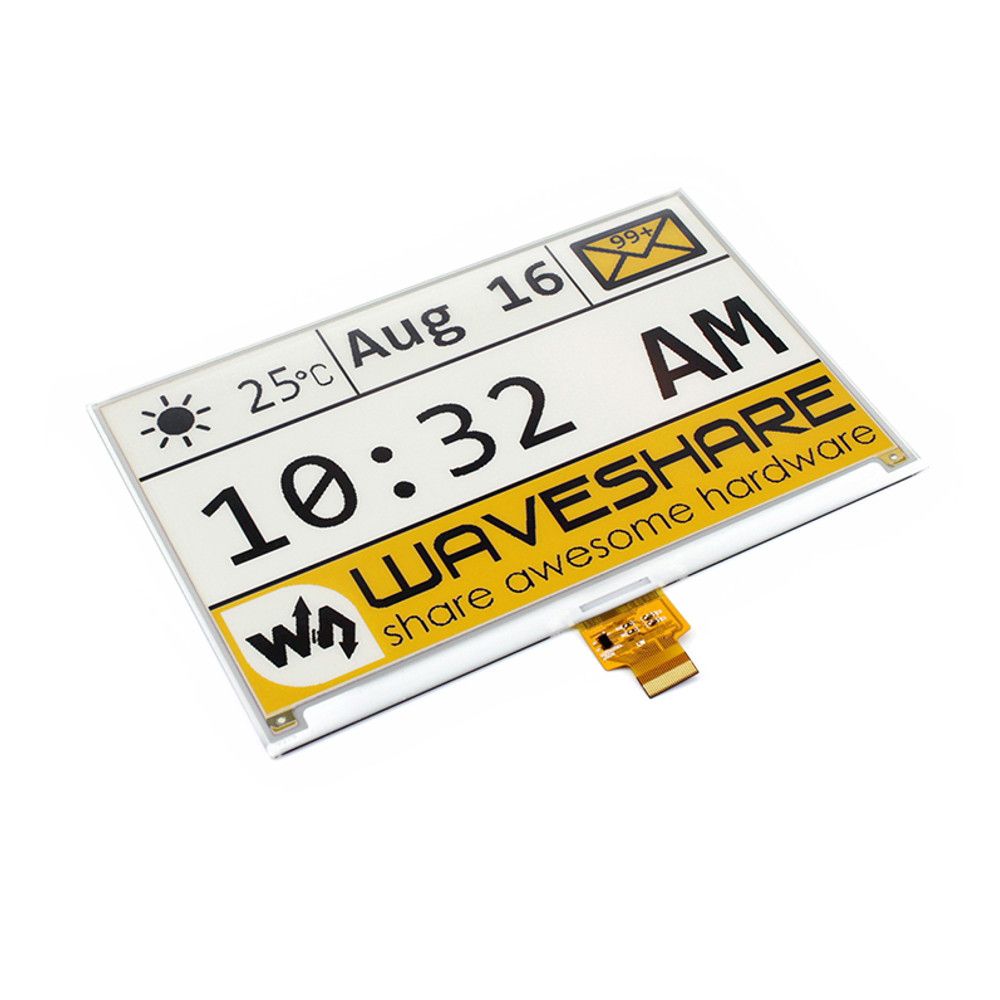

Screen Features:

No backlight required, power off can keep the last screen display for a long time
Very low power consumption, basically only consumes power when refreshing
Provide complete supporting information manual (driver schematic, Raspberry//STM32 and other sample programs

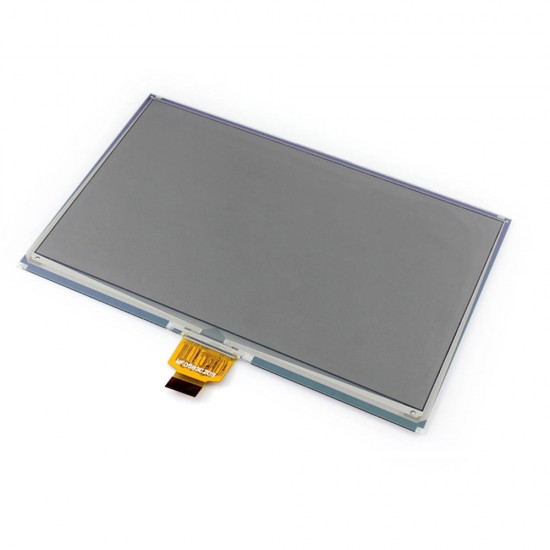

Screen Parameters:

Working voltage: 3.3V
Communication interface: 3-wire SPI, 4-wire SPI
Dimensions: 170.2mm × 111.2mm × 1.18mm
Display size: 163.2mm × 97.92mm
Dot Distance: 0.255 × 0.255
Resolution: 640 x 384
Display color: yellow, black, white
Gray level: 2
Global refresh: 16s
Refresh power consumption: 38mW (typ.)
Standby power consumption: <0.017mW
Viewing angle: >170°

Information includes:

User manual
Schematic
Sample program
Development materials

Package includes:

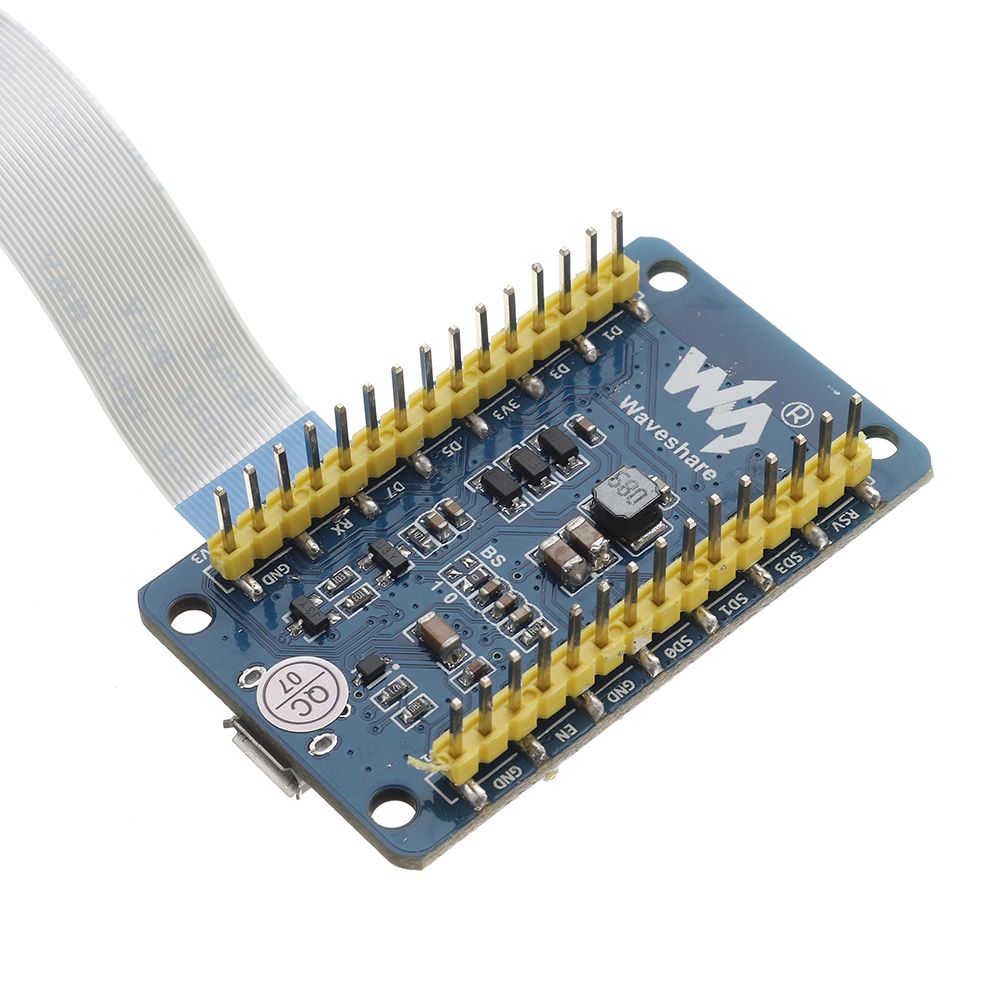

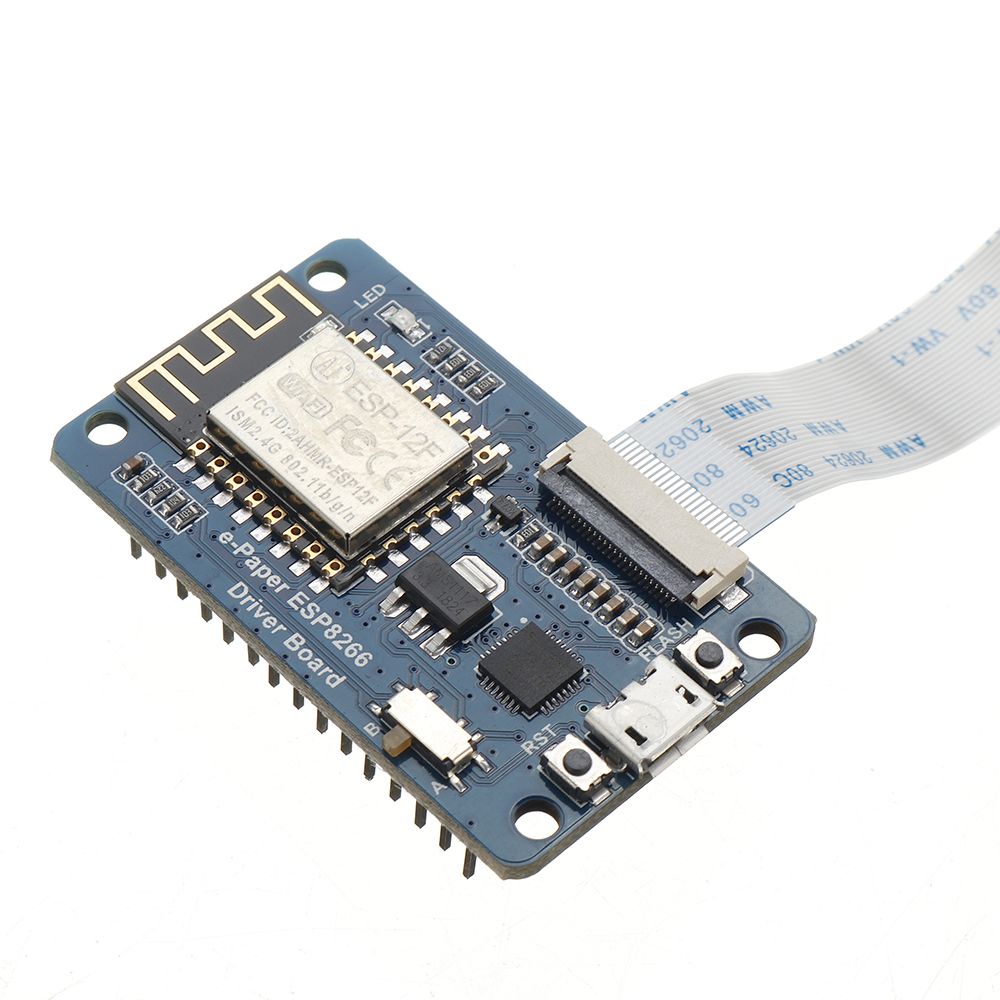

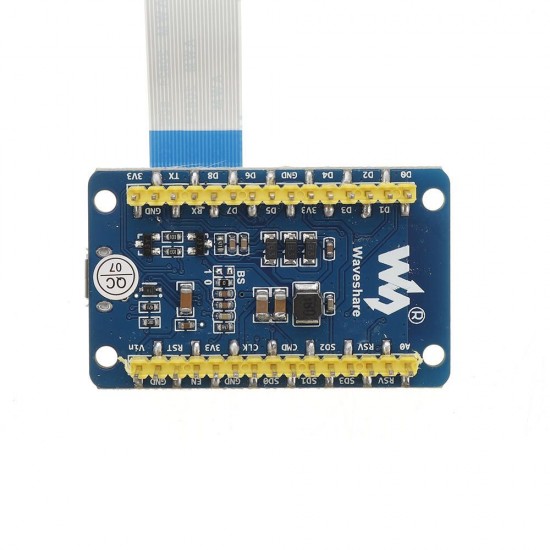

1 x e-Paper ESP8266 Driver Board

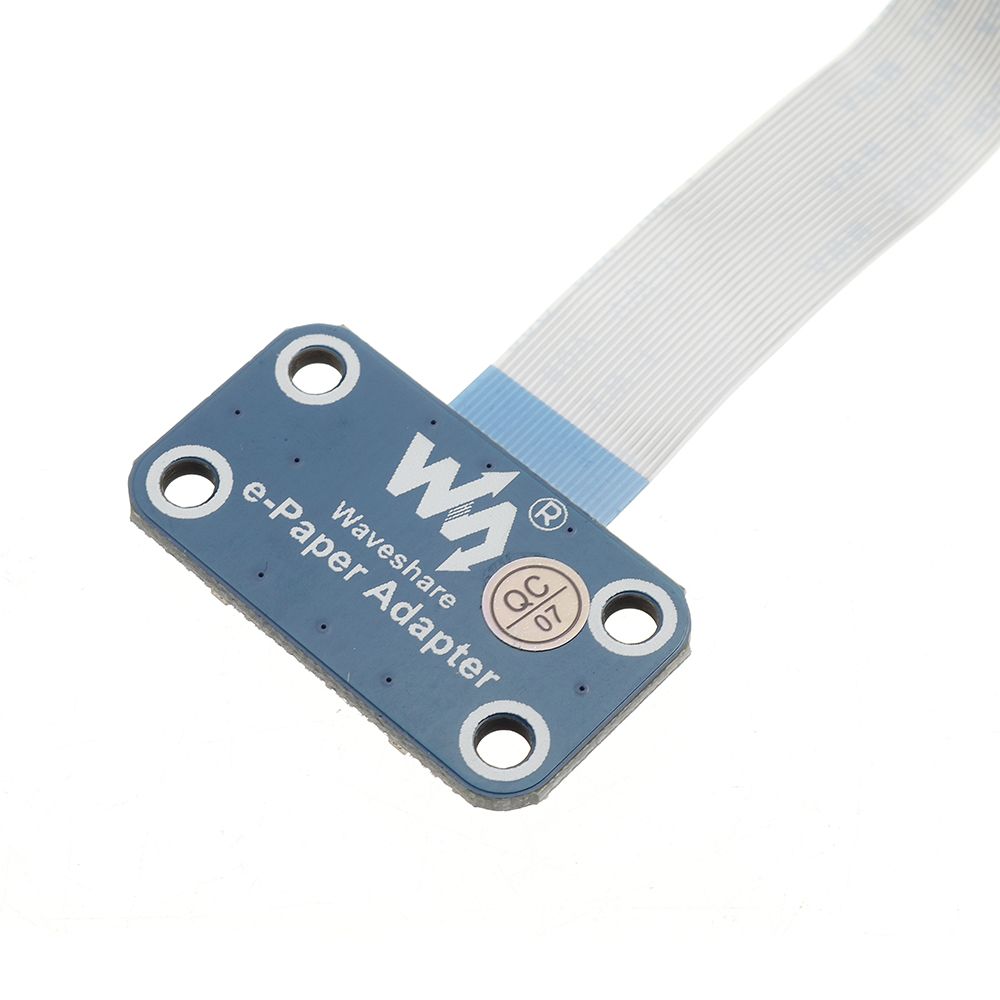

1 x e-Paper Adapter
1 x 24PIN FFC line

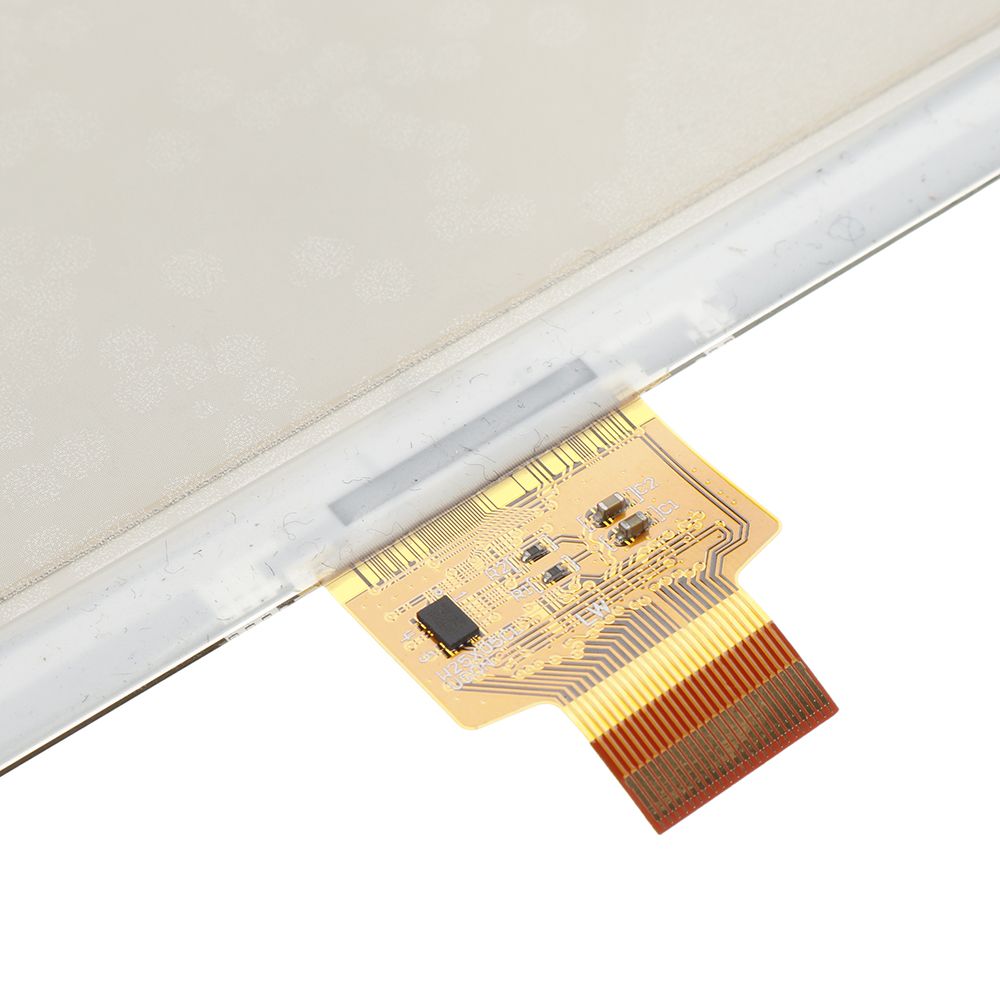

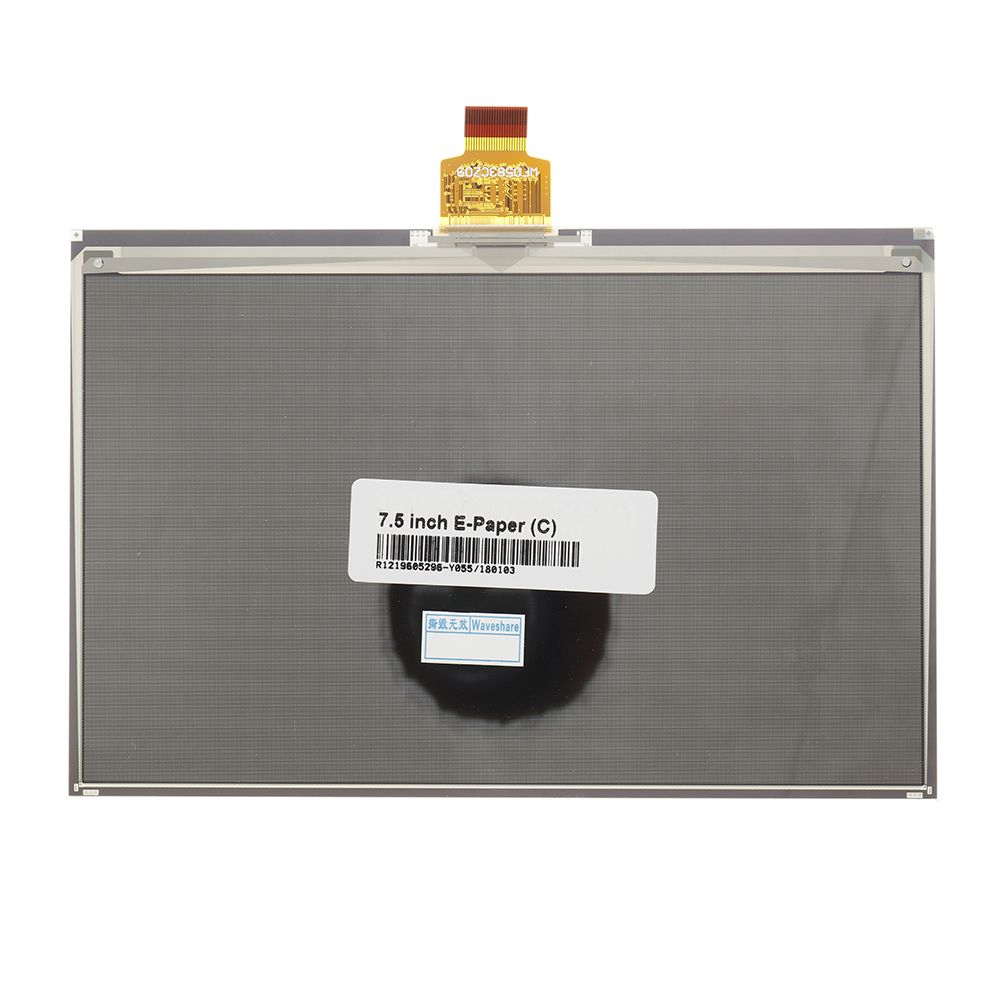

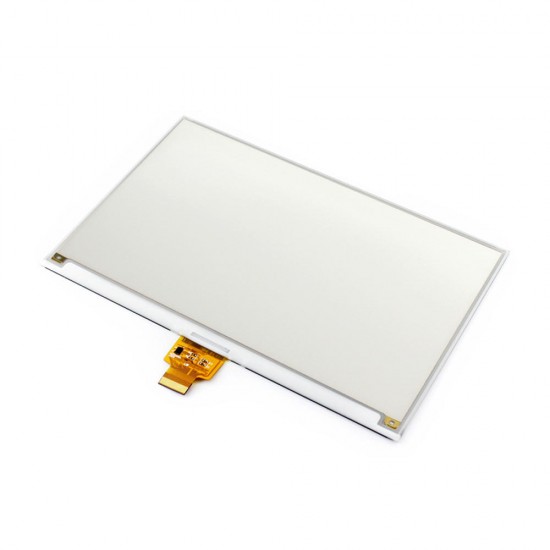

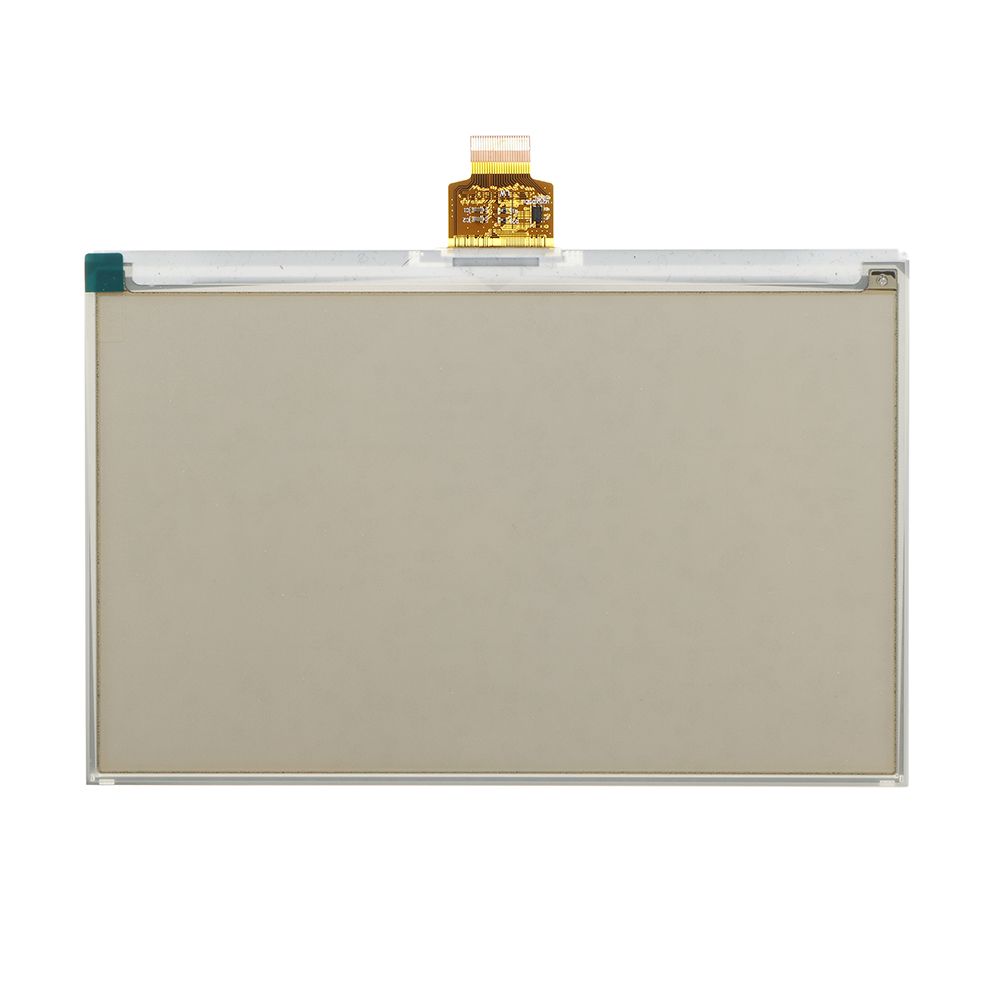

1 x 7.5 Inch Bare Screen
