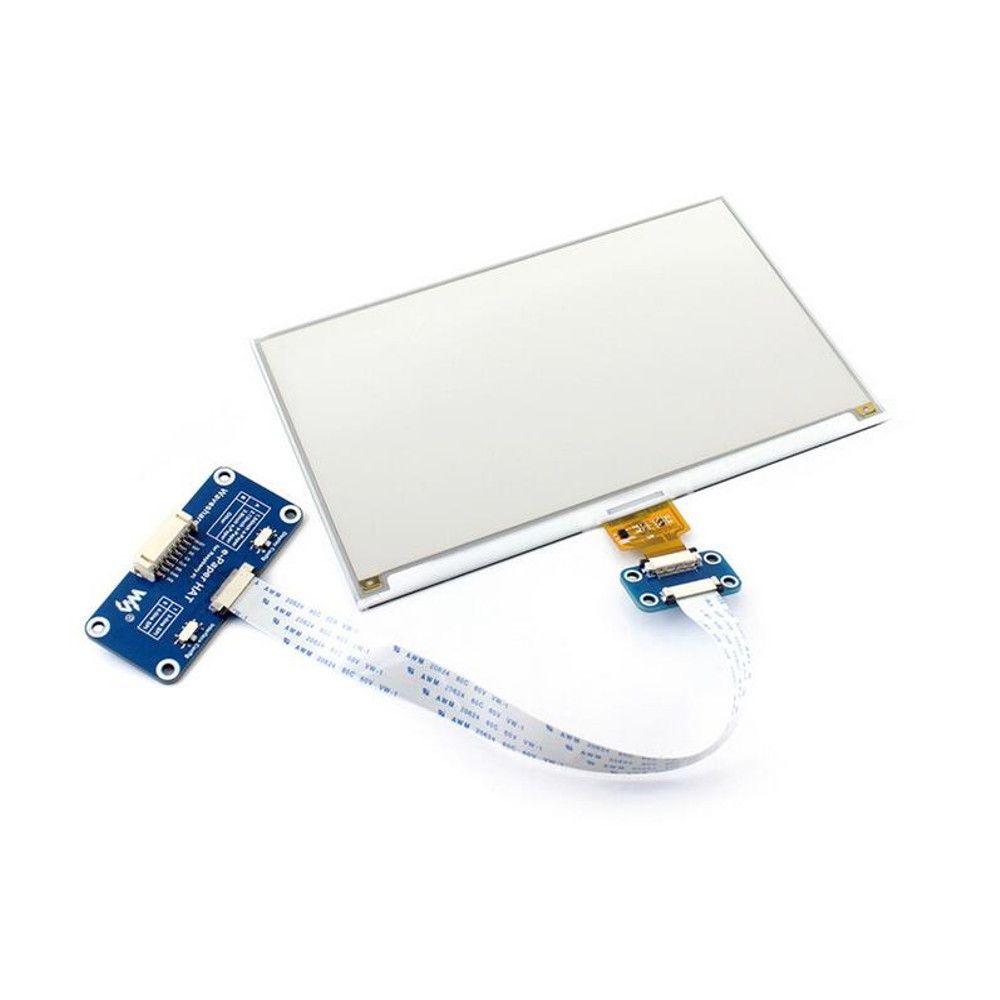

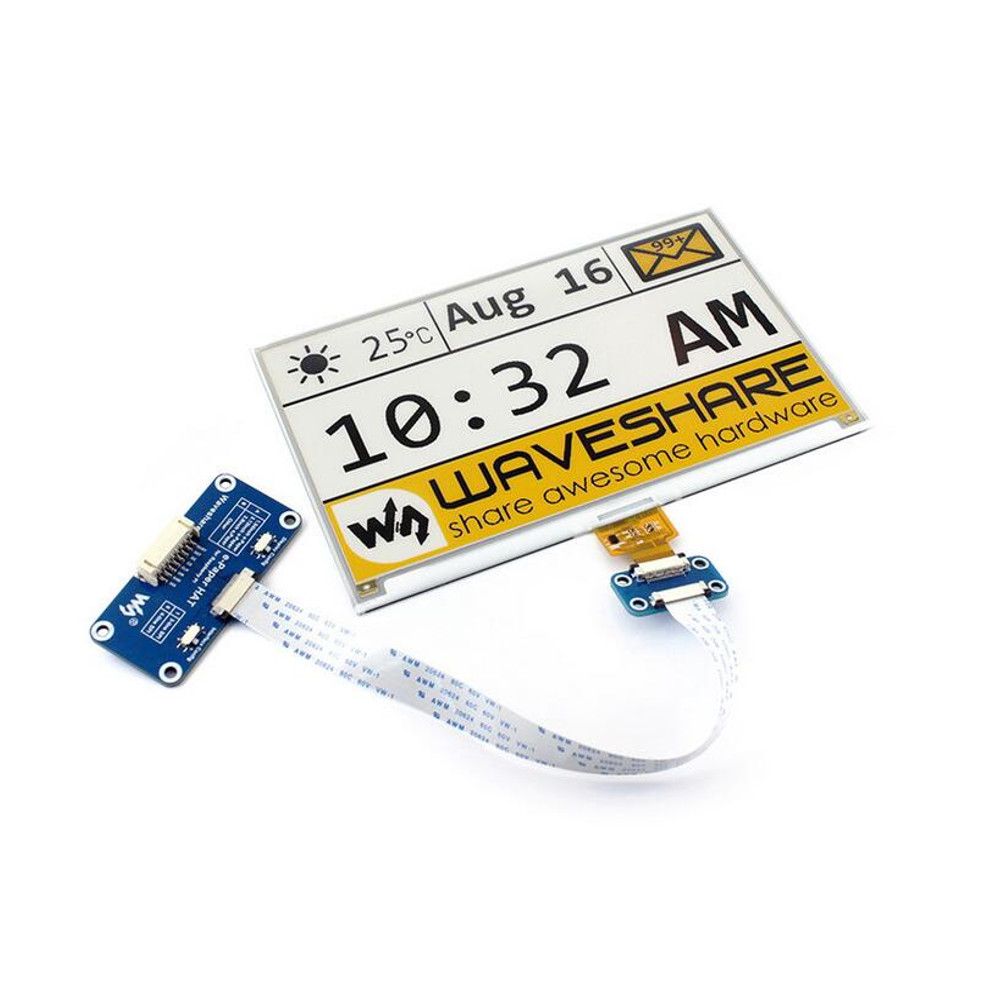

7.5 Inch 640x384 E-paper Ink Screen Yellow Black and White SPI Interface with Driver Board

Based on 0 reviews. - Write a review

$82.38

Ex Tax: $82.38

Stock: In Stock
Model: EB0050450
SKU: EB0050450

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: 3.3V

Precise details>>

Features:

No backlight is needed, and the display content of the last screen can be kept for a long time after power off

Very low power consumption, basically only consumes power when refreshing

Based on standard interface design, compatible and directly plugged into Raspberry Pi 2nd Generation B/3rd Generation B/Zero/Zero W

Leads out SPI control interface, can be connected to Raspberry/Arduino/Nucleo and other main control boards

Provide complete supporting information manual (Raspberry/Arduino/STM32 and other sample programs)

Parameter:

Working voltage: 3.3V

Communication interface: SPI

Dimensions: 170.2mm × 111.2mm

Display size: 163.2mm × 97.92mm

Point pitch: 0.255 × 0.255

Resolution: 640 × 384

Display color: yellow, black, white

Gray level: 2

Global refresh: 16s

Refresh power consumption: 38mW(typ.)

Standby power consumption: <0.017mW

Viewing angle: >170°

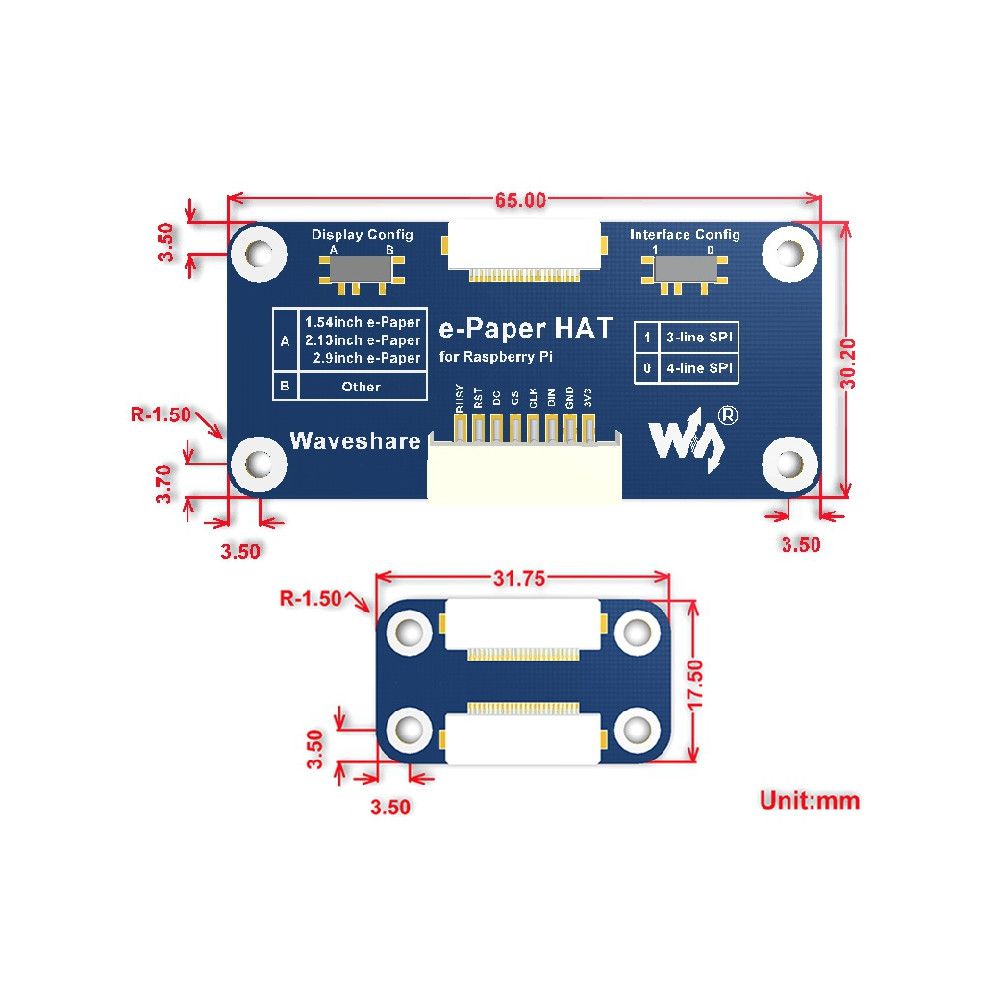

Interface Description:

VCC: 3.3V

GND: GND

DIN: SPI communication MOSI pin

CLK: SPI communication SCK pin

CS: SPI chip select pin (active low)

DC: data/command control pin (high level means data, low level means command)

RST: External reset pin (low level reset)

BUSY: busy status output pin (low level means busy)

Package includes:

1 x 7.5inch e-Paper (C)

1 x e-Paper Driver HAT

1 x RPi copper pillar package (2PCS set)

1 x PH2.0 8PIN cable 20cm
