7 Inch Capacitive Touch Screen LCD For Raspberry Pi 2 / Model B / B+ / B
- Stock: In Stock
- Model: EB0048490
- SKU: EB0048490
Features:
- 800×480 high resolution
- Capacitive touch control

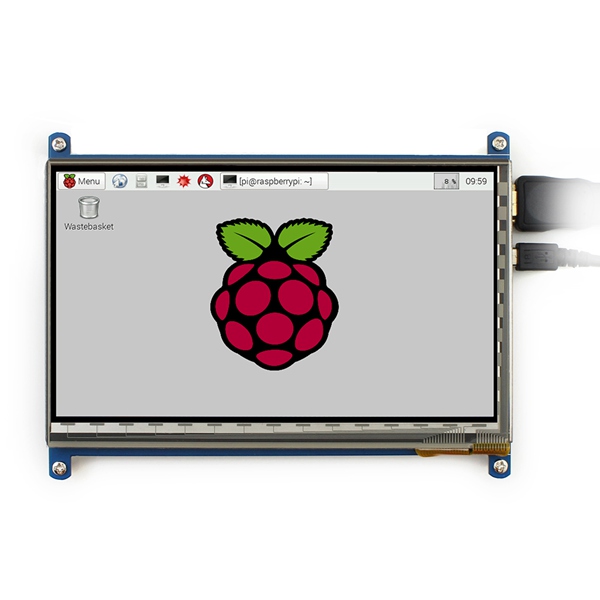

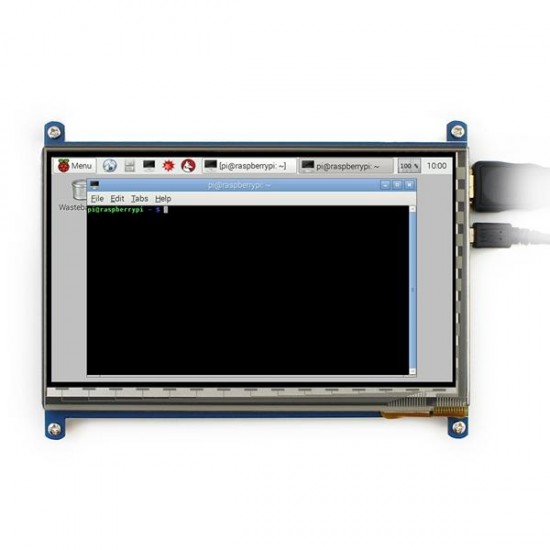

- Supports Raspberry Pi
- Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
- Supports BB Black, comes with Angstrom image

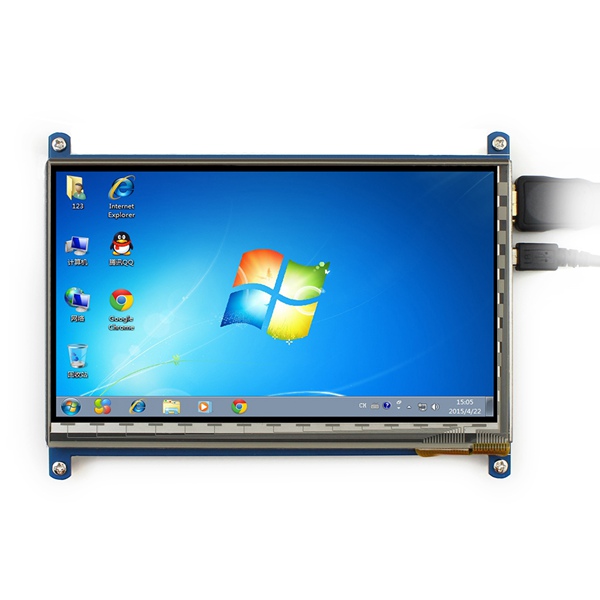

- Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
- HDMI interface for displaying, USB interface for touch control
- Back light control to lower power consumption
For revisions under Rev2.1:
- For the Raspberry Pi, comes with Raspbian driver (works with your Raspbian directly), and Ubuntu image
- When work as a computer monitor, touch function is unavailable

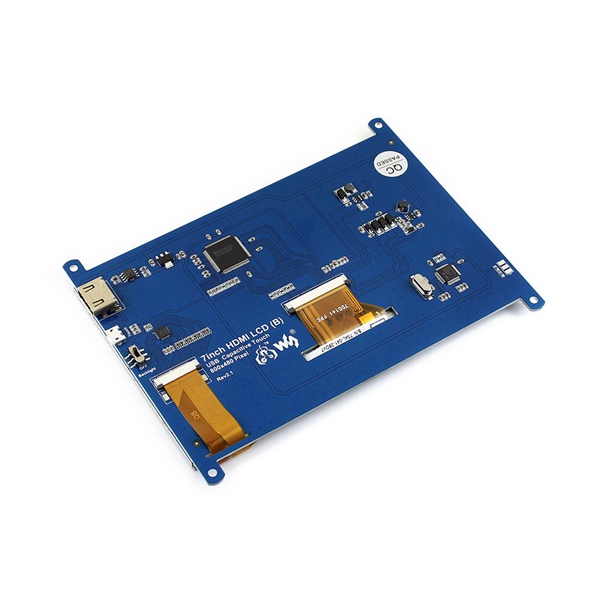

Rev2.1 New Features:
- Standard HID protocol, easy to be integrated into your system
- For the Raspberry Pi, supports Raspbian, Ubuntu, Windows 10 IoT, single touch, and driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
Supported mini PC
| mini PC | Driver | Image |
|---|---|---|
| Raspberry Pi B | Raspbian | Raspbian |
| Raspberry Pi A+ | Raspbian | Raspbian |
| Raspberry Pi B+ | Raspbian | Raspbian |
| Raspberry Pi 2 Model B | Raspbian | Raspbian, Ubuntu, Windows 10 IoT |
| Banana Pi | - | Raspbian, Lubuntu |
| Banana Pro | - | Raspbian, Lubuntu |
| BB Black | - | Angstrom |
Note :
Drivers can be added to your current system to support LCD display and touch control.
Images CAN NOT be used with your current system. They're stand-alone systems which support LCD display and touch control already.
FAQ:
- Why the LCD doesn't work with my Raspbian?
-
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly. - Why the LCD still doesn't work with the Waveshare provided image?
-
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact. - Which power supply should I use?
- It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might doesn't have enough power to support the Pi and LCD.
For more info, please check the wiki page. http://www.waveshare.com/wiki/7inch_HDMI_LCD_(B): http://www.waveshare.com/wiki/7inch_HDMI_LCD_(B)
Pacakge included:
1 x 7 Inch WaveShare 800×480 Supports Various Systems Capacitive Touch Screen LCD For Raspberry Pi 2 / Model B / B+ / B (Not included the Raspberry Pi)
,
,
,
,
,
