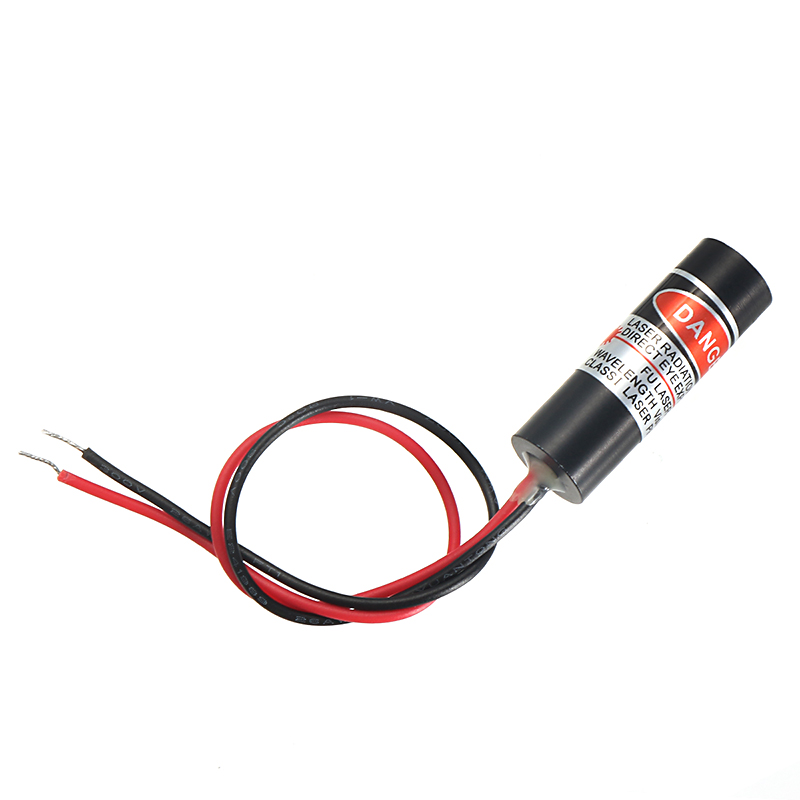

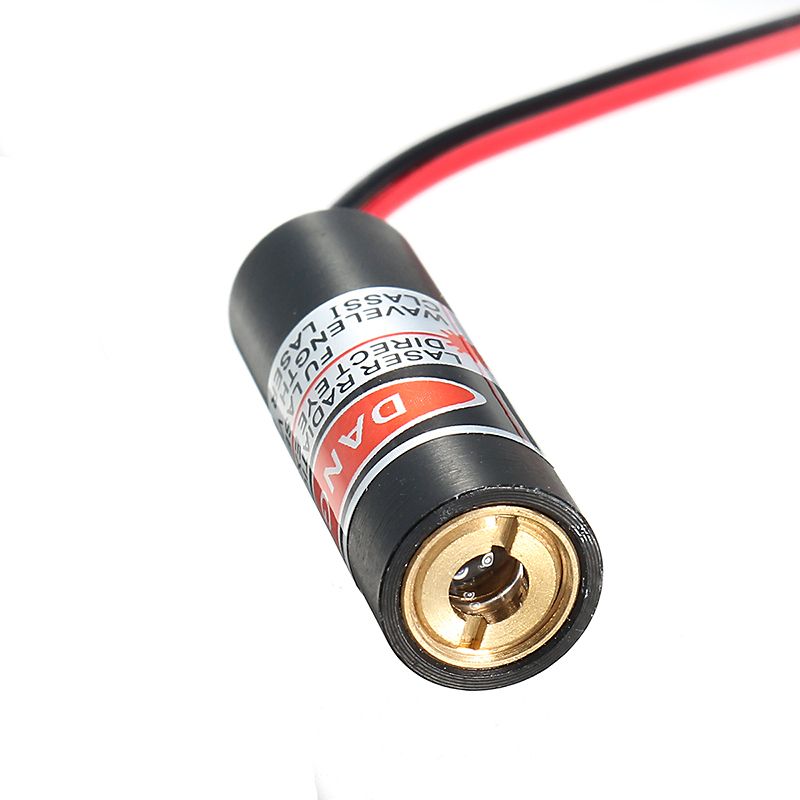

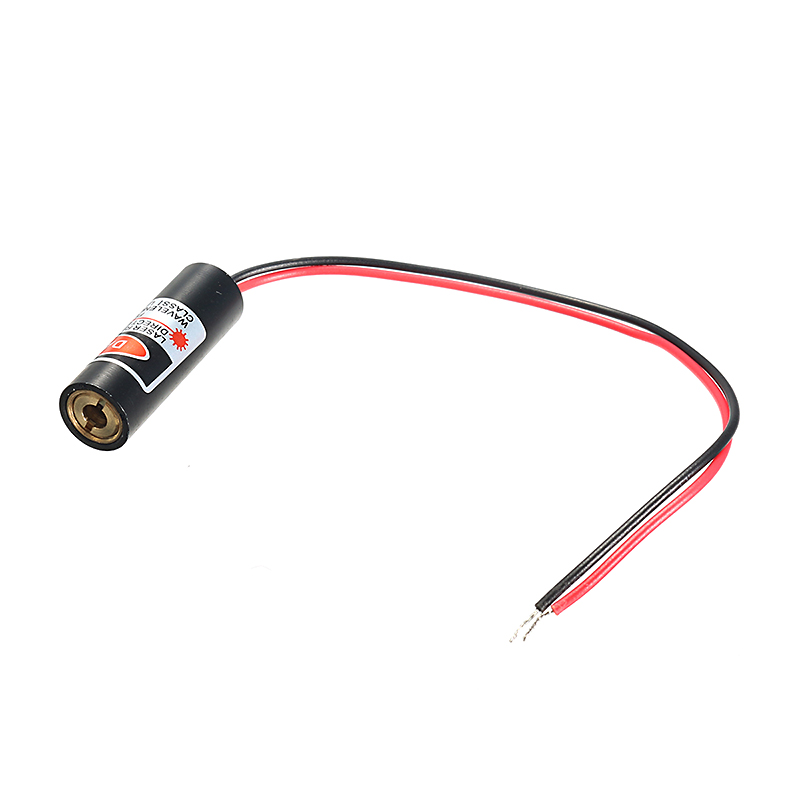

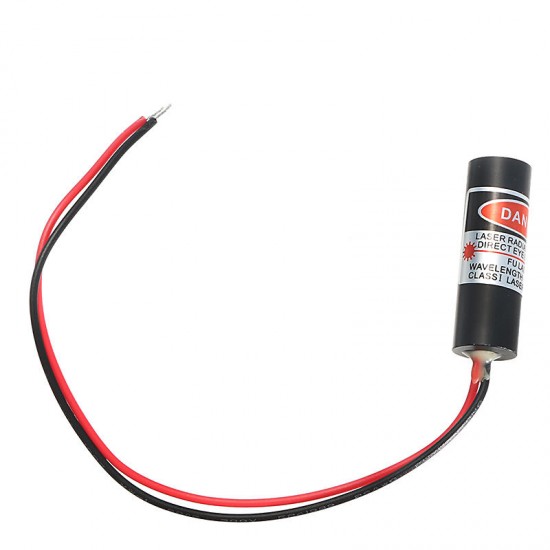

650nm 5mW Point Infrared Positioning Reticle Red Laser for Machine Equipment
- Stock: In Stock
- Model: EB0017490
- SKU: EB0017490
650nm 5mW Point Infrared Positioning Reticle Laser has stable performance, good
consistency, long service life.
Specification:
| Wavelength | 650nm |
| Output power | ≤ 5mW |
| Operating current | ≤ 25mA |
| Supply voltage | DC2.8-5V |
| Dimensions | Φ10 * 30mm |
| Spot pattern | Point |
| Output band | Visible laser |
| Working medium | Semiconductor lasers |
| Incentive mode | Electric excitation laser |
| Operation mode | Continuous laser |
| Operating temperature | -10 ℃ ~ +40 ℃ |
| Storage temperature | -20 ℃ ~ +50 ℃ |
| Divergence angle | 0.5-2.0mrad |
Features:
1. Intelligent feedback control circuit
2. Efficient transmittance optical system
3. Low power consumption, high performance optical power output
4. Stable performance, good consistency, long service life.
5. Can be used for machinery processing industry, wood processing industry, metallurgical
industry, stone processing industry, garment equipment, clothing equipment, paper cutter,
tire molding machine, printing machine and etc..
Package Included:
1 x Infrared Positioning Laser
