650nm 5mW Focusable Red Line Laser Module Laser Generator Diode

650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
650nm 5mW Focusable Red Line Laser Module Laser Generator Diode
$4.99
Ex Tax: $4.99
  • Stock: In Stock
  • Model: EB0017399
  • SKU: EB0017399

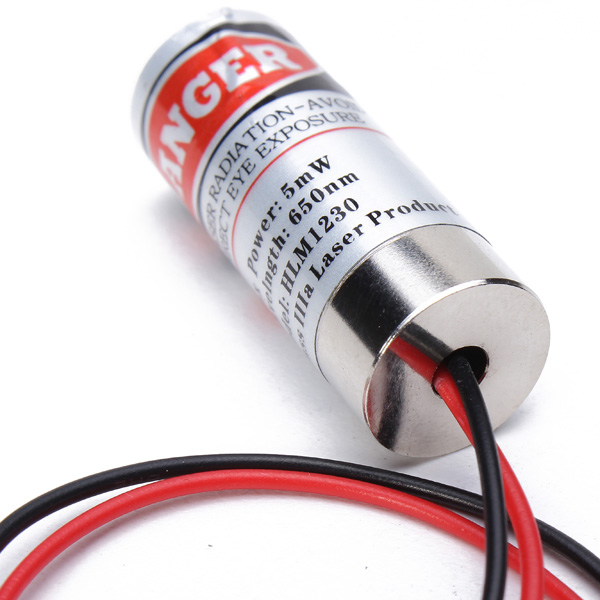

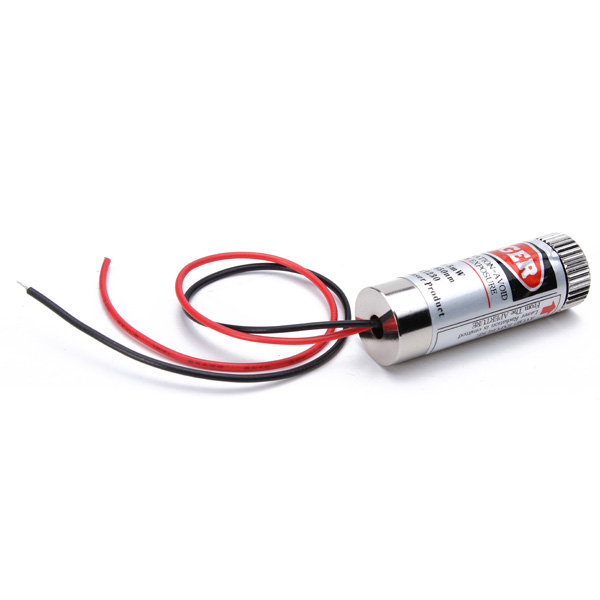

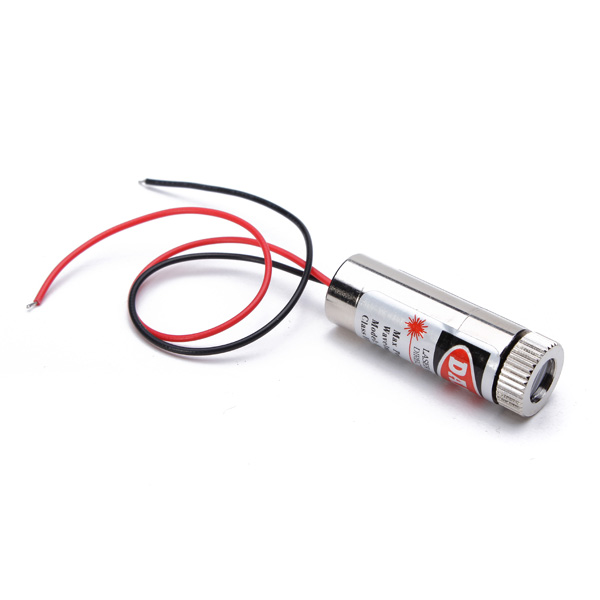

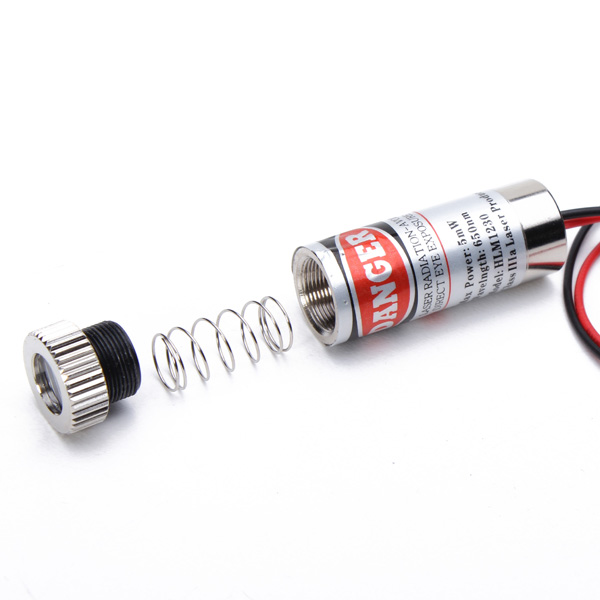

650nm 5mW Focusable Red Line Laser Module Laser Generator Diode

Description:
This 5mW red line laser module is suitable for industrial equipment usage such as concentricity and equipment positioning with stable output power and long lifetime.

Specifications:
Optical Power 5mW
Wavelength 650nm(red laser)
Voltage DC 3-5V
Current <40mA
Beam Shape line
Emitting Angle 120°
Power Cord Length 135mm(5.31")
Lens Material plastic

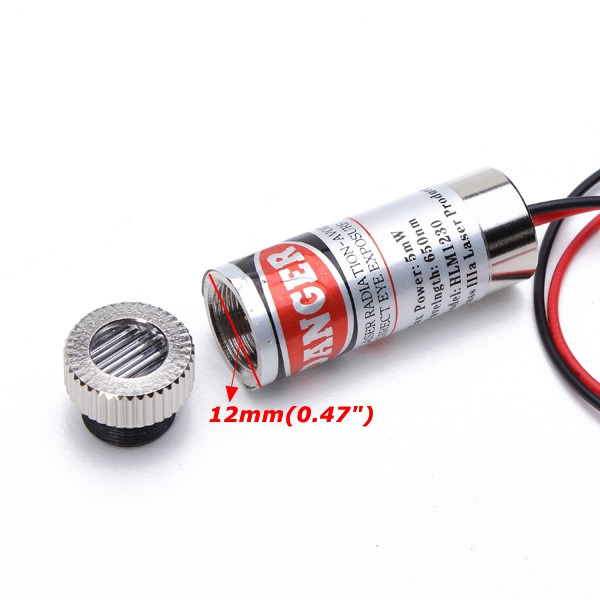

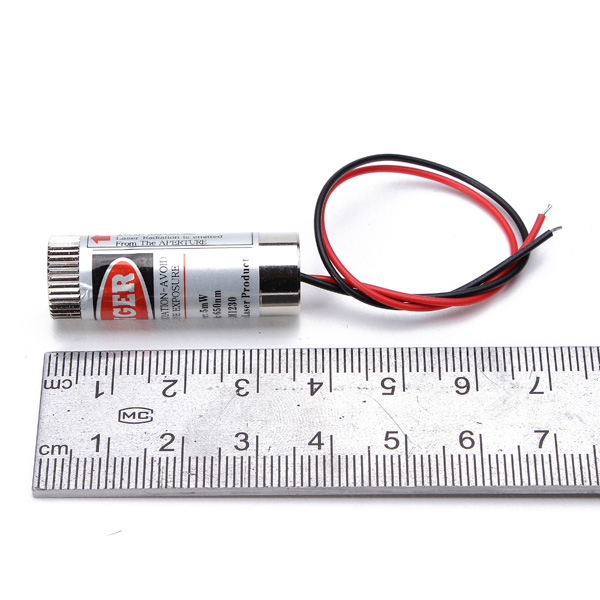

Size Φ12X35mm

Feature:

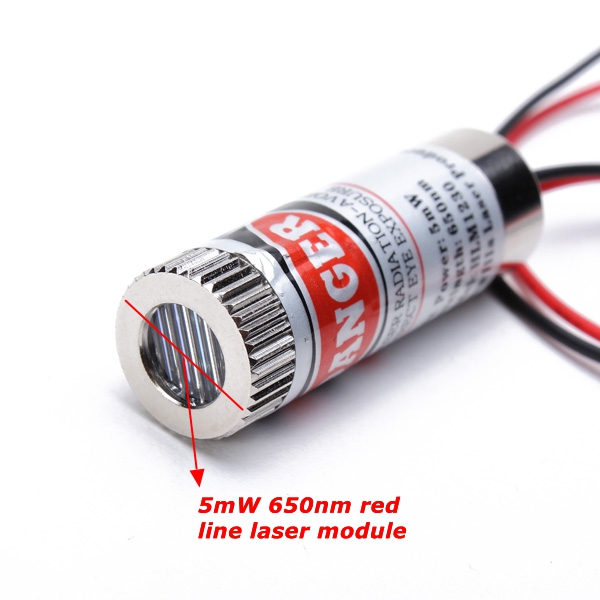

650nm focusable red line laser module
Supply current does not vary with the voltage ranging from 3.0V to 5.0V
Output optical power is stable,suitable for industrial equipment usage

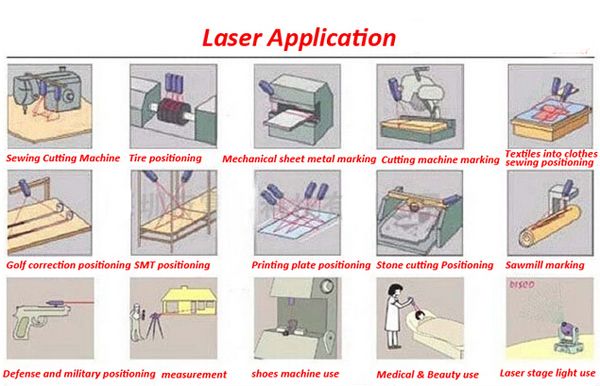

(concentricity,sight and equipmet positioning,signaling devices and laser test)

Note:
1.This laser module has high output power,please wear goggles when testing or using.

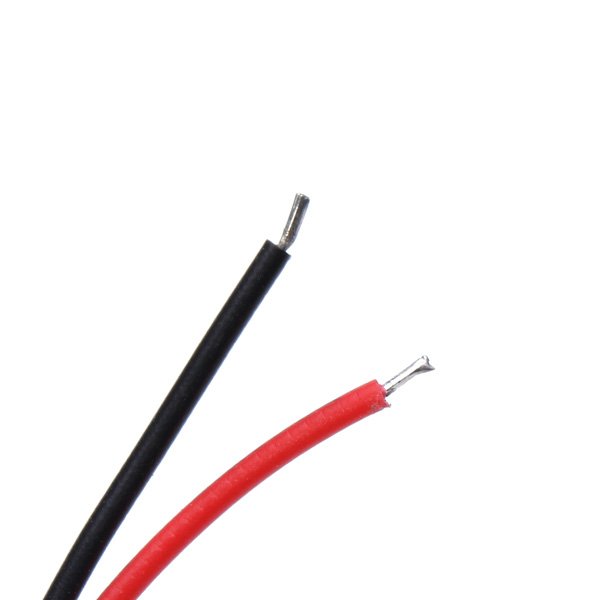

2.The red cord is anode,the black cord is cathode.

Package included:
1X 5mW Red Line Laser Module
