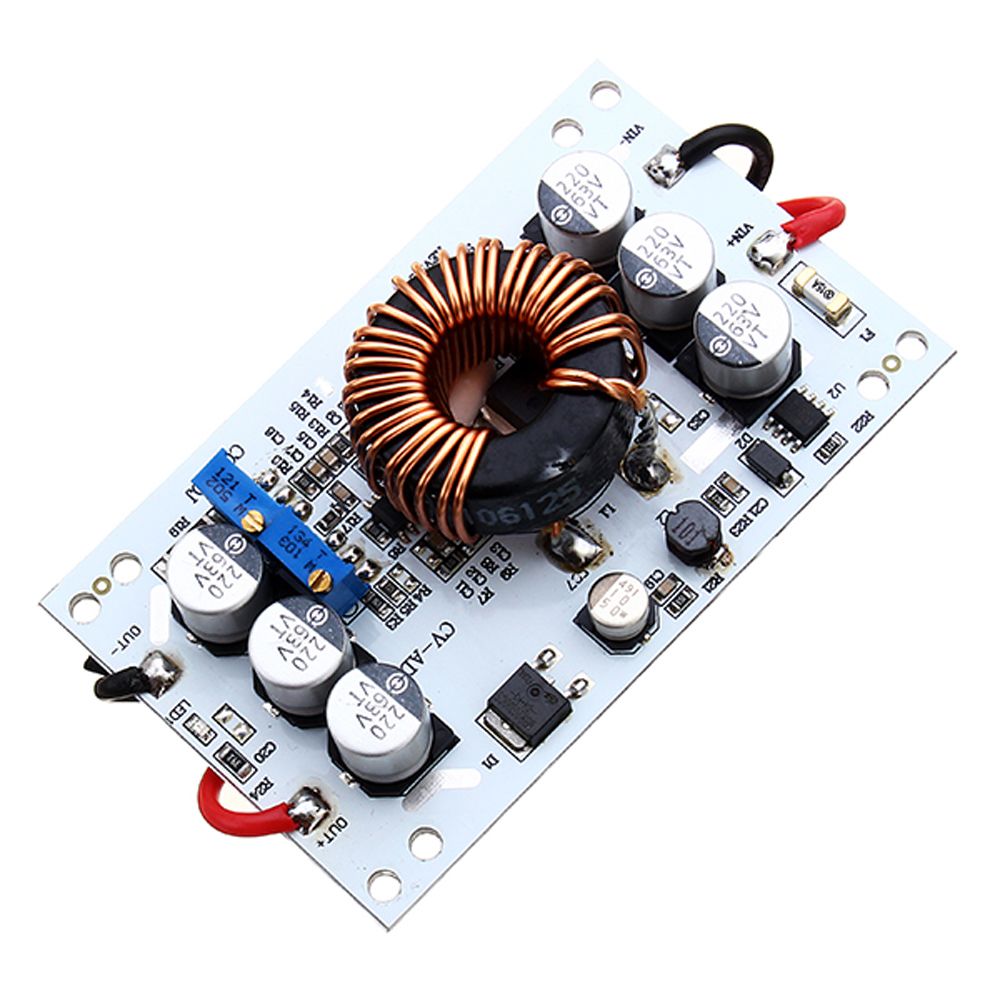

600W Aluminum Step Up Constant Voltage Current Adjustable Power Supply Module
- Stock: In Stock
- Model: EB0044924
- SKU: EB0044924
Module Properties: Non-Isolated Boost Module (BOOST)
Input voltage: DC10V-60V
Input current: 10 (MAX)
Static operating current: 10mA (12V 20V, the higher the output voltage, static and current will increase)
Output voltage: 12-60V continuously adjustable (Default output 19V shipment, if you need other voltage please explain to the shopkeeper.)
Output current: 10A MAX More than 6A, please strengthen the heat dissipation (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)
Constant current range: 0.2-10A
Output power: = input voltage * 10A, such as: input 12V * 10A = 120W, input 24V * 10A = 240W,
Input 36V*10A=1360W, input 60V*10A=600W,
Operating temperature: -40 ~ +85 degrees (enhance the heat when the ambient temperature is too high)
Operating frequency: 150KHz
Conversion efficiency: 92%-96% (efficiency related to input, output voltage, current, differential pressure)
Reverse input protection: None (note that positive and negative should not be reversed)
Installation method: 4 3mm screw holes
Wiring method: wiring output

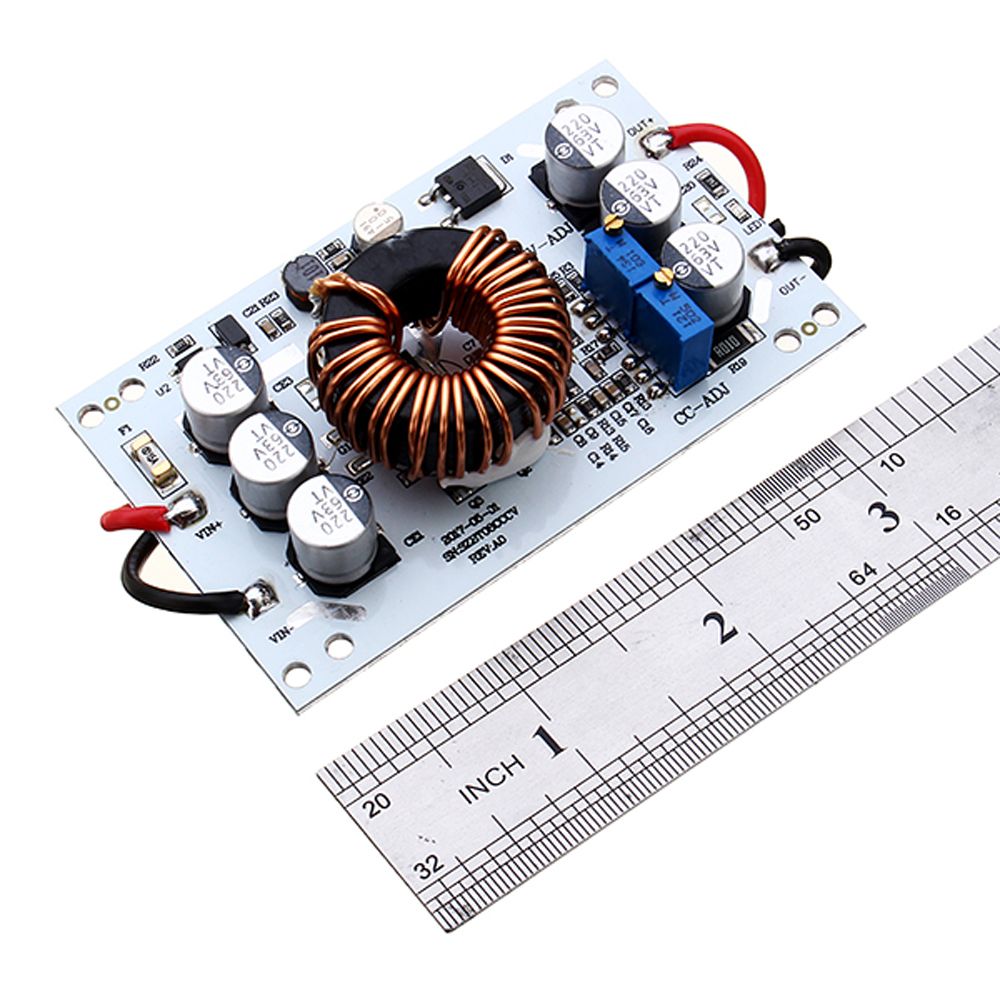

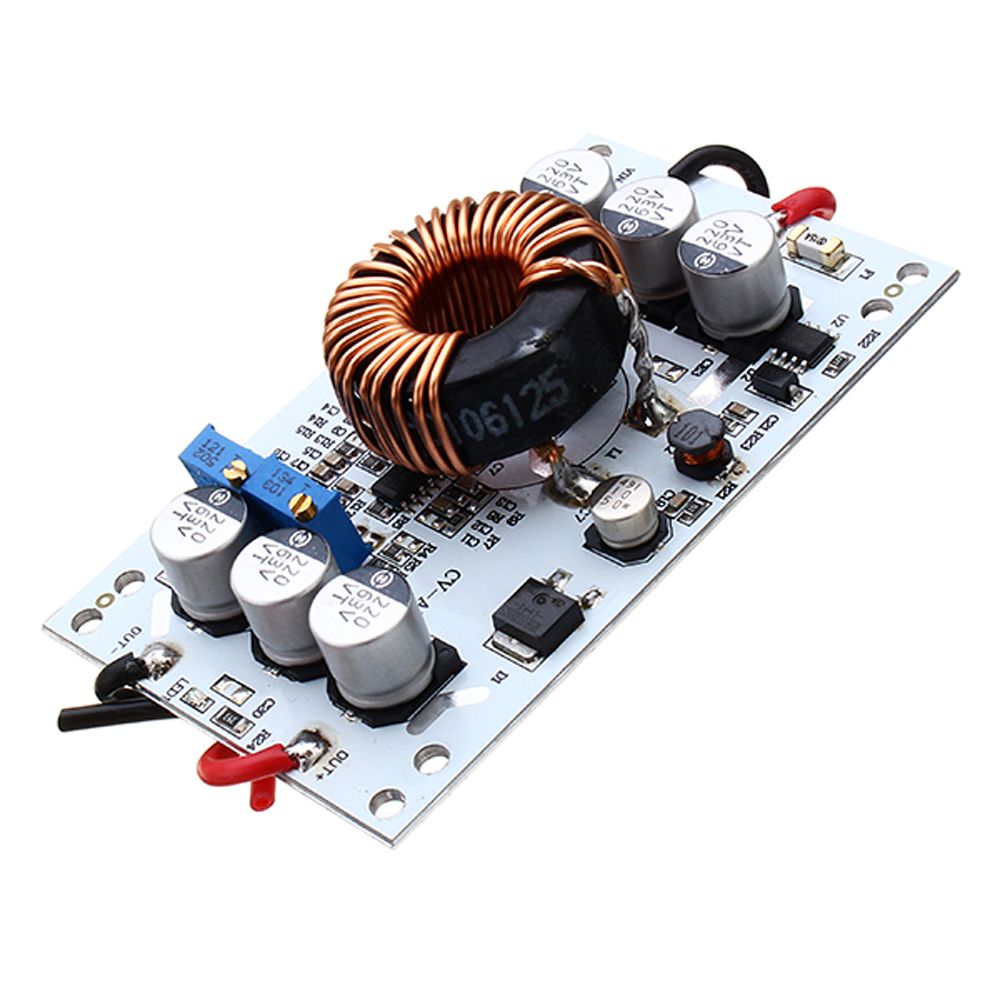

Module size: length 85mm width 52mm height 21mm
Single module weight: 80g

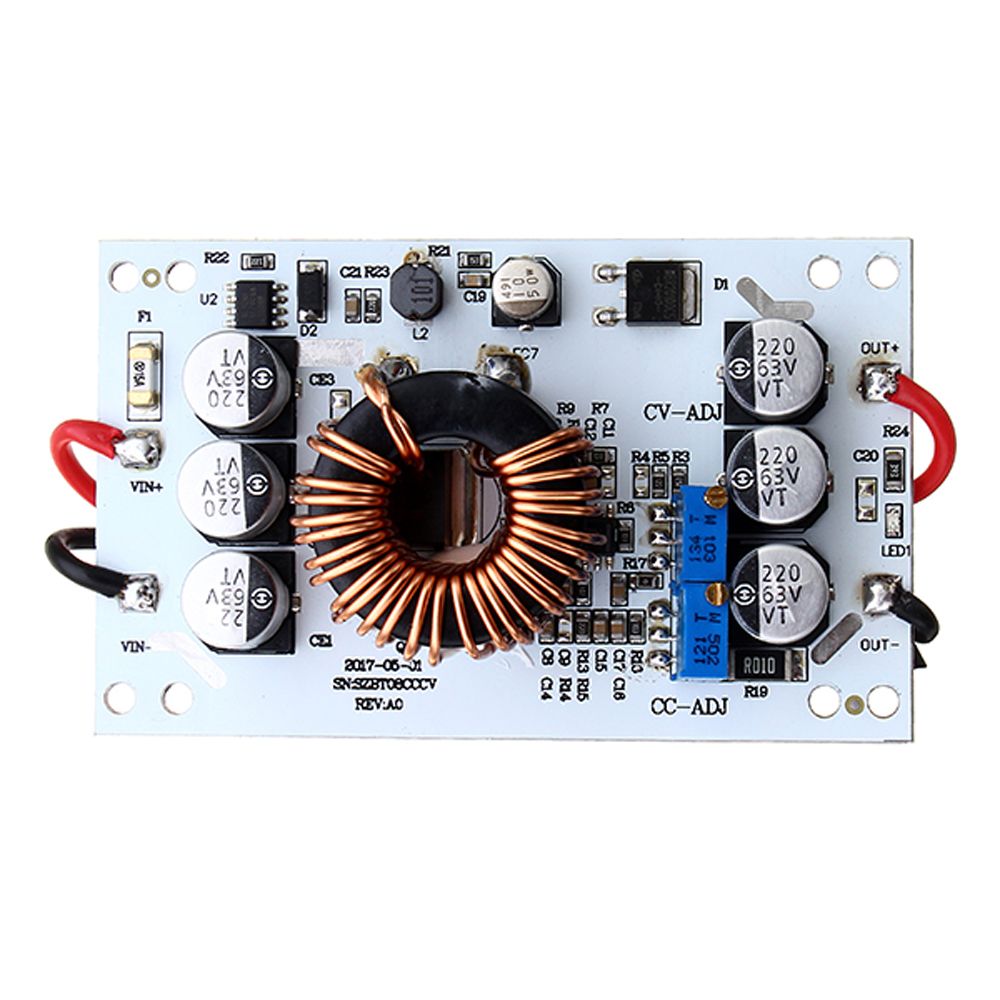

Output voltage regulation: Adjust CV-ADJ potentiometer, according to your battery or LED, set the output voltage to your desired voltage value. Turn clockwise the voltage reduce and turn it counterclockwise, it becomes larger.
Output current adjustment: Adjust the CC-ADJ potentiometer clockwise by 20 turns, set the output current to the minimum, connect to the LED, and adjust the CC-ADJ potentiometer to your desired current. For battery charging, after discharging the battery, connect it to the output and adjust the CC-ADJ to your desired current. (For charging, you must use the discharged battery to adjust, because the more battery power left, the smaller the charging current.)
Please do not adjust the current by short circuit. The circuit structure of the boost module cannot be adjusted by short circuit.
Instructions for use:

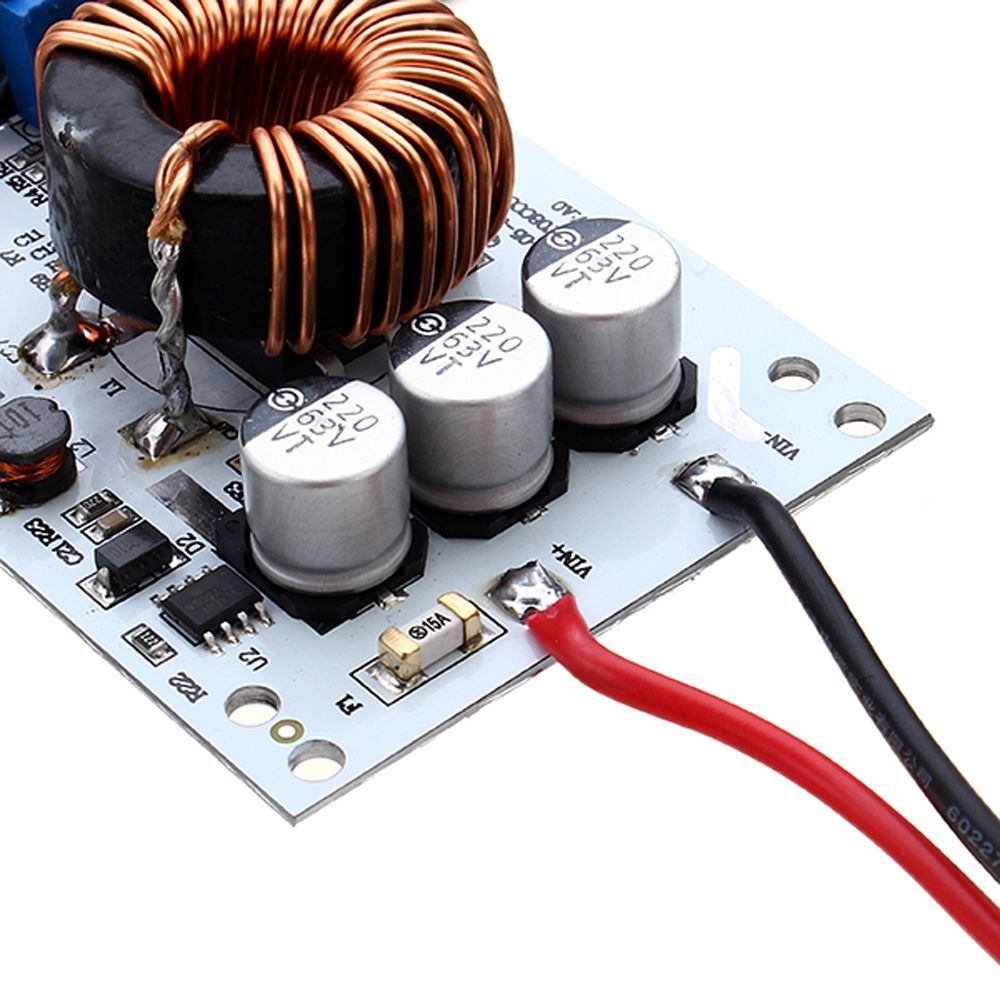

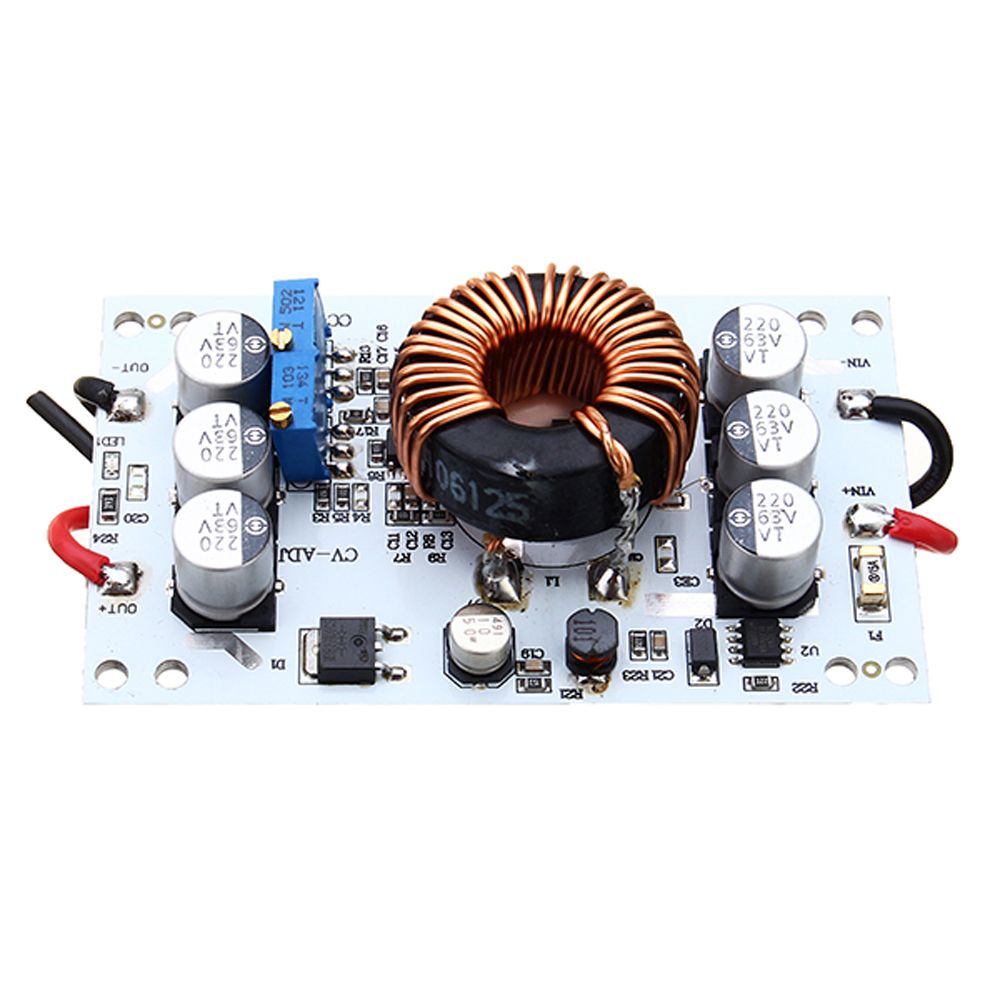

1, VIN+ is the input power anode, VIN- is the input power cathode,

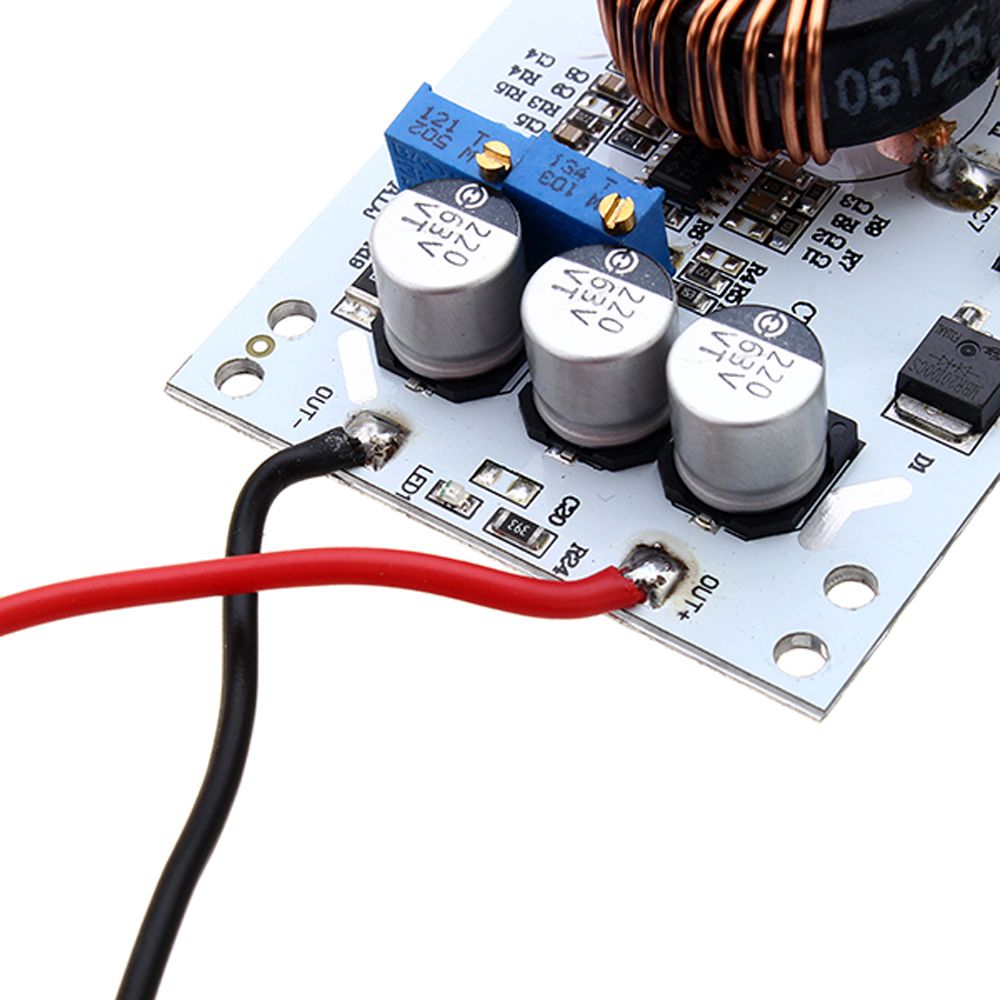

2, OUT+ is the positive output power, OUT- is the negative output power,
3, Constant pressure adjustable range: DC12-60V (clockwise small, counterclockwise larger)
4, Constant current adjustable range: 0.2A-10A (clockwise small, anticlockwise large,)

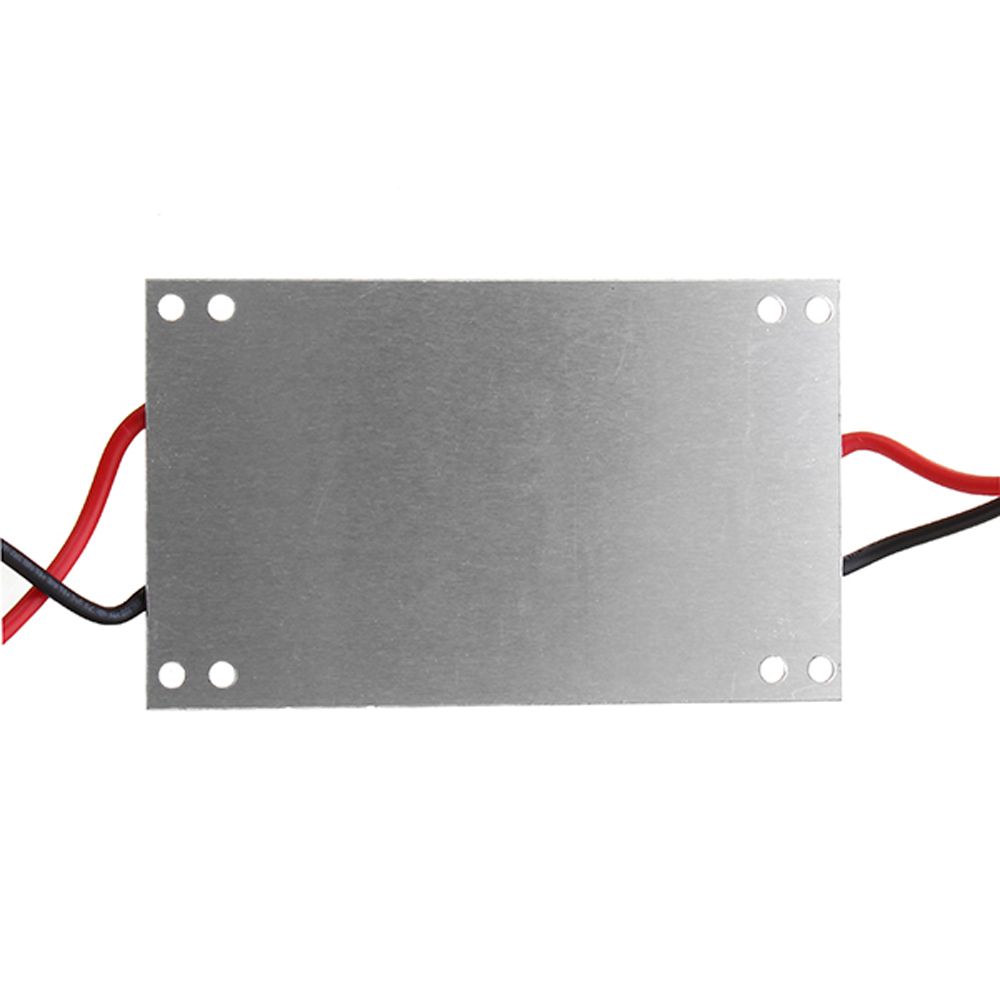

5, When the input current exceeds 6A, it is necessary to strengthen the heat dissipation (the aluminum substrate is attached to the flat metal part),
7, The input voltage can not be lower than 10V or more than 60V,
8, Input maximum current can not exceed 10A, power can not exceed 600W,
9, Must ensure that the input voltage is lower than the output voltage by 2V or more.
10, Before turning on the load, please adjust the required voltage and current at no-load (no-load voltage should be increased by 3-5V at constant current).
11, When using switching power supply or other secondary power supply, please ensure that the power supply power should be more than double the power supply power of this module.
Precautions:
1, The input and output can not be reversed,
2, The input voltage should not be lower than 10V input voltage is too low can damage the power supply
(When using the battery, be careful to prevent the battery from over-discharging.)
2. The input and output voltage and current must not exceed the maximum during work to avoid damage to the power supply.
3, Pay attention to ventilation and heat dissipation when working with full load for a long time to extend the life of the power supply.
4, Pay attention to dust, moisture.
Application range:
1, DIY a power supply, input 12V can be, the output can be adjusted 12-50V.
2, For your electronic equipment power supply, you can set the output value according to your system voltage.
3, As the car power supply, power your laptop, PDA or a variety of digital products.
4, a high-power notebook mobile power DIY: coupled with a large-capacity 12V lithium battery pack, so that where your notebook can be lighted where.
5, Solar panel voltage regulator.
6, To the battery, lithium battery and other charges.
7, Drive high-power LED lights.
Package included:
1 x 600W Aluminum Step Up Constant Voltage Current Adjustable Power Supply Module
