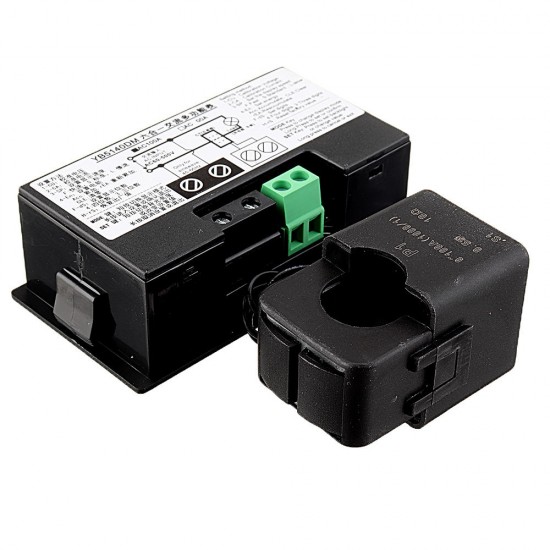

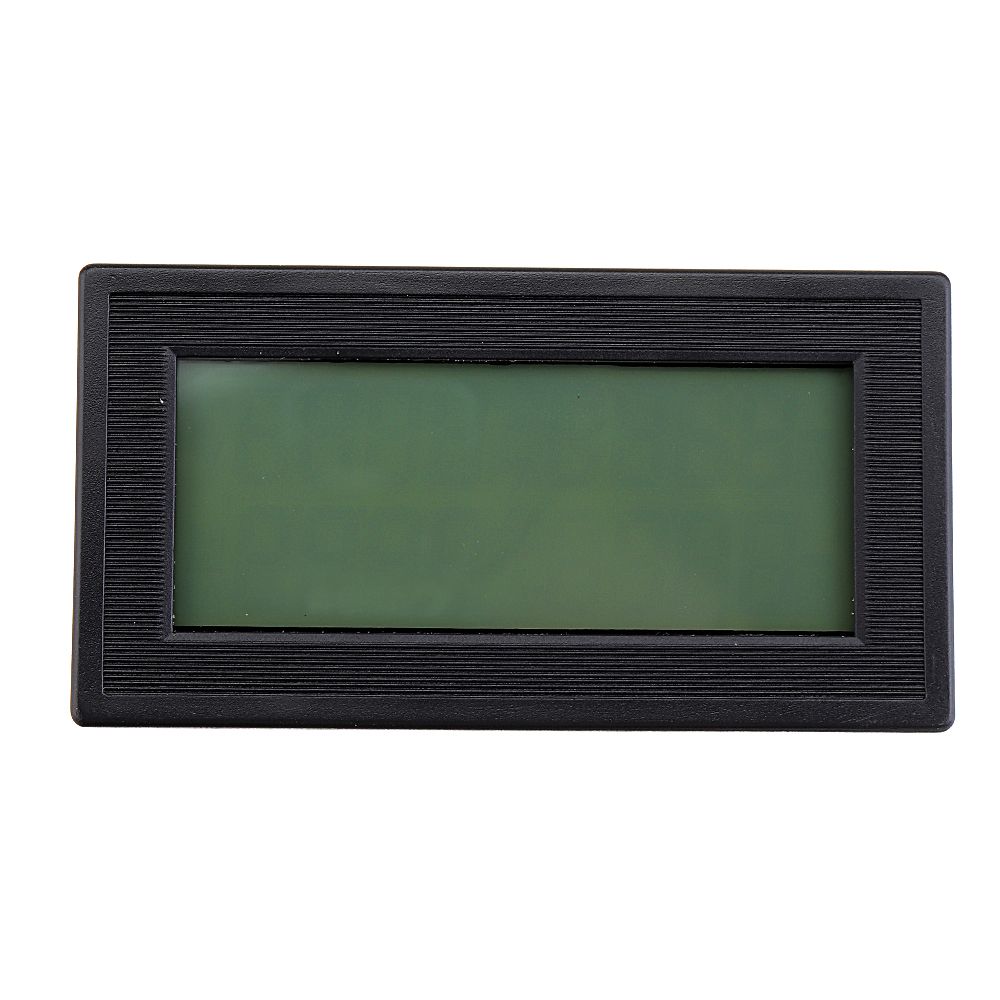

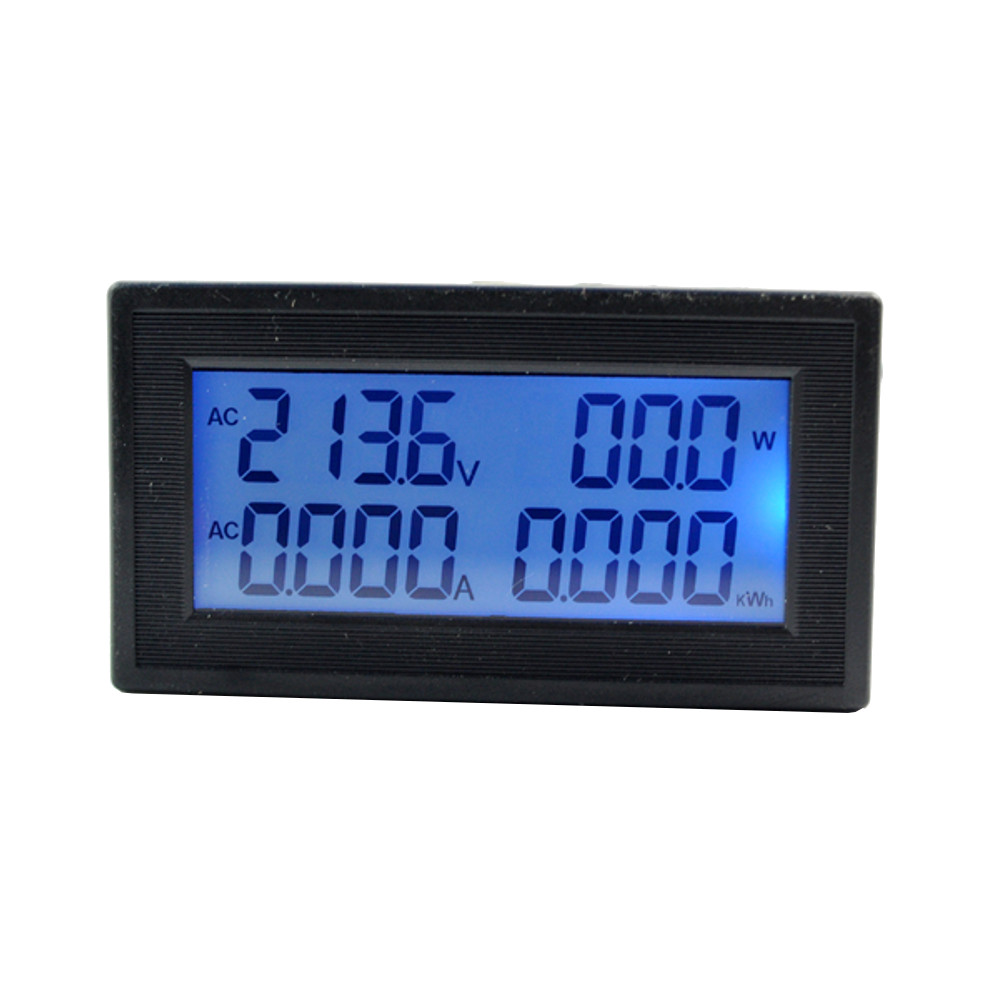

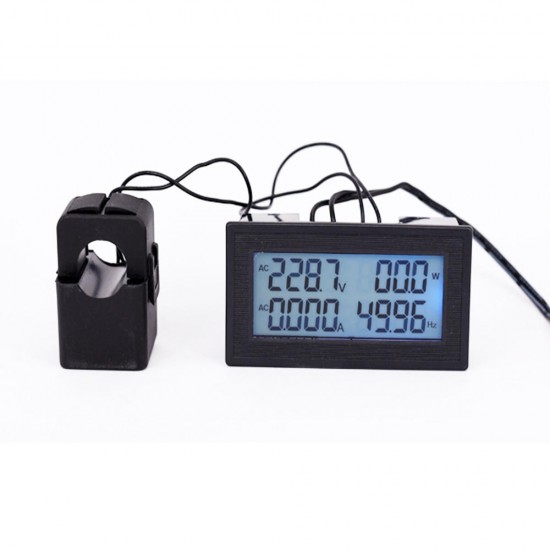

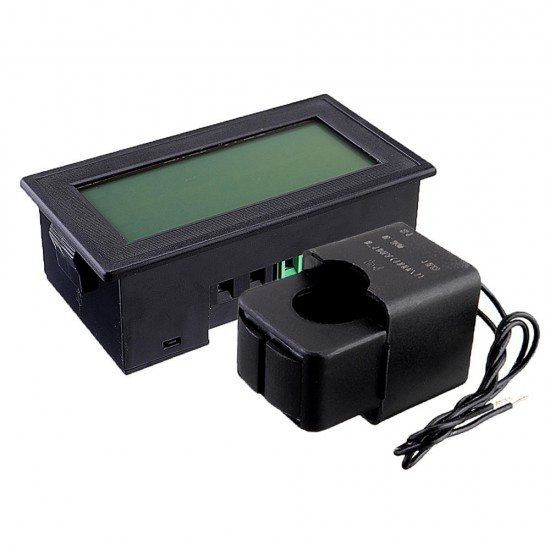

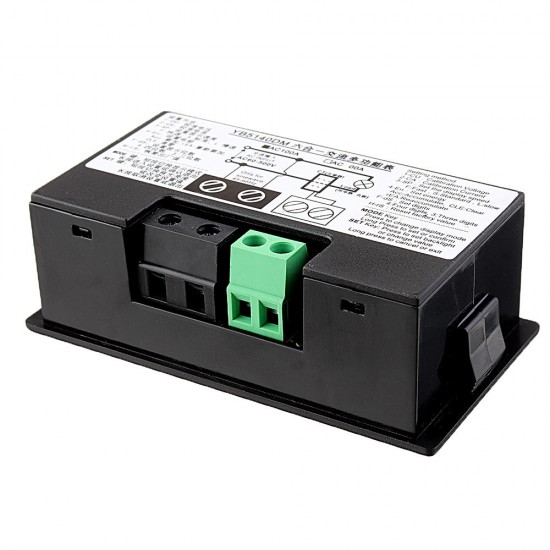

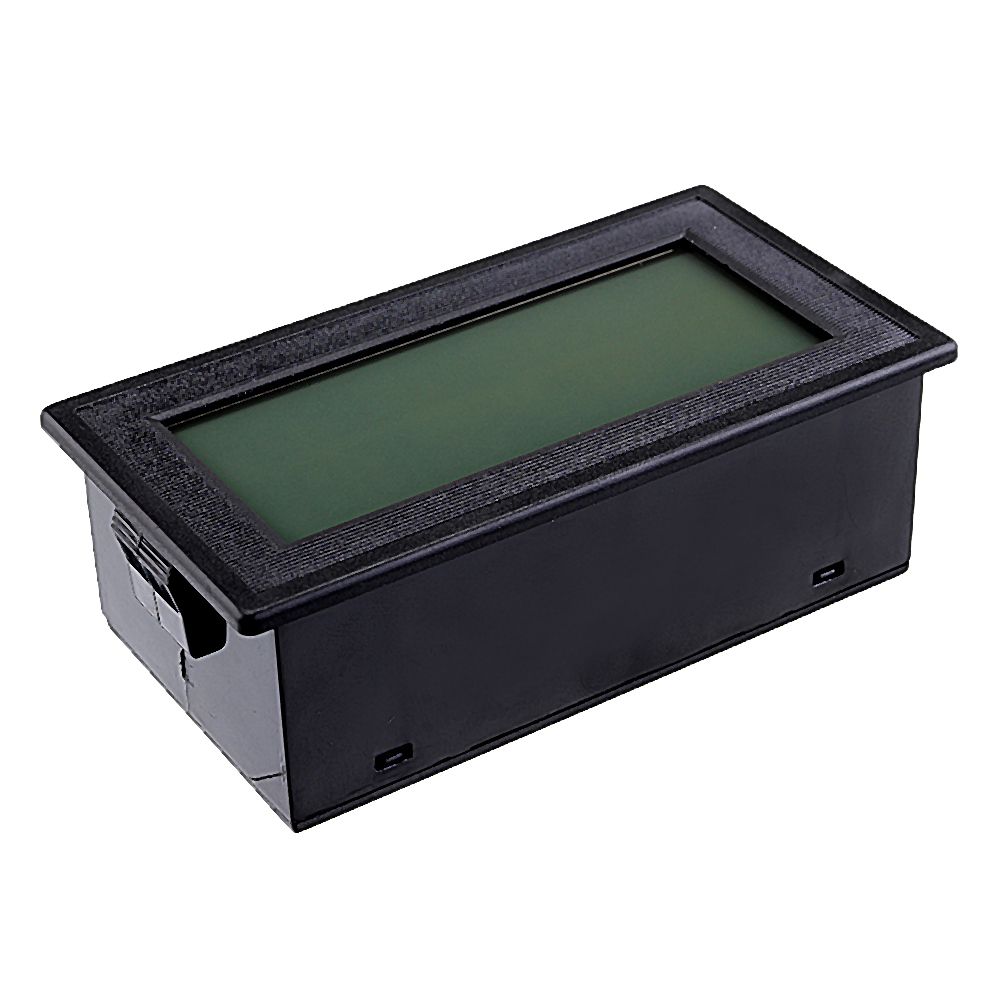

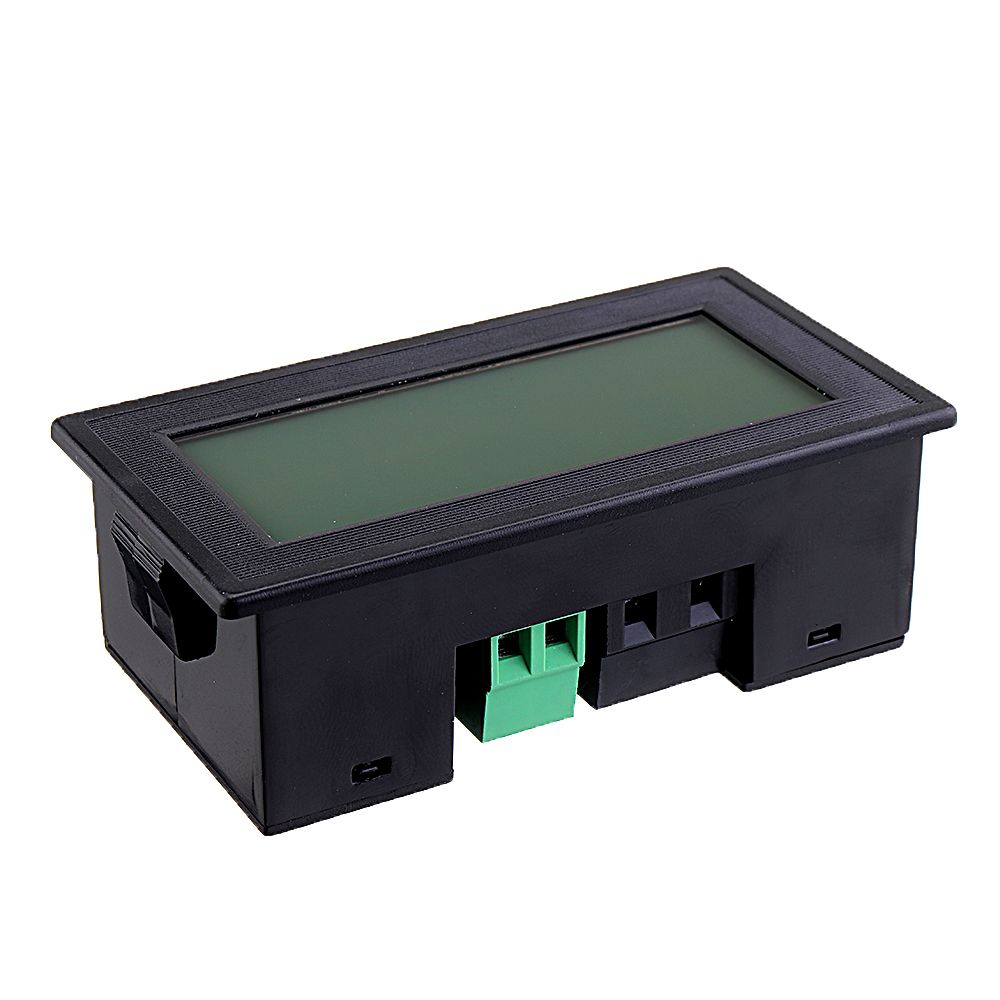

6-in-1 AC60-500V 100A Three-phase AC Voltage Ammeter Blue Backlight Digital Display Multi-function Power Frequency
- Stock: In Stock
- Model: EB0046674
- SKU: EB0046674
Features:
11. Dimensions: 79*43*26mm
| / | Range | Test Range | Resolution | Remark |
| Voltage | AC60-500V | AC 60.00-500.0 V | <100V: 0.01V >100V: 0.1V | Automatic decimal shift Accuracy: 0.5% +/- 2 words |

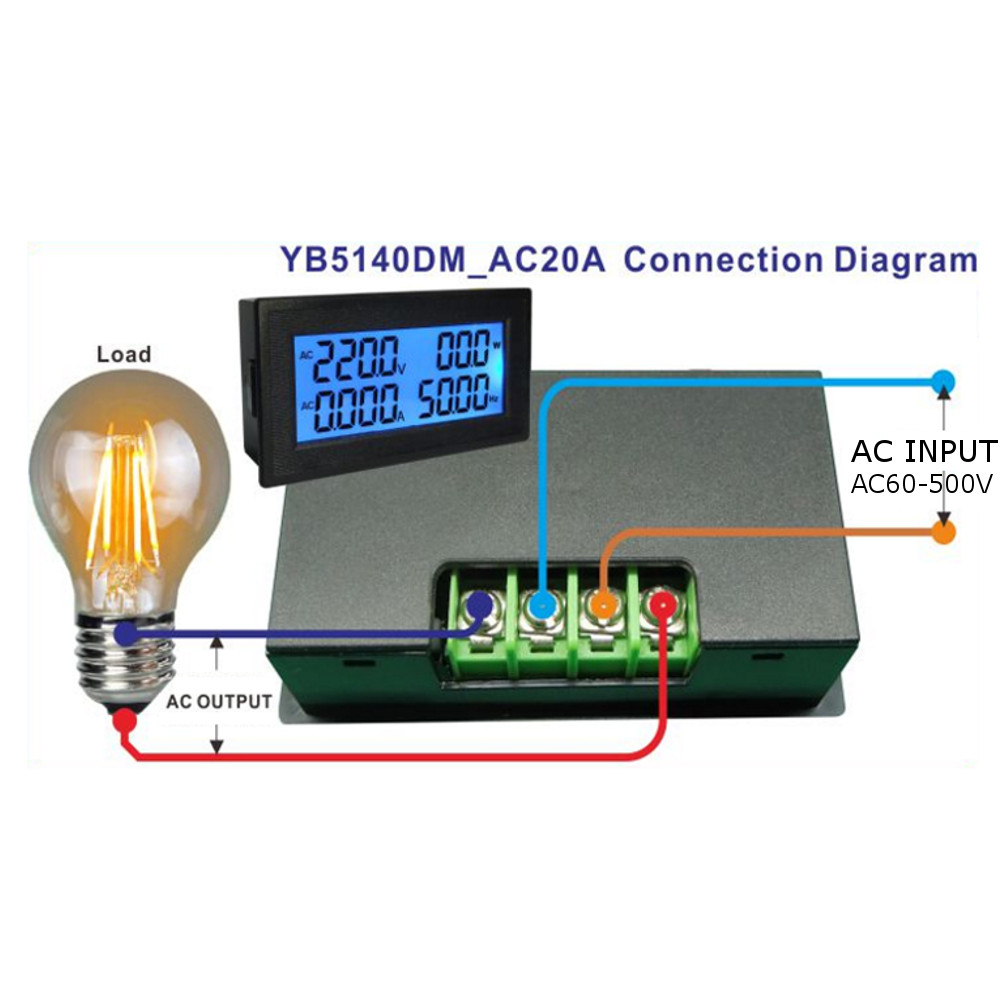

| Current | AC20A (direct test) | AC 0.000-20.00 A | <10A: 0.001A >10A: 0.01A | |

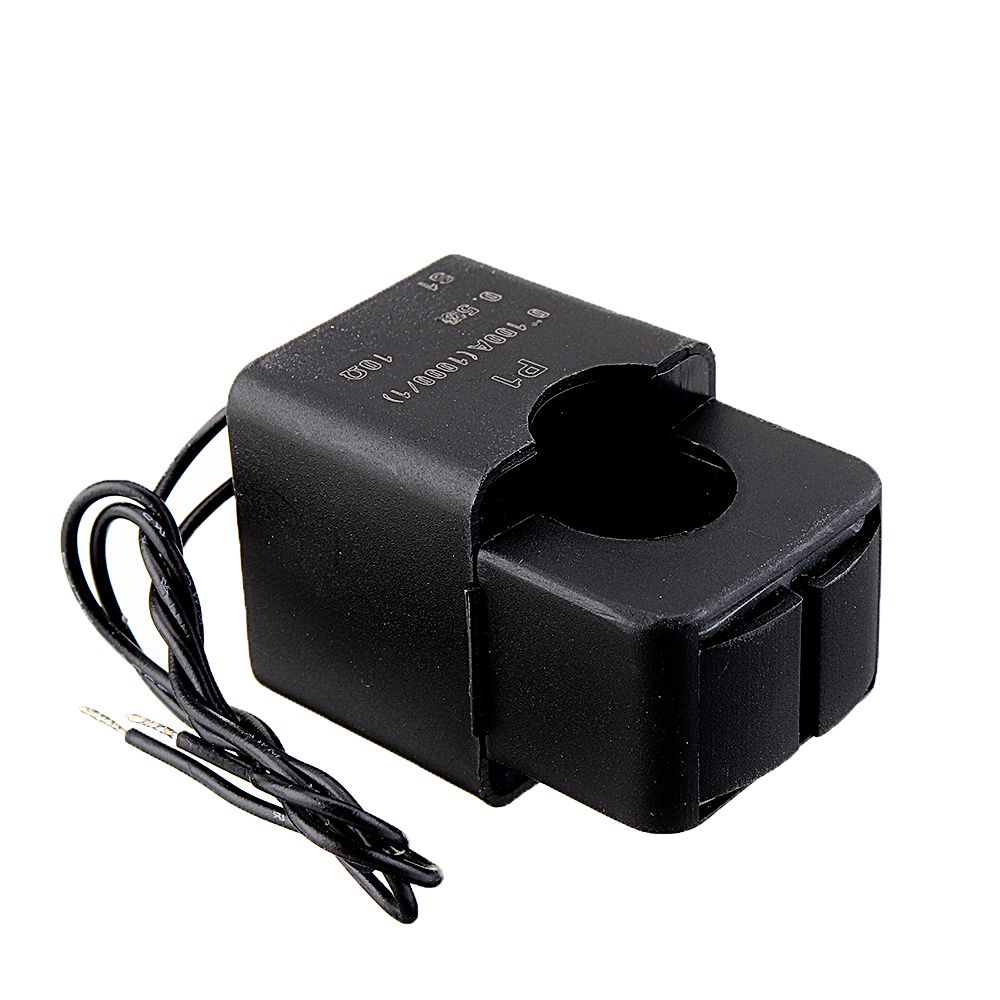

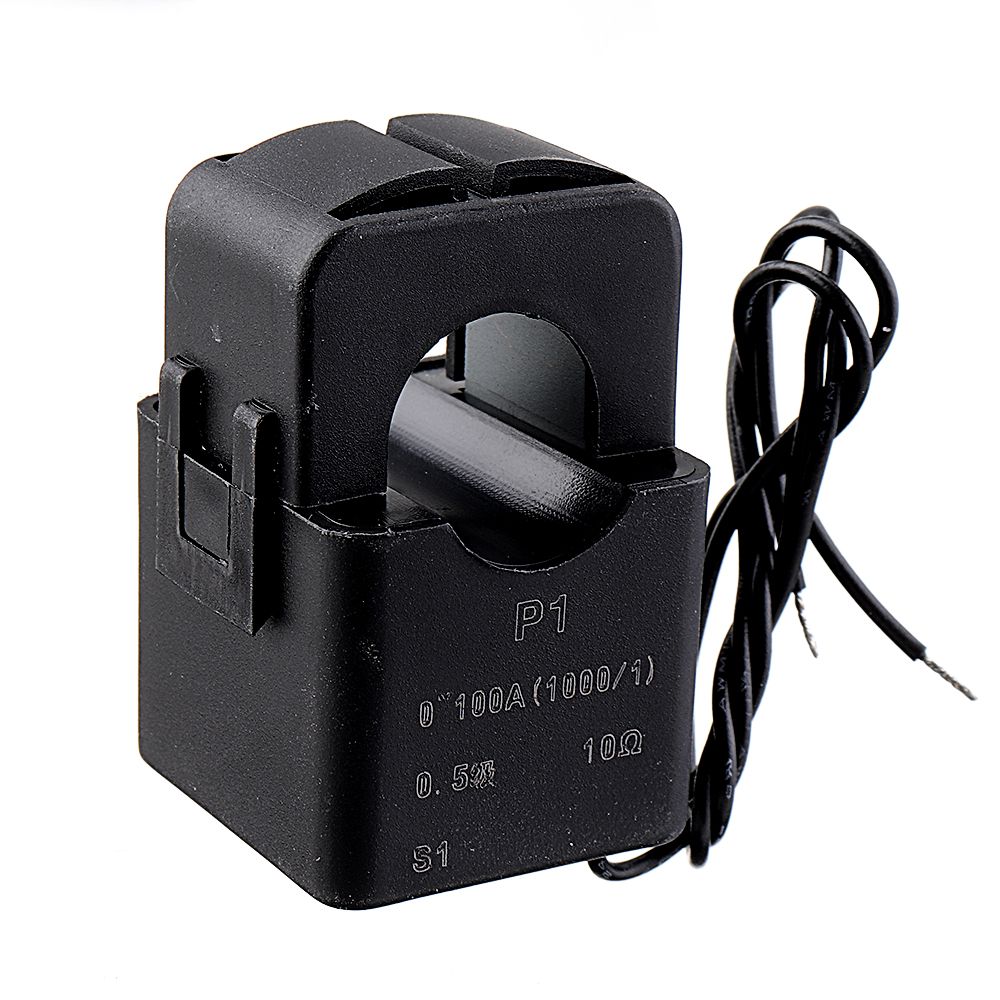

| AC100A (instrument inner hole 16mm) | AC 0.020-99.99 A | <10A: 0.001A >10A: 0.01A | ||
| AC200A (instrument inner hole 26mm) | AC 0.04-200.0 A | <100A: 0.01A >100A: 0.1A | ||
| Active power | 00.0-9999 KW | 00.0-999.9W: 0.1W 1000-9999W: 1W 010.0 KW-999.9KW: 0.1KW >1000KW resolution is: 1KW | Automatic decimal shift | |
| Frequency | 45.00-65.00 Hz | 0.01 Hz | ||
| Power factor | 0.000-1.000 | 0.001 | ||
| Electric energy | 0.000-9999 KWh | 0.000-9.999 KWh: 0.001KWh 10.00-99.99 KWh: 0.01KWh 100.0 KWh - 999.9 KWh: 0.1KWh >1000 KWh: 1KW | Automatic decimal shift |
Package includes:
1 x Meter
