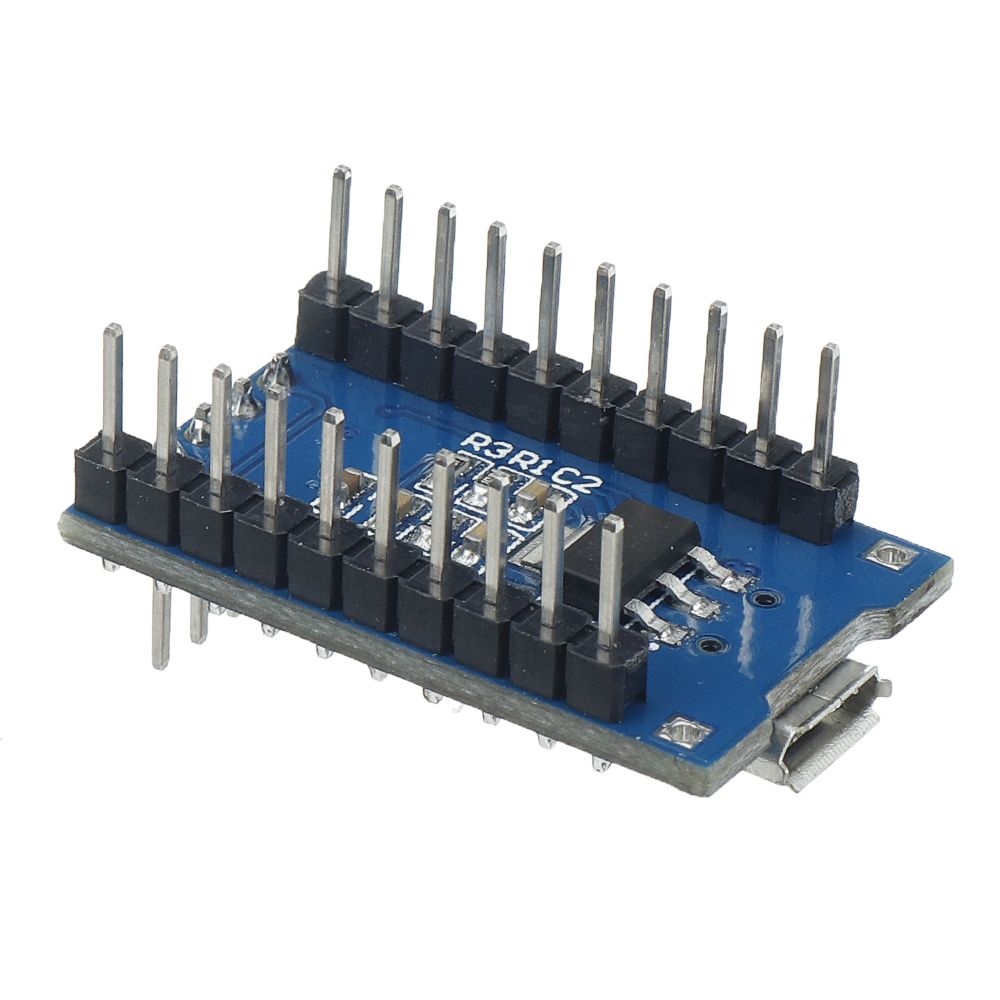

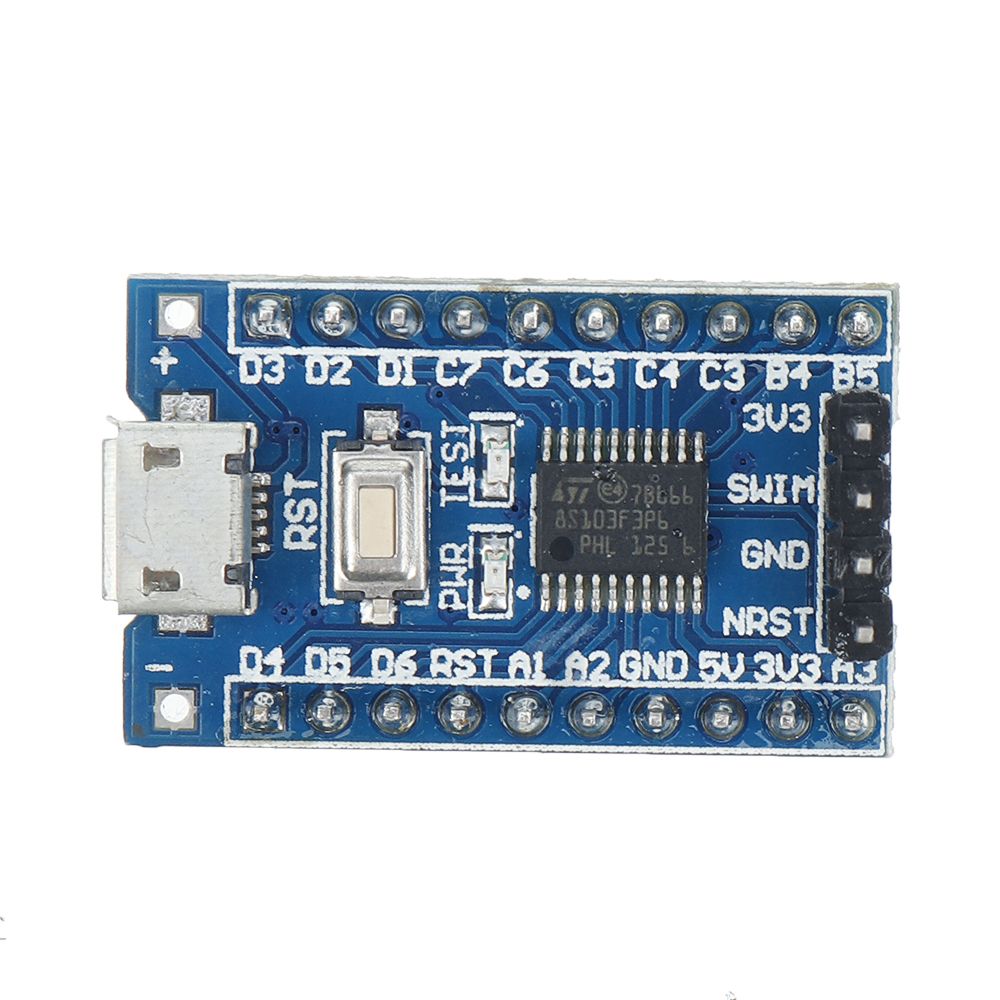

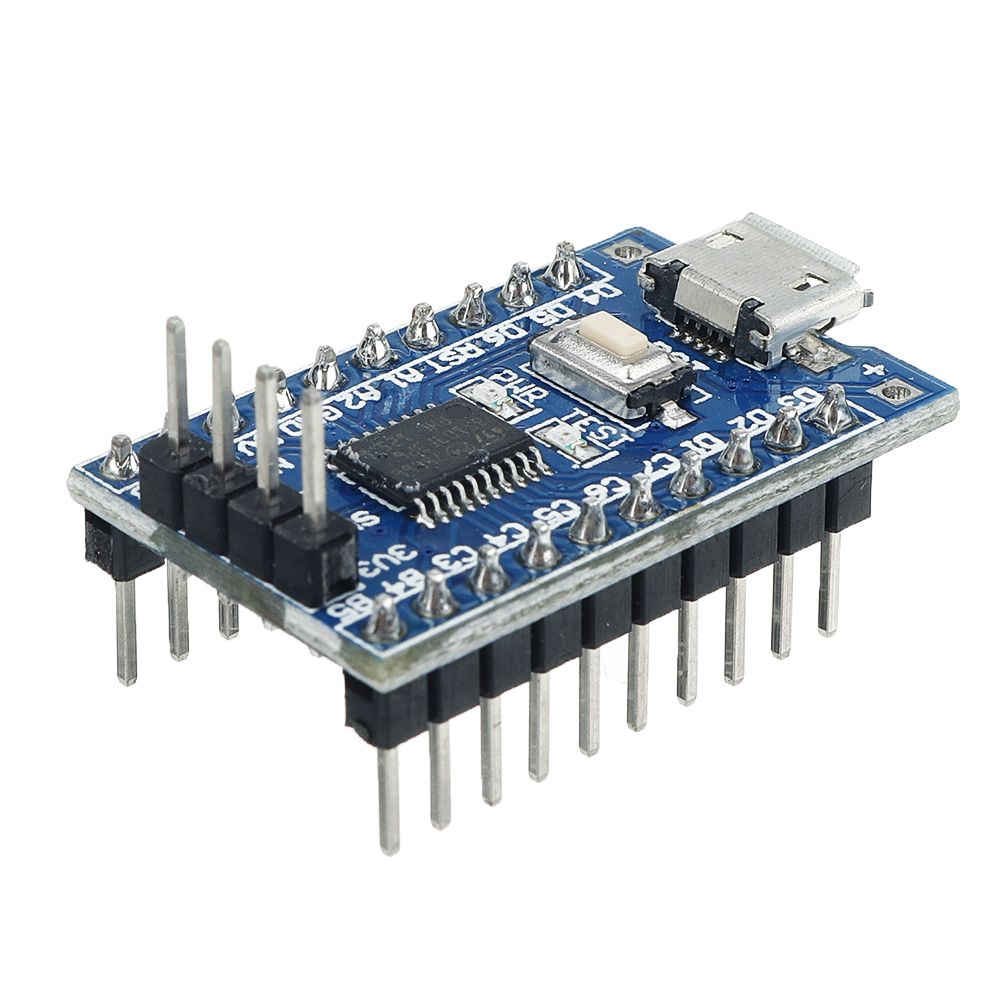

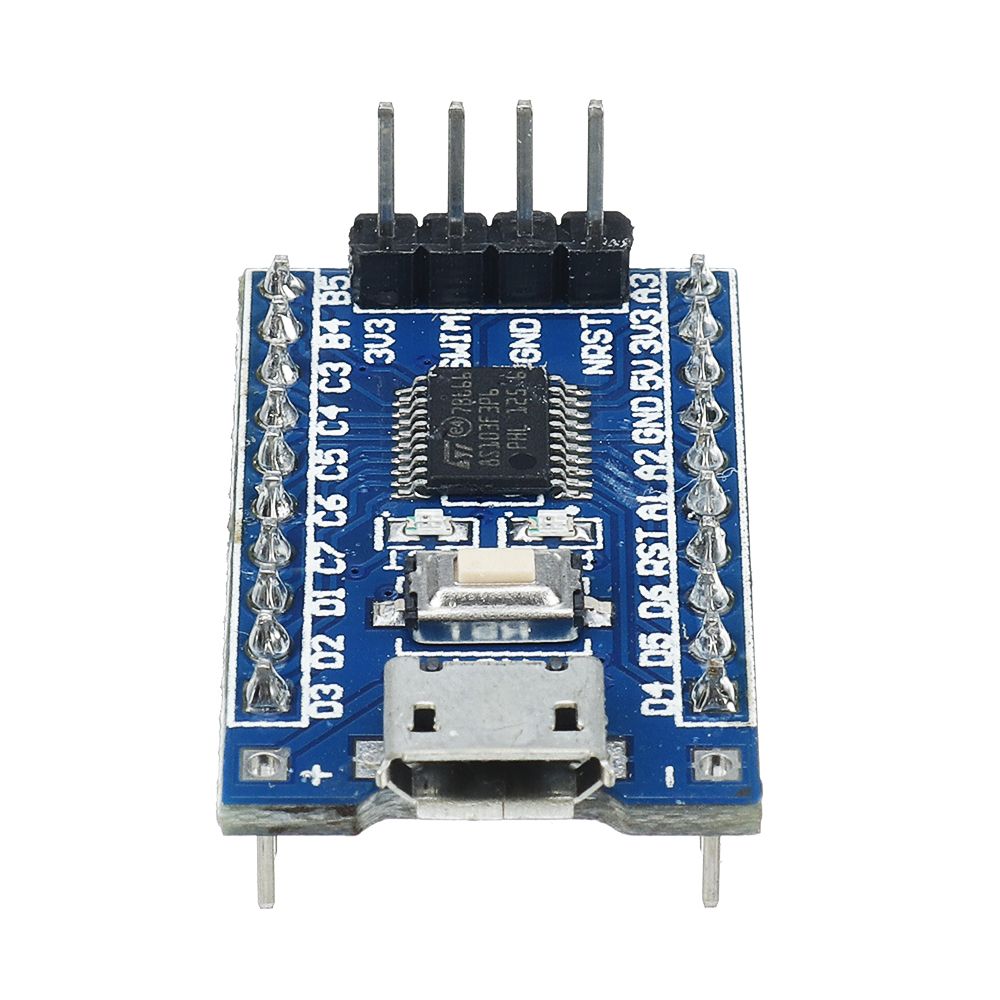

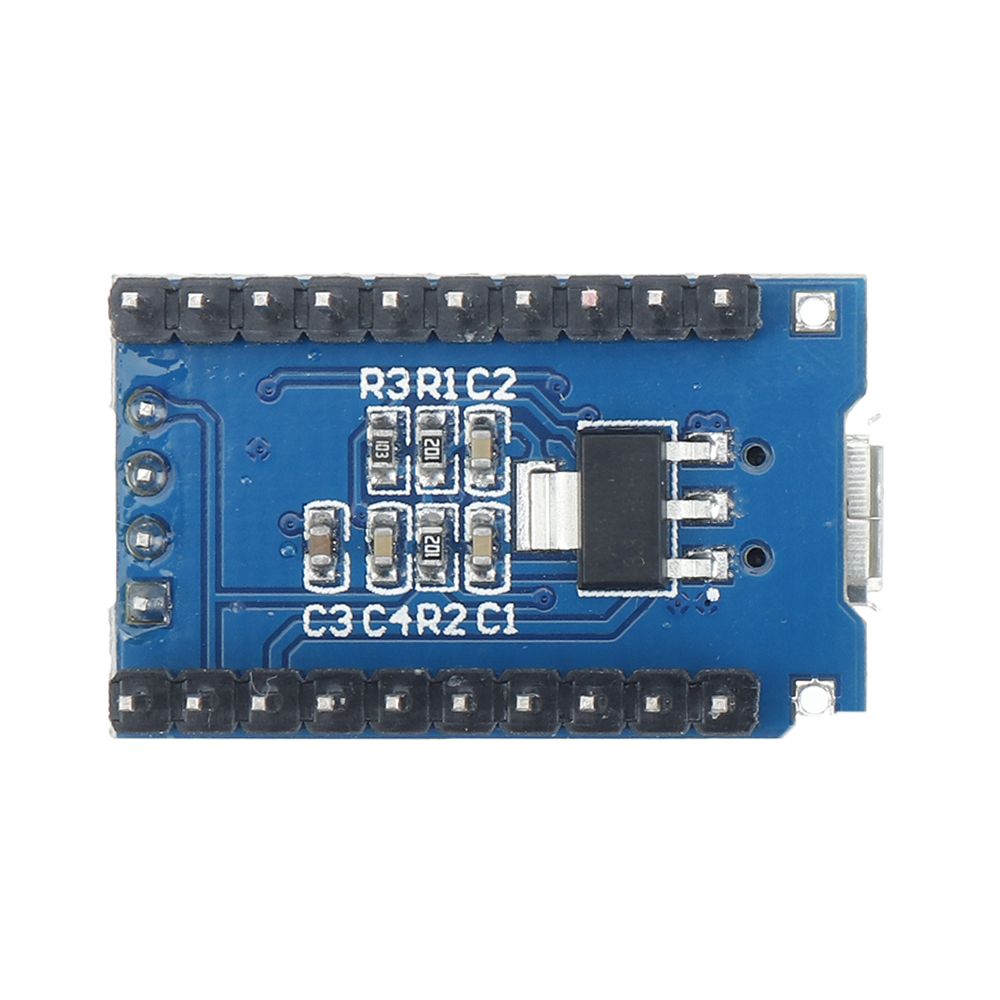

5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port

5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
5pcs STM8S103F3 STM8 Core-board Development Board with USB Interface and SWIM Port
$14.99
Ex Tax: $14.99
  • Stock: In Stock
  • Model: EB0041845
  • SKU: EB0041845
Description:

- This board is very suitable for learners that want to learn STM8S microcontroller.
- Can be directly plugged onto the MB102 breadboard.
- On-board SWIM interface, and it can be programmed with ST-LINK V2.
- On-board reset button and power indicator LED.
- On-board test indicator LED, and the beginners can program to control it.
- On-board 200ma 3.3V Regulator.
- All GPIO are led out and the names of the pins are marked
- Microcontroller: STM8S103F3P6.
- Burning times: 10k cycle.
- Operating voltage: 3.3 V.
- IO logic voltage: 3.3V
- Digital I/O Pins: 16.
- Analog Input Pins: 5.
- Flash Memory: 8KB.
- RAM: 1KB.
- EEPROM: 640B.
- Programmable Clock Speed: 16 MHz (MAX).

Package includes:

5 x Module
