5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G

5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
5pcs WAVE2 Interface Board with Uart-USB Converter Module CH340G
$27.99
Ex Tax: $27.99
  • Stock: In Stock
  • Model: EB0050545
  • SKU: EB0050545
>
Note:

Used with WAVE2 (ID: 1417054 1449907) and DSO138 MINI (ID: 1360453 1360452 1337076 1344668) for data output and program update
Feature:

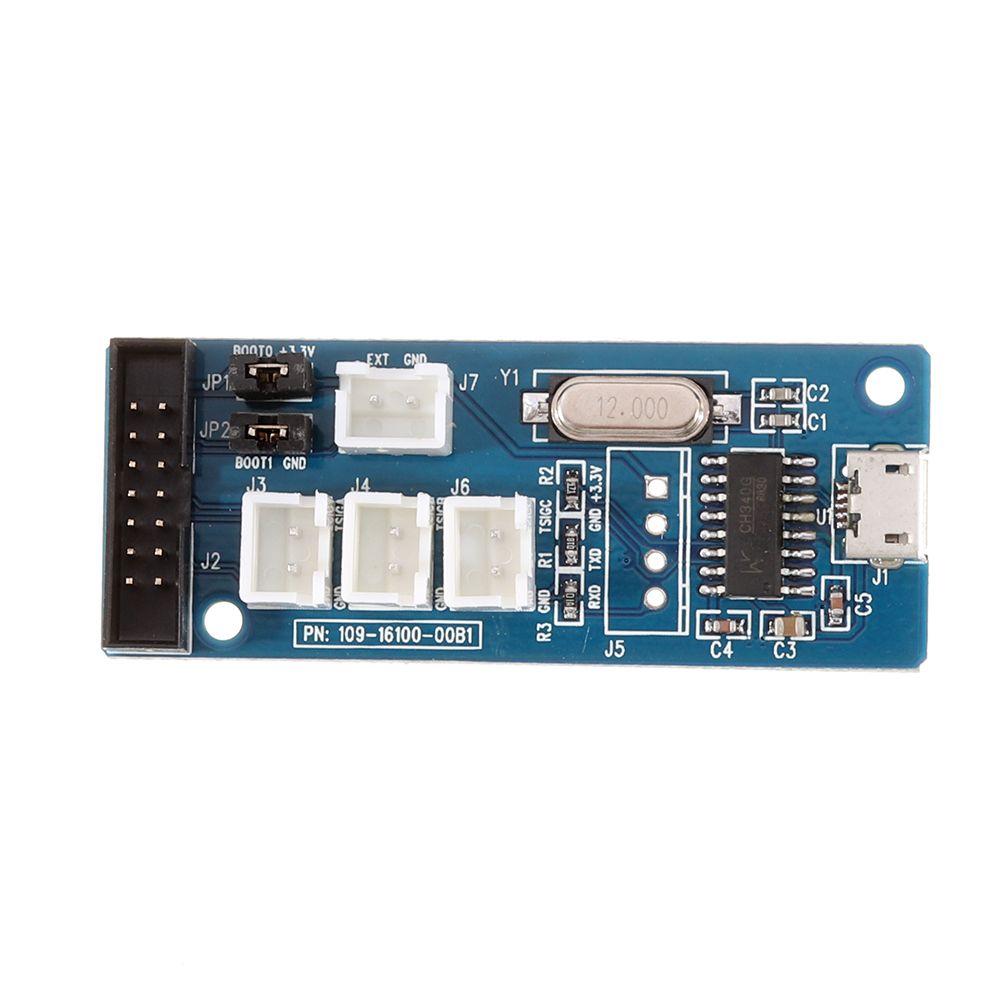

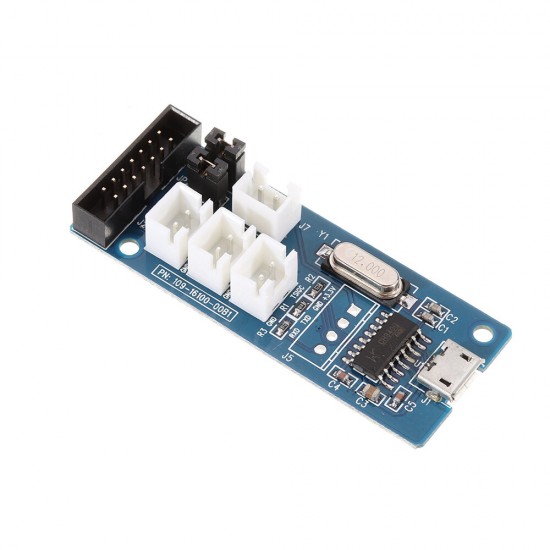

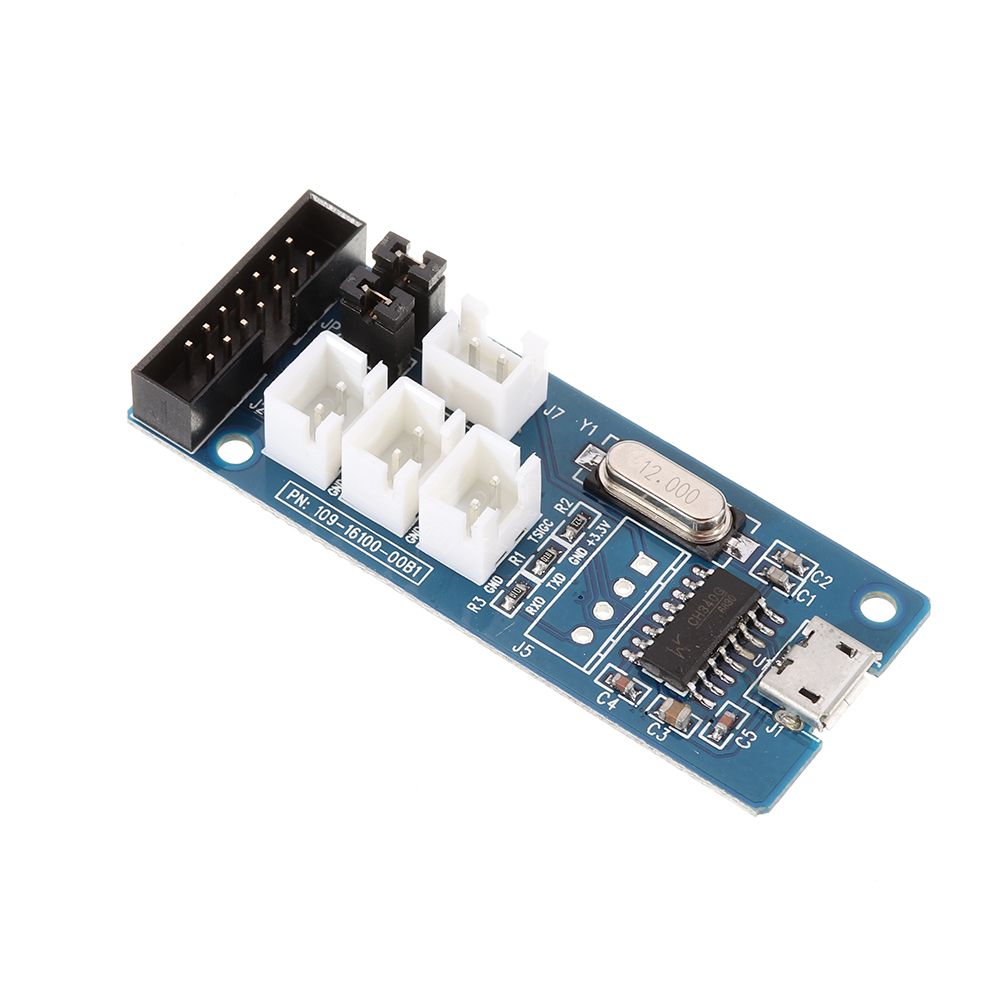

Name: WAVE2 interface board with Uart-USB converter
The module main chip is CH340G
Supported baud rate 50bps - 2Mbps
Support for Windows, Mac OSX, Linux, etc.
Standard 0.1 inch lead pitch

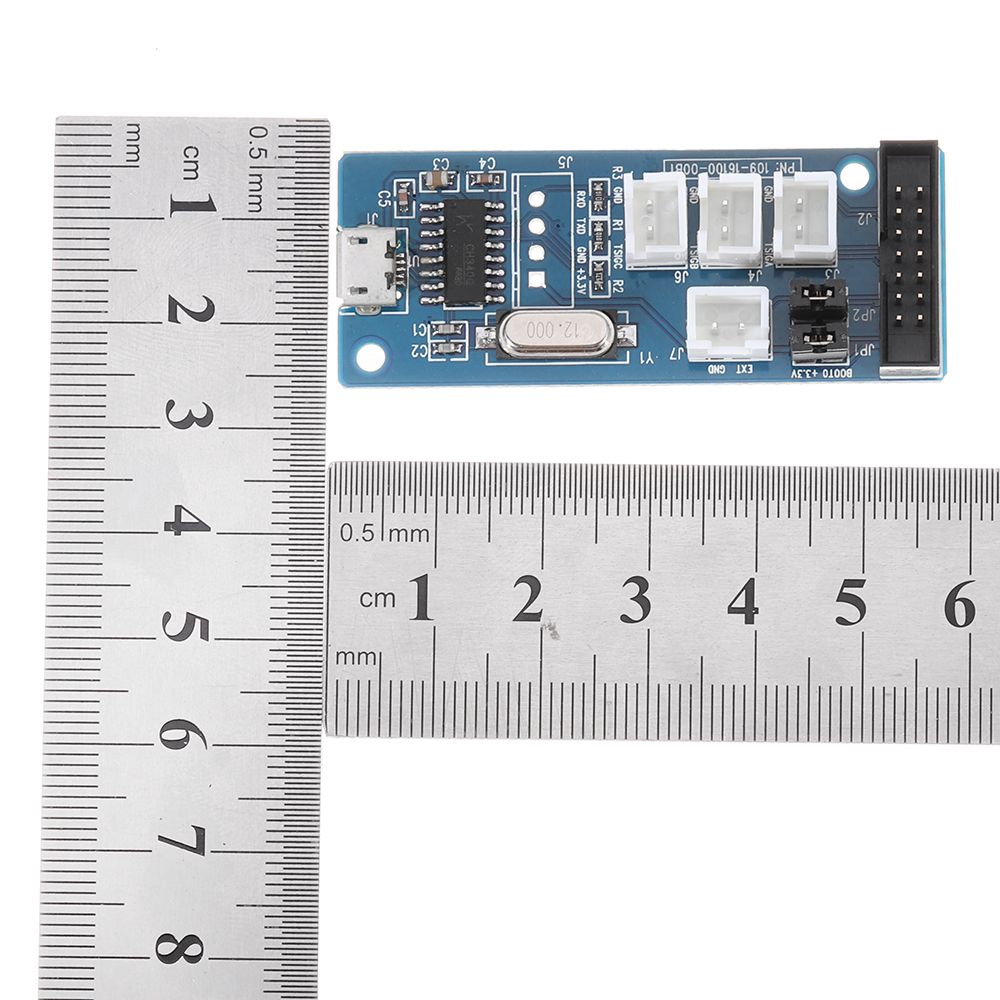

2.25 X 0.88 inch (57 X 22 mm) size
Micro socket
Can be directly connected to the Auxiliary port of WAVE2

Specification:

--Built with CH340G from Silabs
--Supported baudrate 50bps — 2Mbps
--Support Windows, Mac OSX, Linux, and more
--Standard 0.1 inch pinout pitch
--2.25 X 0.88 inch (57 X 22 mm) in size
--miniUSB socket
-- could connect with Auxiliary port(WAVE2 oscilloscope)

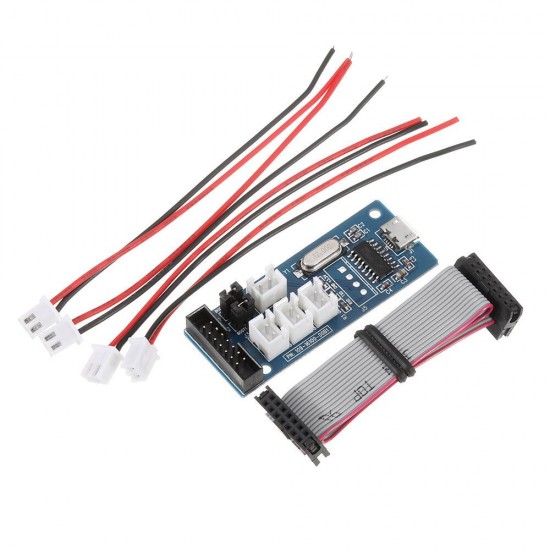

Package includes:

5 x WAVE2 interface board with Uart-USB converter



5pcs-Original-JYETech-WAVE2-Interface-Board-with-Uart-USB-Converter-Module-CH340G-1647704

5pcs-Original-JYETech-WAVE2-Interface-Board-with-Uart-USB-Converter-Module-CH340G-1647704

5pcs-Original-JYETech-WAVE2-Interface-Board-with-Uart-USB-Converter-Module-CH340G-1647704

5pcs-Original-JYETech-WAVE2-Interface-Board-with-Uart-USB-Converter-Module-CH340G-1647704

5pcs-Original-JYETech-WAVE2-Interface-Board-with-Uart-USB-Converter-Module-CH340G-1647704

5pcs-Original-JYETech-WAVE2-Interface-Board-with-Uart-USB-Converter-Module-CH340G-1647704
