5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor

5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
5pcs/Lot DF9-40 Thin Film Pressure Sensor DC 3.3V High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor
$17.99
Ex Tax: $17.99
  • Stock: In Stock
  • Model: EB006263
  • SKU: EB006263
Features:

This flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate.
Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
It has pressure sensitive function as well as water-resistant function.
When sensor detects outside pressure, the resistance of sensor will change.

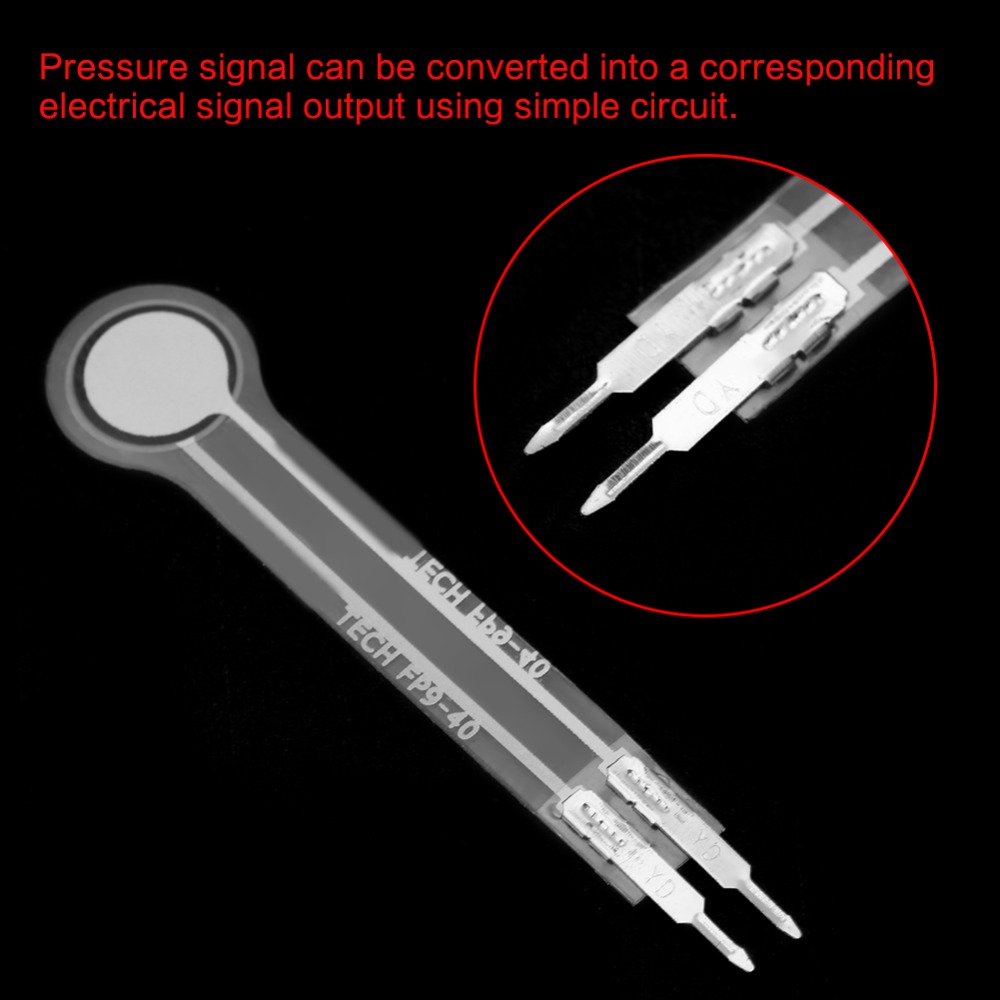

Pressure signal can be converted into a corresponding electrical signal output using simple circuit.

Specifications:

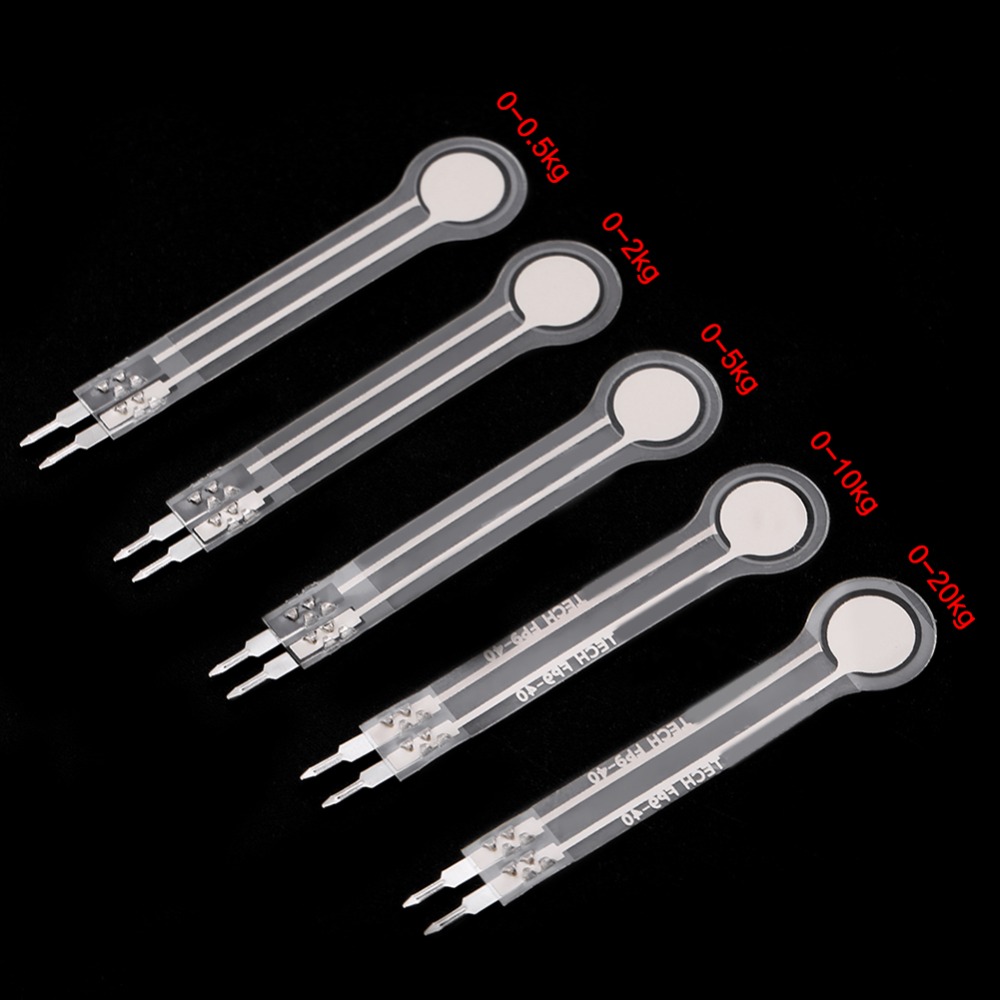

Measuring Range: 0-500g, 0-2kg, 0-5kg, 0-10kg, 0-20kg (One for each model)
Thickness: <0.25mm
Lifespan: &;1million times
Initial Resistance: &;10MOmega(no load)
Response Time: <1ms
Restore Time: <15ms
Test Voltage: DC 3.3V (typical)
EMI: Not generate
EDS: Not sensitive
Sensing Area Outer Diameter: 9mm
Sensing Area Inner Diameter: 7.5mm
Pin Spacing: 2.54mm
Quantity: 5

Package Includes:

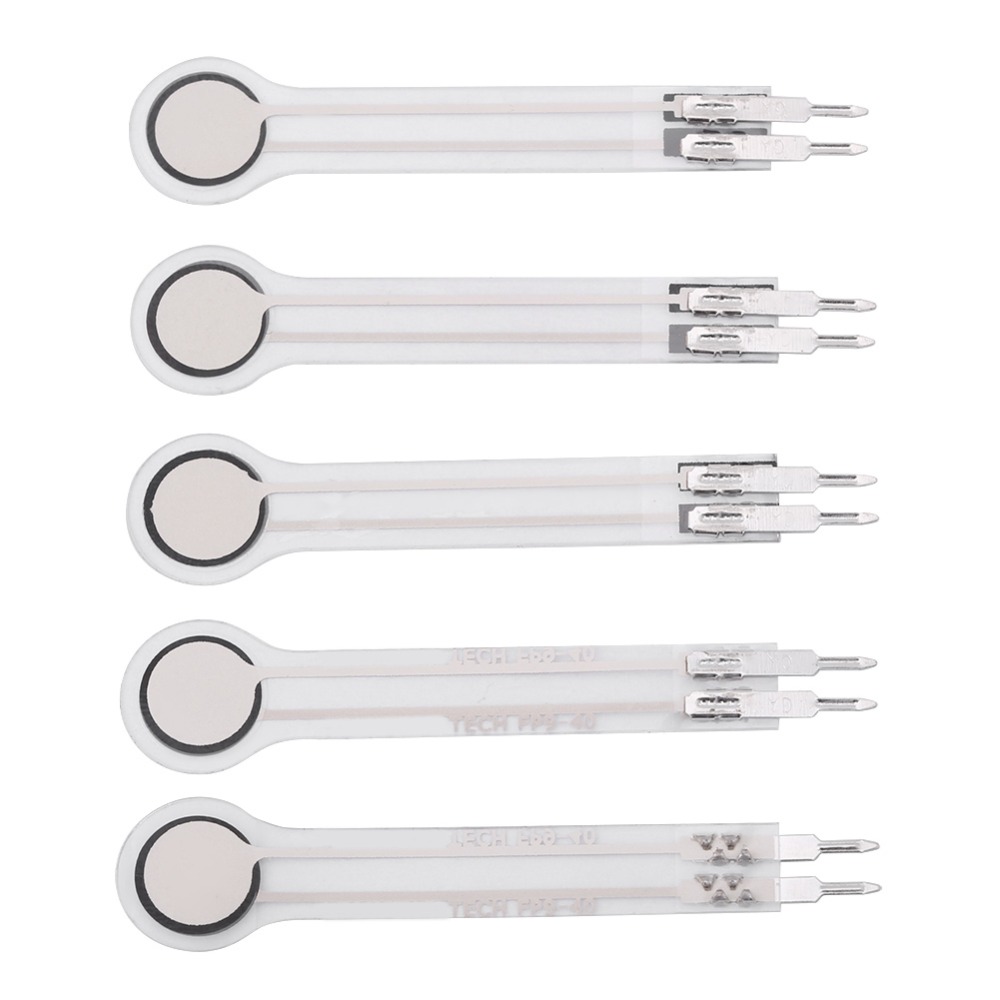

5 x Pressure Sensor

Note: Please allow small size error due to manual measurement. Thanks for your understanding.

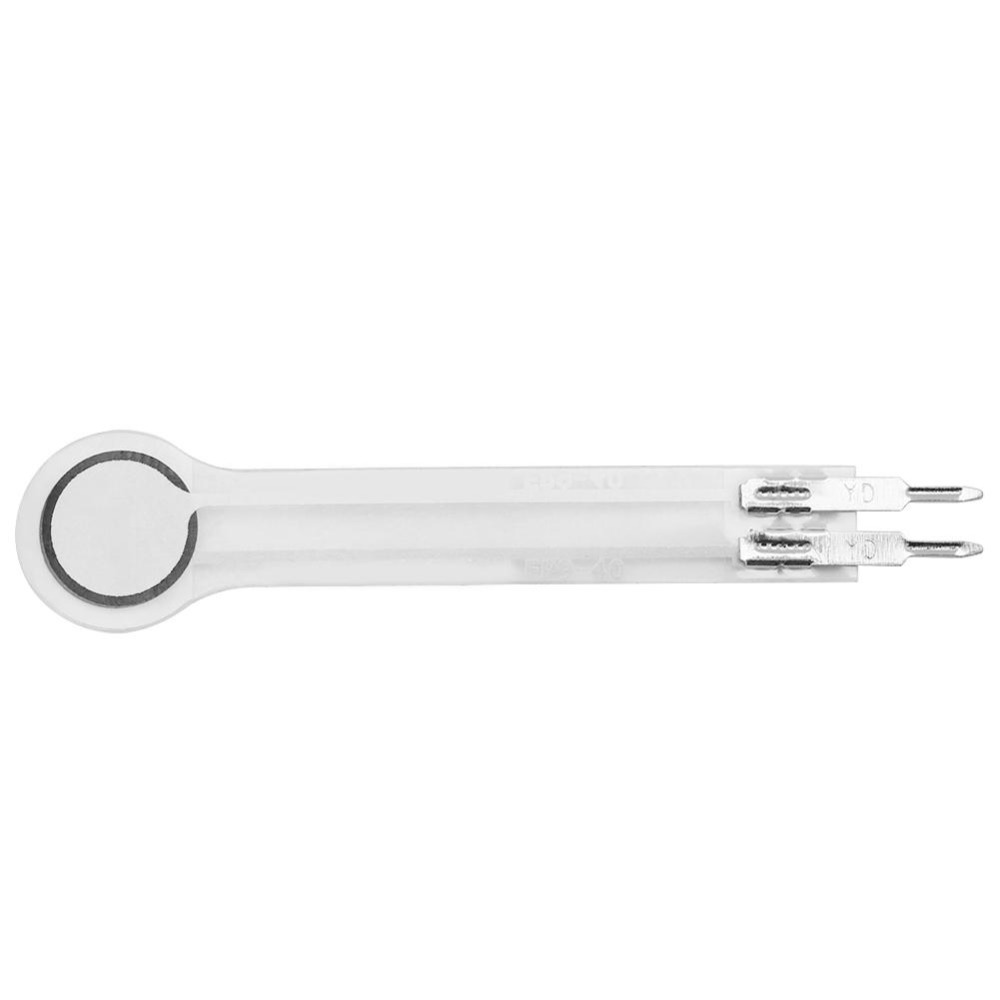

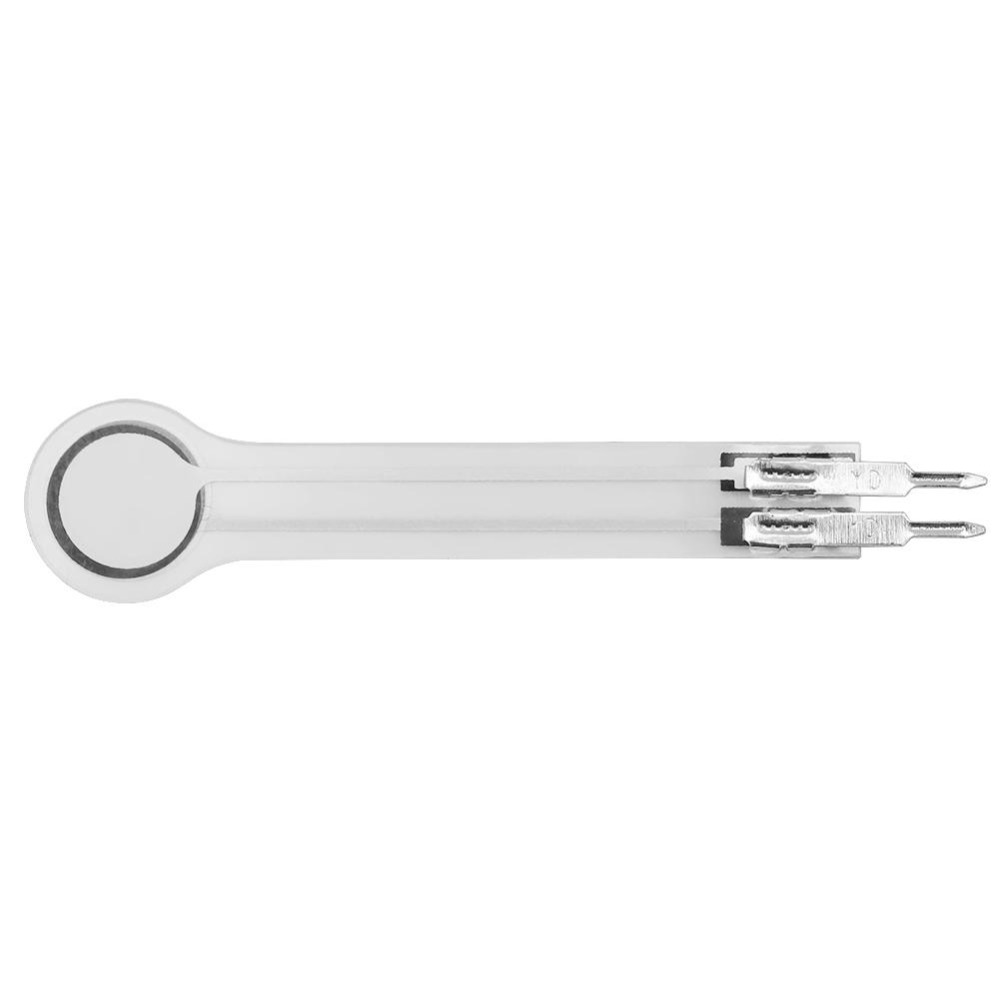

Details pictures:


5pcsLot-DF9-40-Thin-Film-Pressure-Sensor-DC-33V-High-Precise-Force-Sensing-Resistor-Resistance-type--1532417
5pcsLot-DF9-40-Thin-Film-Pressure-Sensor-DC-33V-High-Precise-Force-Sensing-Resistor-Resistance-type--1532417
5pcsLot-DF9-40-Thin-Film-Pressure-Sensor-DC-33V-High-Precise-Force-Sensing-Resistor-Resistance-type--1532417
5pcsLot-DF9-40-Thin-Film-Pressure-Sensor-DC-33V-High-Precise-Force-Sensing-Resistor-Resistance-type--1532417
5pcsLot-DF9-40-Thin-Film-Pressure-Sensor-DC-33V-High-Precise-Force-Sensing-Resistor-Resistance-type--1532417
5pcsLot-DF9-40-Thin-Film-Pressure-Sensor-DC-33V-High-Precise-Force-Sensing-Resistor-Resistance-type--1532417
5pcsLot-DF9-40-Thin-Film-Pressure-Sensor-DC-33V-High-Precise-Force-Sensing-Resistor-Resistance-type--1532417
5pcsLot-DF9-40-Thin-Film-Pressure-Sensor-DC-33V-High-Precise-Force-Sensing-Resistor-Resistance-type--1532417
5pcsLot-DF9-40-Thin-Film-Pressure-Sensor-DC-33V-High-Precise-Force-Sensing-Resistor-Resistance-type--1532417
