5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery

5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board for LED Motor Driver Solar Lithium Battery
$14.99
Ex Tax: $14.99
  • Stock: In Stock
  • Model: EB0044596
  • SKU: EB0044596
Description:

Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.
Low standby power consumption, high output power.

Specifications:

Power supply voltage: DC 2.5V-6V
Standby current: less than 10uA
Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A
Allowing continuous output current:
5A(5V-6V)
4A(3.7V-5V)
2A(2.5V-3.7V)
Pin pitch:  2.54mm.

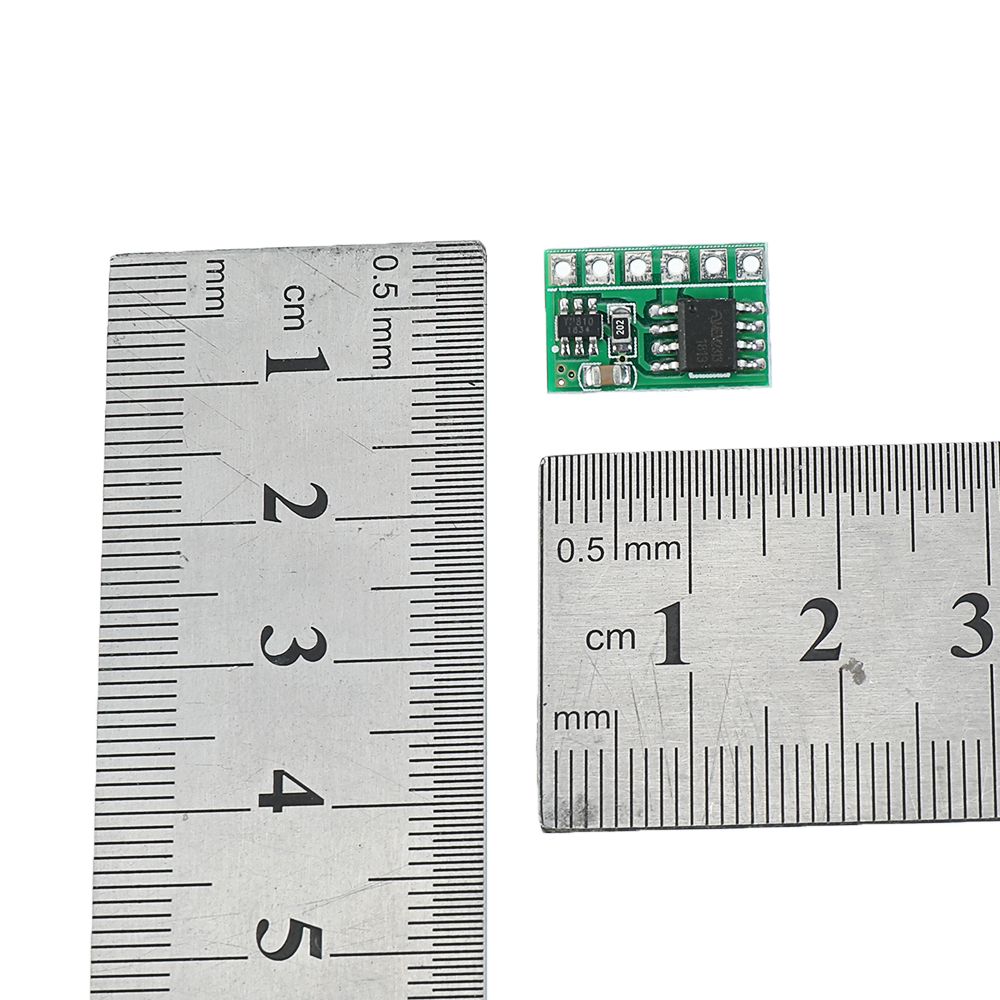

Size: 15.5 x 10 x 2.5mm

Note:

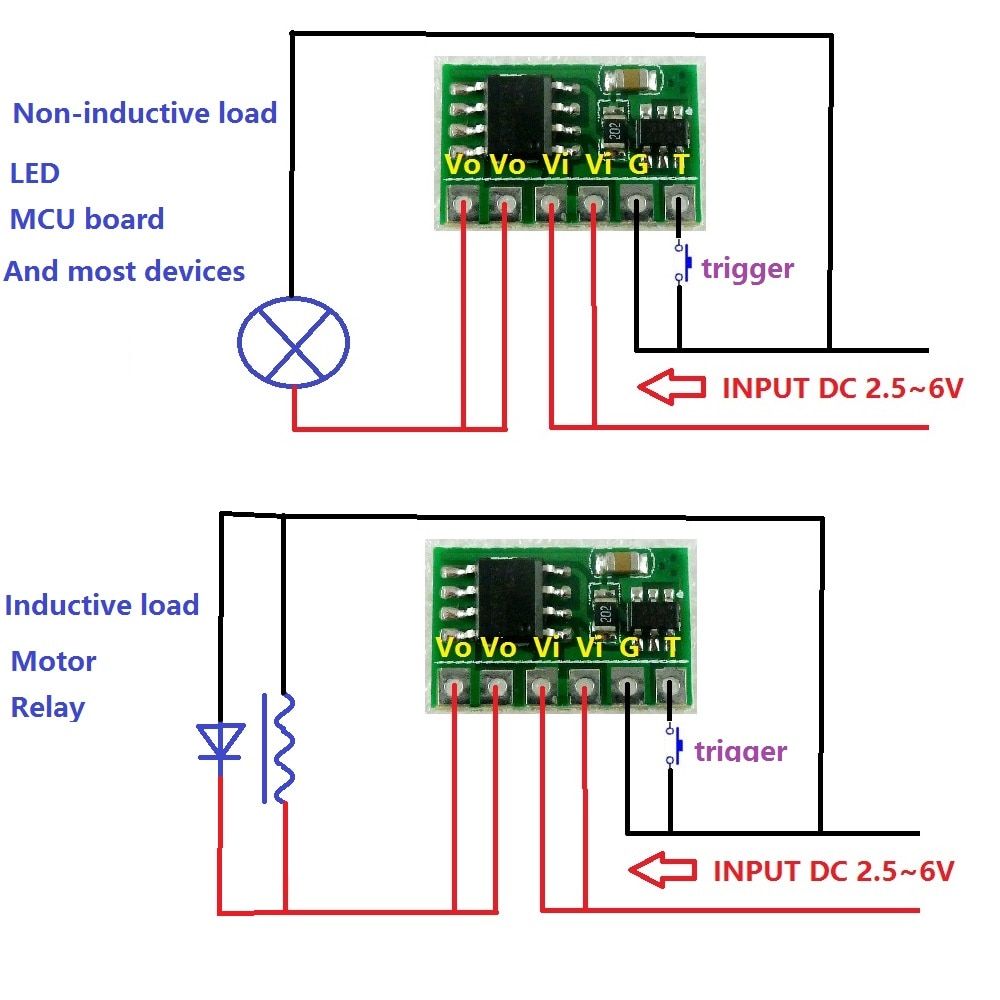

Inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.

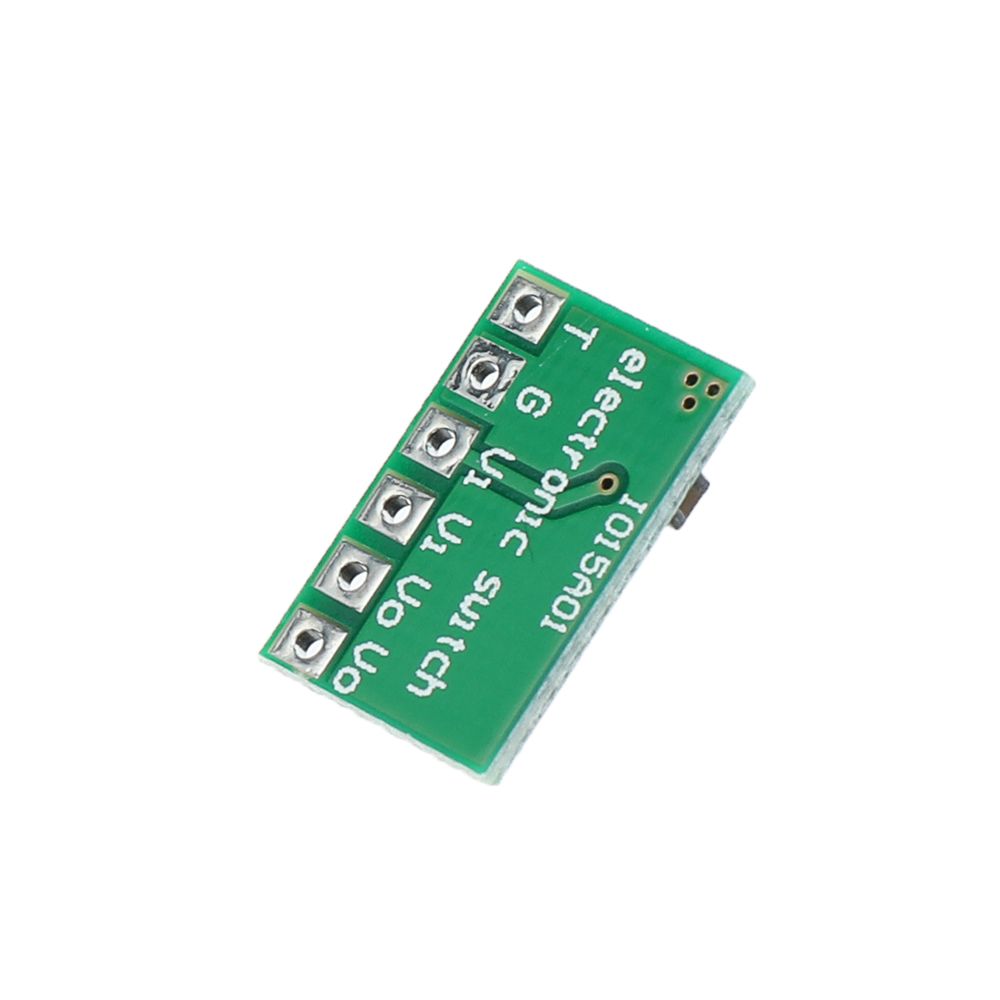

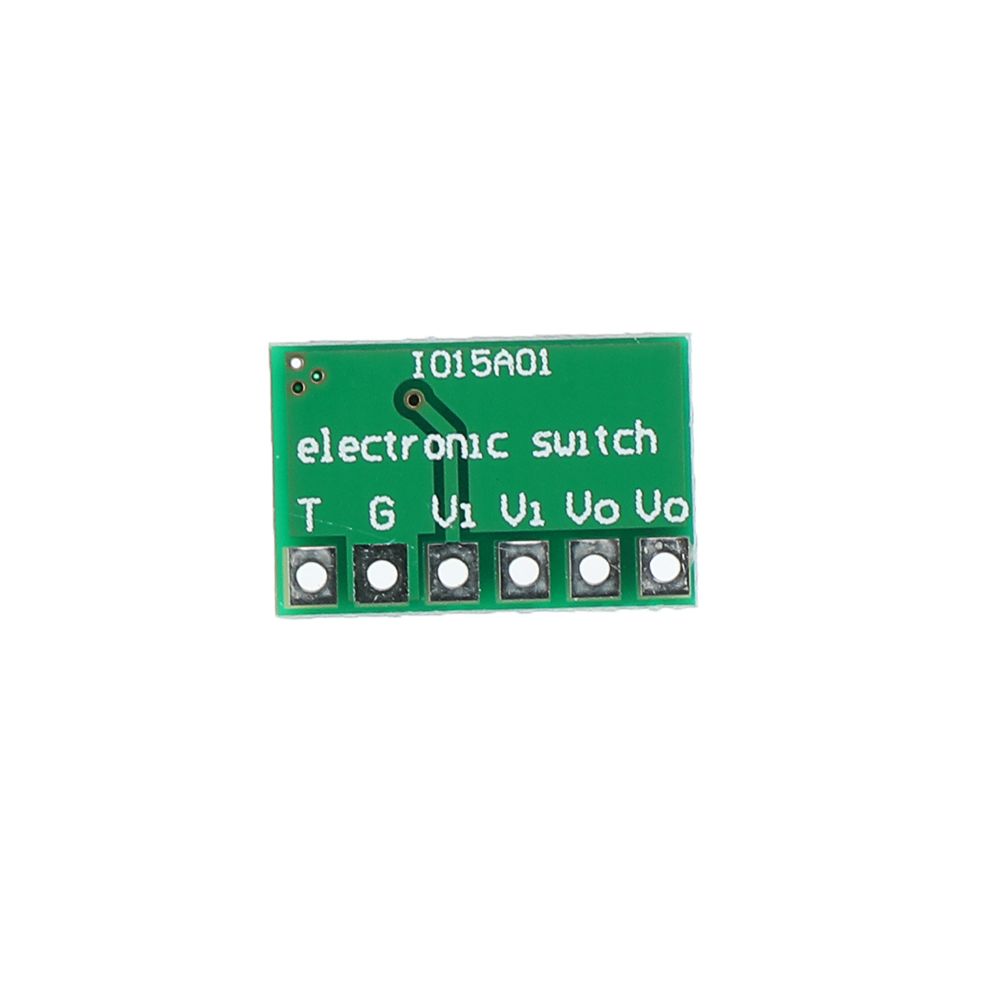

Pin Description:

Vo:output;
Vi:power supply;
G:power ground.
T:trigger signal input terminal;

Applications:

MCU Development Board
Motor
mobile power
LED Lighting
5V Relay
esp8266 WIFI MODULE
315M 433M Wireless remote controller



5pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board--1656813

Package Included:

5 x Electronic Switch Latch Bistable Self-locking Trigger Module




5pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board--1656813

5pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board--1656813

5pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board--1656813

5pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board--1656813

5pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board--1656813

5pcs-IO15B01-6A-DC-3V-33V-37V-5V-Electronic-Switch-Latch-Bistable-Self-locking-Trigger-Module-Board--1656813
