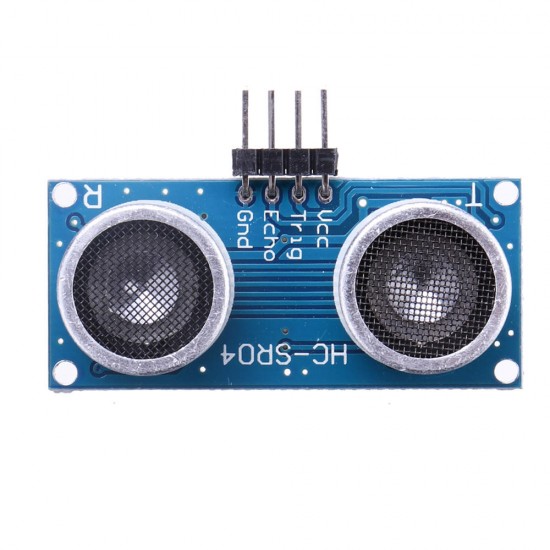

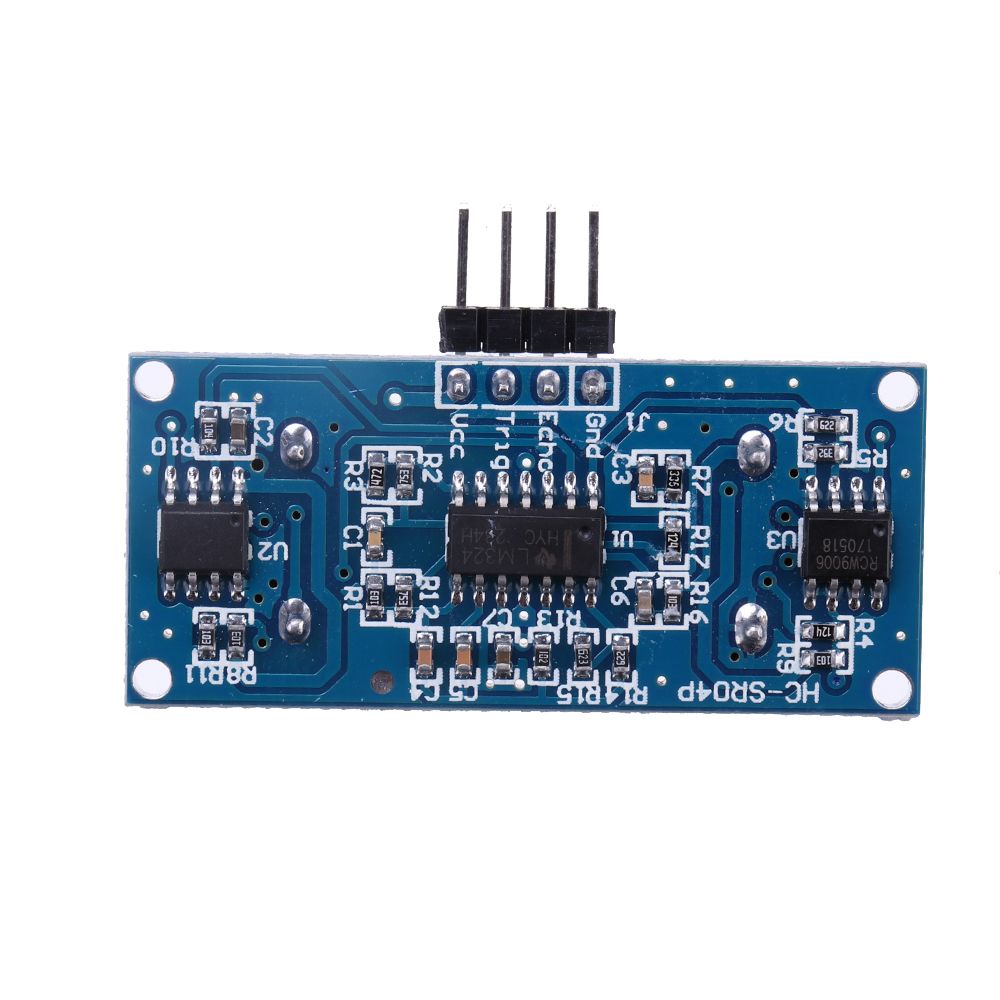

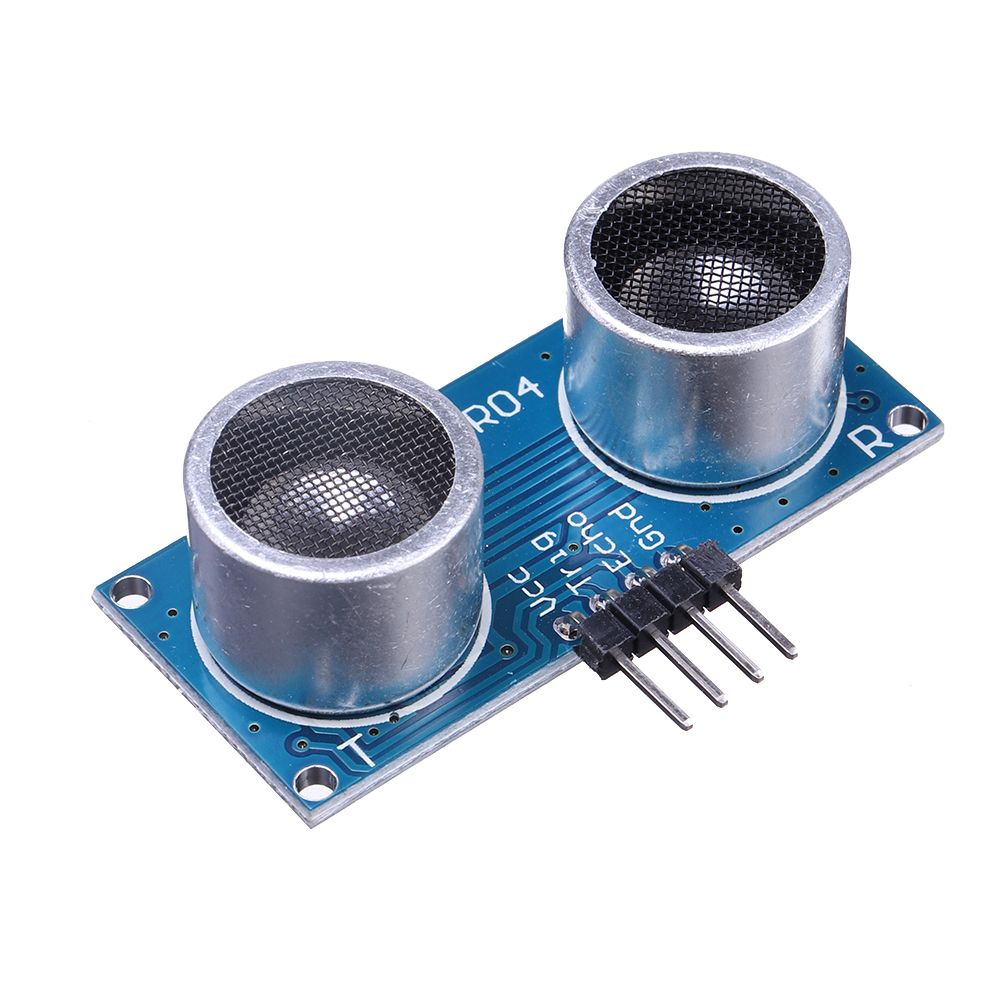

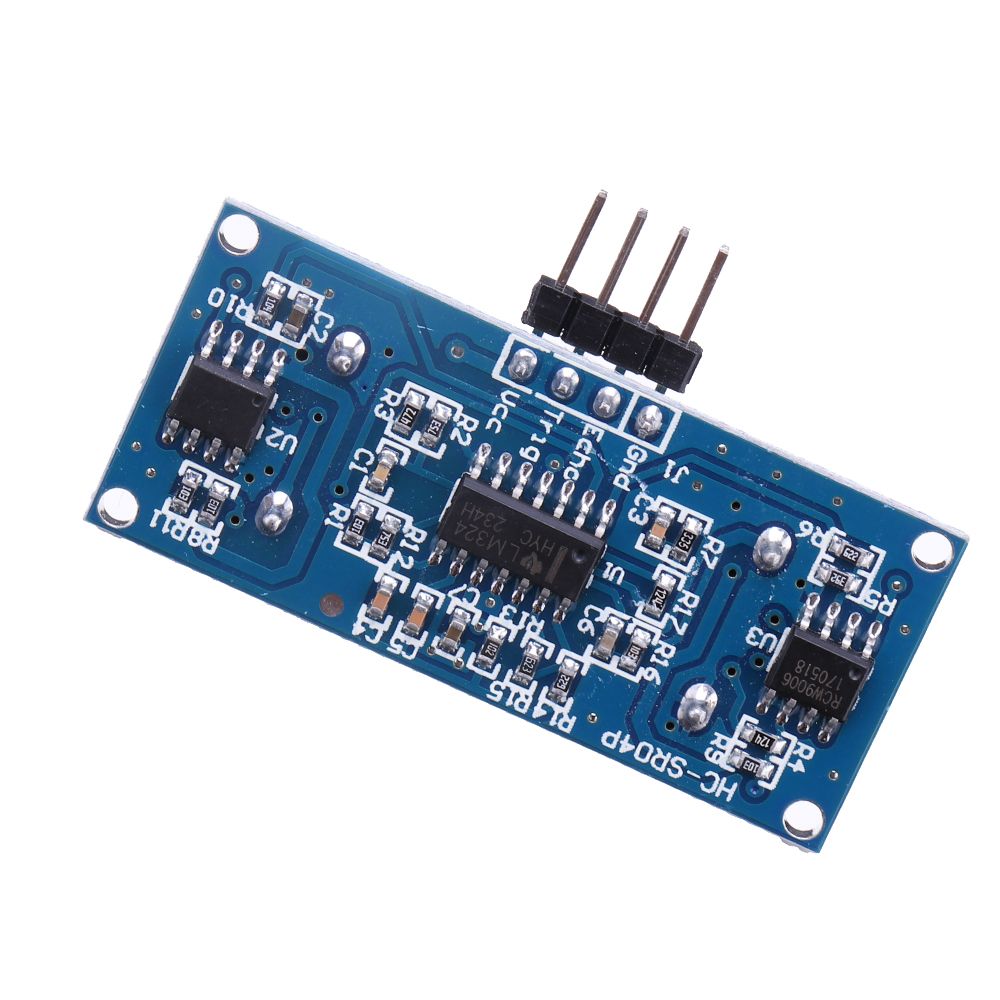

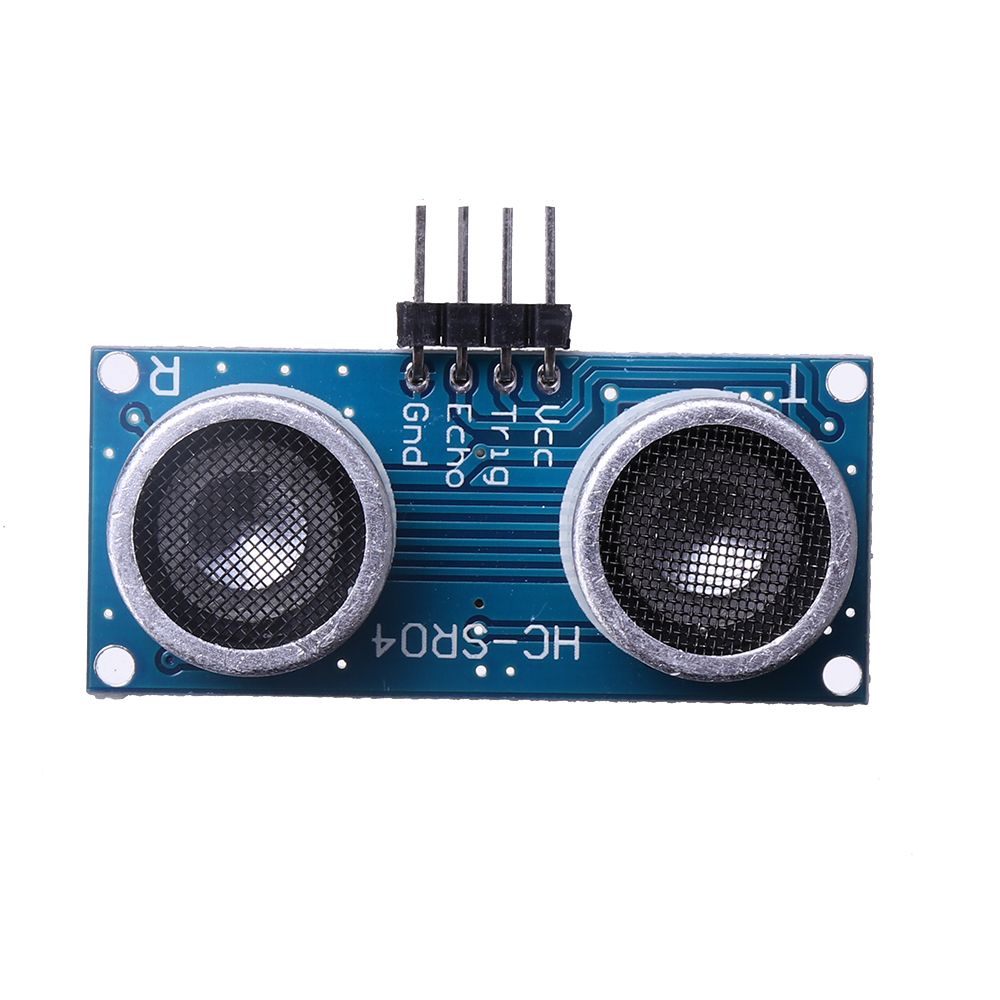

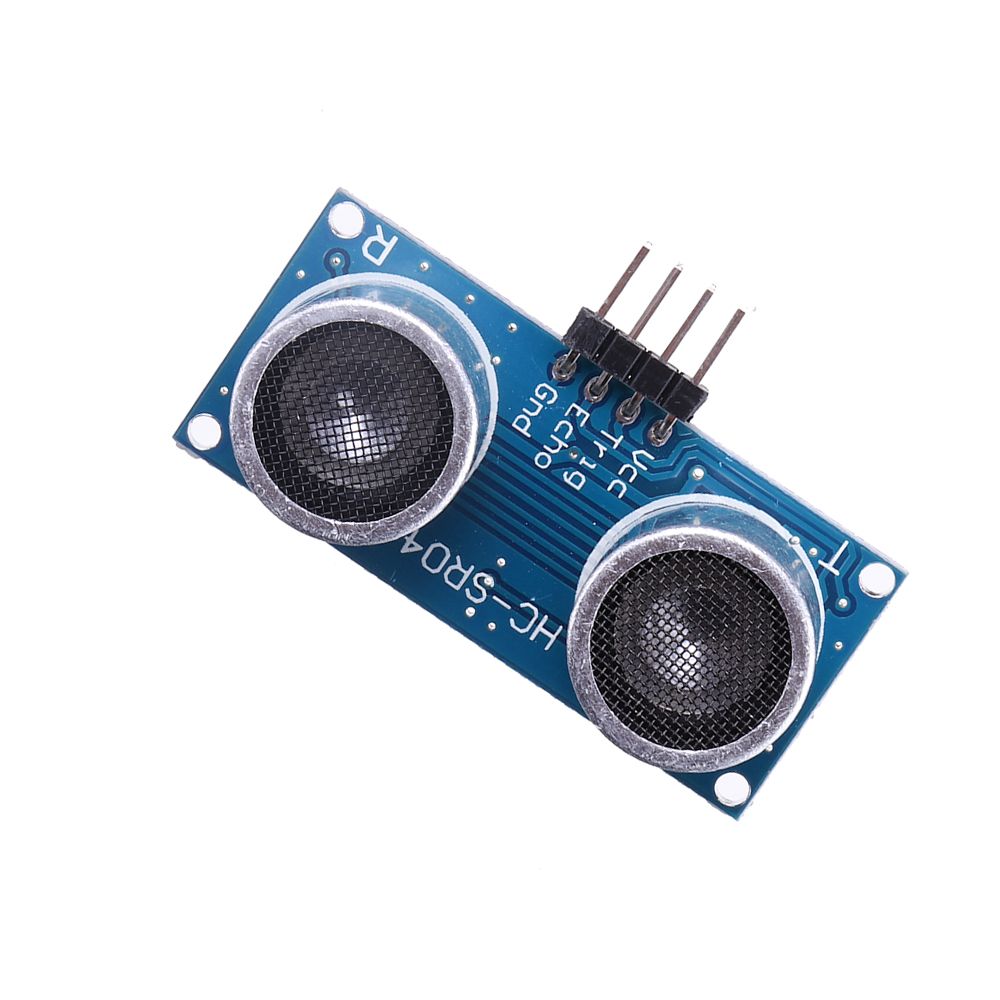

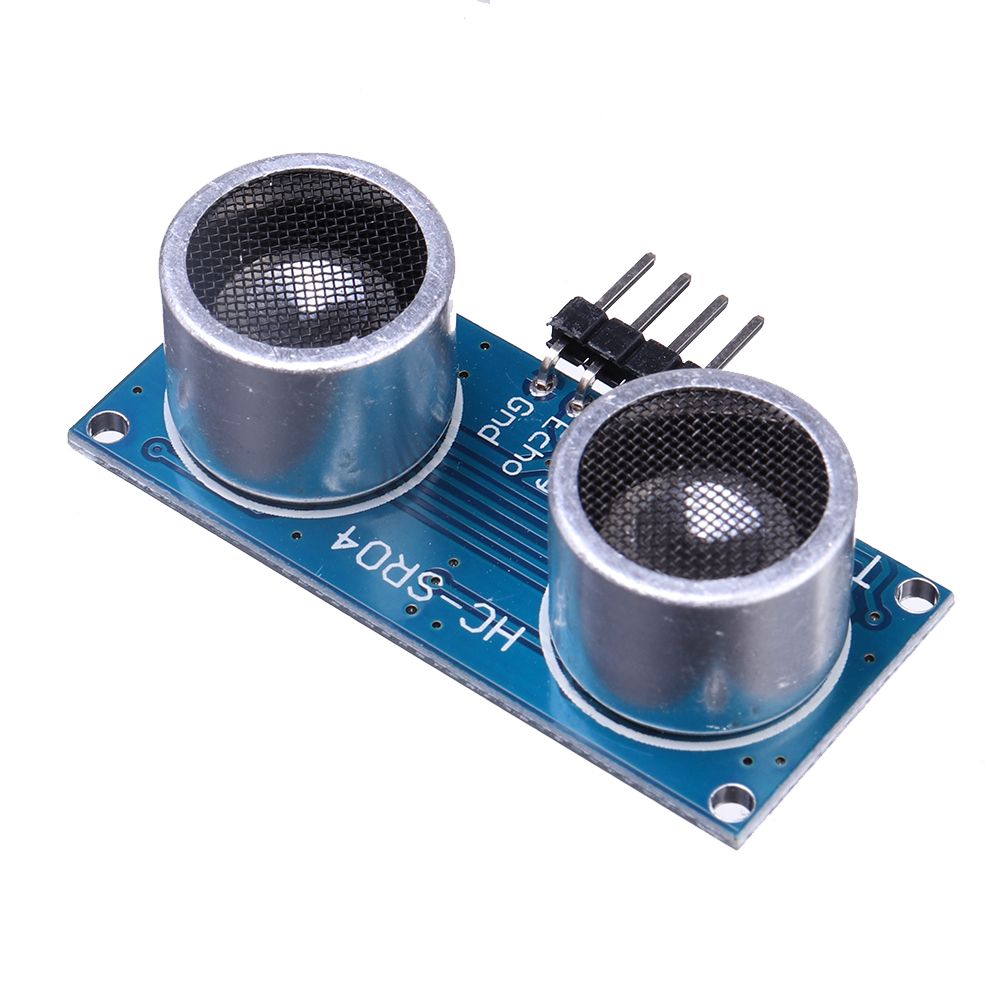

5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm

5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
5pcs HC-SR04-P Ultrasonic Module Distance Measuring Ranging Transducer Sensor DC 3.3V-5V 2-450cm
$12.98
Ex Tax: $12.98
  • Stock: In Stock
  • Model: EB0044029
  • SKU: EB0044029
Description:

Working Voltage : 3.3-5V(DC)
Static Current: Less than 2mA.
Output Signal: Electric frequency signal, high level 5V, low level 0V.
Sensor Angle: Not more than 15 degrees.
Detection Distance: 3.3V:2cm-400cm / 5V: 2cm-450cm
High Precision: Up to 0.3cm
Input Trigger Signal: 10us TTL impulse
Echo Signal : output TTL PWL signal
Compatible with HC-SR0A software and hardware
Mode of connection:
VCC
trig(T)
echo(R)
GND

Use Method:

Supply module with 3.3- 5V, the output will be 3.3V-5V while obstacle in range, or 0V if not.The out pin of this
module is used as a switching output when anti-theft module, and without the feet when ranging modules.
Note : the module should be inserted in the circuit before been power, which avoid producing high level
of misoperation;if not, then power again.

Module Working Principle:

1. Adopt IO trigger through supplying at least 10us sequence of high level signal.
2. The module automatically send eight 40khz square wave and automatically detect whether receive
the returning pulse signal.
3. If there is signals returning, through outputting high level and the time of high level continuing is
the time of that from the ultrasonic transmitting to receiving. Test distance =(high level time * sound velocity (340M/S) / 2.

Note :

This module is not suitable to connect with electric power, if you need to connect this module with
electronic power,then let the GND terminal of this module to be connected first,otherwise, it will affect the
normal work of the module

Package Included:

5 x HC-SR04-P Ultrasonic Module Distance Measuring Transducer
