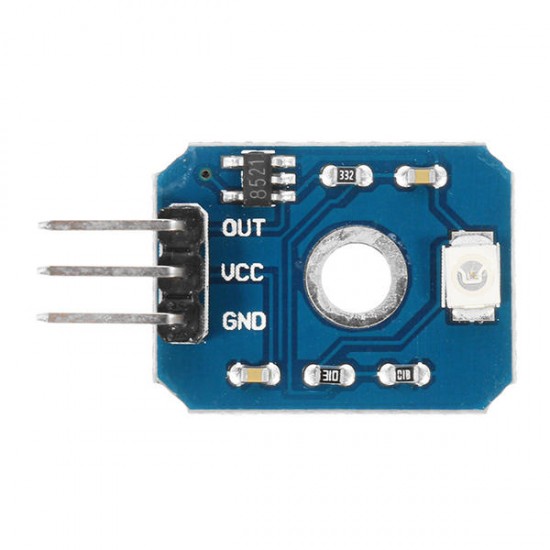

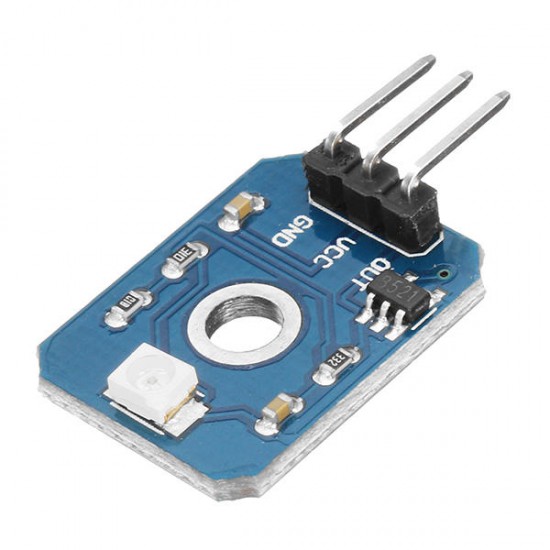

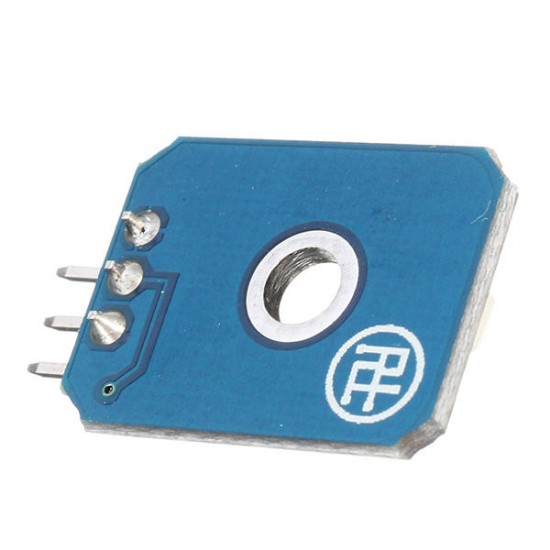

5pcs DC 3.3-5V 0.1mA UV Test Sensor Switch Module Ultraviolet Ray Sensor Module 200-370nm for Arduino - products that work with official Arduino boards
- Stock: In Stock
- Model: EB0046496
- SKU: EB0046496
6. Response time: less than 0.5 seconds
7. Work temperature: -20℃ ~85℃
Connection mode:
VCC- is the positive input port of power supply, access 3.3V-5V voltage
GND-GND is the negative input port of power supply
OUT-OUT is the output port of analog signal, connected to I / O port of MCU
Note: The player should set the I/O port of MCU as input mode / receive mode, otherwise it can not be used. Other MCU, or more advanced control panel such as Arm, which need to set the I/O port as the input and output mode, must be set to input mode / receive mode, otherwise it can not be used. 51 series can be used directly, no need to set the input and output mode.
Overview:
Designed for applications where high reliability and accuracy of the UV index (UVI) are required;
Suitable for measuring the total amount of solar ultraviolet light intensity;
Contrast the World Health Organization UV Index grading standards
The test wavelength of UV was 200-370nm;
Fast response, full interchangeability;

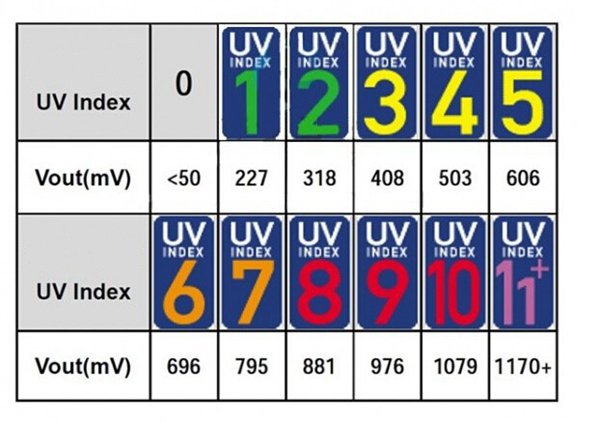

UV index chart:
Package included:
5 x UV test sensor module
,
,
,
,
