5pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
- Stock: In Stock
- Model: EB0042012
- SKU: EB0042012
Feature:

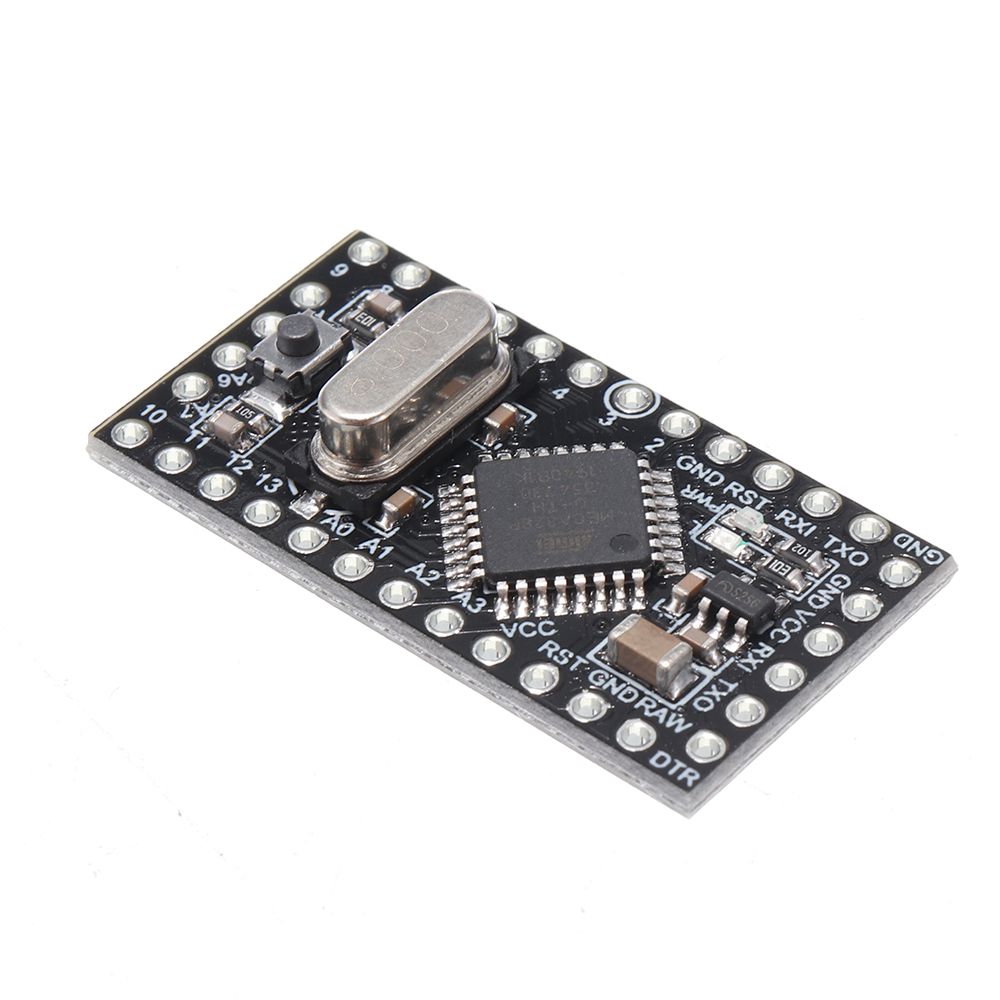

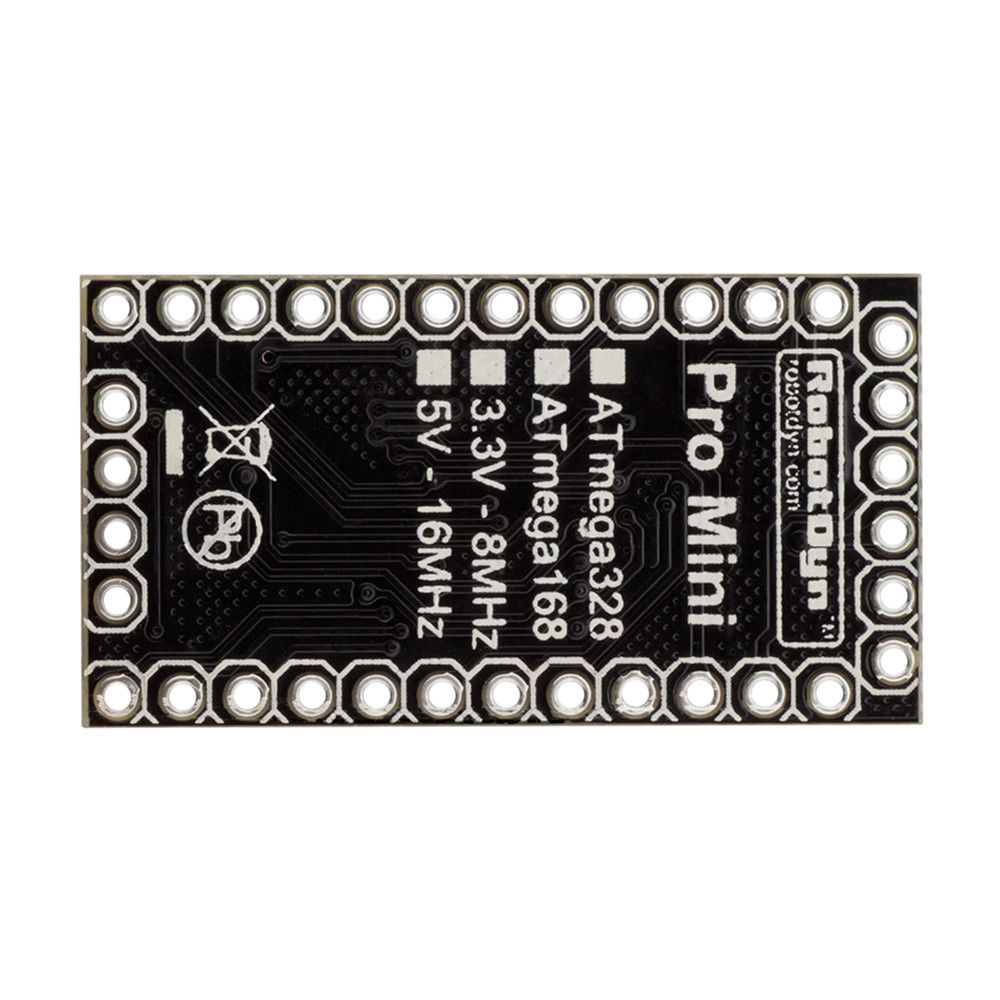

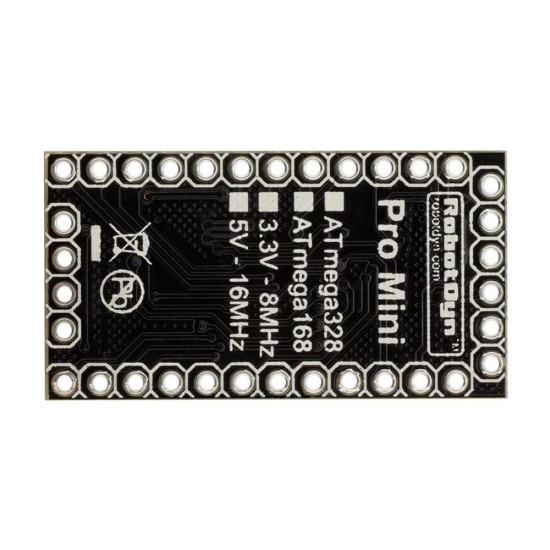

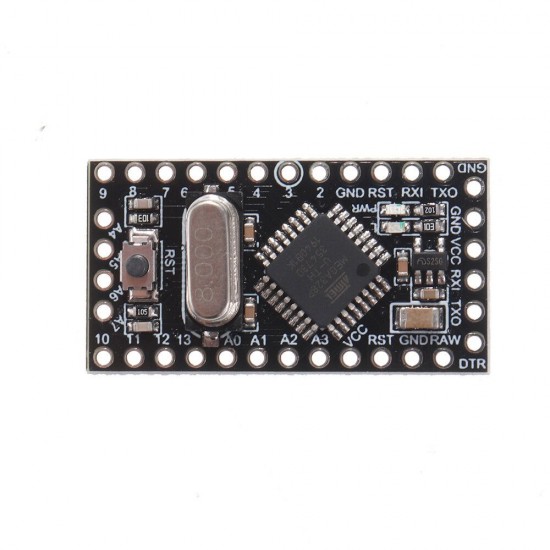

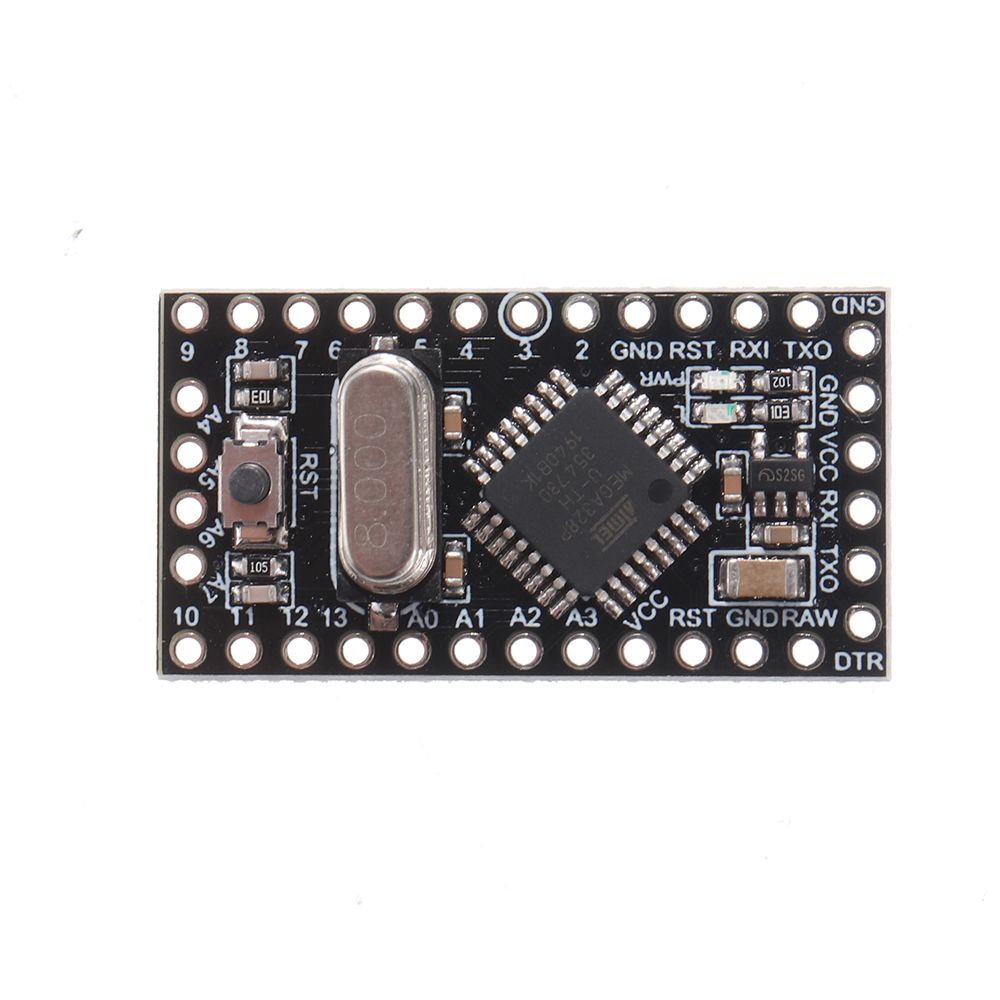

Pro Mini is based on the ATmega328 (AVR) microcontroller.
Has 14 digital Inputs / Outputs (6 from which can be used as PWM outputs), 8 analog Inputs. Reset button.

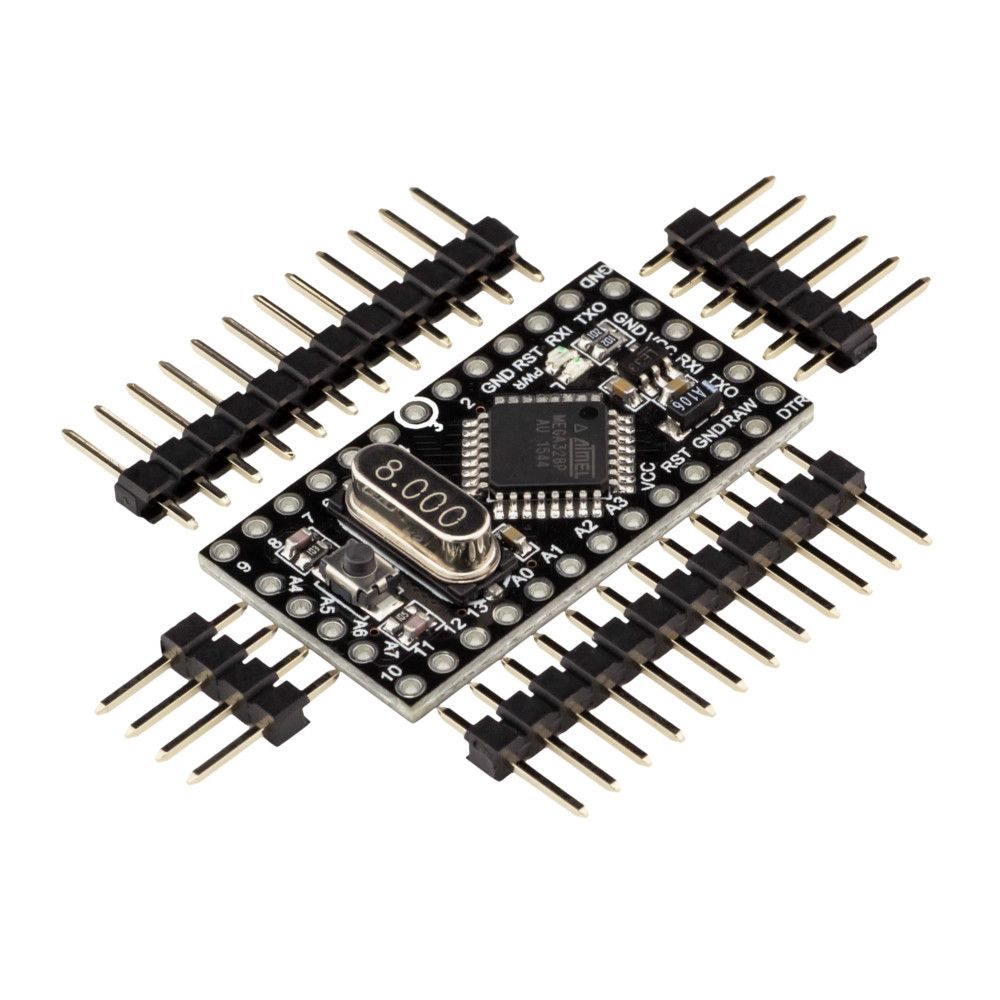

Mounting receptacles are included in the package but aren't soldered.
For connection Pro Mini to the computer, it is necessary to use the USB-UART adapter, which you can find on our site. Or for updating of firmware via the ISP interface (the programmer is required).
Unregulated power is applied to RAW, with 4-9V (for 3.3V) and 6-9V (for 5V), and the is 12V.
The power supply regulator will reduce it to a logic level. (Please note that the higher the input voltage the higher after current stabilizer.
Operating current up to 350mA.
Specifications:
Microcontroller | ATMega328 |
Power Out | 3.3V/5V-400mA |
Power Consumption | 3.3V/5V 400mA |
Logic Level | 3.3V/5V |
Clock Frequency | 8MHz |
Operating Supply Voltage | 3.3V (this item) /5V (Contact Us) |
Digital I/O | 14(6-PWM) |
Analog I/O | 8 |
Memory Size | 16Kb/32Kb |
Data RAM Type/Size | 2Kb |
Data ROM Type/Size | 1Kb |
Interface Type | ISP |
Operating temperature | −40С°/+85С° |

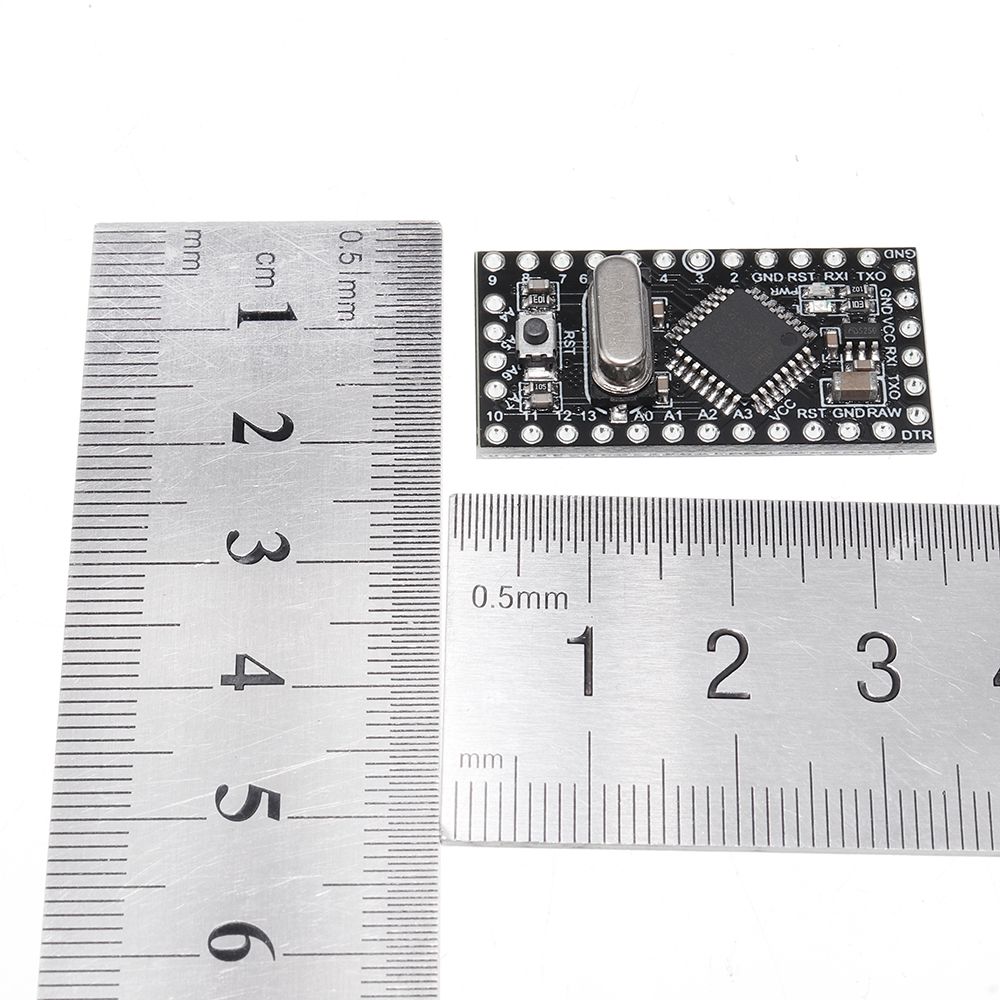

Length×Width | 33.02×17.78mm |
Package includes:
5 x ProMini ATmega328P Board
Dimensional drawing: Click here to open
Pinout: Click here to open
Schematic: Click here to open
