5pcs 220V XH-W2060 Embedded Digital Thermostat Cabinet Freezer Cold Storage Thermostat Temperature Controller Temperature Control

Based on 0 reviews. - Write a review

$42.62

Ex Tax: $42.62

Stock: In Stock
Model: EB0047667
SKU: EB0047667

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Feature:

Product Name: Digital display embedded cabinet thermostat

Product model: XH-W2060

Temperature range: -19~99 °C

Control range: -19~99 °C

Temperature control accuracy: 1 °C

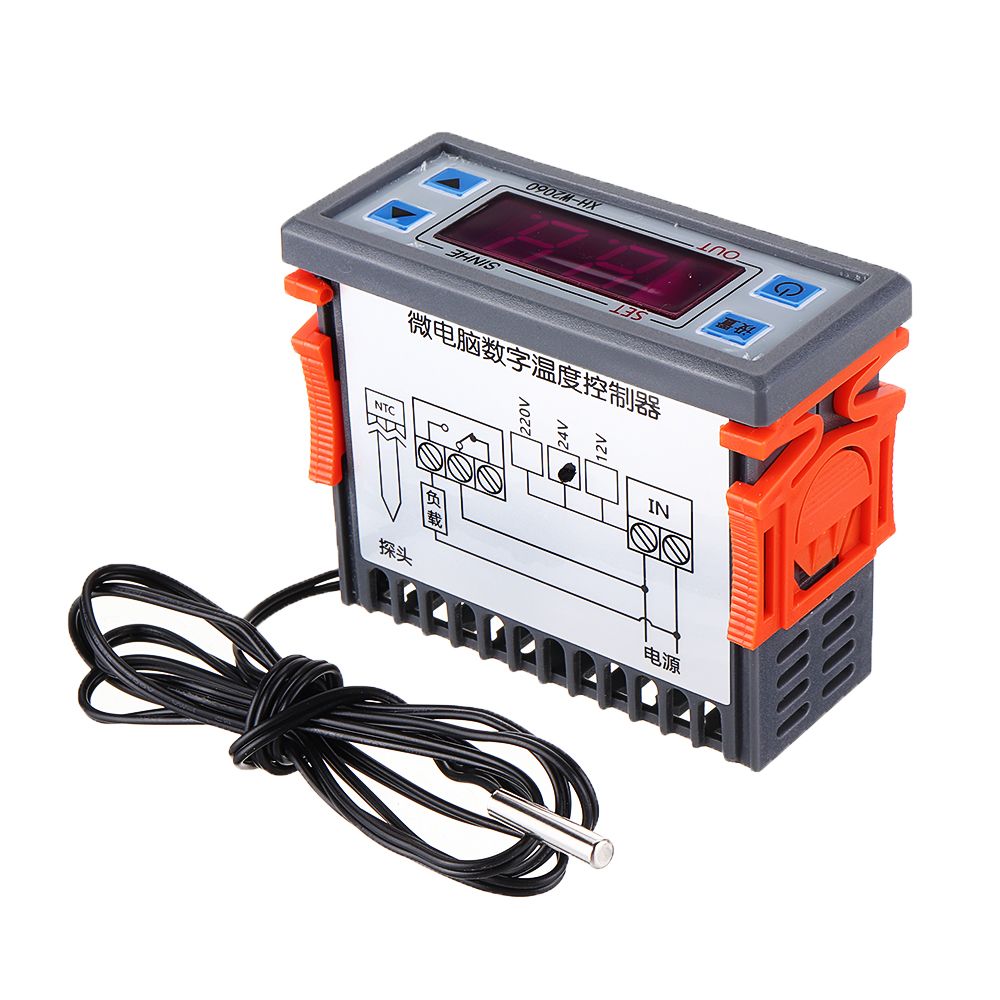

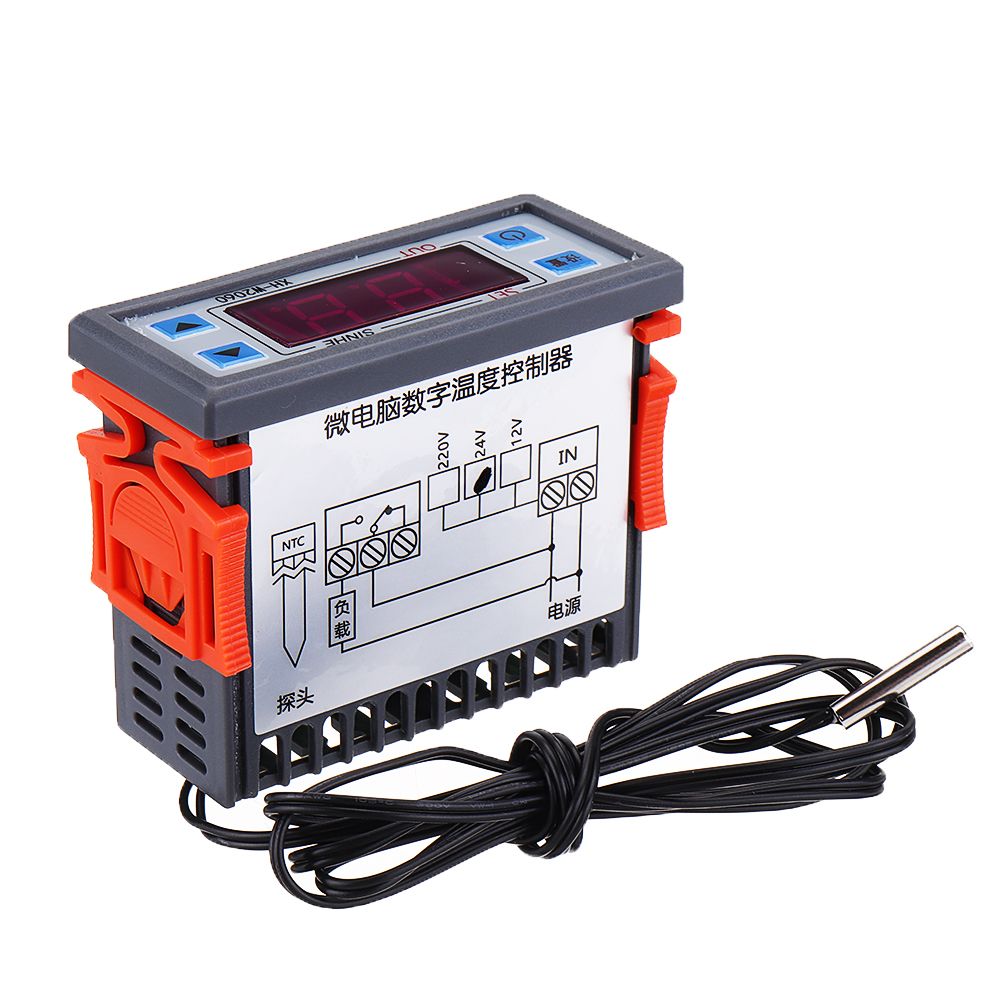

Measurement input: NTC10K waterproof probe L = 1 m

Refresh rate: 4 times / sec

Use environment: -30~60°C Humidity 20%-85%

Use environment: 12/24/220V optional

Output type: Relay output up to 10A

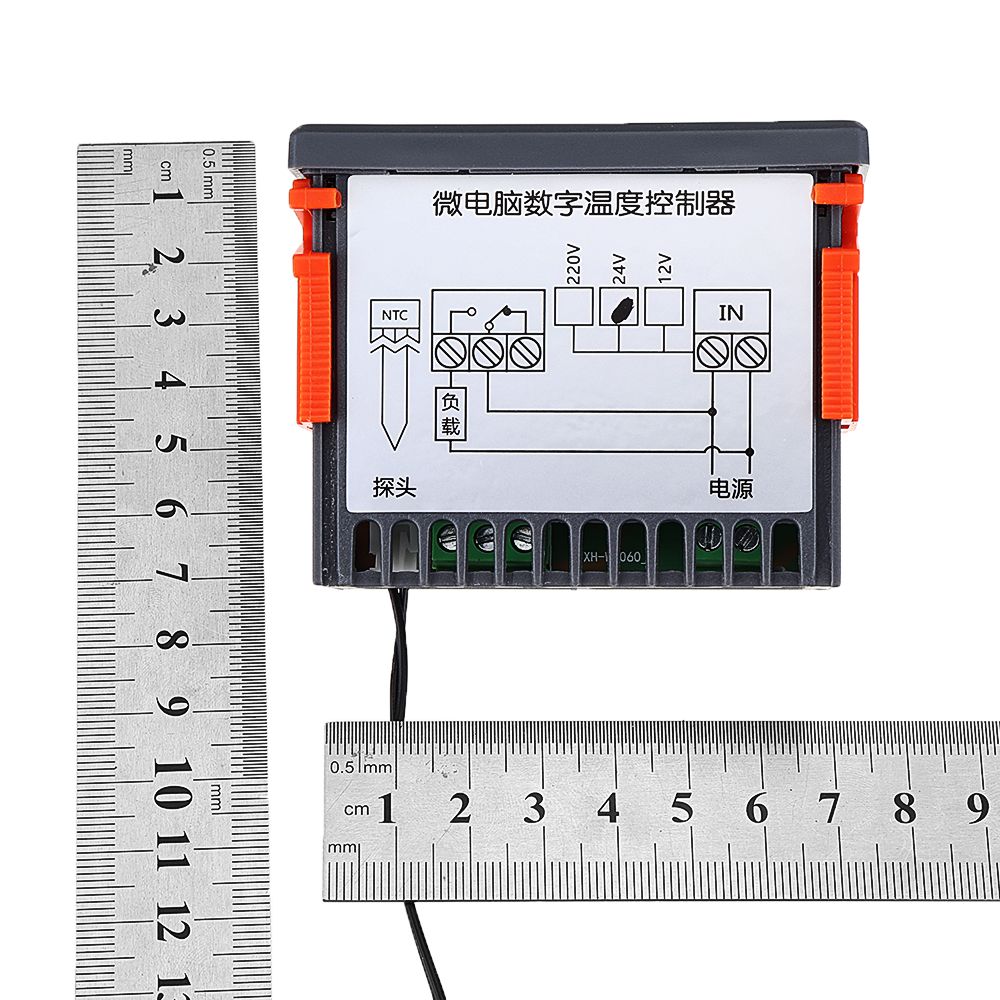

Appearance size: 77 x 62 x 34.5mm

Opening size: 71 x 29mm

Other functions: Power-off memory, state memory, temperature correction, delay start

Code	Code Description	Setting Range	Factory settings	Unit
P0	Operating mode	C/H	C	/
P1	Hysteresis setting	0.1-50	2	°C
P2	Temperature correction	-9~9	0	°C
P3	Delayed start	0-9	0	Minute
P4	High temperature alarm	-19~99	99	°C

P0: Temperature control mode

C: Cooling mode H: Heating mode

P1: Difference setting

For example: P1=5

Cooling mode: When the detected temperature reaches the stop temperature, the relay is disconnected, the cooling is stopped, the temperature rises by 5 °C, and the relay closes again.

Heating mode: When the detected temperature reaches the stop temperature, the relay is disconnected, the heating is stopped, the temperature drops back to 5 °C, and the relay closes again.

P2: Temperature correction

If the detected temperature and the actual temperature deviate, you can use this function to correct. Actual value = measured value + corrected value. For example, if the measured temperature is 25 ° C and the actual temperature is 26 ° C, then P2 can be set to 1, then The final temperature is 25+1=26

P3: Delayed start

This function is used for compressor cooling. If it is used in a refrigerator freezer, this value must be set. According to the compressor back pressure, the value is usually set to 3-6 minutes.

P4: High temperature alarm

Set the high temperature alarm value. When the detected temperature exceeds this value, the screen flashes and the buzzer sounds an alarm.

Package includes:

5 x Digital display embedded cabinet thermostat
