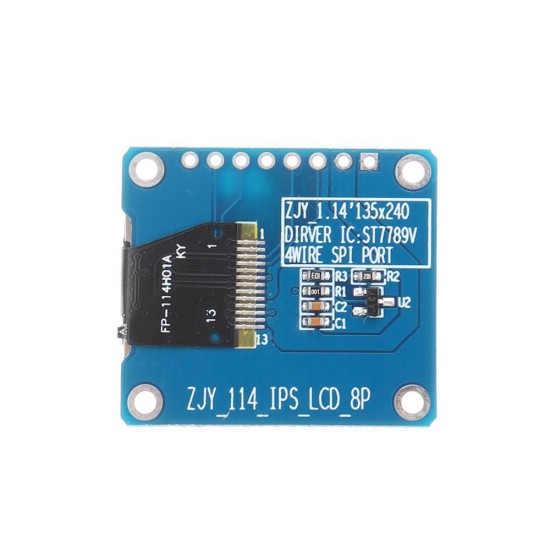

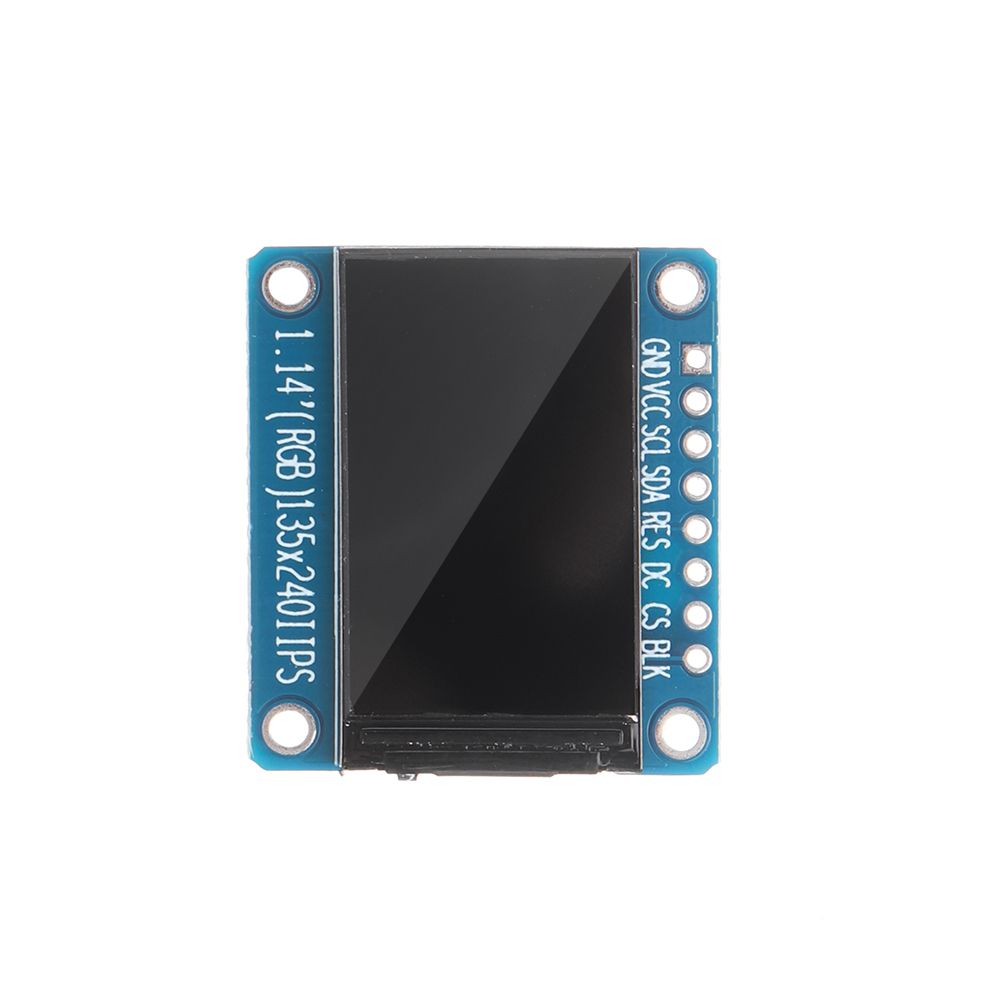

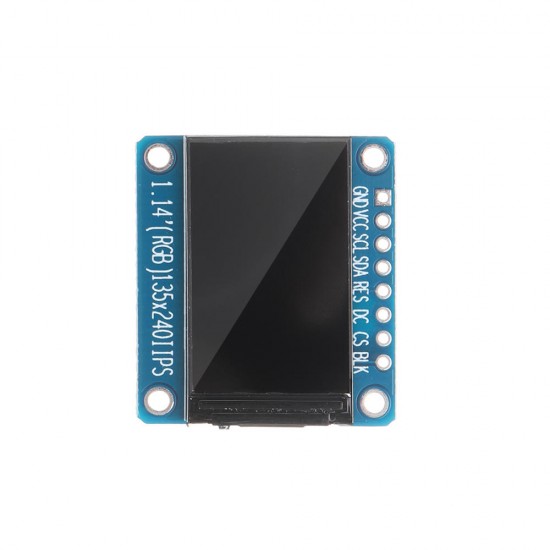

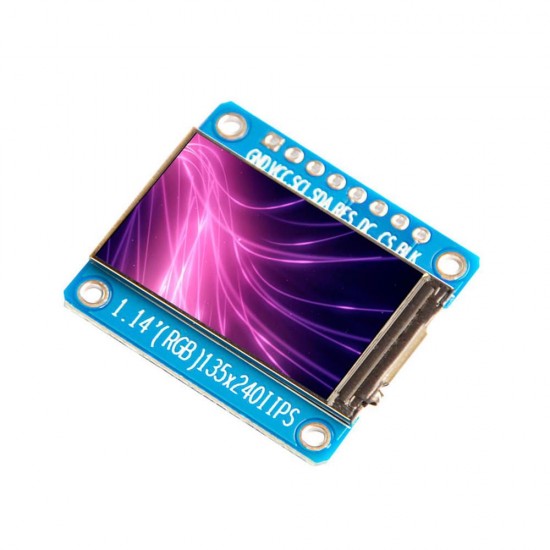

5pcs 1.14 Inch TFT Display IPS LCD Screen ST7789 HD LCD Display Module
- Stock: In Stock
- Model: EB0050445
- SKU: EB0050445
| Size | 1.14 inch |
| Material | HD IPS color screen, the color is more vivid than ordinary TFT LCD |
| Resolution | 135*240 display direction can be adjusted, support horizontal and vertical screen |
| Control chip | ST7789 |
| Display area | 14.864(H) x 24.912(V)mm |

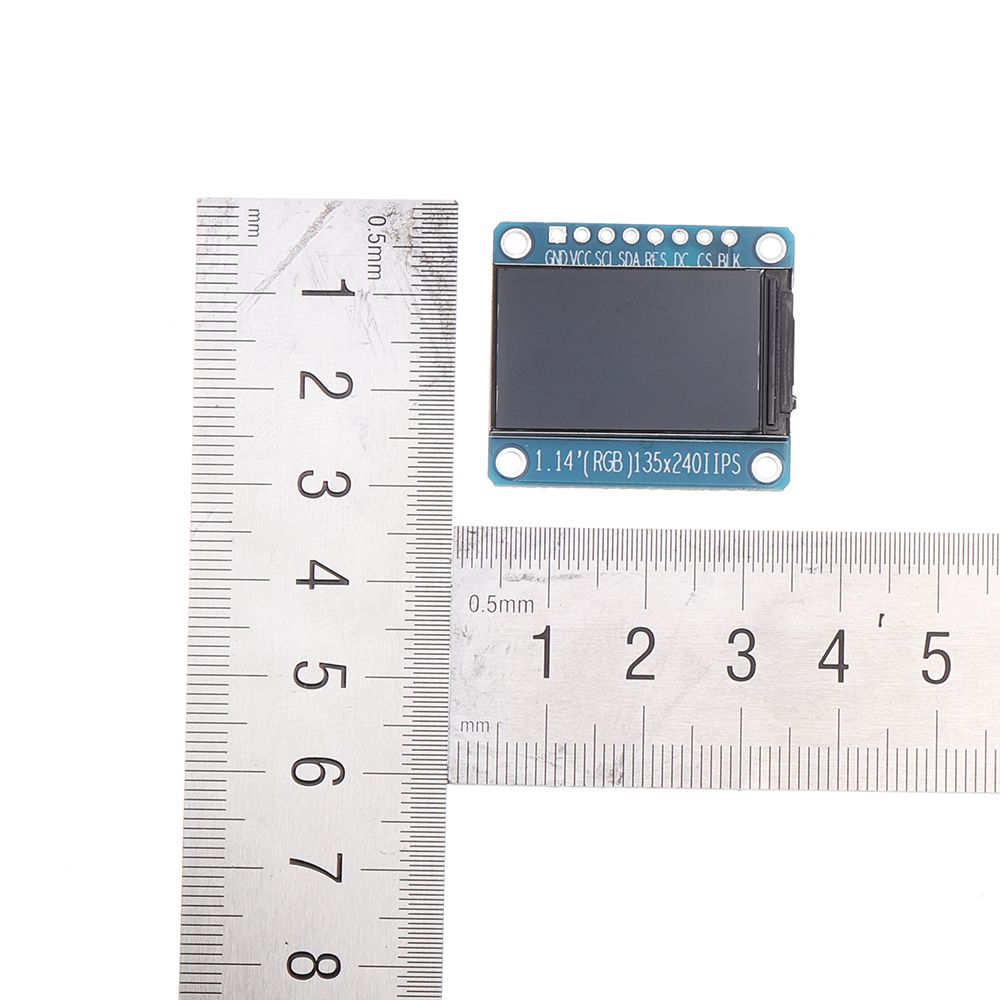

| Physical size | 28(H) x 31.4(V)mm |
| Interface Type | 4-wire SPI interface |

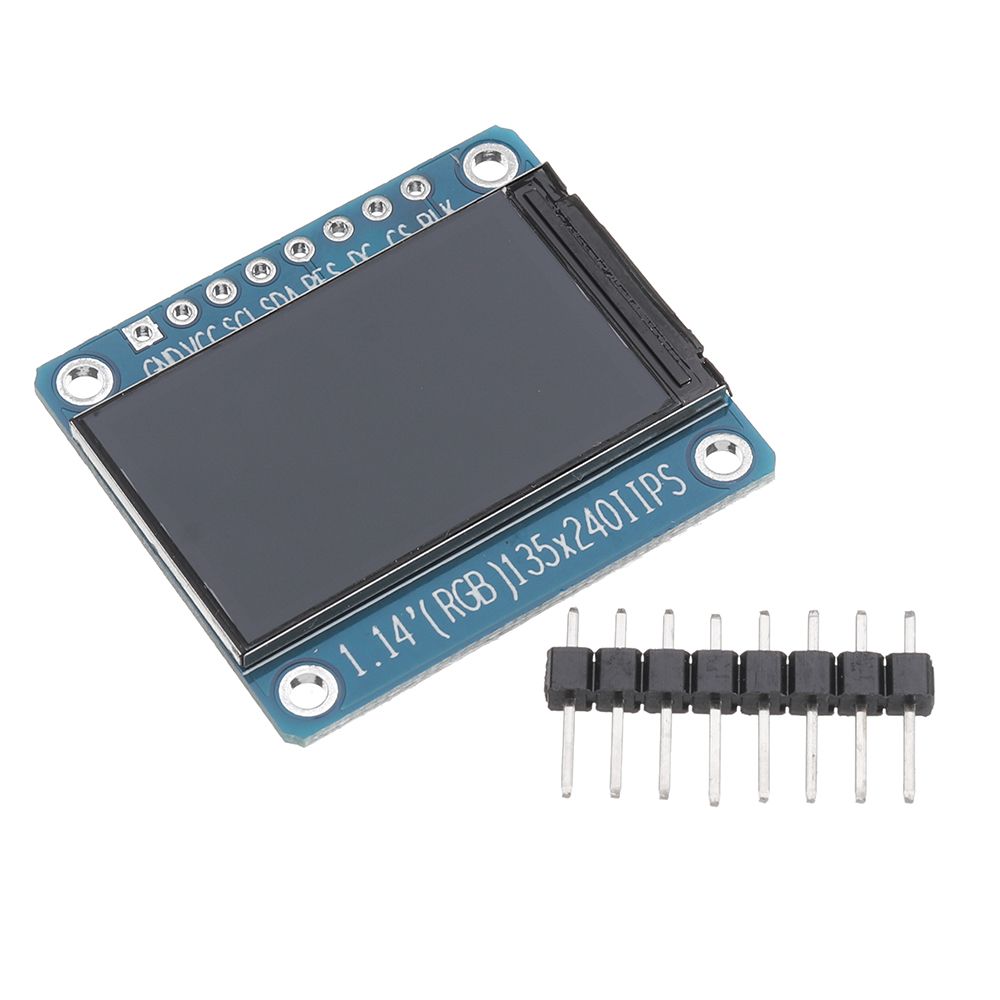

| Number of pins | 8PIN (the pin is not soldered by default) |
| Viewing direction | Full view |
| Operating temperature | -20~70°C |

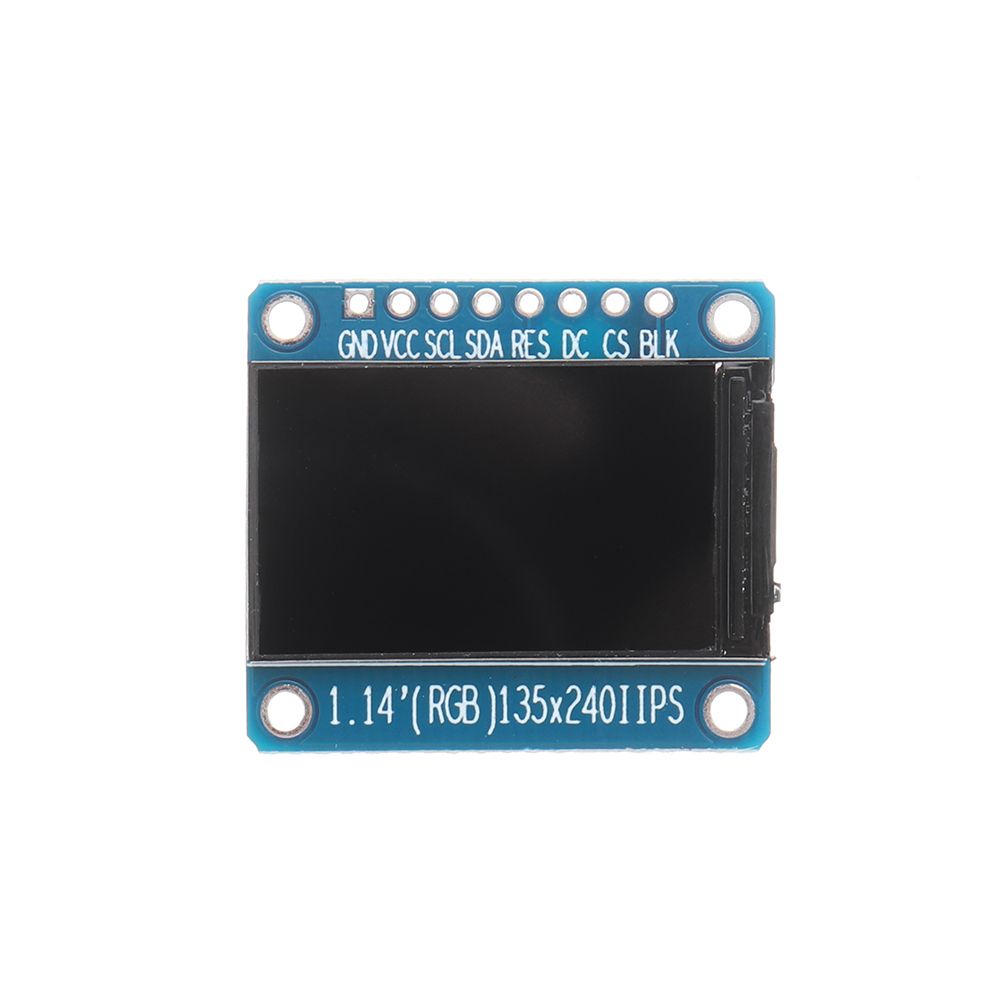

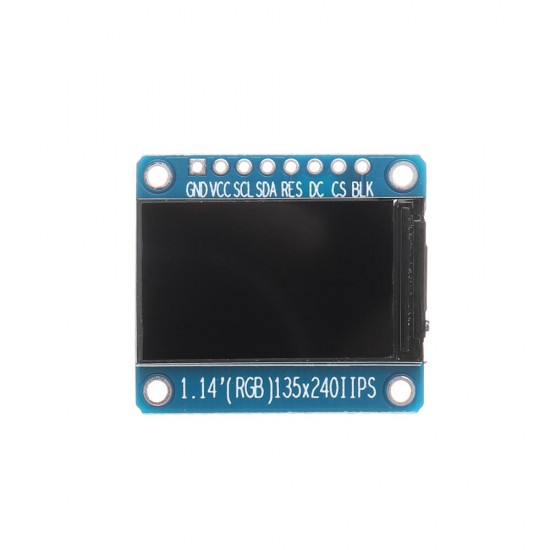

PIN Descriptions:
| Number | Pin | Description |
| 1 | GND | Power ground |
| 2 | VCC | Power supply is 3.3V |
| 3 | SCL | SPI clock line |
| 4 | SDA | SPI data line |
| 5 | RES | Display reset pin |
| 6 | DC | SPI data / command selection foot |
| 7 | CS | SPI data chip select, active low |
| 8 | BLK | LCD backlight control, the default can be left floating, low level to turn off the backlight |
Package includes:
5 x LCD screen board
