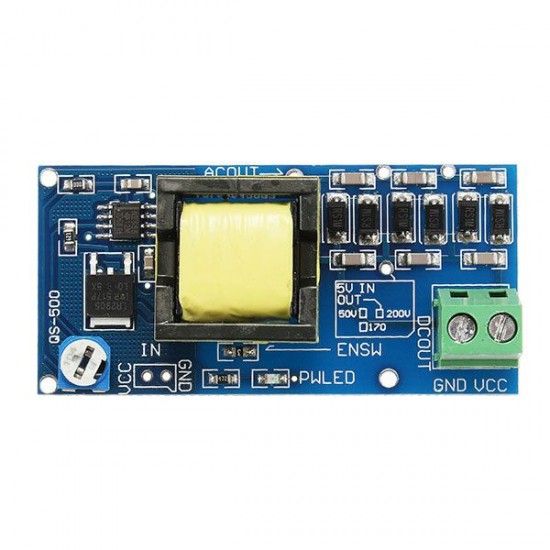

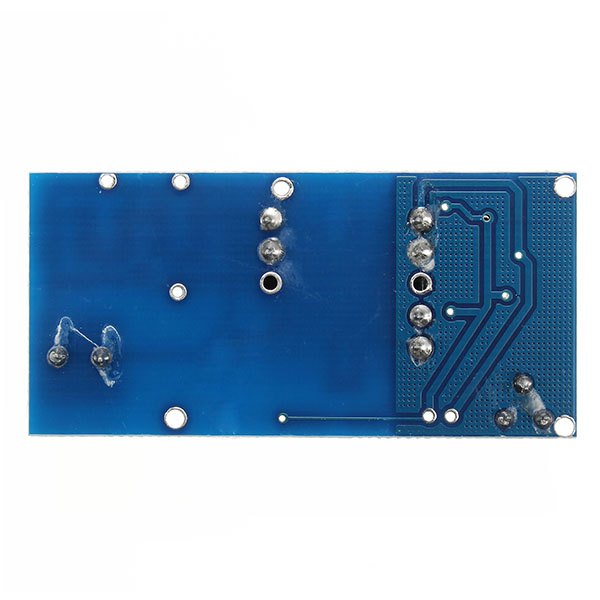

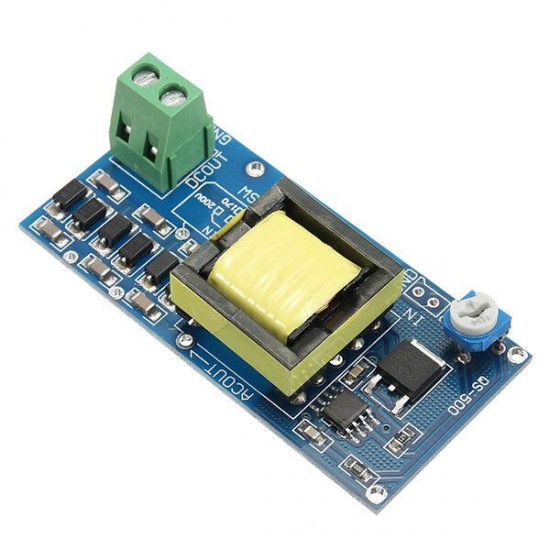

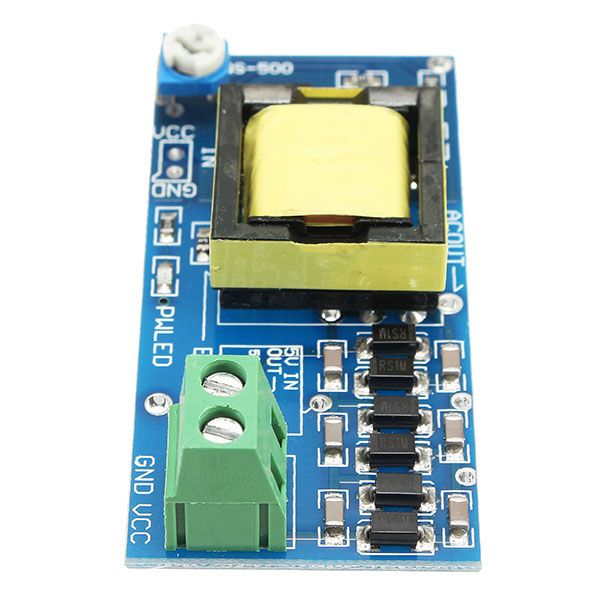

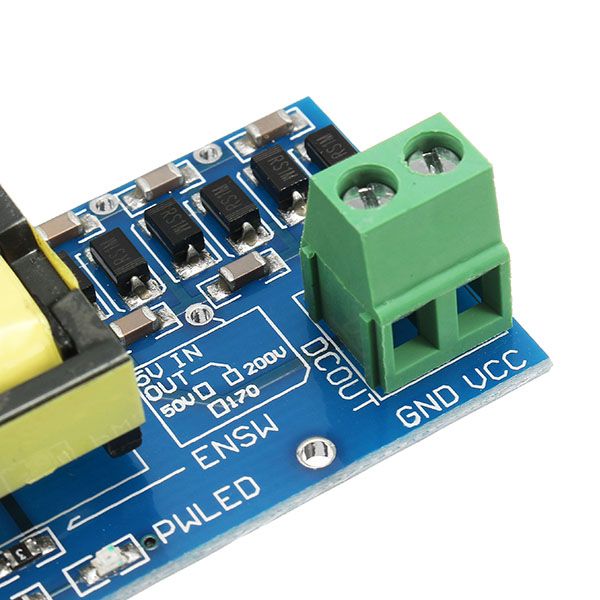

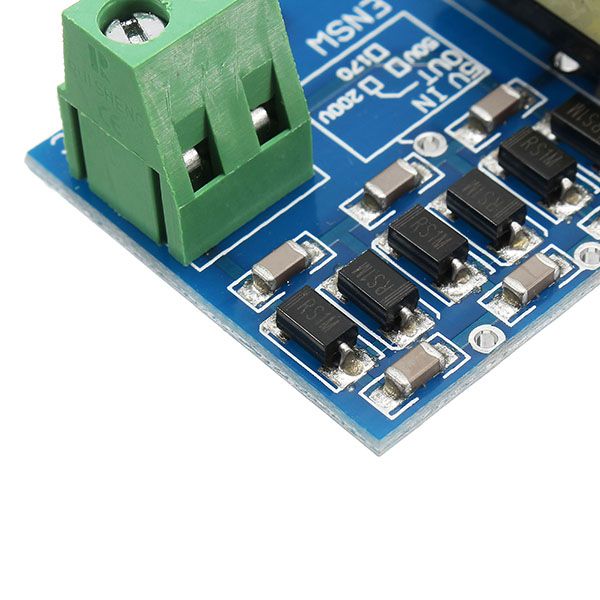

5V-12V Step Up to 300V-1200V DC-DC Boost Converter High Voltage Power Boost Module
- Stock: In Stock
- Model: EB0043661
- SKU: EB0043661
Module size: about 25 * 48mm (W*L)
Output current: 2-20mA. ( if you want to add current, please put insurance below the transformer replaced the 0-ohm resistor, maximum 50mA, but does not recommend increased.)
When the input voltage is 5V, the output voltage can be adjusted in 300-900V.
When the input voltage is 6-12V, the output voltage can be adjusted in 400-1200V.
The capacitor can he charged, but charging speed is somewhat slow, please note.
As the module power output module, it is not possible for the sensor.
Corresponding products description: This module is used on security products. stability is fairly good.
The module with AC output, the output about AC75V, but cann't be adjusted, wiring: 1. Fire line connect VCC, Zero line connect its joins

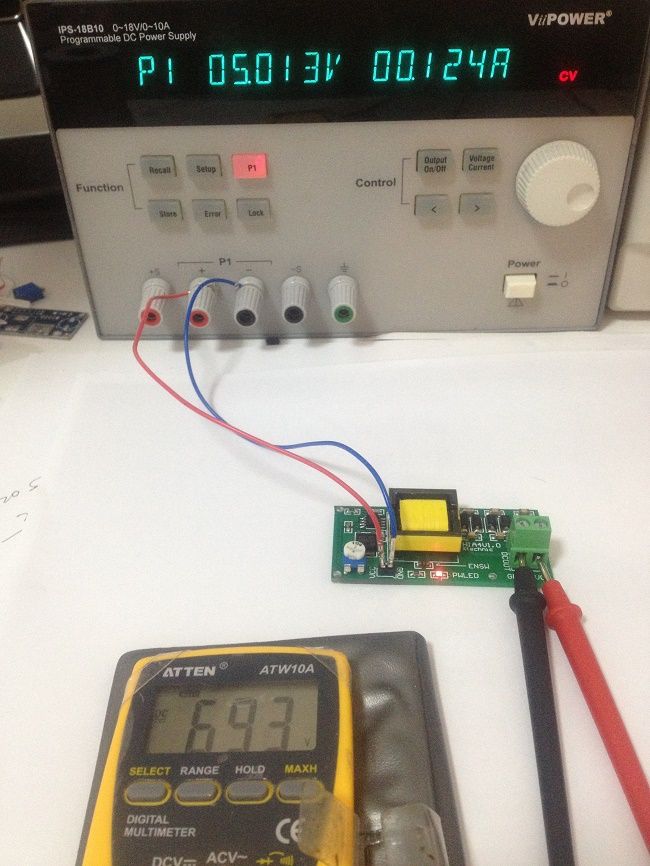

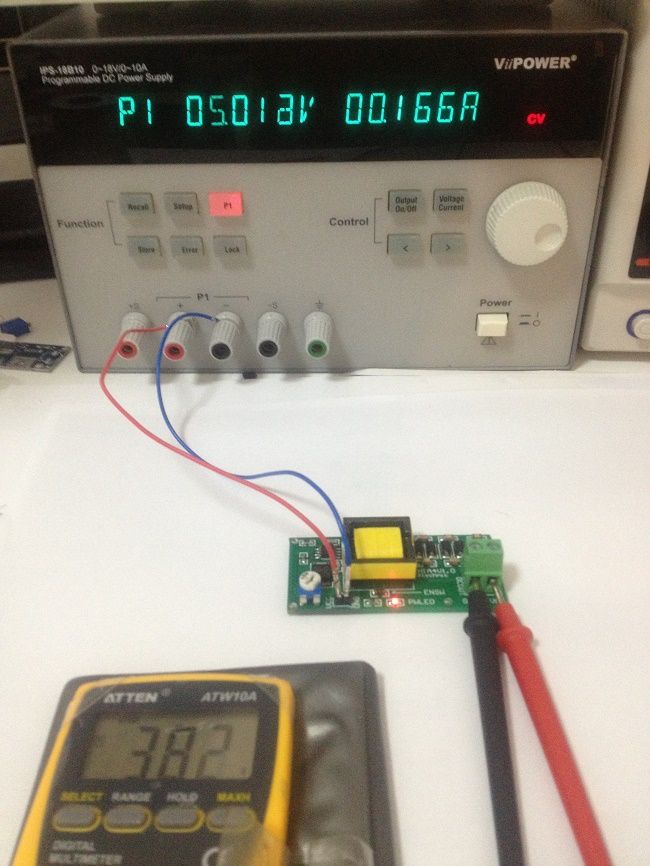

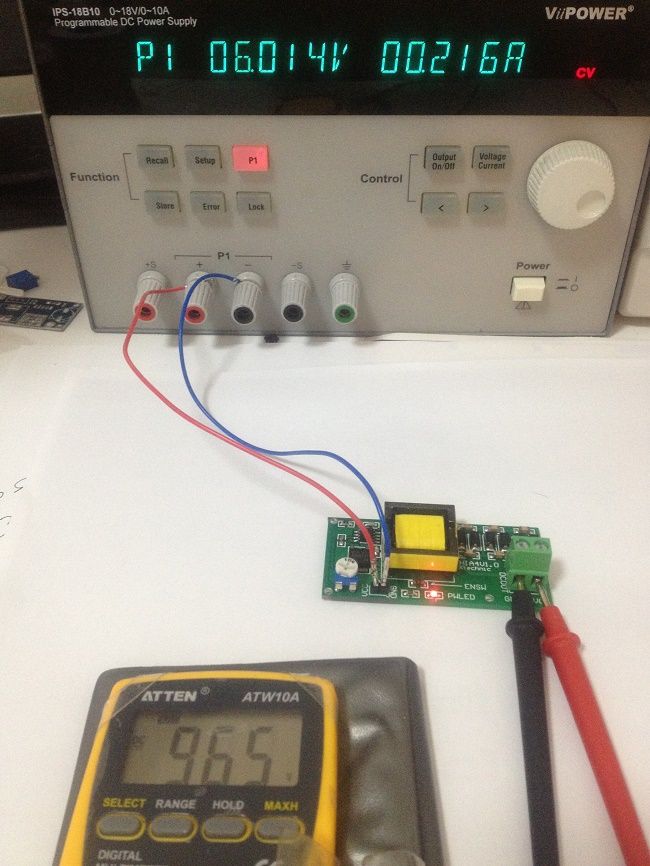

Product test pattern:

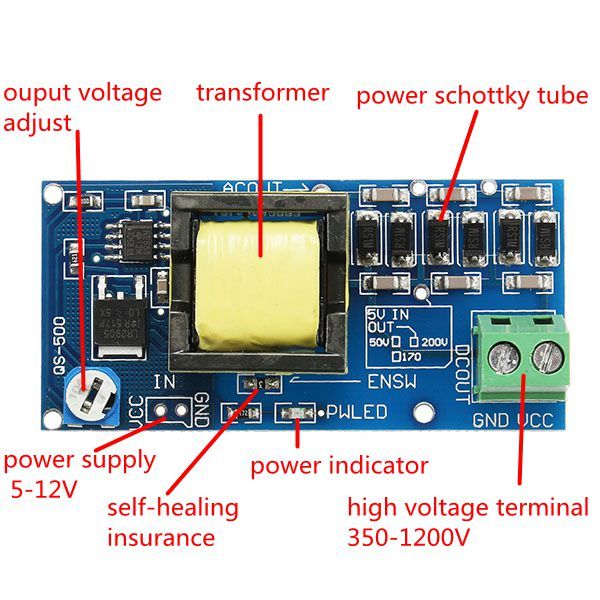

Please refer to the main map, new products output are generally stable, of course, if you test the output voltage is unstable, you can add a limiting current resistor for testing, usually this problem does not occur.
Package includes:
1 x DC-DC Boost Converter
Testing:
