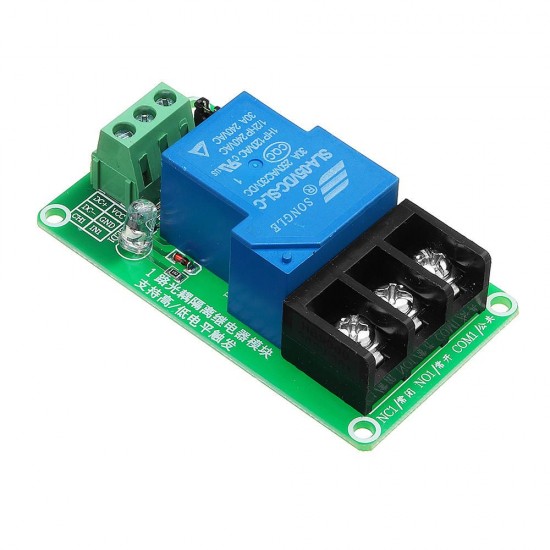

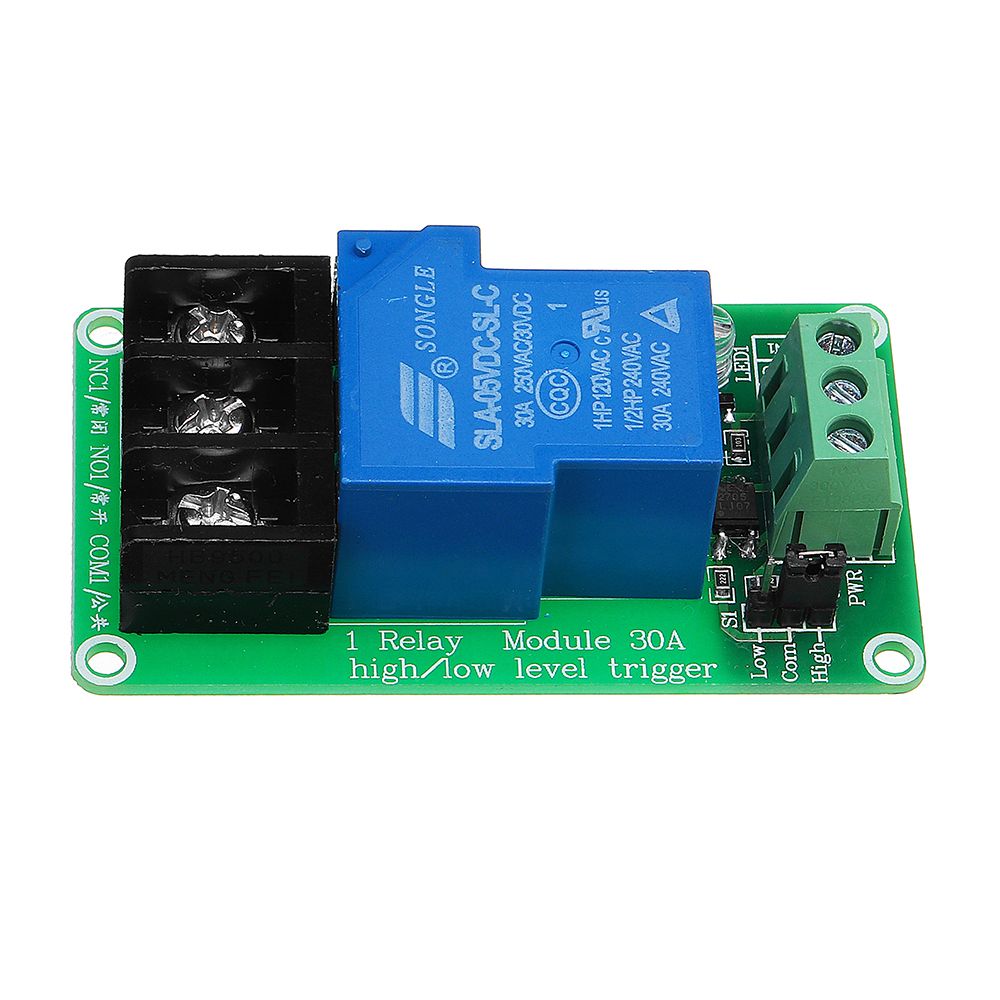

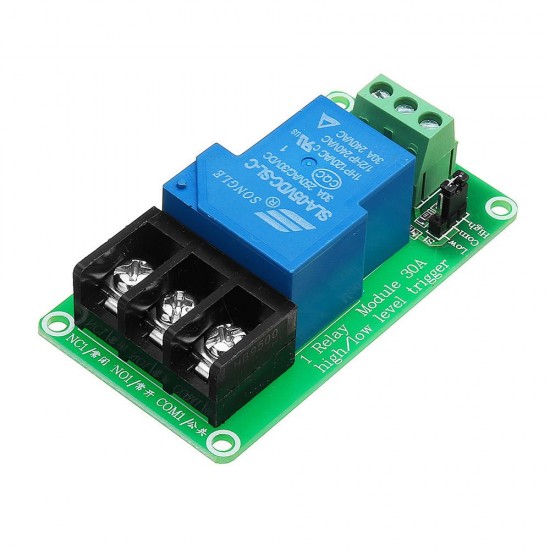

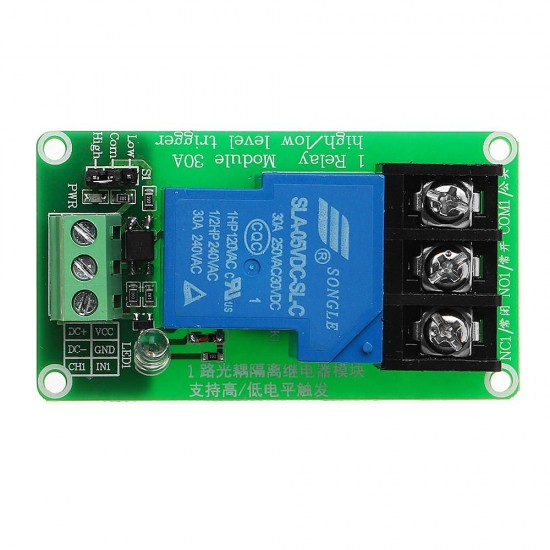

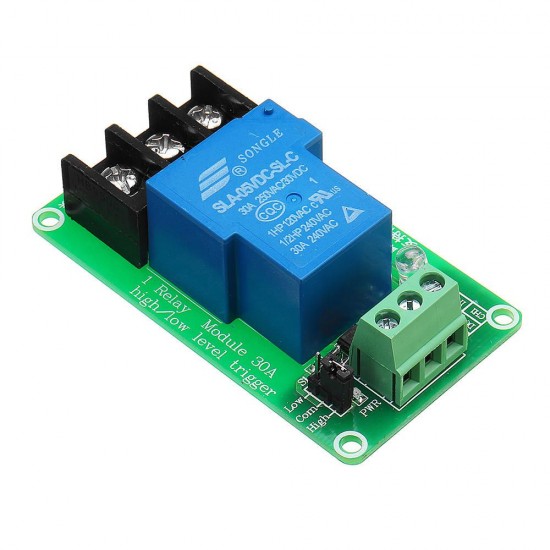

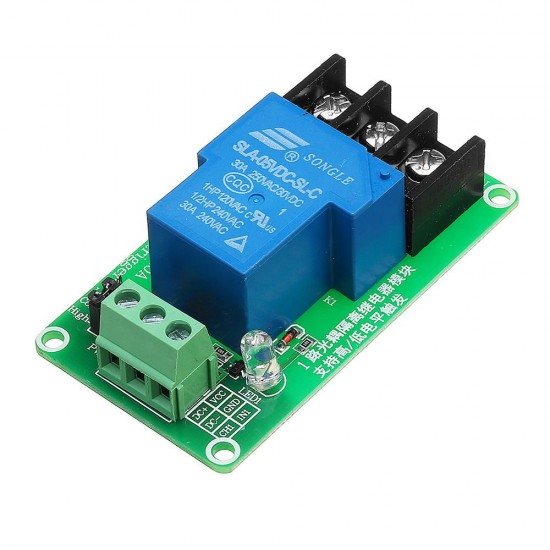

5V 1 Channel 30A Optocoupler Isolation Relay Module Support High and Low Level Trigger Switch

Based on 0 reviews. - Write a review

$8.99

Ex Tax: $8.99

Stock: In Stock
Model: EB0046005
SKU: EB0046005

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: DC5V

Precise details>>

Feature:

1. The module adopts genuine high quality 30A relay, the maximum load of normally open interface: AC 250V/30A, DC 30V/30A.

2. Using chip optocoupler isolation, strong driving ability, stable performance; trigger current 5mA.

3. Module operating voltage 5V.

4. The module can be triggered by a jumper to set a high or low level.

5. The interface design is user-friendly, and all interfaces can be directly connected through the terminal block, which is very convenient.

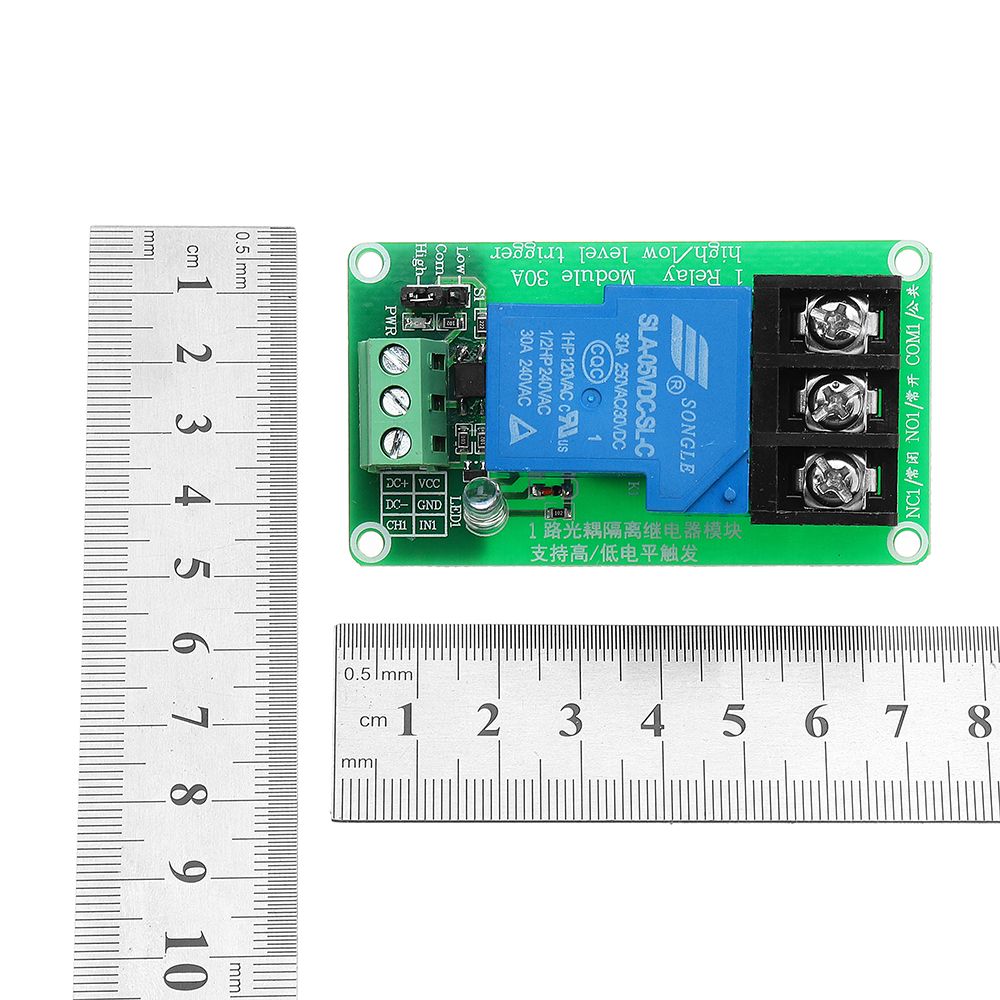

6. Module size: 72 x 40 x 24mm (Length * Width * Height), with module holder: 86 x 43 x 45mm

7. Product net weight: 46g

8. 4 fixing bolt holes, hole 3.1mm, spacing 44.5 x 27.5mm

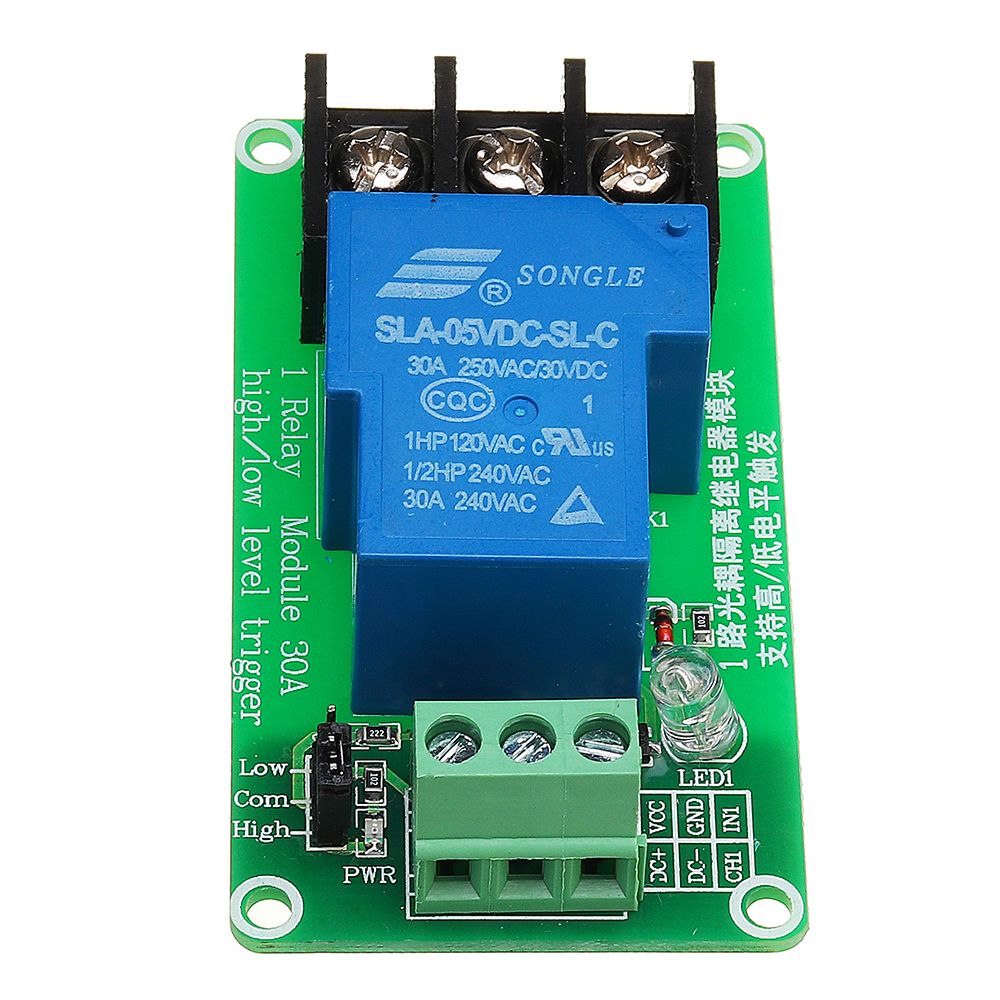

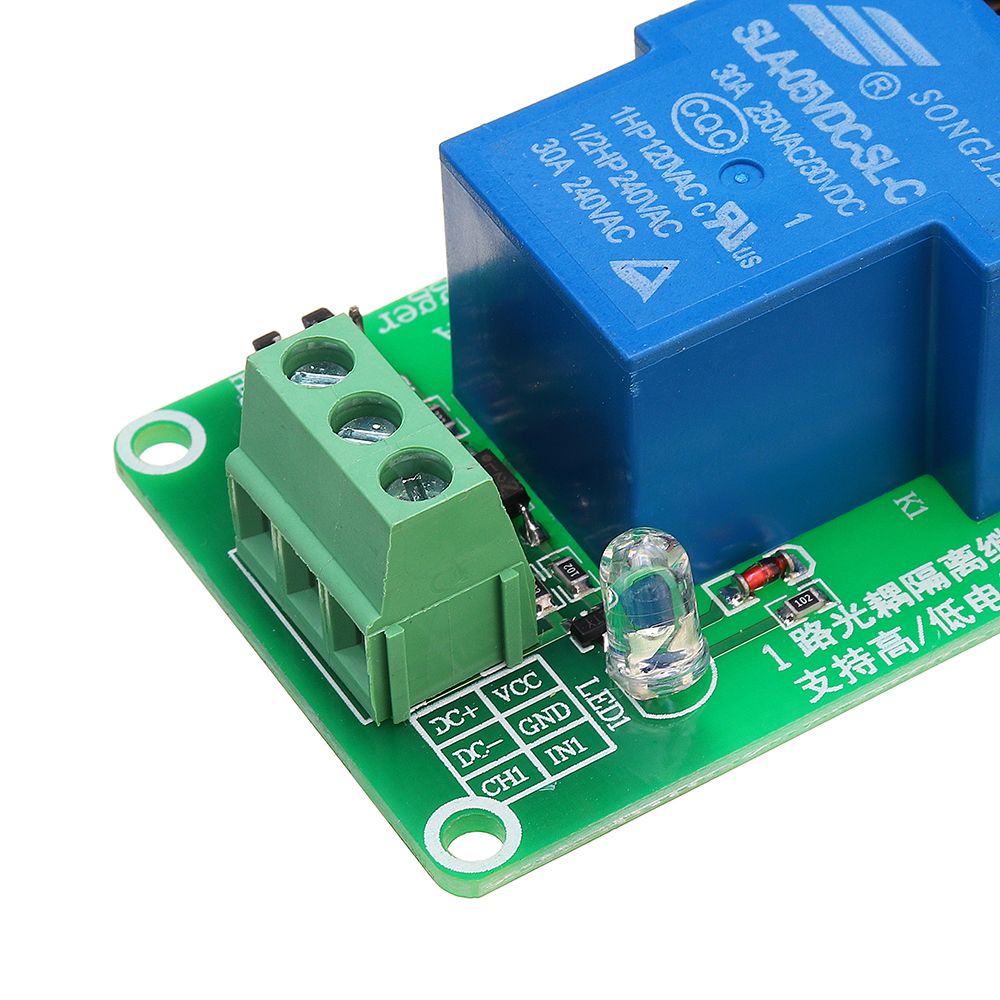

Module interface description:

1. DC+: Module DC power supply positive (trigger terminal voltage positive)

2. DC-: Module DC power supply negative (trigger terminal voltage negative)

3. IN: Signal trigger terminal (default trigger voltage is the same as power supply)

4. High/low level trigger mode selection, when the jumper is connected with the L terminal, the IN terminal is low level trigger, and when connected to the H terminal, it is triggered high level.

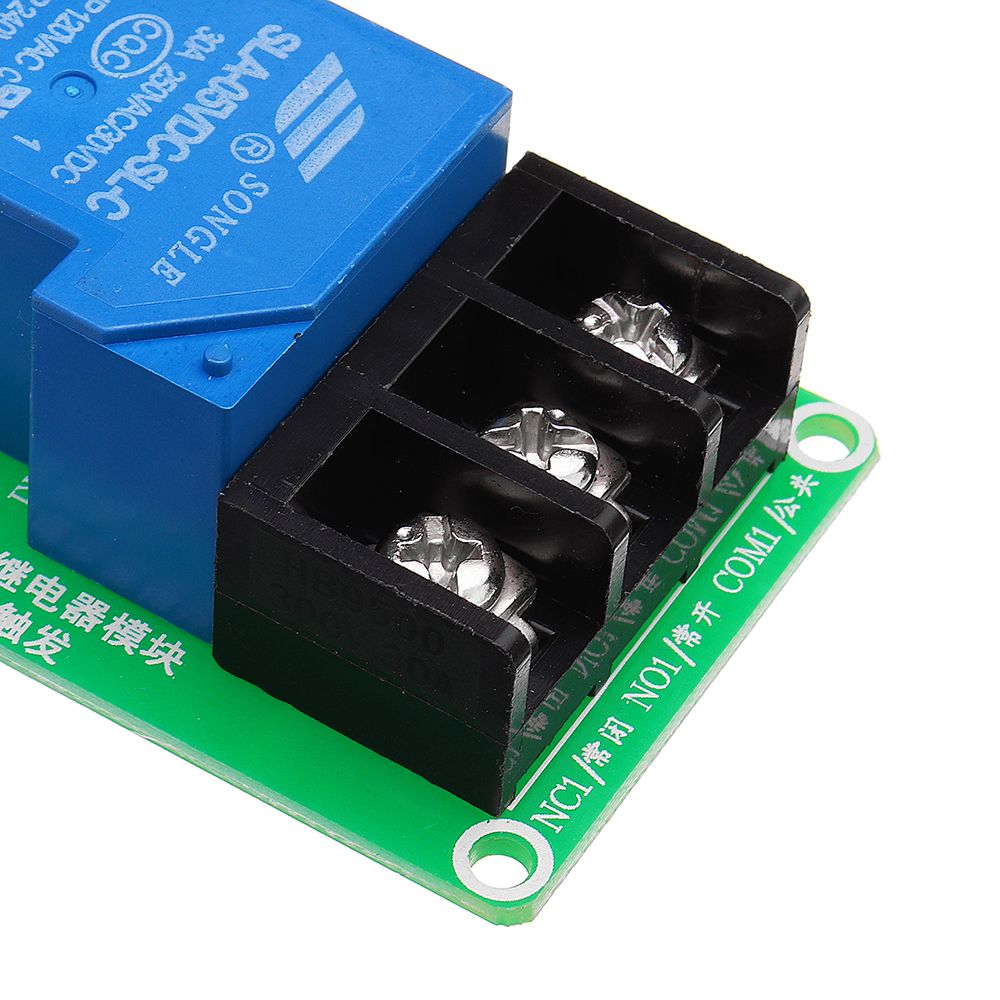

5. Normally closed terminal (NC): relay normally closed terminal

6. Common (COM): Relay Common

7. Normally open (NO): The relay is normally open

Package included:

1 x Realy Module

5V-1-Channel-30A-Optocoupler-Isolation-Relay-Module-Support-High-and-Low-Level-Trigger-Switch-1399421
