5Pcs Wireless Power Supply Coil Charger Board Wireless Charging Module
- Stock: In Stock
- Model: EB0045066
- SKU: EB0045066
Wireless power supply technology(wireless charging) allows the receiver only across the air, paper or plastic housing can achieve the transmission of electrical energy, indeed greatly facilitate the application.
Specification:
Input voltage: DC 12V
Input current: 100mA - 500mA
Output voltage: DC 5V
Output current: 500mA - 600mA
Output power: 2.5W - 4W
Center resonant frequency: 125KHz
Feature:
Emission coil and receive coil distance for 1mm ~ 20 mm, if small current work can be appropriately increase receiving coil turns to increase transmission distance
Test data, for reference:
Emission coil: copper wire diameter φ0.6 mm, coil diameter 40 mm, around 20 turns
Receiving coil is same
Emission coil grafted in 12V power supply: standby working current 300mA, load is 4.2V 800mAH polymer lithium battery
| Distance | Output voltage | Charging for 4.2V lipo battery current |
| 1mm | 5V | 600mA |
| 2mm | 5V | 450mA |
| 3mm | 5V | 360mA |
| 4mm | 5V | 310mA |
| 5mm | 5V | 240mA |
| 6mm | 5V | 210mA |
| 7mm | 5V | 162mA |
| 8mm | 5V | 150mA |
| 9mm | 5V | 132mA |
| 10mm | 5V | 120mA |
| 11mm | 5V | 110mA |
| 12mm | 5V | 70mA |
| 13mm | 5V | 54mA |
| 14mm | 5V | 41mA |
| 15mm | 5V | 28mA |
| 16mm | 5V | 19mA |
| 17mm | 5V | 17mA |
| 18mm | 5V | 10mA |
If receiving distance increase it's need to add the coil turns.
In practical application, it can change the turns of coil to adjust the power.
Application:
Mobile phones, MP3 and so on wireless charging
Modern people have more and more without mobile phone and so on electronic small product, but frequent charging is trouble and often drawn connection-peg and easy to damage, use our wireless charging modules, as long as the phone on charging a flat plate can automatic charging, still can take at any time or answer the call, is really convenient.
In the aquarium lighting and water circulation system of the power supply
A fully transparent fish bowl forth beautiful colorful light will make the viewer is very curious, its electricity is how to? The secret is to our wireless power supply module, this kind of application is also very market prospects.
Concealed products provide power supply
Some special occasions will need a functional hidden installation into other products in the shell, usually by batteries, which has? How to charging problem, if eduction charging joint will be easy to notice, use our wireless charging module is the best solution.
Hydrophilic products supply
Such as electric toothbrush, electric razor this kind of product often and water contact, it is often hard to mouth to charge for waterproof processing, using it we wireless charging, electric parts completely sealed, thoroughly dust waterproof, and improve the product specification increase added value.
Design waterproof phone or intercom
The market of mobile phone, intercom typically use the plug contact charge, so it is difficult to really waterproof, using the wireless power supply can be full seal design completely waterproof.
Wireless radio frequency card application development
The traditional wireless radio frequency card technologies to produce energy is very small, therefore can only achieve short identification function, and our module can provide 500 ma current, greatly expand the application function, for example, can join the voice prompt, sound and light show or wireless transmitting, and other functions, many occasions can also use no battery design, not only reduce the cost also can improve the service life of the product.
Medical field
Some medical equipment must work in the human body, such as timing agent pump, capsule endoscope, etc, using the wireless power supply scheme can greatly prolong the working time of the equipment, highly practical value.
Note:
Because the product unceasingly to improve, some module circuit board a few place may and physical map slightly difference, but guarantee function is the same.
Package included:

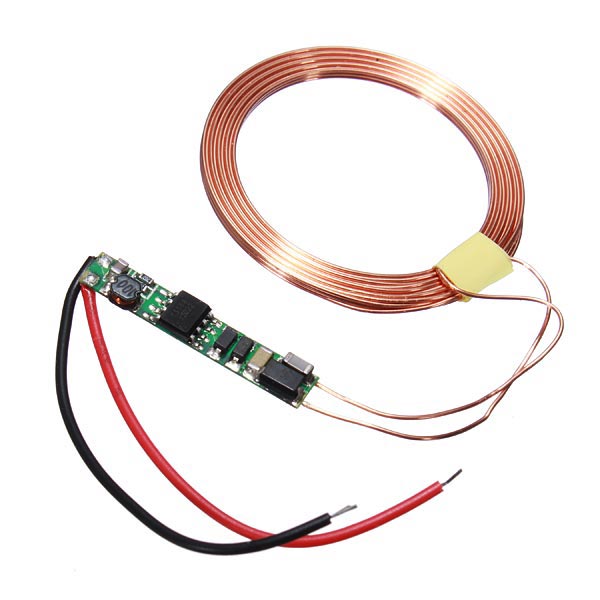

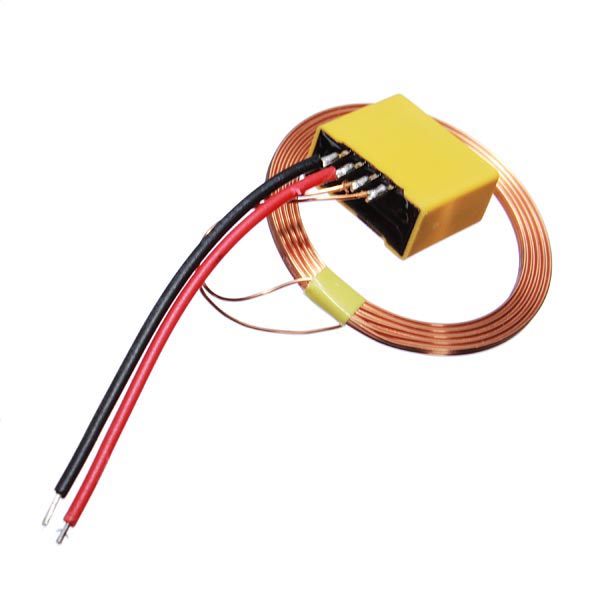

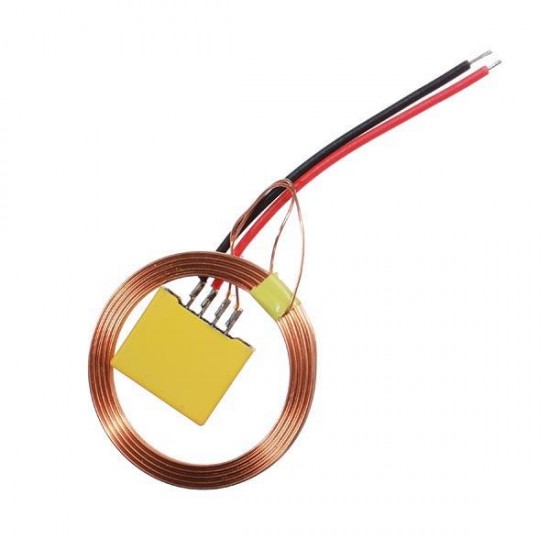

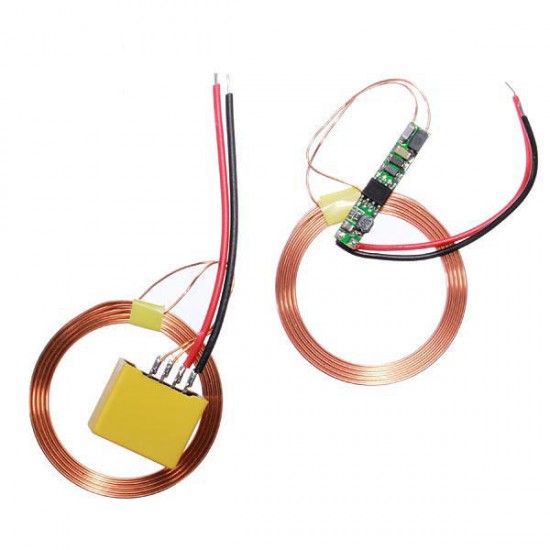

5 x Wireless charger transmitter module
5 x Wireless charger receiver module
