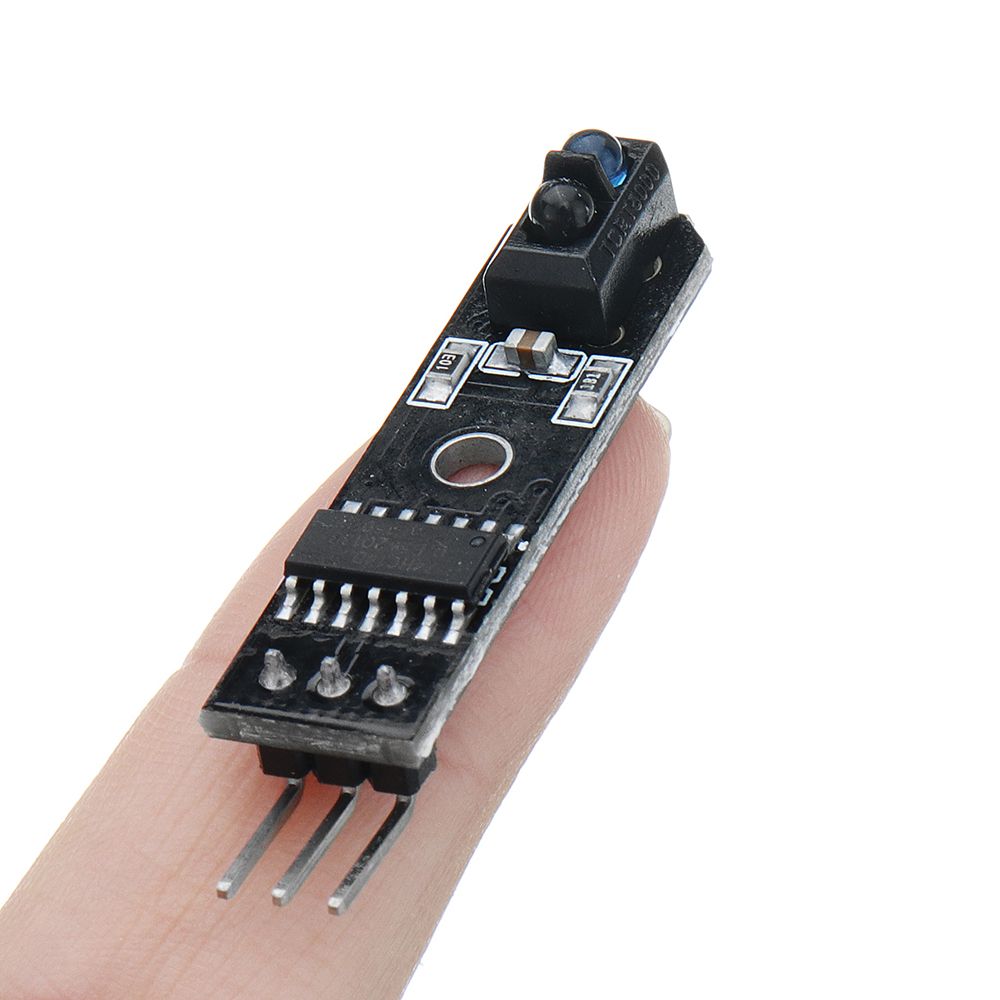

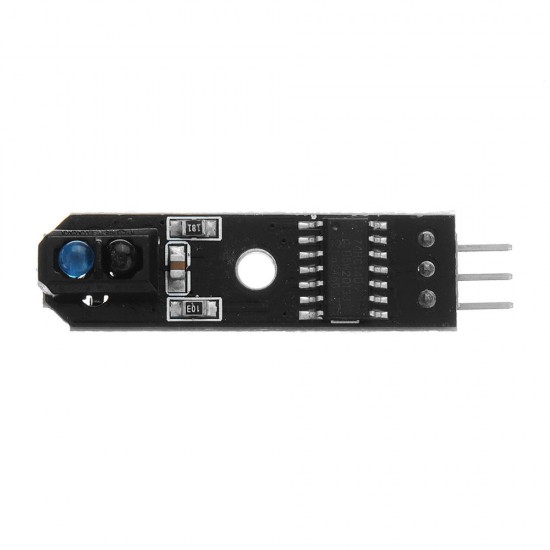

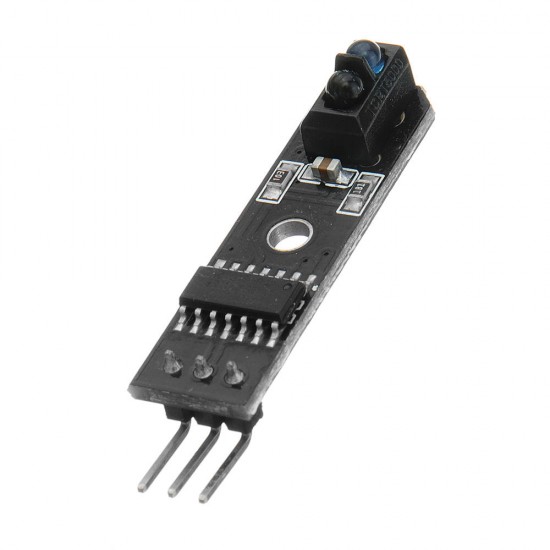

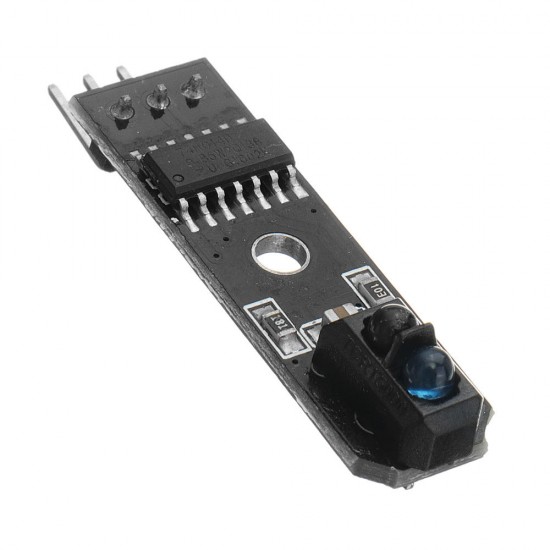

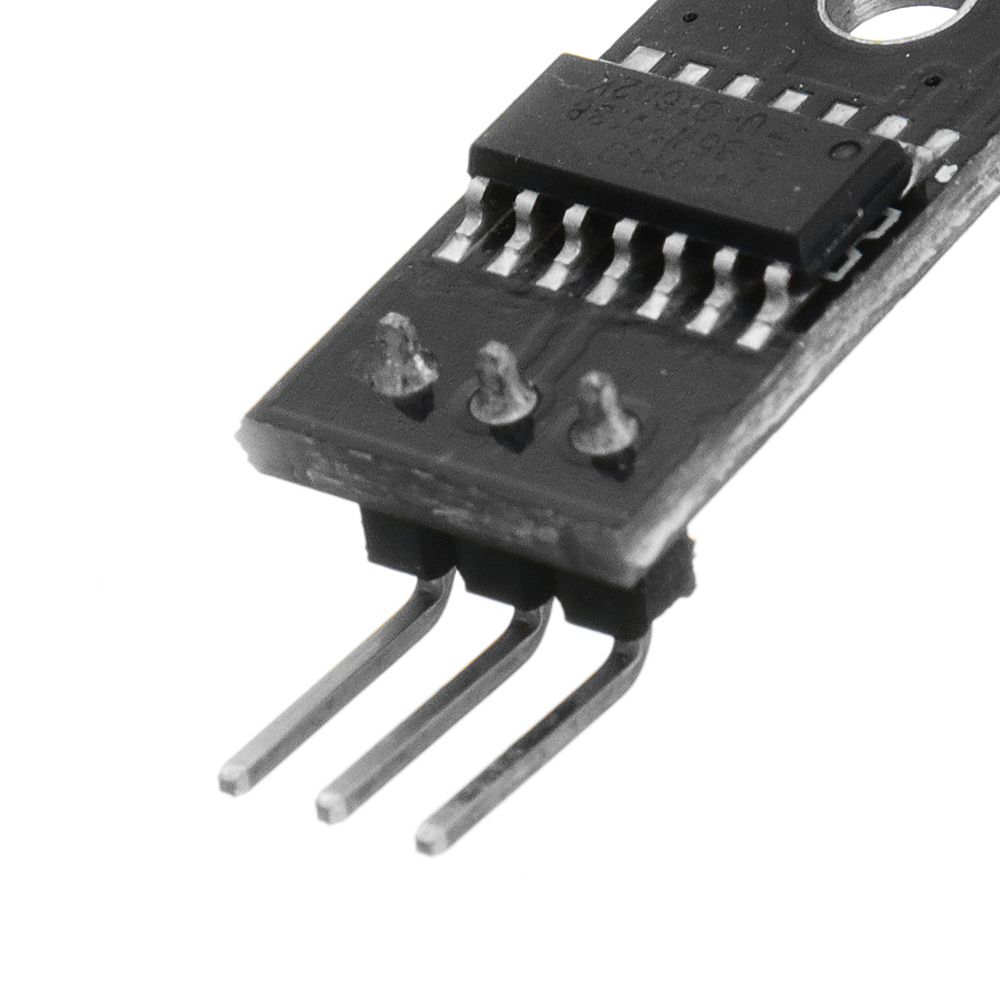

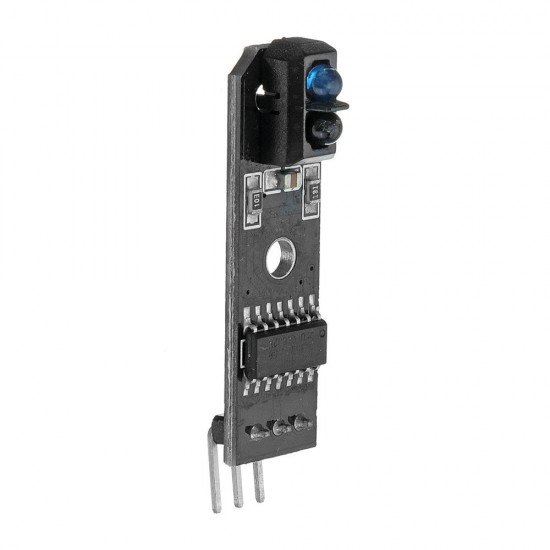

5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module

5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
5Pcs TCRT5000 E2A3 1-Channel Smart Car Infrared Tracking Sensor Detection PIR Sensor Module
$7.99
Ex Tax: $7.99
  • Stock: In Stock
  • Model: EB0047666
  • SKU: EB0047666
>
Product Usage:
1, the meter pulse data sampling
2, fax machine shredder paper detection
3, obstacle detection
4, black and white line detection

Product parameters:

Infrared reflection sensor: TCRT5000
Detection reflection distance: 1mm~25mm
Working voltage: 5V
Output form: digital signal (0 and 1)
Installation: with fixing bolt holes

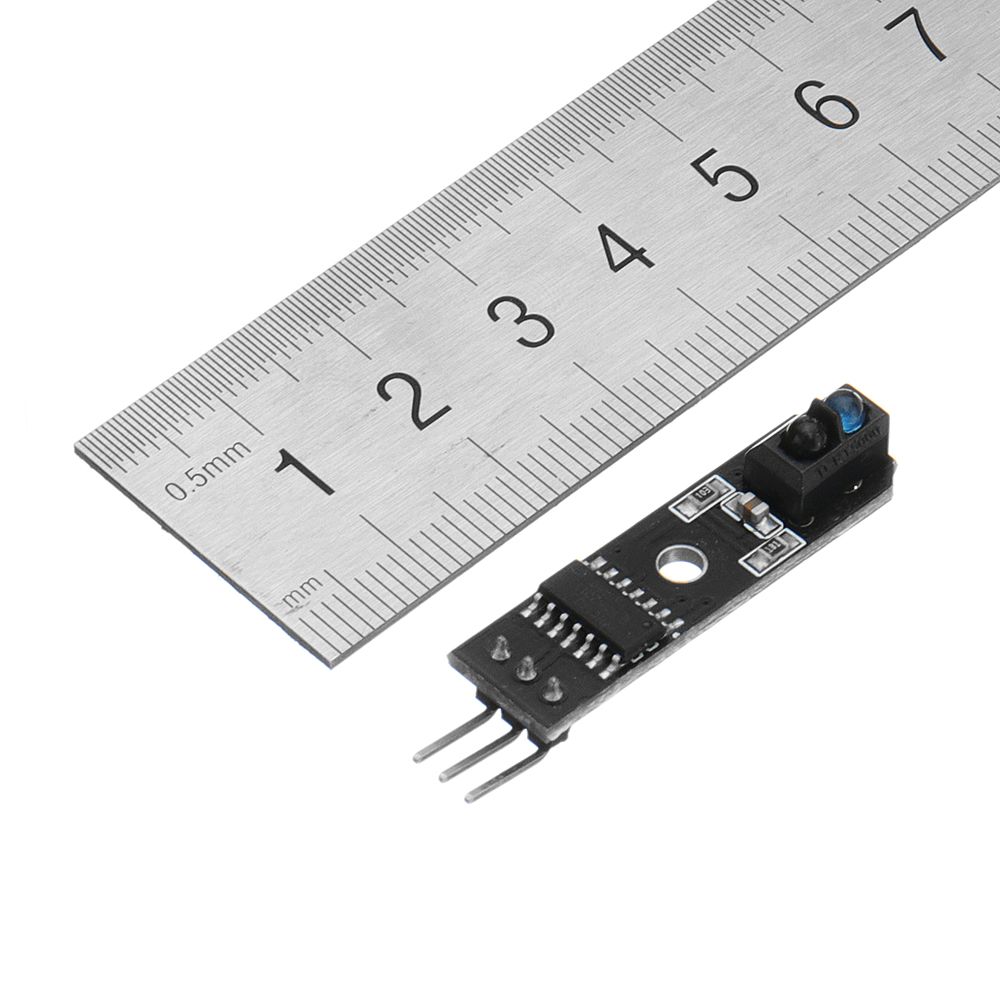

Small board PCB size: 3.5cm x 1cm
Single weight: 4.5g

Features:

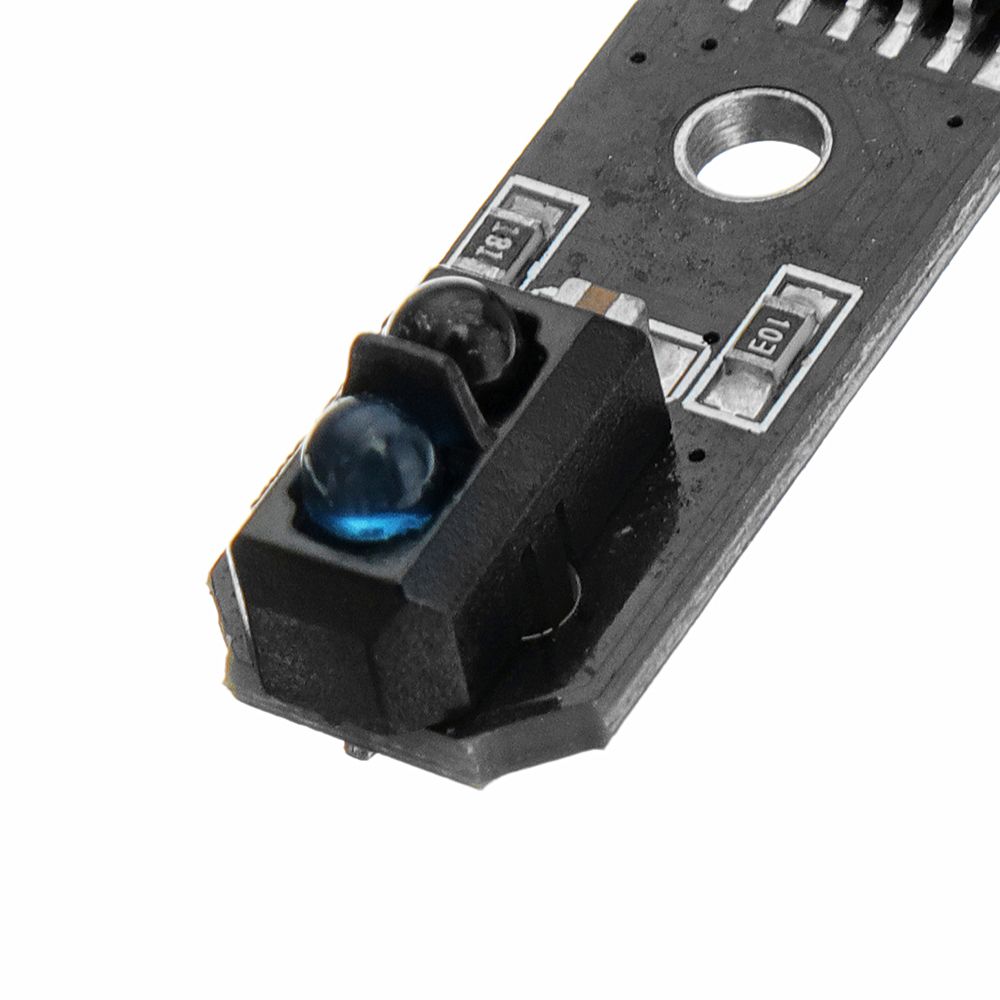

The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not large enough, the infrared receiving tube is always in the off state, and the output end of the module is low level, indicating The diode is always off; when the detected object appears in the detection range, the infrared light is reflected back and the intensity is large enough, and the infrared receiving tube is saturated. At this time, the output end of the module is high, indicating that the diode is illuminated.

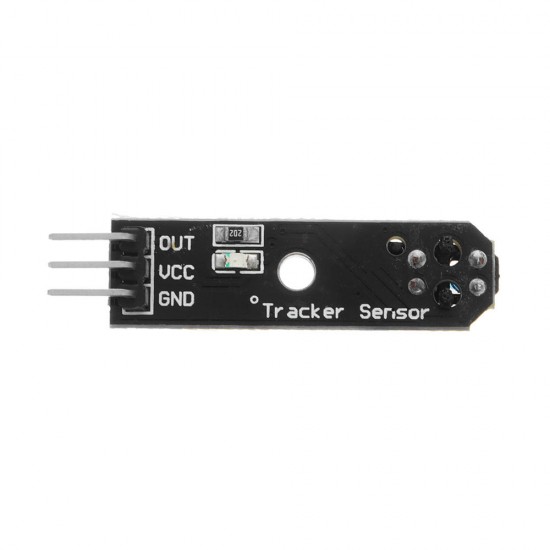

Wiring:

1. VCC: Connect the positive pole of the power supply (5V)
2, GND: connected to the negative power supply
3, OUT: high / low level switching signal (digital signal 0 and 1)

Package Included:

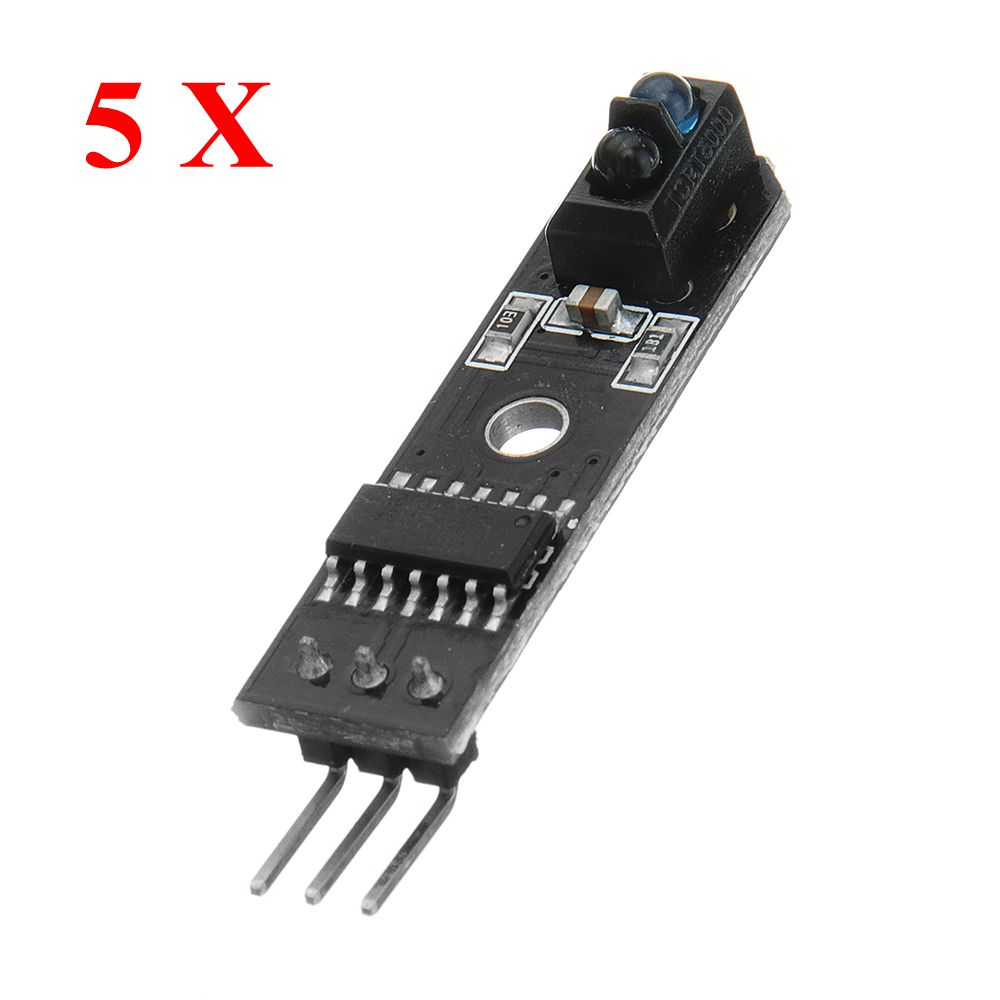

5 x TCRT5000 tracing module (tested, electrostatic bag packaging)
