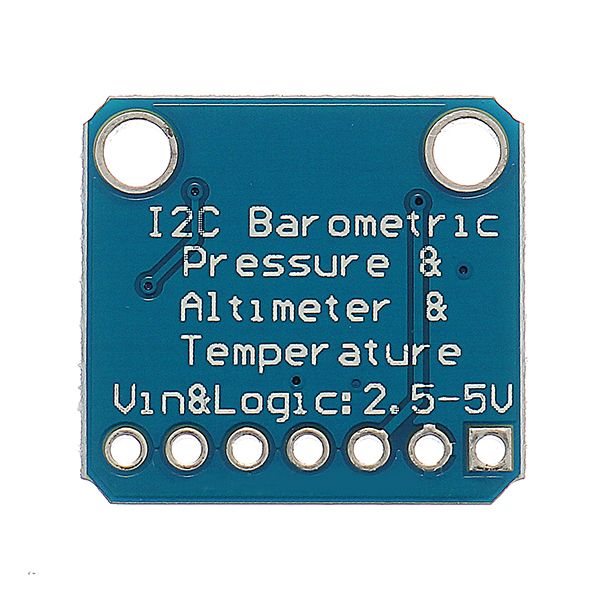

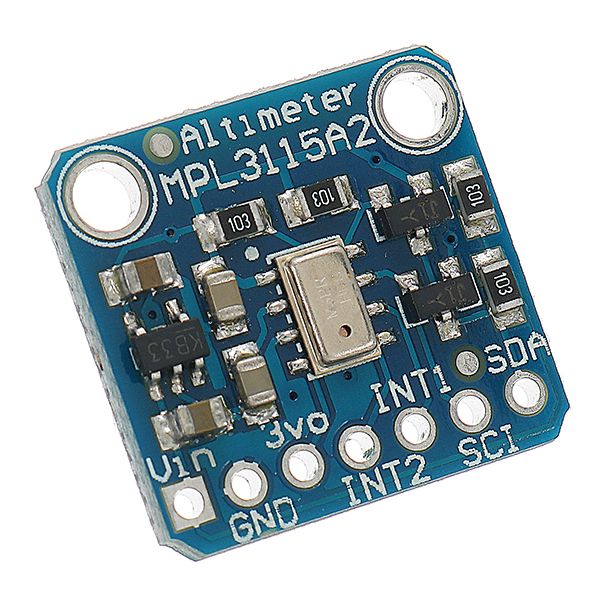

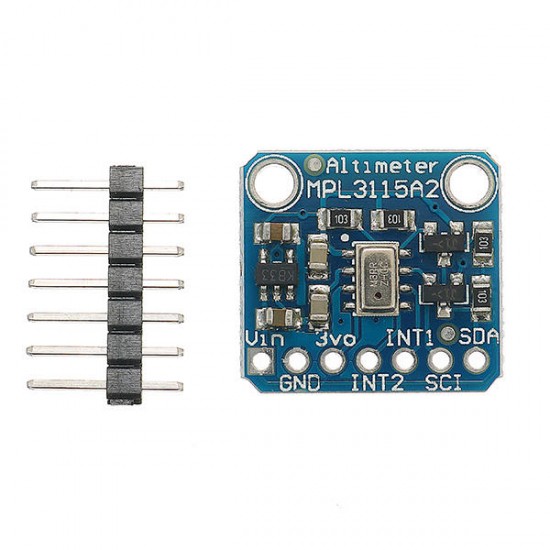

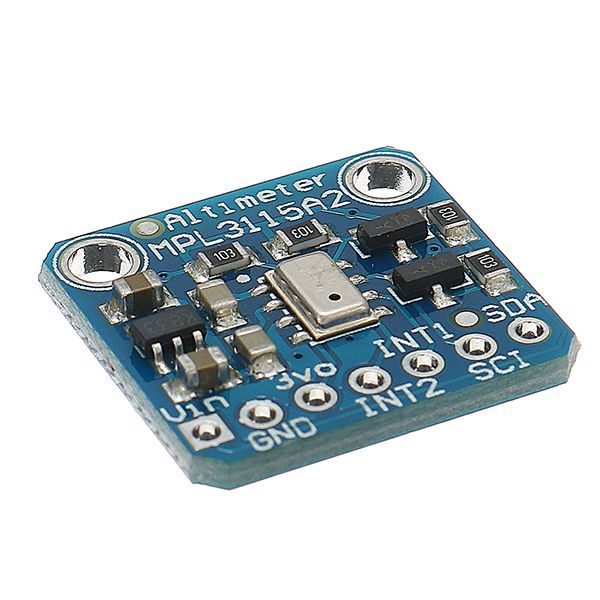

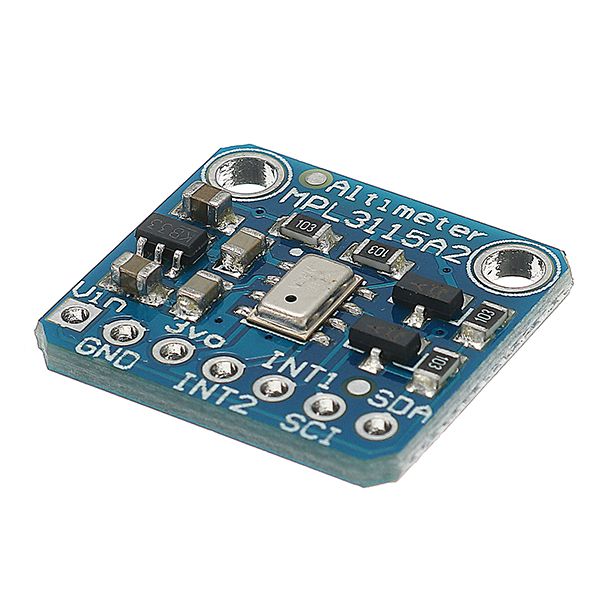

5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0

5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
5Pcs MPL3115A2 IIC I2C Intelligent Temperature Pressure Altitude Sensor V2.0
$33.99
Ex Tax: $33.99
  • Stock: In Stock
  • Model: EB0045960
  • SKU: EB0045960
Specification:

V2.0 version added power conversion module and IO port level conversion circuit for the 3.3V MCU and 5V chip
Resolution:< 1 feet /0.3 M
Pressure range: 20 - 110 kPa
Onboard intelligence
Sampling rate: maximum 128 Hz

Compensation, direct reading (don't need software):

20bit pressure measurement (Pascal)
20bit measurements of height (metres)
12bit temperature measurement

Parameters:

Absolute pressure measuring range: 20 to 110 kPa
Relative measuring accuracy: ±0.05 kPa
Effective resolution: 1.5Pa / 0.3m
Working temperature range: -40 to 85 °C
Power supply voltage: 2.5 to 5 V
Logic IO port: 2.5 to 5 V
I/O power supply voltage: 1.62 to 3.6 V

Power:

Standby mode: 2μA
Low power mode: 8.5μA, 1Hz sampling
I2C digital output interface
2* programmable interrupt pin
Built in 32 sample buffer of FIFO

Compensated data output:

20 the pressure data, output per unit of Pascal
20 height data, output per unit of meter
12 temperature data, output per unit of degree C

Package includes:

5 x Module
