5Pcs DC12V 4 Channel Level Trigger Optocoupler Relay Module Power Supply Module for Arduino - products that work with official Arduino boards

Based on 0 reviews. - Write a review

$18.25

Ex Tax: $18.25

Stock: In Stock
Model: EB0046082
SKU: EB0046082

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

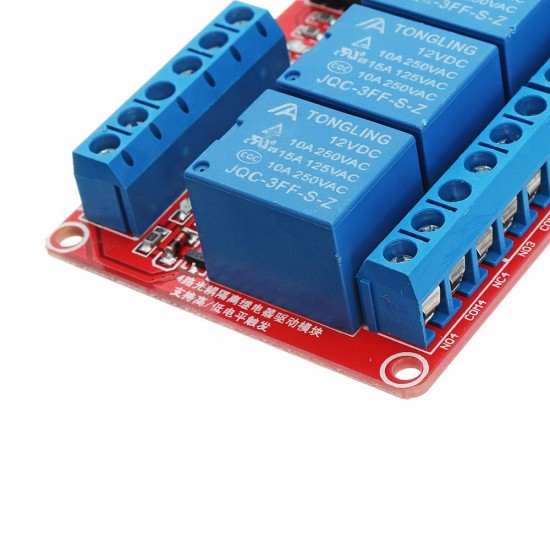

The module uses genuine quality relay, normally open interfaces

Using SMD optocoupler isolation, driving ability, stable performance

The module can be high or low by a jumper setting trigger

Fault-tolerant design, even if the control line is broken, the relay will not operate

The power indicator (green), the relay status indicator (red)

The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient

Specification:

Maximum load: AC 250V/10A, DC 30V/10A

Trigger current: 5mA

Working voltage: 12V

Module size: 73 x 50 x 18.5mm (L x W x H)

Four mounting bolts holes, diameter 3.1mm

Module Interface:

DC+: positive power supply (VCC)

DC-: negative power supply (GND)

IN: can be high or low level control relay

Relay Outputs:

NO: normally open relay interface

COM: Common Interface Relays

NC: normally closed relay interface

High and low level trigger options:

It is low level trigger when jumper connect to LOW pin

It is high level trigger when jumper connect to HIGH pin

Package included:

5 x 4 Channel H/L Level Trigger Optocoupler Relay Module
