5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter

5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
5Pcs DC 7-110V 10A Three-digit Ammeter High Voltage Digital Display Voltage and Current Meter Voltmeter
$16.99
Ex Tax: $16.99
  • Stock: In Stock
  • Model: EB0047251
  • SKU: EB0047251
>
Features:

Working voltage: DC7~110V
Measuring current range: DC0.05A~10A(display mode 0.05A)
Voltage measurement range: DC 7~110V (display mode 0.0V~10.00V~110.0V)
Refresh time: 300ms

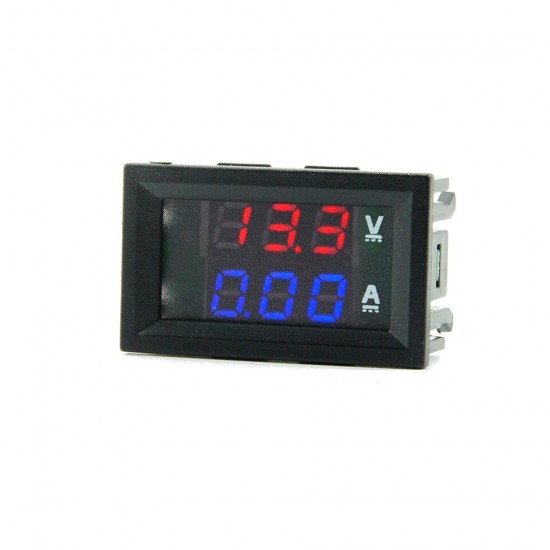

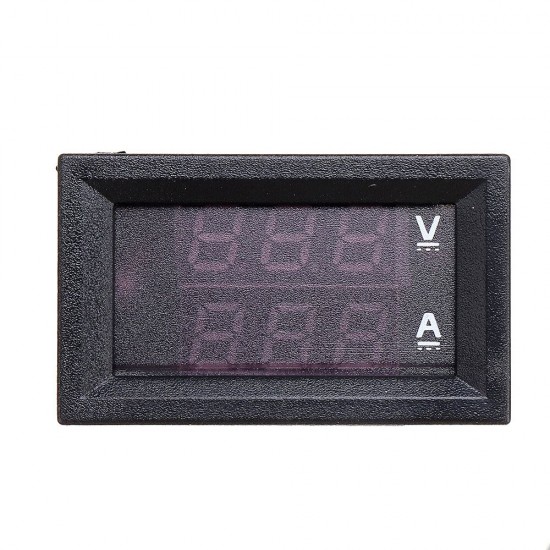

Display mode: 0.28 inch 3-digit  LED

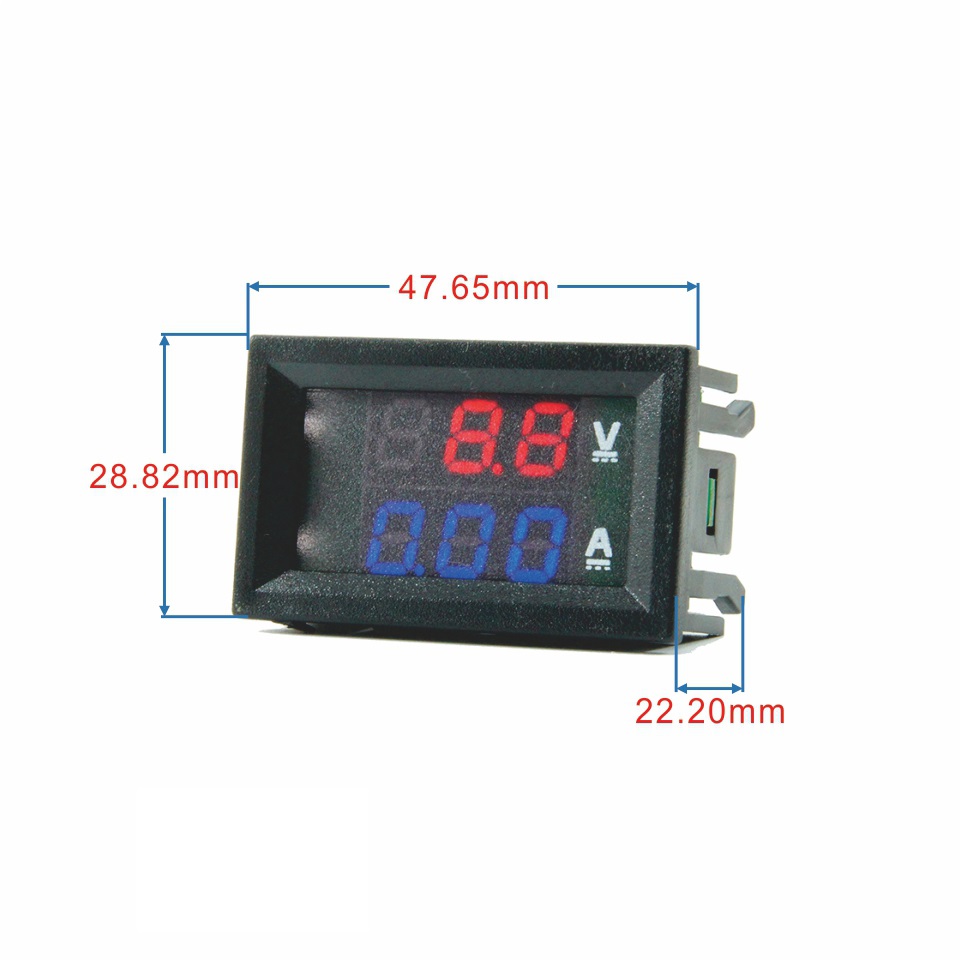

Product size: 46.75×28.82×22.20mm
Hole size: 45.5×26.0mm
Product weight: 20g
Digital display: Red +Blue light

Reverse connection protection:
there is reverse connection protection of working power supply, but long time reverse connection may also cause damage

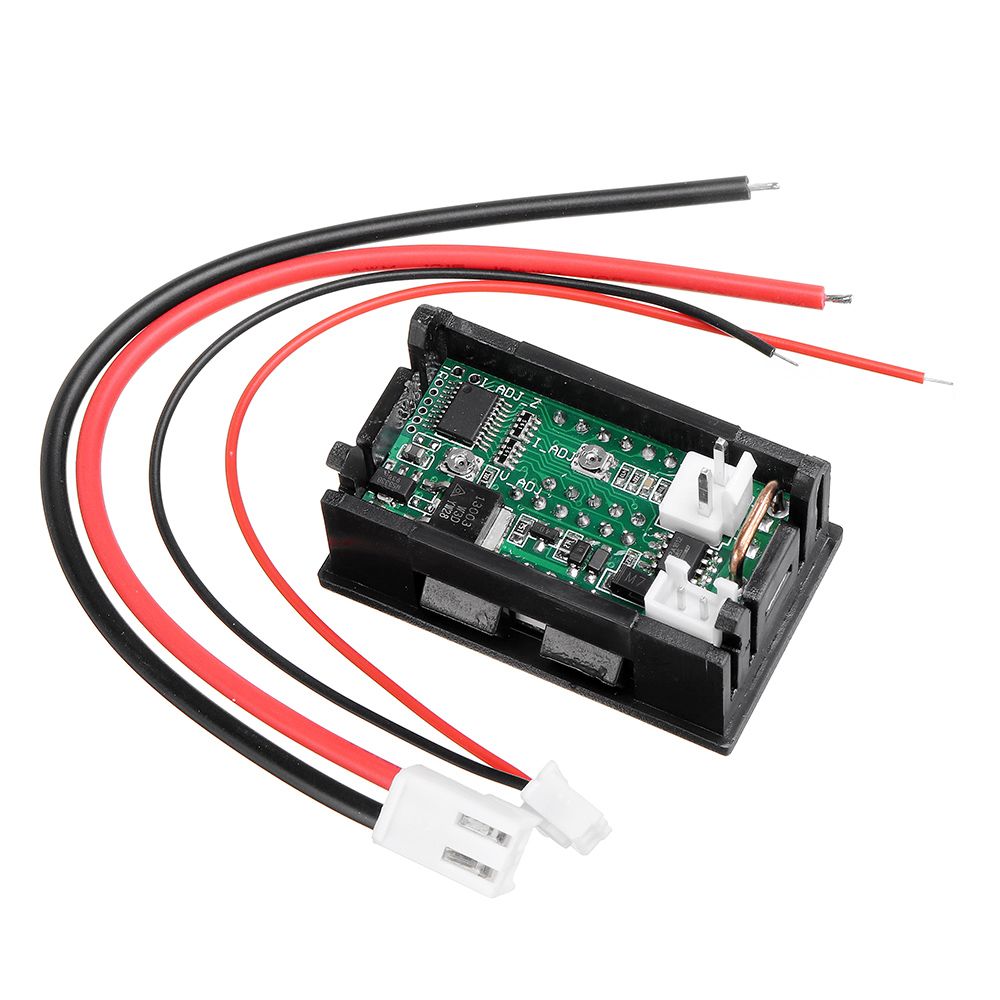

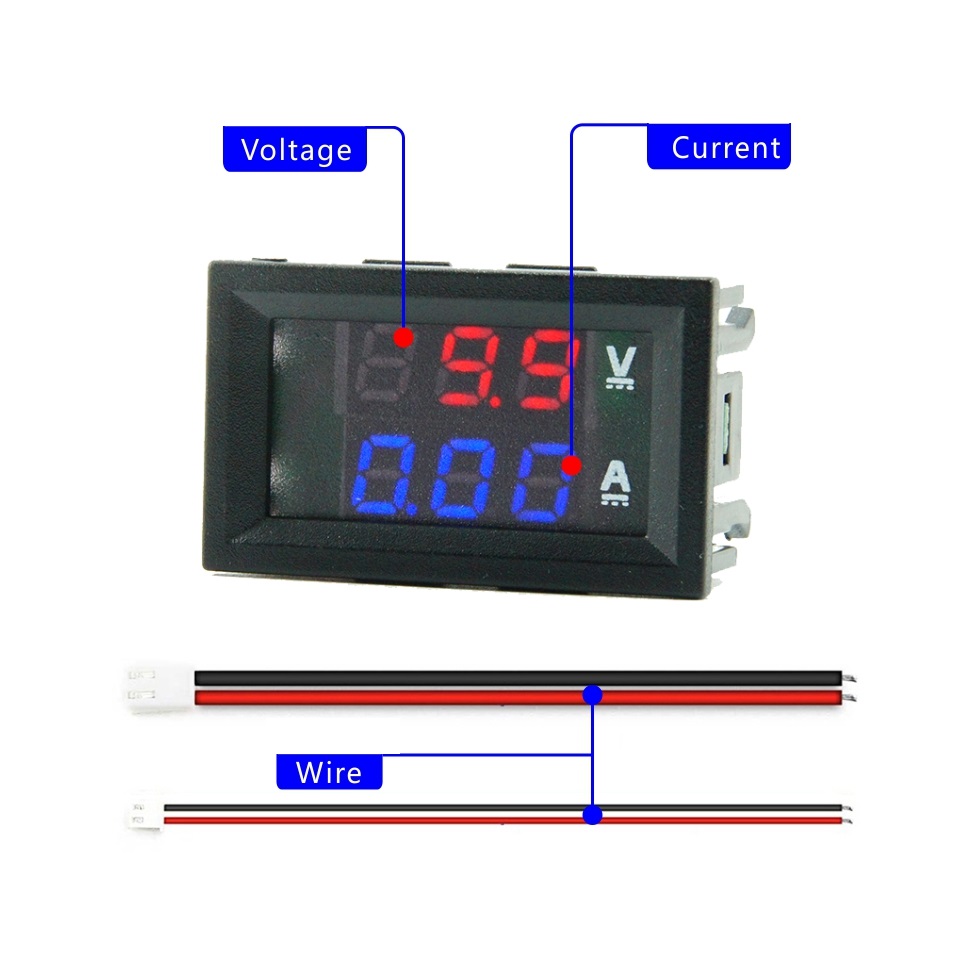

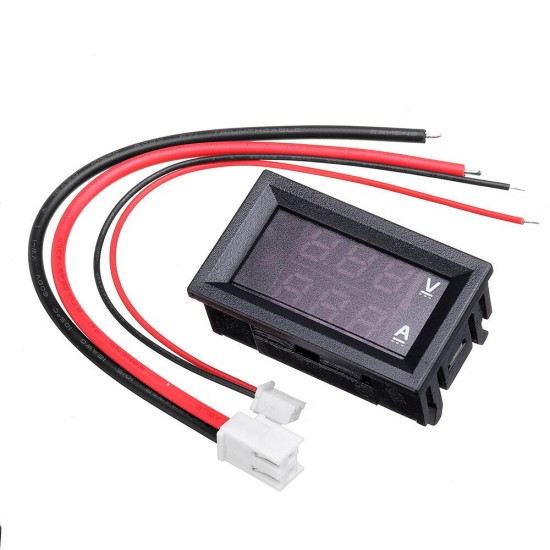

Product wire: 4 wires (2P thin wire, 2P thick wire)

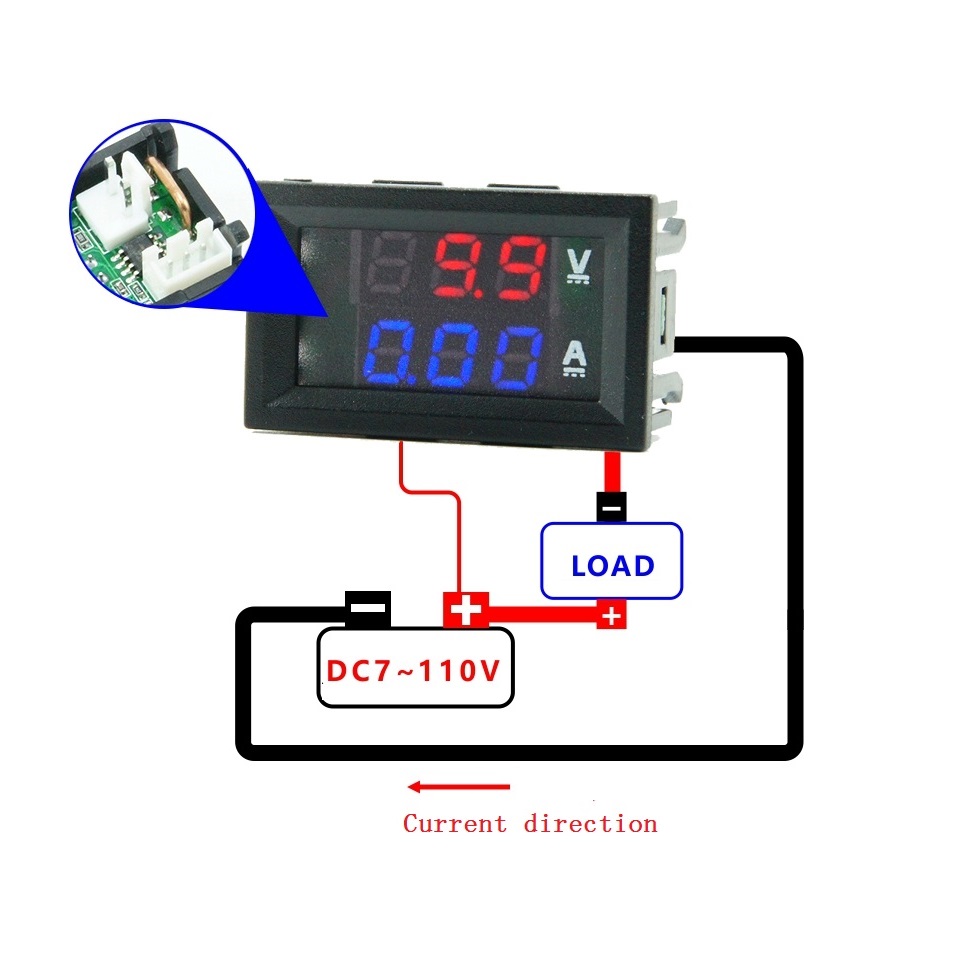

Lead Definition:
Thin red line: positive pole of instrument power supply and positive pole of voltage measurement
Thin black wire: the negative pole of the power supply of the instrument and the negative pole of the voltage measurement
Thick red line: the positive pole of the current test, in series with the negative pole of the load
Thick black wire: negative pole of current test, connected to negative pole of load power supply

Package Included:

5 x DC 7-110V 10A Three-digit Ammeter

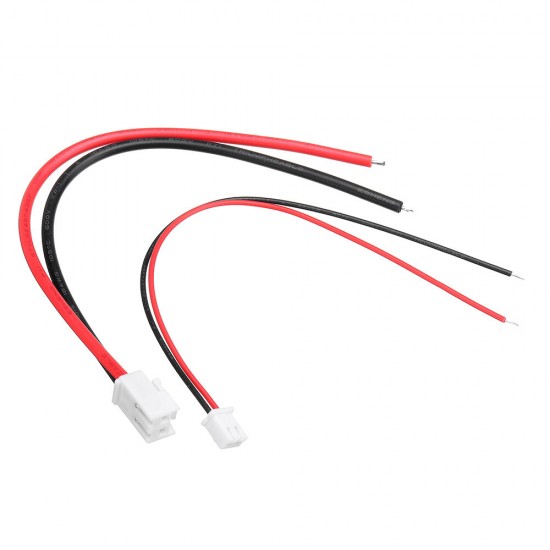

10 x Connect Cable
