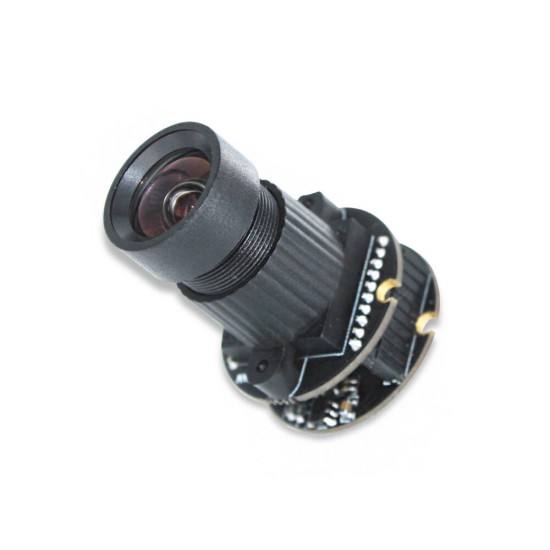

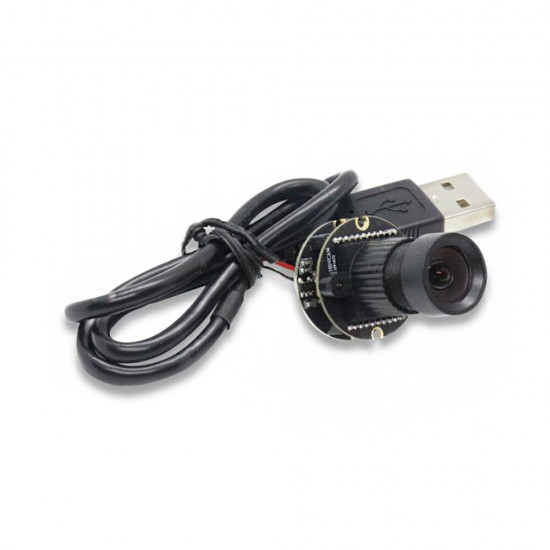

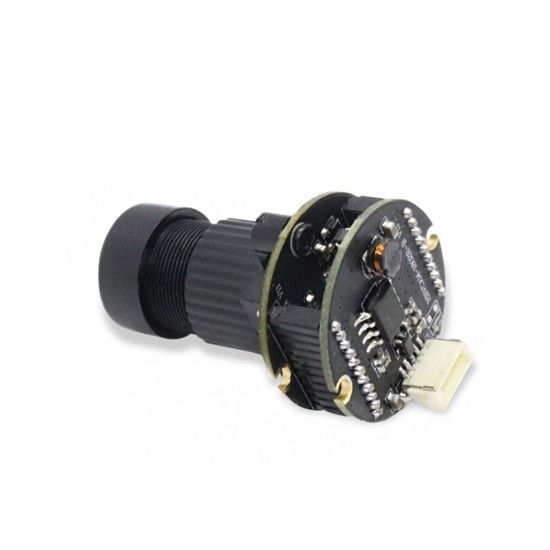

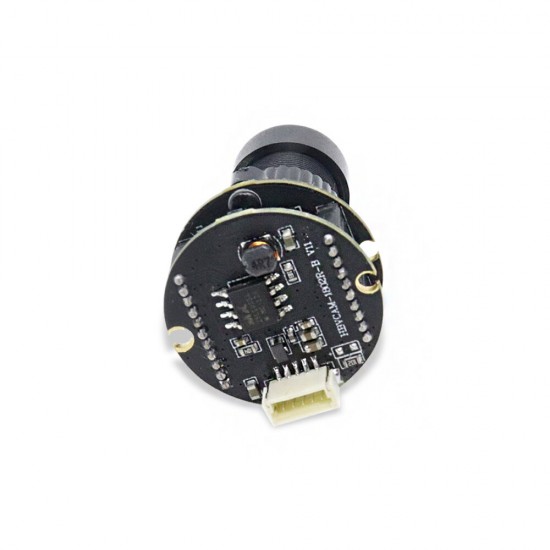

5MP UVC USB Camera Module 5 Megapixel Camwith Free Driver FOV 77°
- Stock: In Stock
- Model: EB0048416
- SKU: EB0048416
- Price Tag: US$ 30.99 - US$ 50.99
- Voltage: DC5V
Precise details:
| Model No. | HBVCAM-1802R |
| Model Size | Φ22 × 30.4mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | auto |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Power consumption | 1000 mW |
| Package | Anti-electrostatic tray |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | MI5100 (1/2.5” ) |
| Seneor Package | CSP,Bare Die |
| Active Array Size | 2592*1944 |
| Sensitivity | 0.51V /(lux-sec) |
| Pixel Size | 2.2m x2.2µm |
| Maximum Image Transfer Rate | MJPEG 1280x1024 15FPS / YUY2 1280x1024 9FPS |
| MJPEG 1600x1200 15FPS / YUY2 1600x1200 5FPS | |
| MJPEG 1920x1080 15FPS / YUY2 1920x1080 4FPS | |
| MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS | |
| MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS | |
| S/N Ratio | 40.5db |
| Dynamic Range | 67.4db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Lens Construction | 2G2P |
| Microphone | Renhotec |
| F/No | 2.4 |
| EFL | 4.2m |
| FOV | 77° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 0.7 |
| R Filter | 650 ± 10nm |
| Module Package | Anti-electrostatic tray |
| Package | LQFN-40pin |
| Model No. | HBVCAM-1802R |
| Model Size | Φ22 × 30.4mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | auto |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Power consumption | 1000 mW |
| Package | Anti-electrostatic tray |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | MI5100 (1/2.5” ) |
| Seneor Package | CSP,Bare Die |
| Active Array Size | 2592*1944 |
| Sensitivity | 0.51V /(lux-sec) |
| Pixel Size | 2.2m x2.2µm |
| Maximum Image Transfer Rate | MJPEG 1280x1024 15FPS / YUY2 1280x1024 9FPS |
| MJPEG 1600x1200 15FPS / YUY2 1600x1200 5FPS | |
| MJPEG 1920x1080 15FPS / YUY2 1920x1080 4FPS | |
| MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS | |
| MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS | |
| S/N Ratio | 40.5db |
| Dynamic Range | 67.4db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Lens Construction | 2G2P |
| Microphone | Renhotec |
| F/No | 2.4 |
| EFL | 4.2m |
| FOV | 77° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 0.7 |
| R Filter | 650 ± 10nm |
| Module Package | Anti-electrostatic tray |
| Package | LQFN-40pin |
