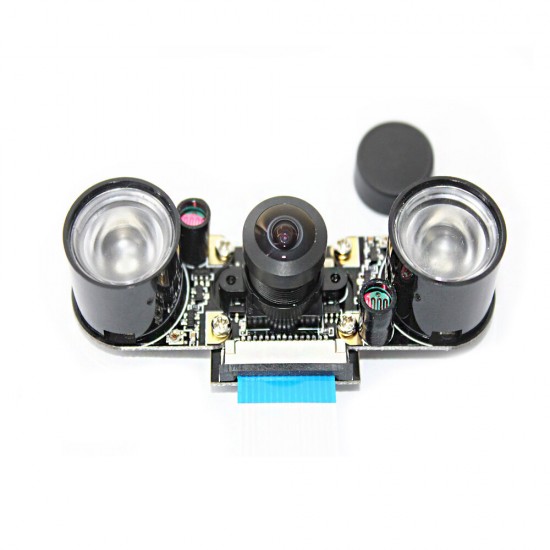

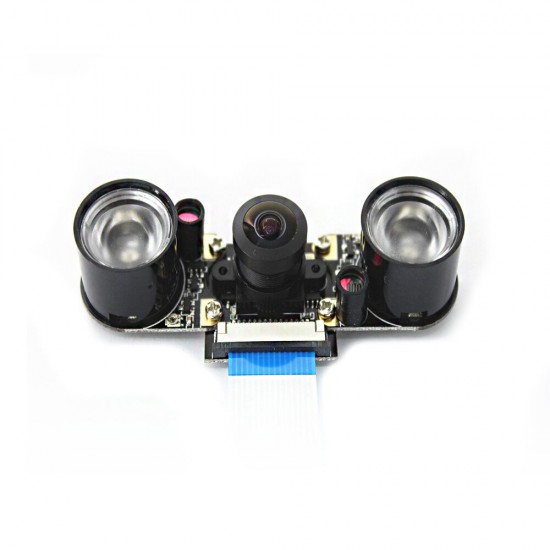

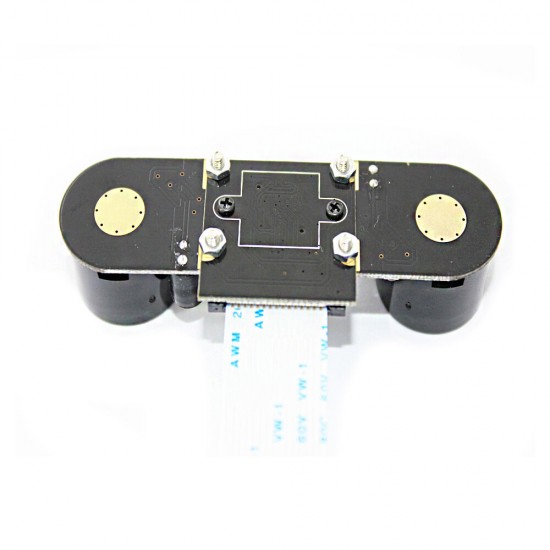

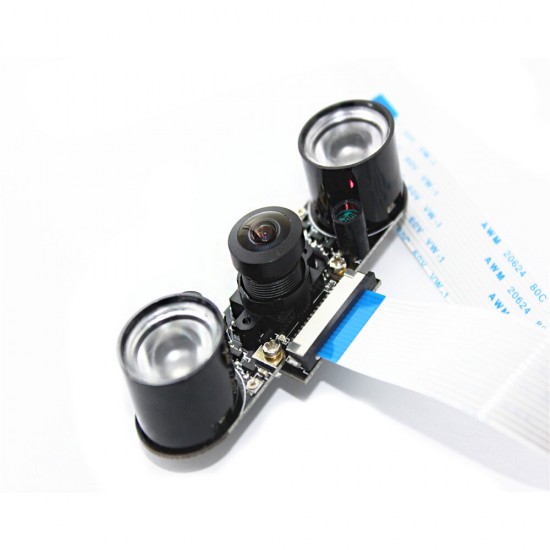

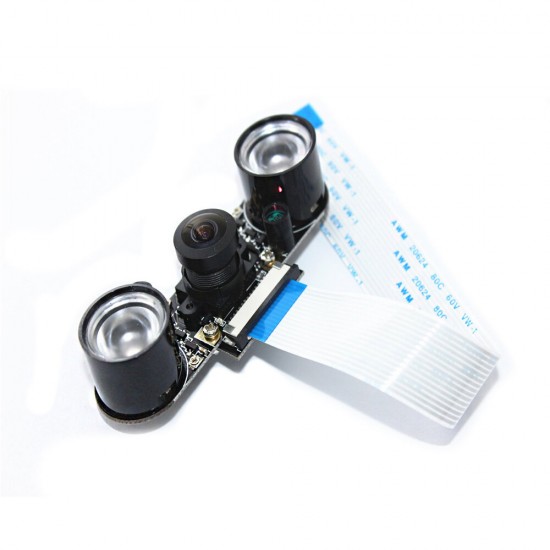

5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board

5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
5MP Fisheyes Camera Module 160°Night Vision Camera + Infrared Light Wide Angle RPI 5 Megapixels Camera Board
$19.99
Ex Tax: $19.99
  • Stock: In Stock
  • Model: EB0049319
  • SKU: EB0049319
>
Introduction :

This is the new camera for Raspberry Pi for the peopel need more wide angle. It is night vision , focal adjustable camera.We provide up to 160 degree fisheyes lens .

Feature :

1. Fish eye wide angle lens , up to 160 degree.
2. Night vision camera
3. 5 MP pixel
4. Focal adjustable

Specifications :

1. 5 megapixel OV5647 sensor
2. CCD size : 1/4inch
3. Sensor best resolution : 1080p
4. 4 screw holes: used for attachment IR lights , and for 3.3V electric conduction
5. Focal Length : 2.1
6. Diagonal angle :  160 degree
7. Dimension: 25mm x 24mm

How to use Raspberry Pi Camera:

1. Install Raspbian system into SD card and insert to Raspberry Pi, connect the display to Raspberry Pi, Connect the camera to Raspberry Pi correctly.
2. Open the terminal and run
sudo raspi-config
3. Choose the Interface--Enable Camera , enter it , then it the Raspberry Pi will restart automatically ( if not , you can restart it by yourself)
Open the terminal again , run
raspistill –t 5000 –o test.jpg
then the camera will be on.The “5000”means the camera will open 5 seconds , the “test” is the name of picture , you can change them as your need.

Package Included :

1 x Night Vision Camera
2 x IR lights
1 x 15 cm Raspberry Pi 3 Camera Cable
