56x56x16mm 13mm Shaft Length DIY Mute Clock Movement Quartz Clock Mechanism Repair Kit
- Stock: In Stock
- Model: EB010402
- SKU: EB010402
The clock movement repair kit is ideal for replacing defective units or for creating your own personalized clock projects.
Specification:
Material: Plastic
Color: Black + Light Blue
Battery: Not Included
Shaft Length: 13mm (Screw 6mm)
Hour Hand Length: 65mm
Minute Hand Length: 100mm
Second Hand Length: 105mm
Clock Movement Size: 56 x 56 x 16mm
Crystal Frequency: 32.768KHz
Average Daily Difference: ±1sec/day at 1.5V, 24℃
Operating Voltage: 1.25V to 1.7V
Working Temperature: -10℃-50℃
Peripheral Output Frequency: 0.5Hz
Second Hand Output Torque: ≥1.5gf-cm (1.5V)
Minute Hand Output Torque: ≥30gf-cm (1.5V)
Power Supply: 1.5V
Average Power Consumption Current: Under 160uA at 1.5V
Applicable Clock Size: 3mm Thickness, 25-35cm Diameter
Features:
1. A quartz crystal controller clock movement with hour, minute and second hands.
2. Ideal for replacing defective units or for creating your own personalized clock projects.
3. Great for repairing, replacing or making a clock.
Package Included:

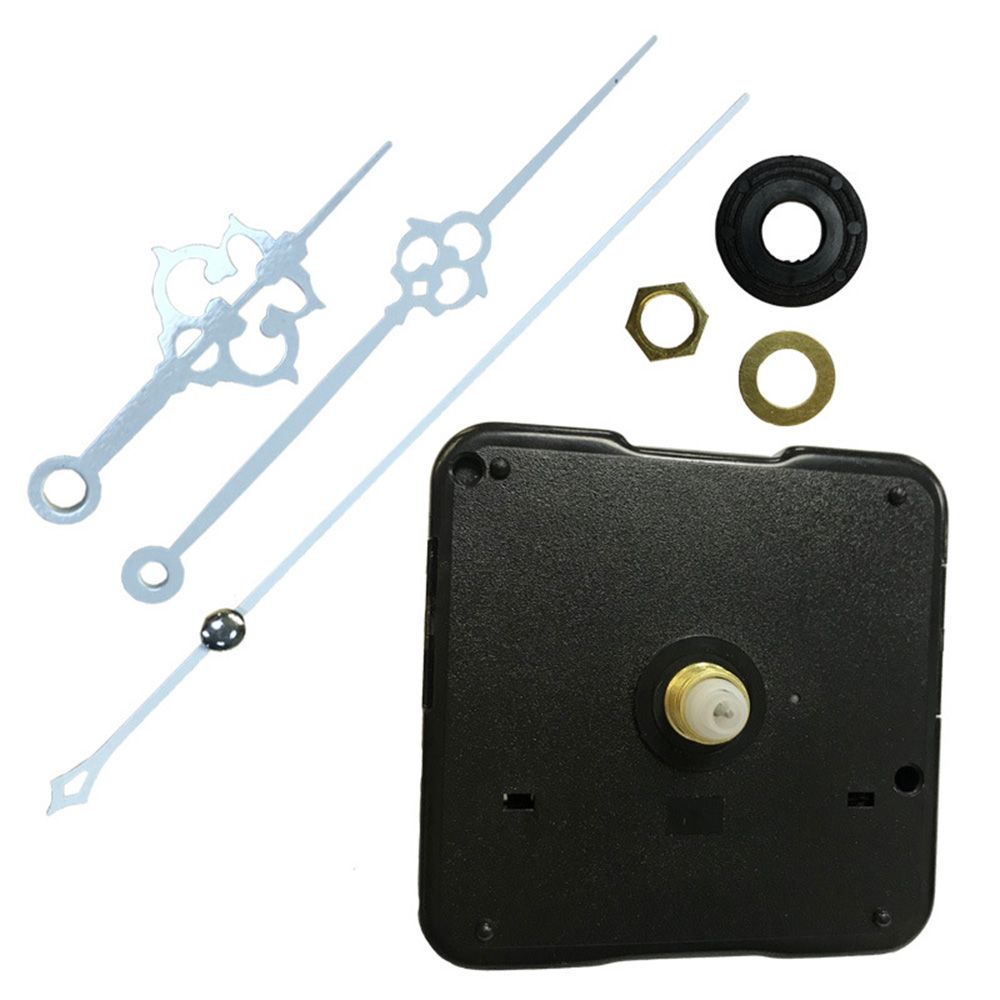

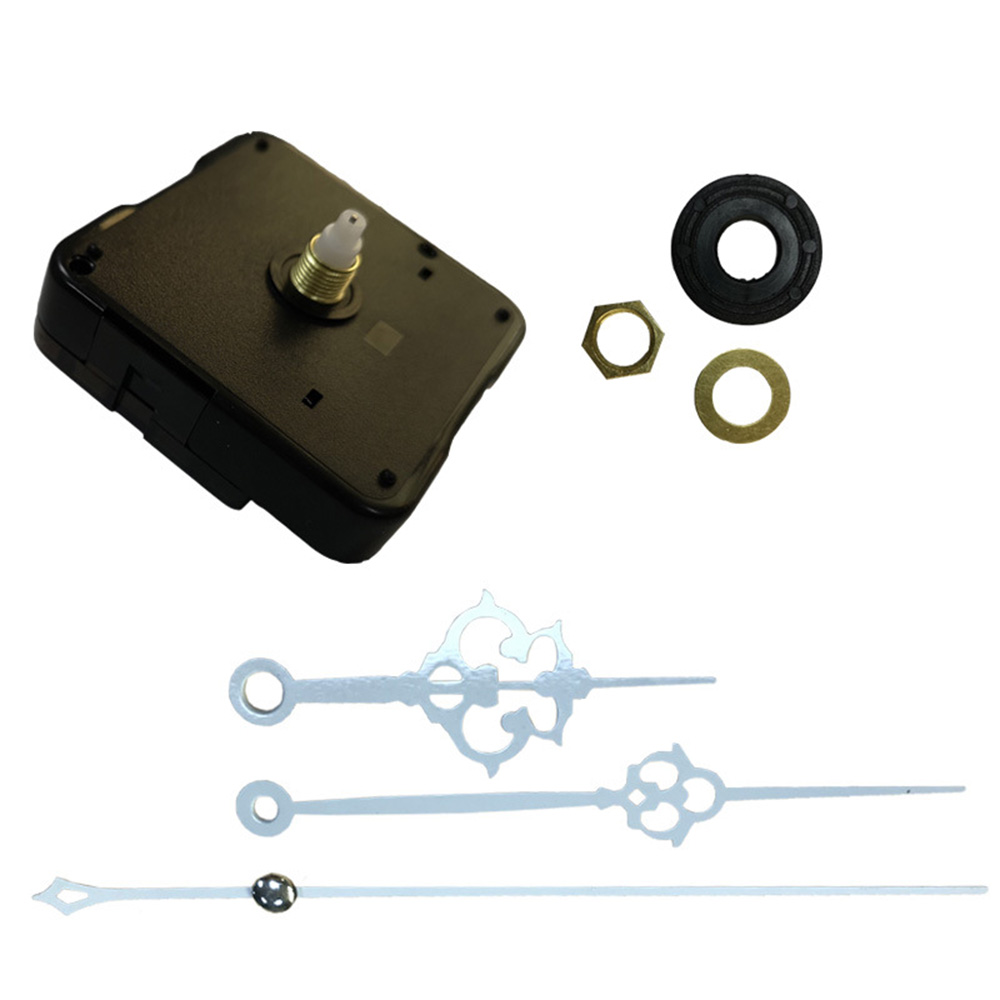

1 x Clock Movement Repair Kit (The battery is not included)
