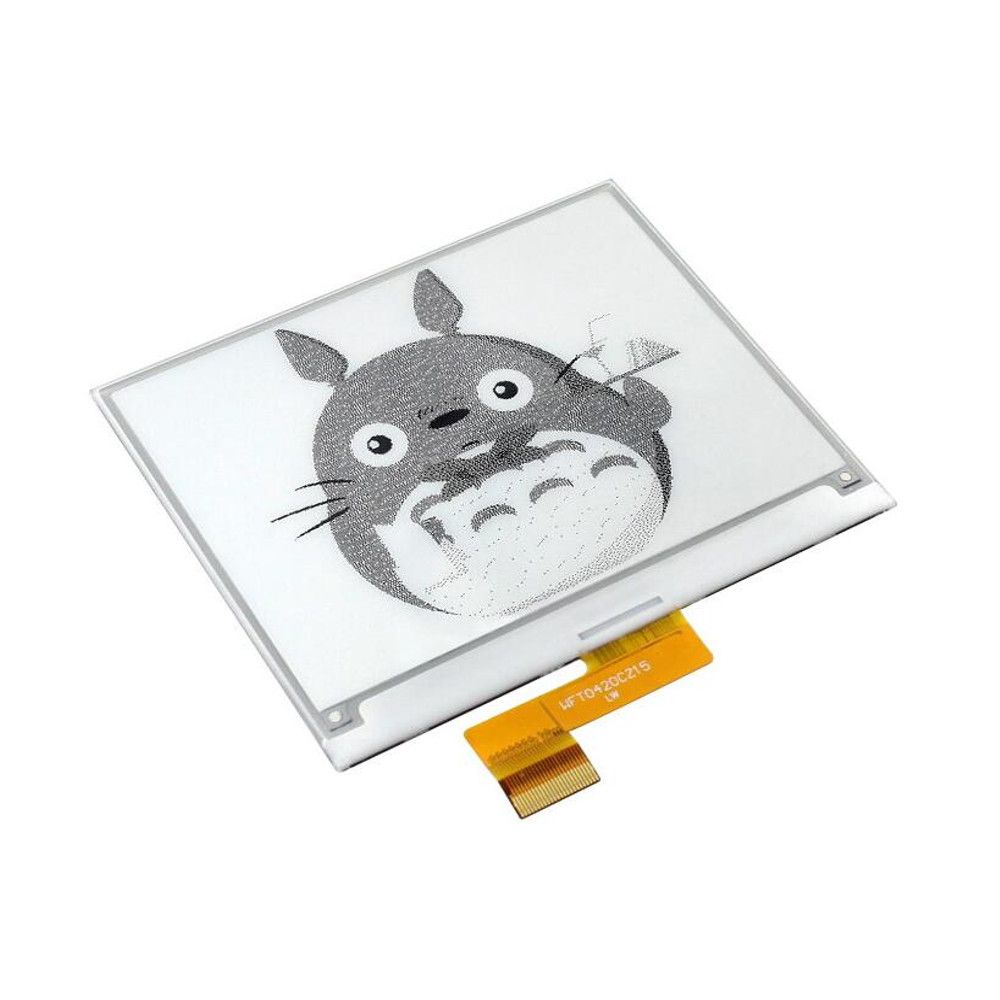

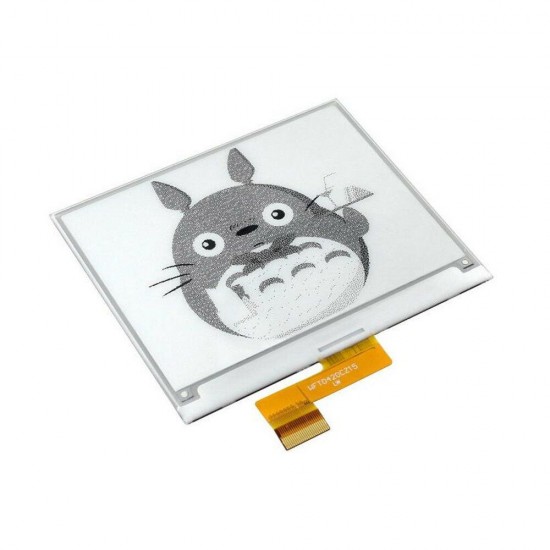

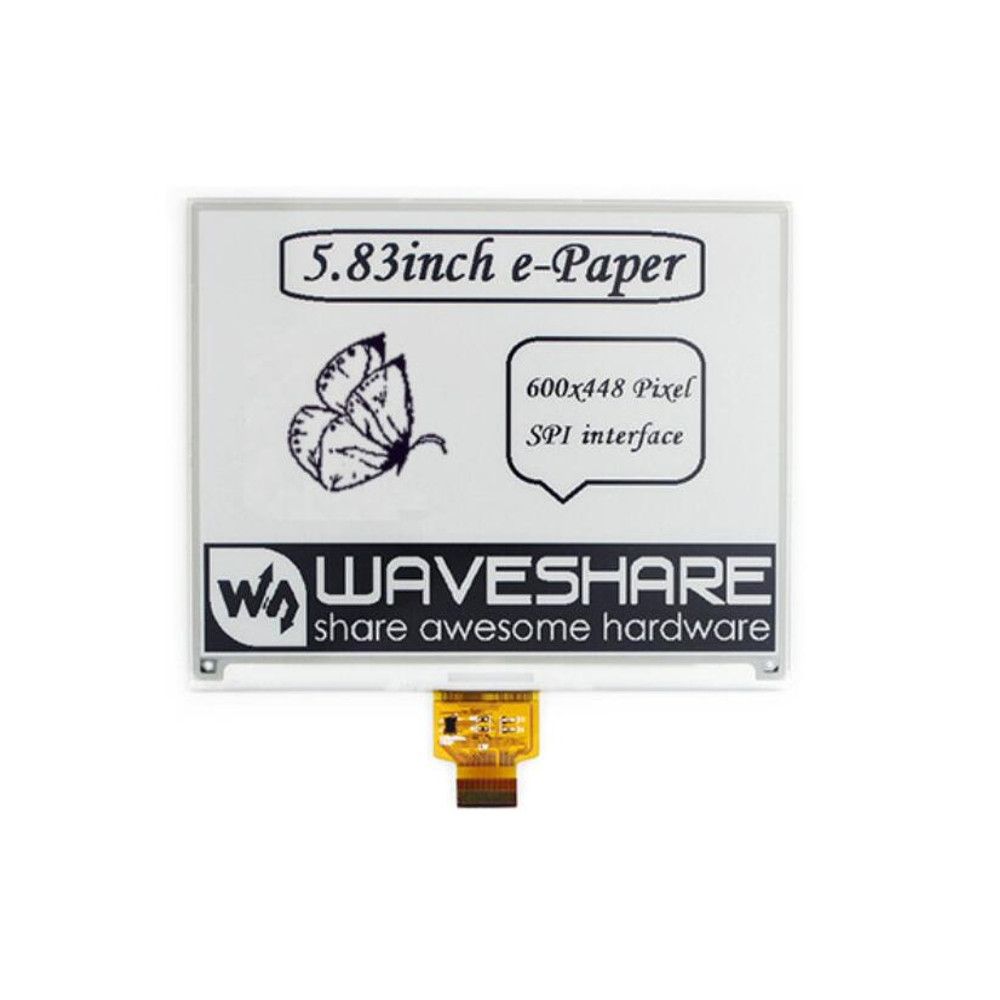

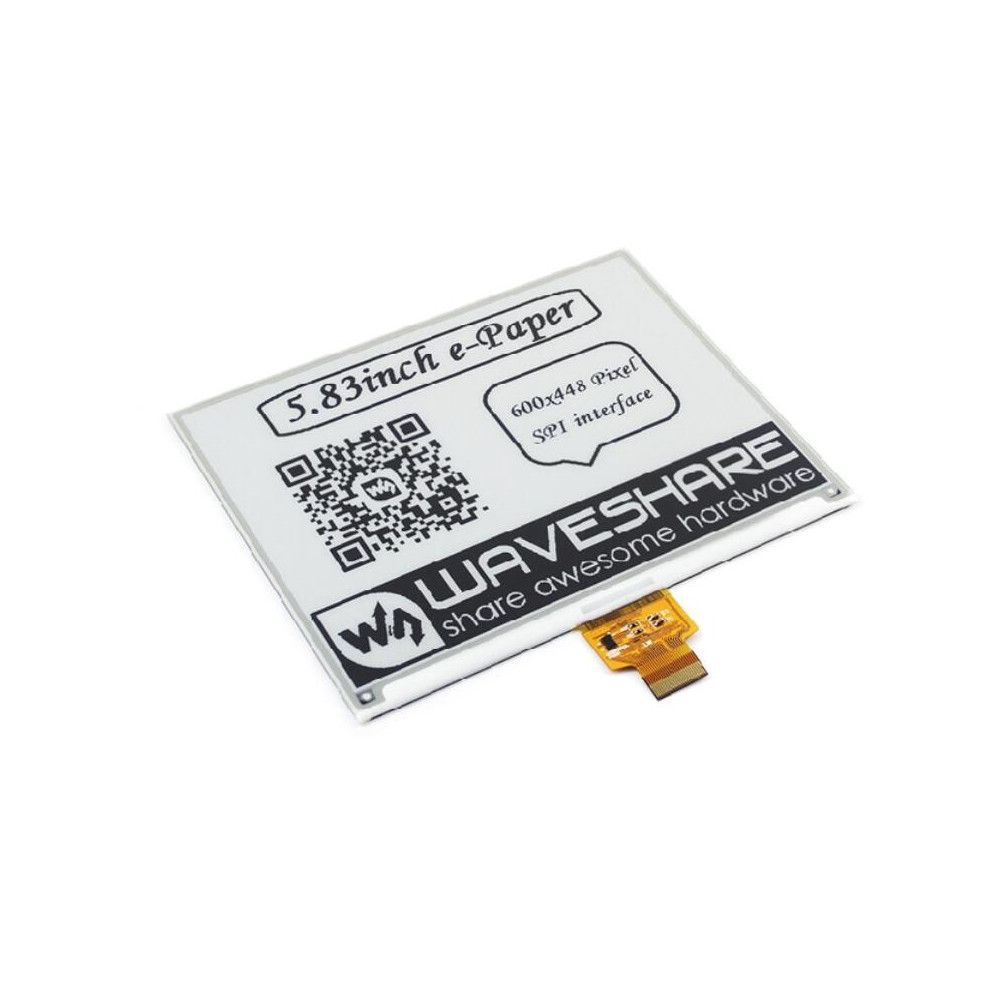

5.83 inch e-Paper Electronic ink Screen SPI Display Module 600 x 448 Bare Screen Black and White Color Compatible for Arduino

Based on 0 reviews. - Write a review

$55.63

Ex Tax: $55.63

Stock: In Stock
Model: EB0048255
SKU: EB0048255

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Documents:

Schematic: Click here to open

Sample tutorial: Click here to open: http://www.waveshare.net/w/upload/3/39/E-Paper_code.7z

Datasheet: Click here to open

Github: Click here to open: https://github.com/waveshare/e-Paper

Features:

No backlight is needed, and the display content of the last screen can be kept for a long time after power off

Very low power consumption, basically only consumes power when refreshing

Based on standard interface design, suitable for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+

Leads out SPI control interface, can be connected to Raspberry/Arduino/Nucleo and other main control boards

Provide complete supporting information manual (Raspberry/Arduino/STM32 and other sample programs)

Parameter:

Working voltage: 3.3V

Communication interface: SPI

Dimensions: 125.40mm × 99.50mm

Display size: 118.80mm × 88.26mm

Point distance: 0.198 × 0.197

Resolution: 600 × 448

Display color: black, white

Gray level: 2

Global refresh: 3.5s

Refresh power consumption: 26.4mW(typ.)

Standby power consumption: <0.017mW

Viewing angle: >170°

Interface Description:

VCC: 3.3V

GND: GND

DIN: SPI communication MOSI pin

CLK: SPI communication SCK pin

CS: SPI chip select pin (active low)

DC: data/command control pin (high level means data, low level means command)

RST: External reset pin (low level reset)

BUSY: busy status output pin (low level means busy)

Package includes:

1 x 5.83inch e-Paper
