5.83 inch Electronic ink Screen E-paper 648x480 Resolution Red Black White Three-color Bare Board e-Paper HAT

Based on 0 reviews. - Write a review

$59.99

Ex Tax: $59.99

Stock: In Stock
Model: EB0050415
SKU: EB0050415

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: 3.3V

Precise details>>

Documents:

Manual: Click here to open

Schematic: Click here to open

Datasheet: Click here to open

Overview:

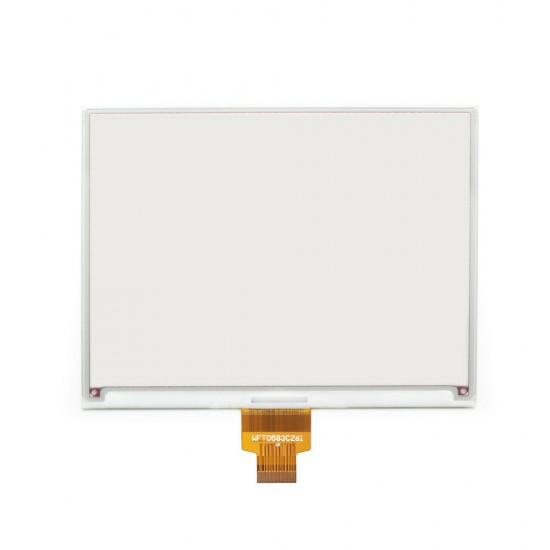

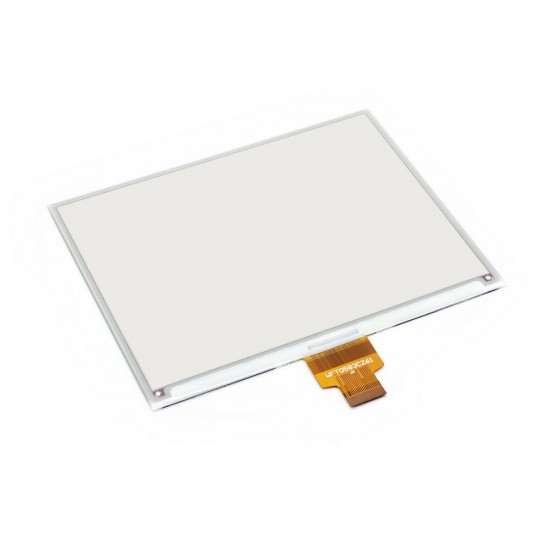

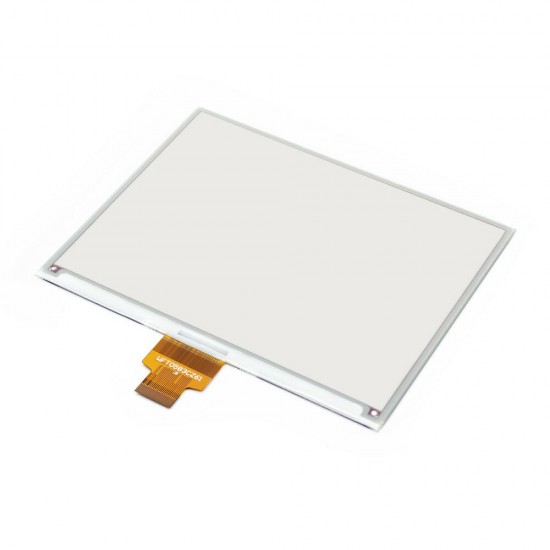

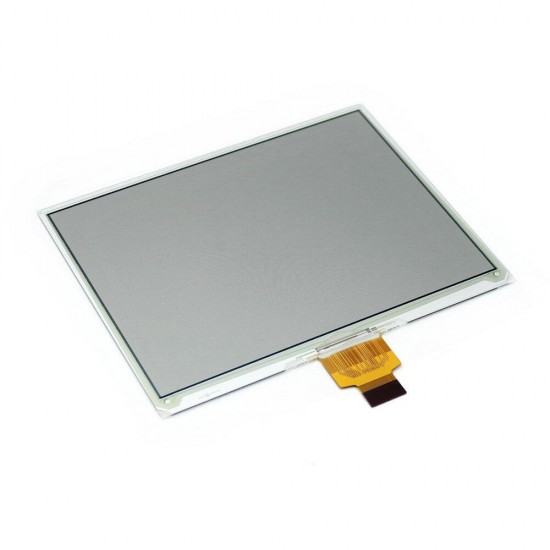

This is an E-Ink raw display, 5.83inch, 648×480 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features:

No backlight, keeps displaying last content for a long time even when power down

Ultra low power consumption, basically power is only required for refreshing

Specifications:

Operating voltage: 3.3V

Interface: 3-wire SPI, 4-wire SPI

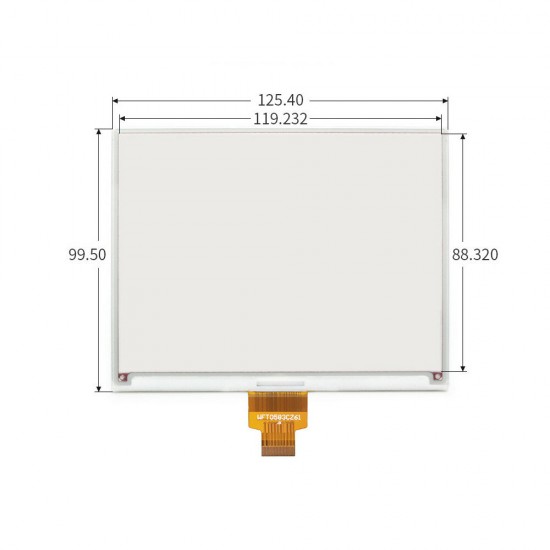

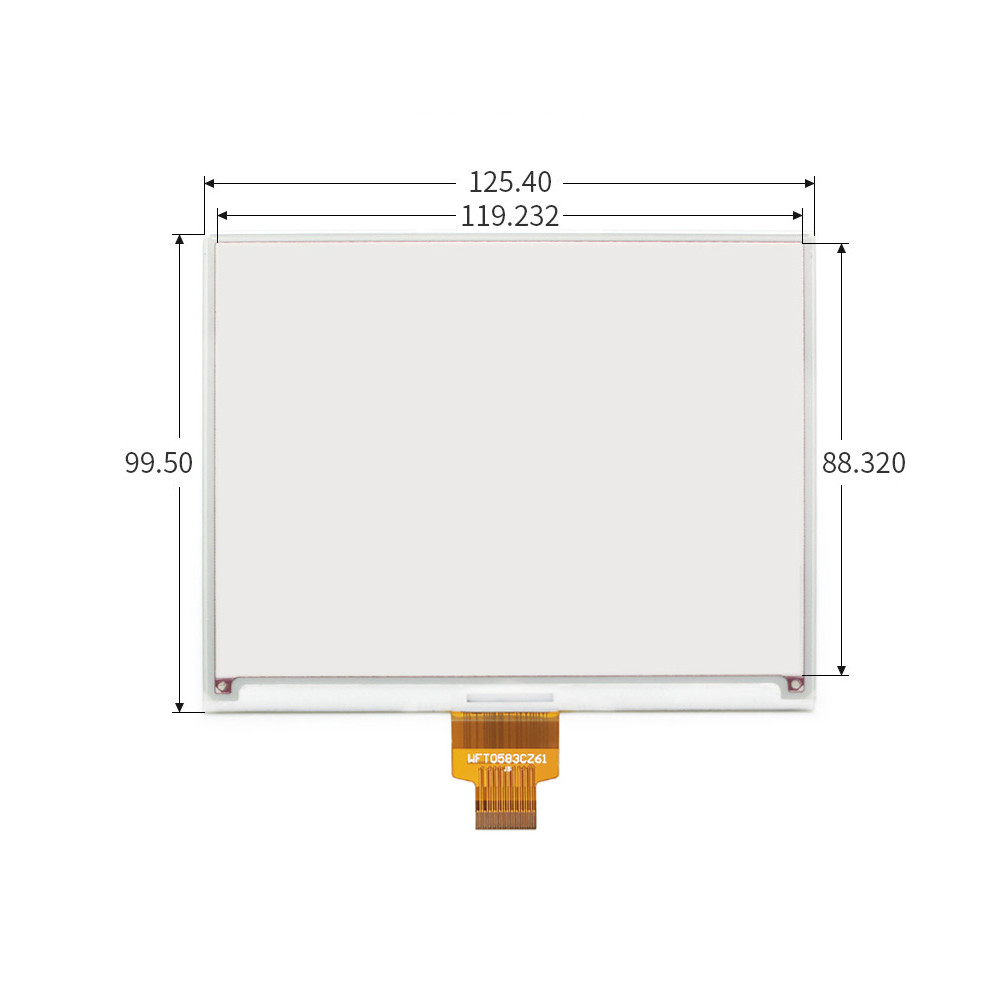

Outline dimension: 125.40mm × 99.50mm × 1.18mm

Display size: 119.232 × 88.320mm

Dot pitch: 0.184 × 0.184mm

Resolution: 648 × 480

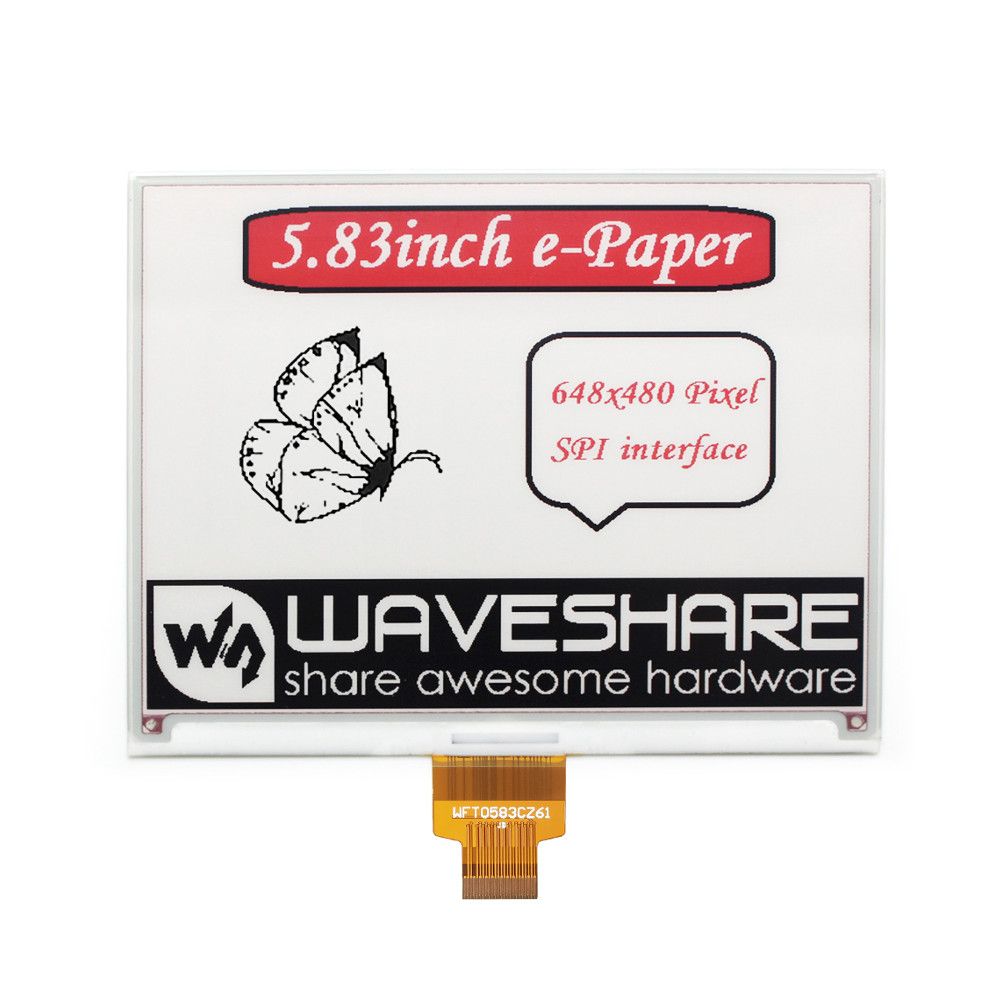

Display color: red, black, white

Grey level: 2

Full refresh time: 20s

Refresh power: 26.4mW(typ.)

Standby power: <0.017mW

Viewing angle: >170°

Package includes:

1 x 5.83inch e-Paper (B)
