5-12V Portable VGA SVGA XGA Color Test Signal Generator V2.0 60HZ F LCD & CRT Display Tester

Based on 0 reviews. - Write a review

$21.66

Ex Tax: $21.66

Stock: In Stock
Model: EB004795
SKU: EB004795

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

5-12V Portable VGA SVGA XGA Color Test Signal Generator V2.0 60HZ F LCD&CRT Display Tester

Features :

This generator is a simple and compact VGA/SVGA/XGA color generator. It is a unique, practical product for testing and adjusting VGA/SVGA/XGA display devices such as monitors, projectors, etc. In the four most common VGA resolution modes - 640x480, 800x600, 1024x768 and 1280x1024. Whenever power is applied, and one of the resolution select buttons is pressed, it outputs a color pattern through the 15 pin D connector. It is powered by a 9V battery(6F22ND). Need to remove the battery if using external AC adapter(7.5~9.0V). This generator does not include AC adapter.

Support both CRT and LCD monitors.

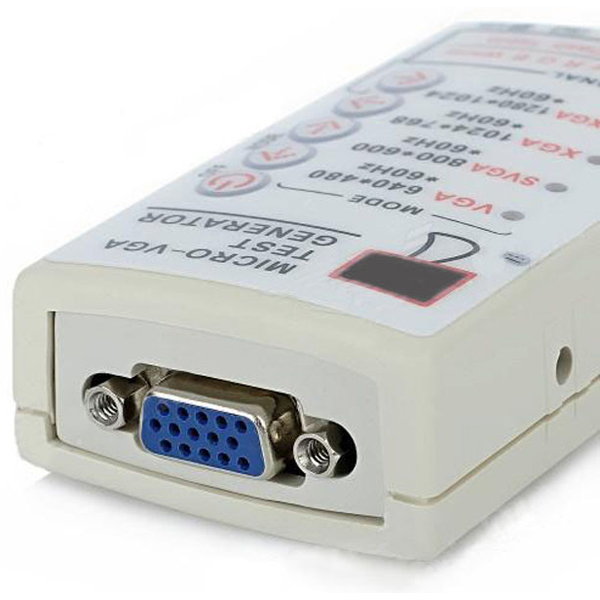

Outputs: Standard VGA/SXGA/XGA RGBHV signal on an HD15F connector.

Resolutions: 640 x 480, 60 Hz. 800 x 600, 60 Hz. 1024 x 768, 60 Hz. 1280 x 1024, 60 Hz.

Power source: A 9V Battery.(6F22ND) (NOT included)

Dimensions: 26mm x 52mm x 90mm

In turn: Square/Bar/Red/Green/Blue/White/Grey/Black/Flash/Table

MODEL-VESA FH(KHz) FV(Hz)

VGA 640*480 31.5 60

SVGA 800*600 37.9 60

XGA 1024*768 48.4 60

SXGA 1280*1024 64 60

Package Included:

1 x Portable VGA Signal Generator

1 x USB Cable

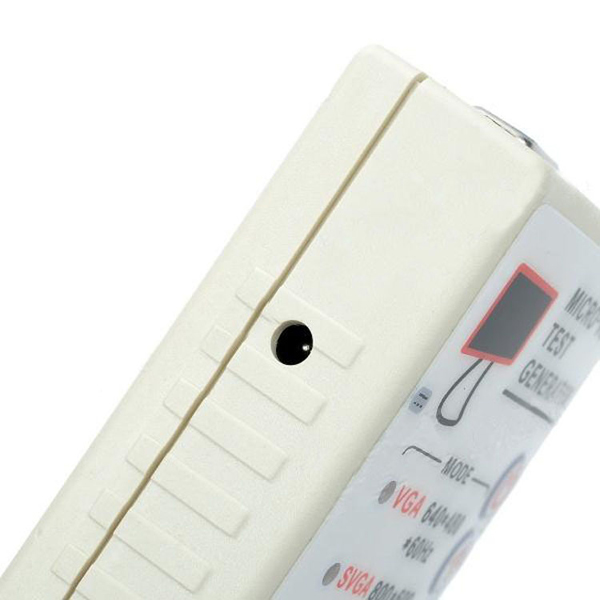

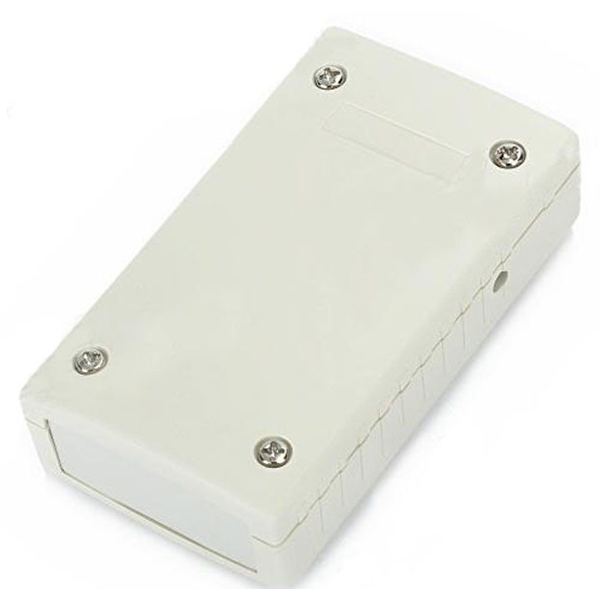

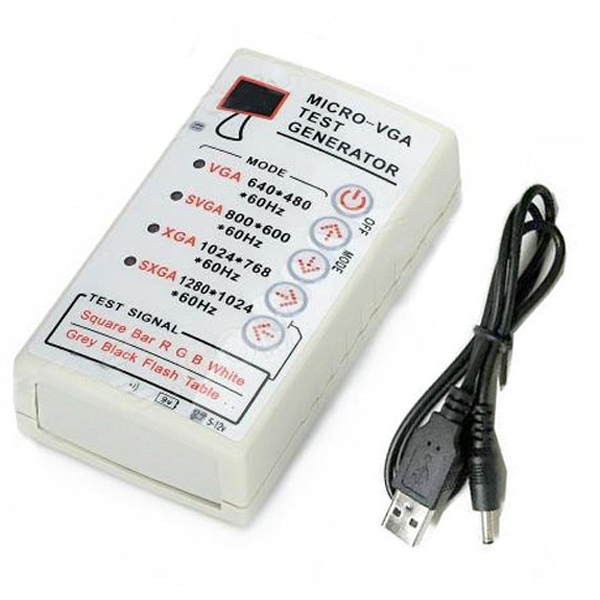

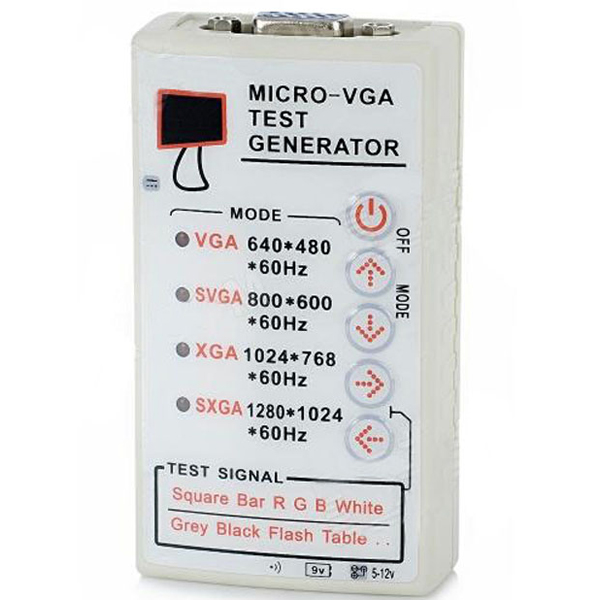

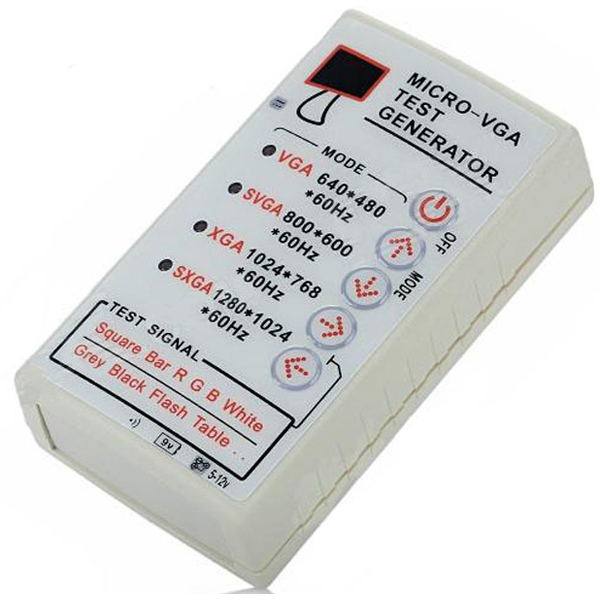

Details pictures:

5-12V-Portable-VGA-SVGA-XGA-Color-Test-Signal-Generator-V20-60HZ-F-LCDampCRT-Display-Tester-1071368
