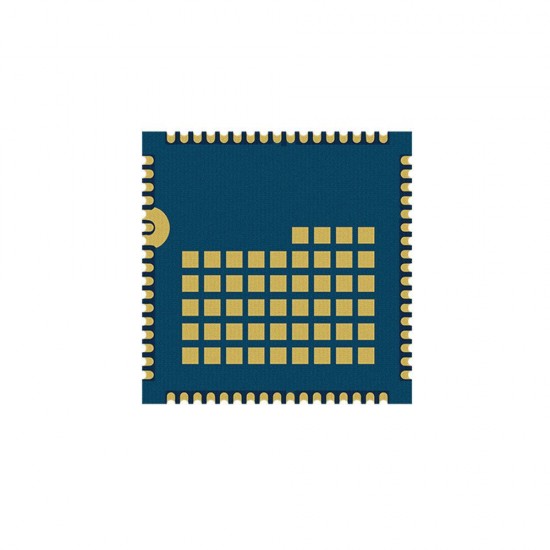

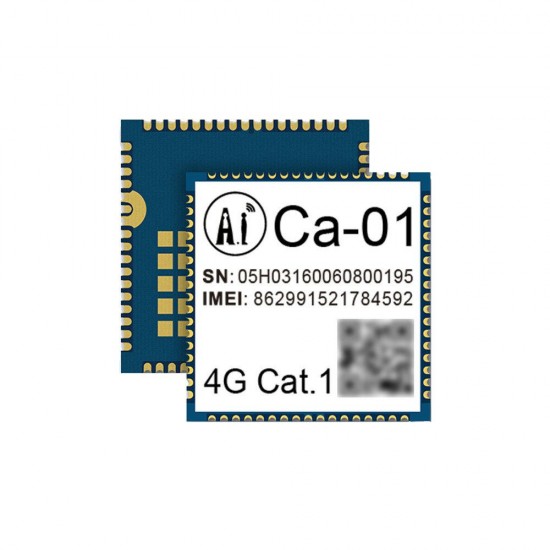

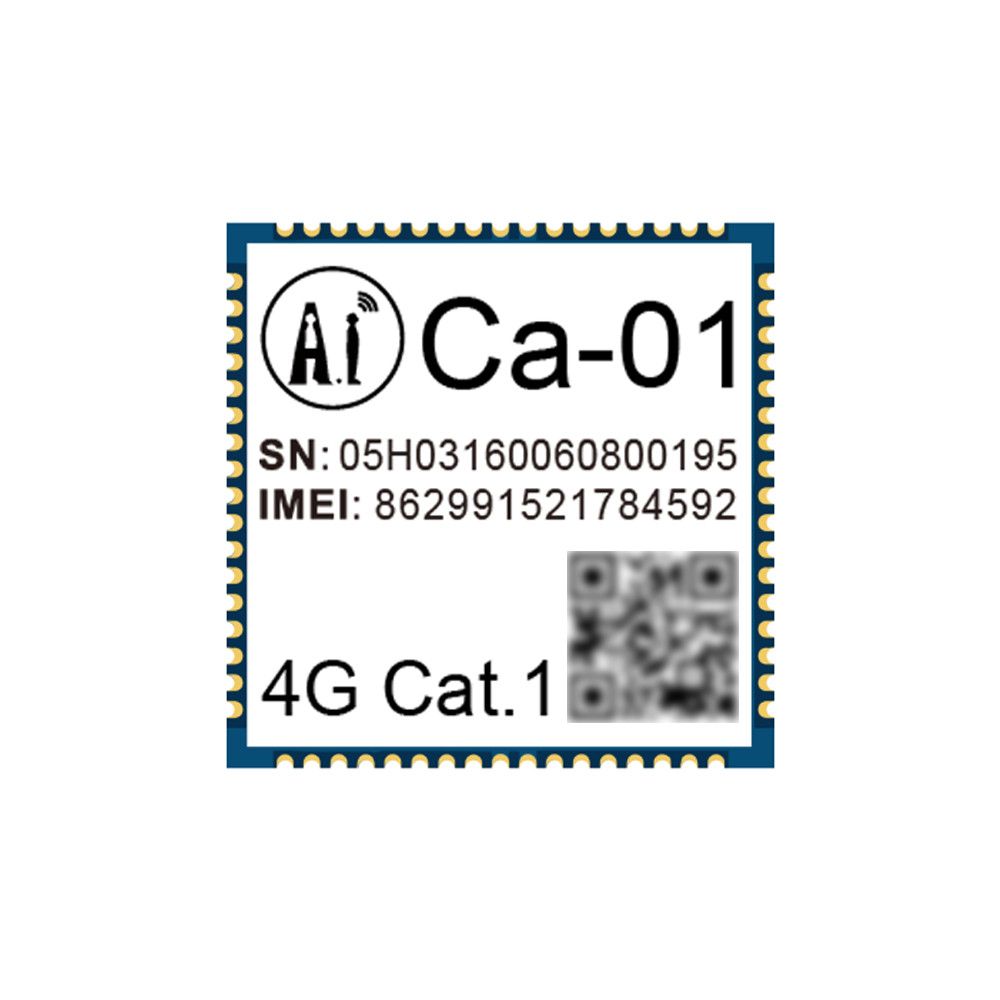

4G Full Netcom LTE IoT Wireless Communication Module Ultra-small Ca-01 GPIO/UART/ADC
- Stock: In Stock
- Model: EB0047503
- SKU: EB0047503
Specification:
| Communication system | 4G |
| Applicable frequency band | LTE-FDD: B1/B3/B5/B8 |
| LTE-TDD: B34/B38/B39/B40/B41 | |
| 3GPP E-UTRA Release 13 | |
| Band width: 1.4/3/5/10/15/20MHZ | |
| Module size: 24.0mm x 24.0mm x 2.3mm | |
| Package method: stamp hole + LGA | |
| General characteristics | Module weight: about 2.6g |
| Power supply voltage: 3.3V~4.3V, 3.8V typical | |
| Support V0LTE | |
| Support Bluetooth | |
| Support Wi-Fi positioning | |
| Support SPI | |
| Support MIPI Camera | |
| Support SPI LCD | |
| Support 6 x 6 scanning keyboard | |
| Temperature range | Normal working temperature: -35°C~+70°C |
| Maximum operating temperature: -40°C ~+85°C | |
| Transmit power | LTE-TDD: Class3 (23dBm+1/-3dB) |
| LTE-FDD: Class3 (23dBm+-2dB) | |
| LTE features | Support Cat.1 |
| Support V0LTE | |
| Support 1.4~20MHz RF bandwidth | |
| LTE-TDD: Uplink and Downlink Configuration 2 | |
| Maximum uplink rate 2Mbps, maximum downlink rate 8Mbps | |
| LTE-TDD: Uplink and Downlink Configuration 1 | |
| Maximum uplink rate 4Mbps, maximum downlink rate 6Mbps | |
| Network protocol characteristics | Supported: TCP/UDP/PPP/FTP/HTTP/NITZ/CMUX/NDIS/NTP/HTTPS/PING/FTPS/FILE |
| Under development: SMTP/SMTPS/MMS/DTMF | |
| USIM card interface | Support USIM/SIM card: 1.8V and 3V |
| USB interface | Compatible with USB 2.0 (only support slave mode), data transfer rate up to 480Mbps |
| Used for AT commands, data transmission, software debugging, software upgrades | |
| USB virtual serial port driver: support USB driver under Windows 7/8.1/10, Linux 2.6.X/3.X/4.1, Android 4.x/5.x/6.x/7.x and other operating systems | |
| Serial port | UART1: Used for AT command and data transmission Maximum baud rate 921600bps, default 115200bps Support hardware flow control (CTS/RTS) |
| UART2: Used for debugging information output Baud rate 115200bps HOST UART: Used to output debugging information ZSP UART: Used to output debugging information |
|
| Antenna interface | Characteristic impedance 50 ohm |
| RoHS | All devices are fully RoHS compliant |
| Package | 117 pins |
Ca-01 sensitivity data sheet:
| FDDB1 | -99dBm(10M) |
| FDDB3 | -99dBm(10M) |
| FDDB5 | -100dBm(10M) |
| FDDB8 | -100dBm(10M) |
| TDD B34 | -99dBm(10M) |
| TDD B38 | -99dBm(10M) |
| TDD B39 | -99dBm(10M) |
| TDD B40 | -100dBm(10M) |
| TDD B41 | -99dBm(10M) |
Documents:
1 x Wireless Communication Module
