4A 25w Electronic Load Adjustable Constant Current Aging Resistor Battery Voltage Capacity Tester LCD Voltage Current Power Display

Based on 0 reviews. - Write a review

$15.50

Ex Tax: $15.50

Stock: In Stock
Model: EB003356
SKU: EB003356

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

The current a voltage V power W capacity ah and discharge time can be displayed;

Have a sound protection mechanism;

Automatic statistics of discharge capacity and discharge time;

Set maximum discharge Capacity (OAH) and maximum discharge time (OHP); (Realization of unattended aging experiments)

Intelligent temperature-controlled fan, when the power is greater than 10W or the temperature is greater than 40 ℃ fan start automatically;

The use of rotary coding potentiometer, can accurately adjust the current, accurate to 0.01A, the current can be locked to prevent misoperation;

Data group function: You can choose whether to add up the capacity value and running time of the previous stage;

Has a powerful serial communication function.

Specification:

Rated supply voltage: DC5~30V

Rated load voltage: DC1.5~25V

Rated load current: 0~4A

Discharge power: 25W

Constant current accuracy: ±(1%+3)

Voltage accuracy: ±(0.5%+1)

Package included:

1 x Battery Tester

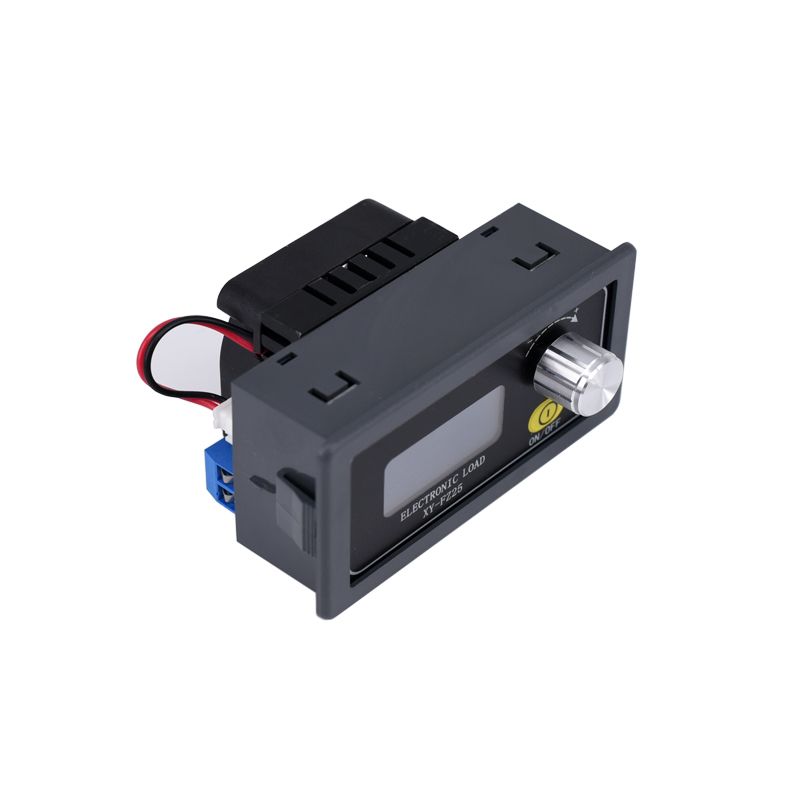

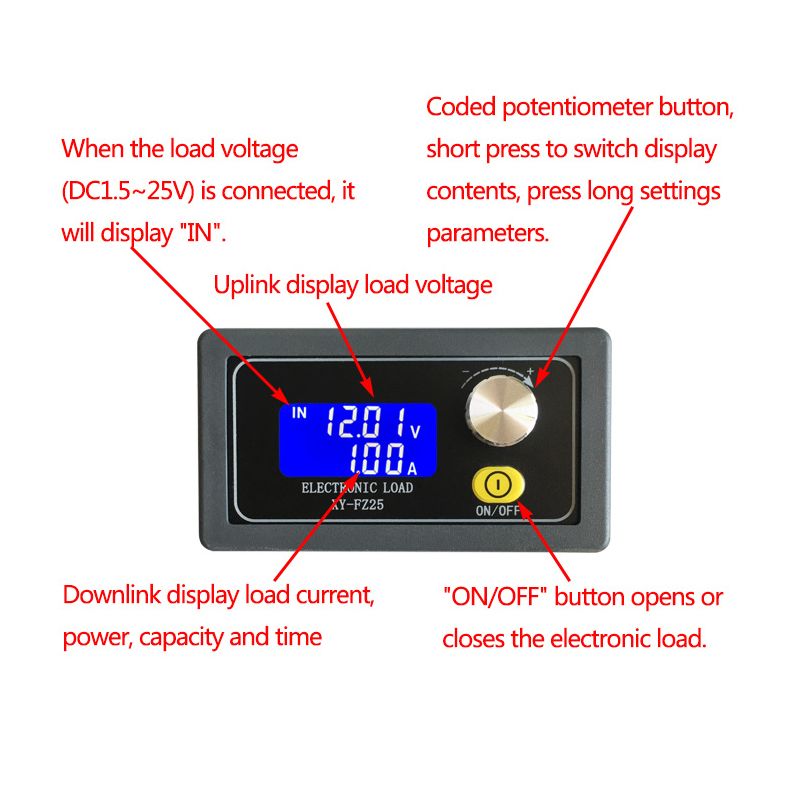

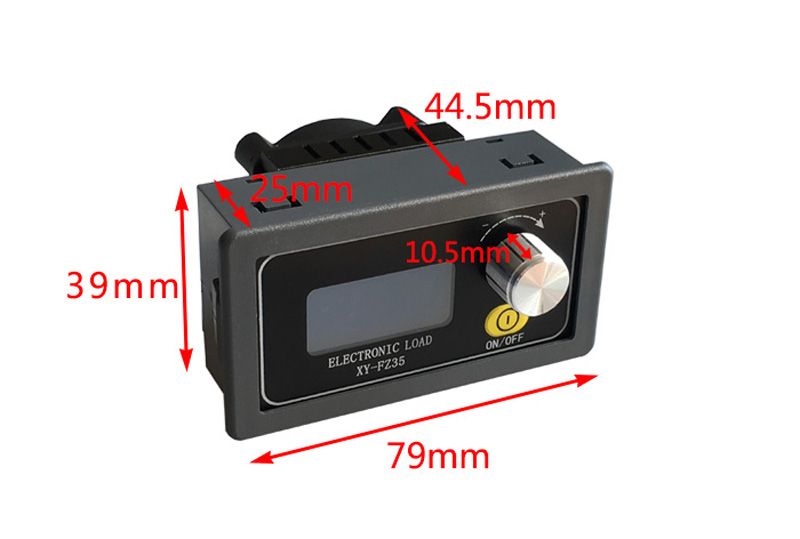

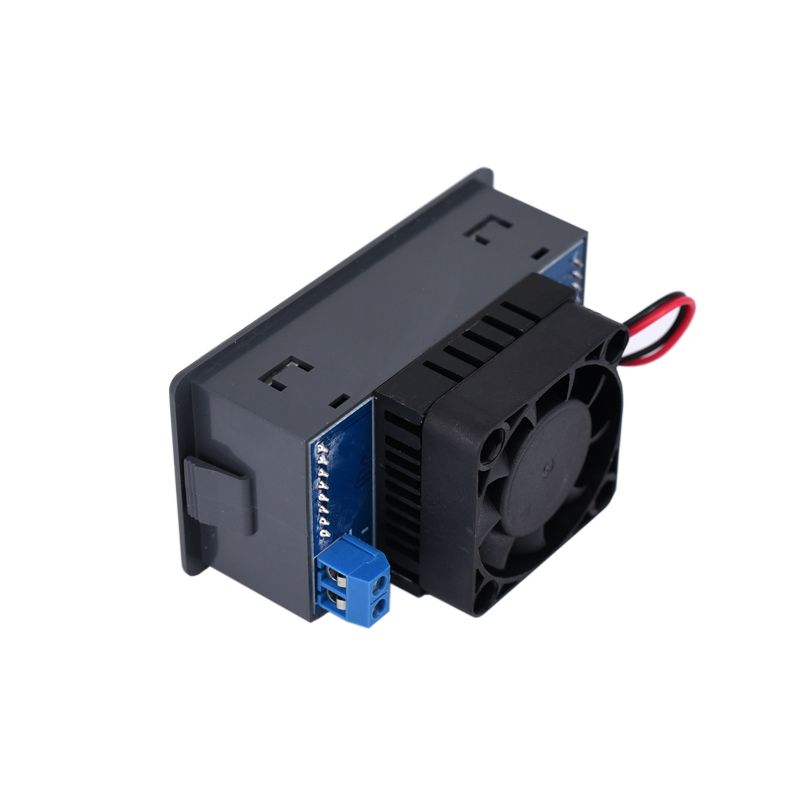

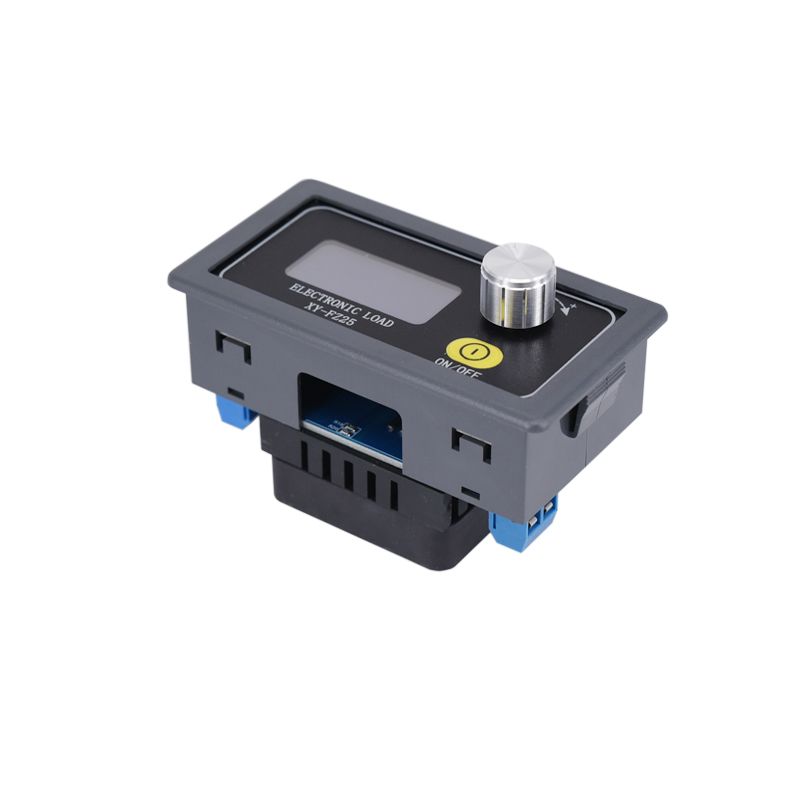

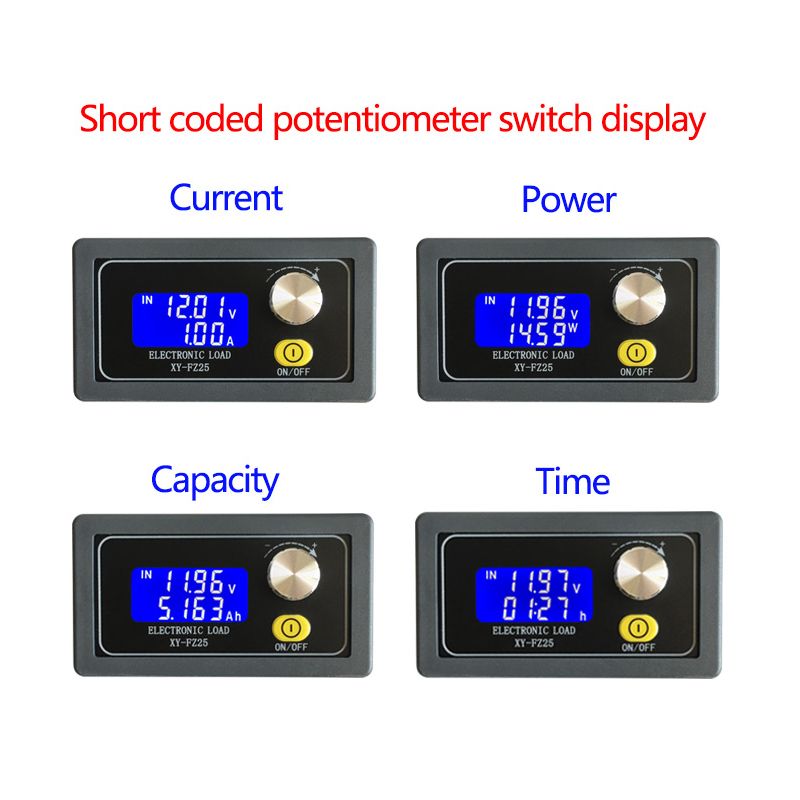

Details pictures:

4A-25w-Electronic-Load-Adjustable-Constant-Current-Aging-Resistor-Battery-Voltage-Capacity-Tester-LC-1453784
