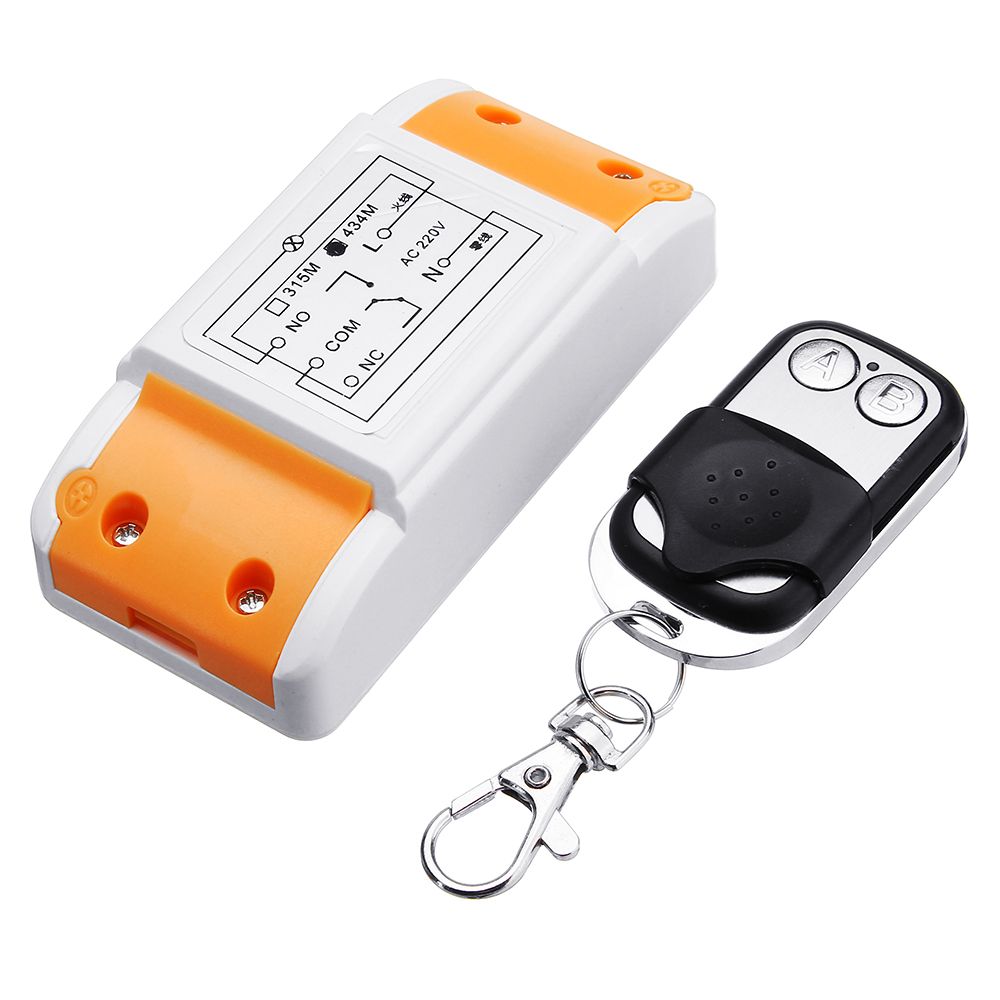

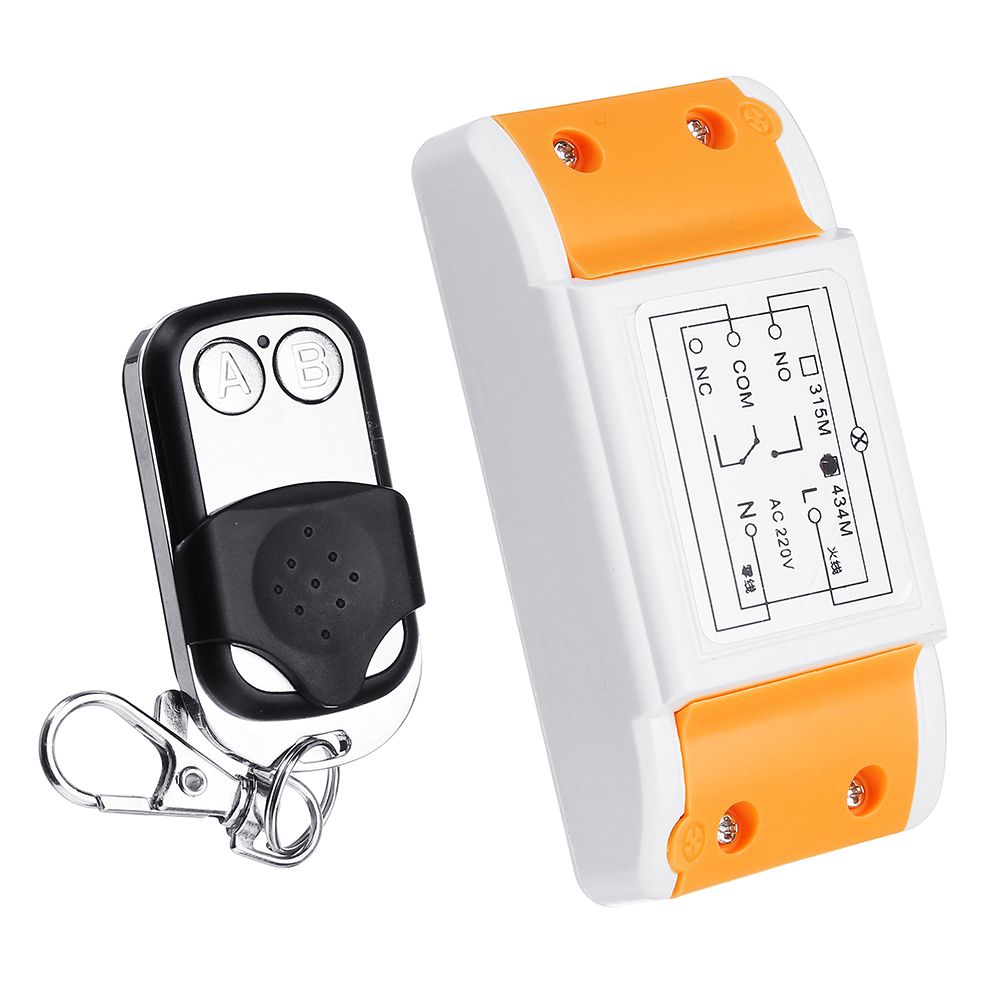

433MHz AC 220V 1CH Channel Wireless Remote Control Switch Module with Small Metal 2 Key Transmitter

Based on 0 reviews. - Write a review

$14.99

Ex Tax: $14.99

Stock: In Stock
Model: EB0042366
SKU: EB0042366

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

220V single-channel high-power remote control switch uses 10A relay, which can load large power electrical appliances; it can learn multiple remote controllers, and all keys of each remote controller can learn, one remote controller can control multiple switches, and multiple remote controllers can control one switch, which can be operated simply, matched flexibly and arbitrarily combined.

Mainly used in lamps, electric doors, windows, lifting equipment, gates, lifts, industrial control and security industries and other fields.

Specification:

Operating Voltage: AC220V

Working frequency: 433 MHz

Load: 1000 W

Working mode: self-locking, jog and interlocking

Model: AK-RK01S-220-C+AK-SF02

Remote control distance: 10-30M

Size: 64 x 39 x 18mm

Learing method:

Press and hold the learning button, the indicator light is off (indicating that it has entered the learning state), release the learning button, press any button on the remote control, the indicator light flashes four times and then the light is always on to indicate that the learning is successful.

Clear method:

Press and hold the learning button for about 8 seconds. The indicator will turn off and return to light.

Work mode switching:

Switch the working mode by shorting the 1, 2, and 3 solder joints on the board

1. Jog - do not shorting the pad, vacant = M

2. Self-locking - shorting 1, 2 pads = L

3. Interlocking - shorting 2, 3 pads = T

The meaning of self-locking/interlocking/jogging:

Interlock: Press the corresponding button of the remote control, the corresponding relay is turned on, and then press another remote control button; the relay is disconnected.

Non-lock, jog: Press the remote control button, the corresponding relay is turned on, release the remote control button; the corresponding relay is disconnected.

Self-locking: Press the remote control button once, the relay is turned on, press the remote control button again, the relay is disconnected.

Package included:

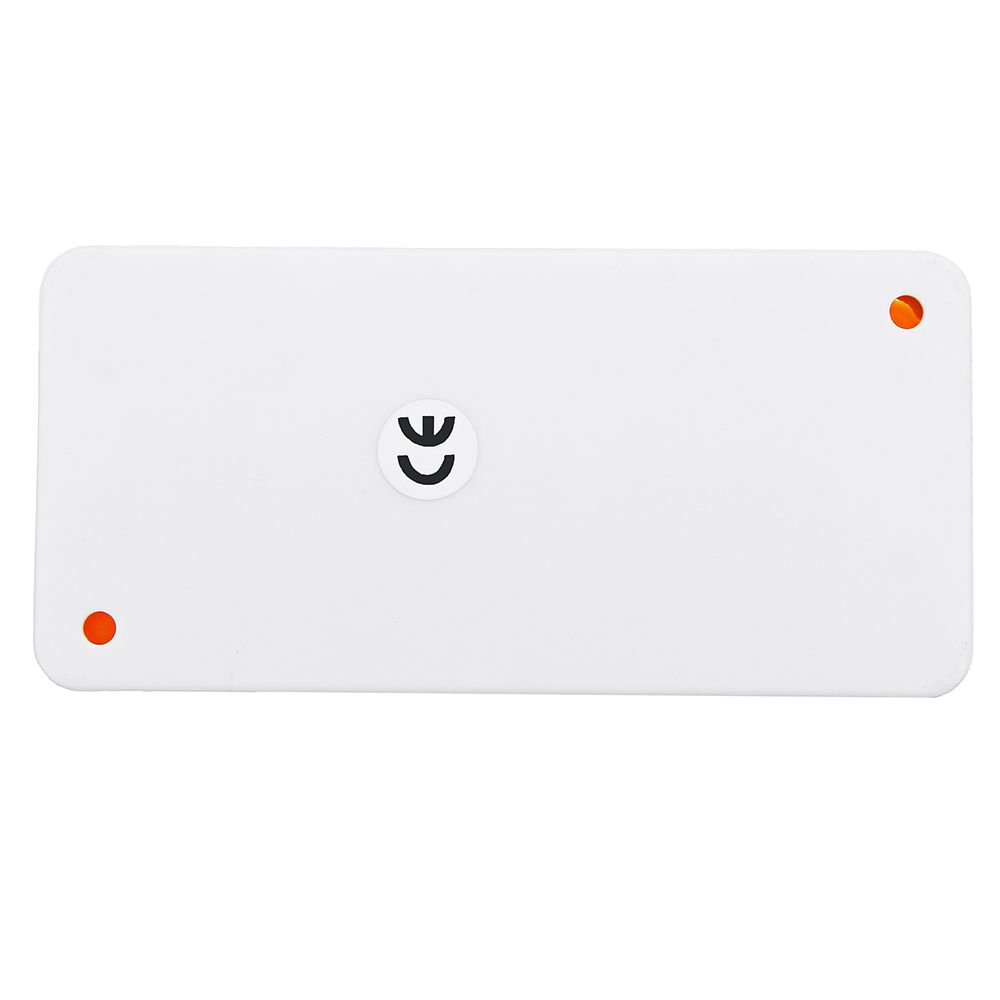

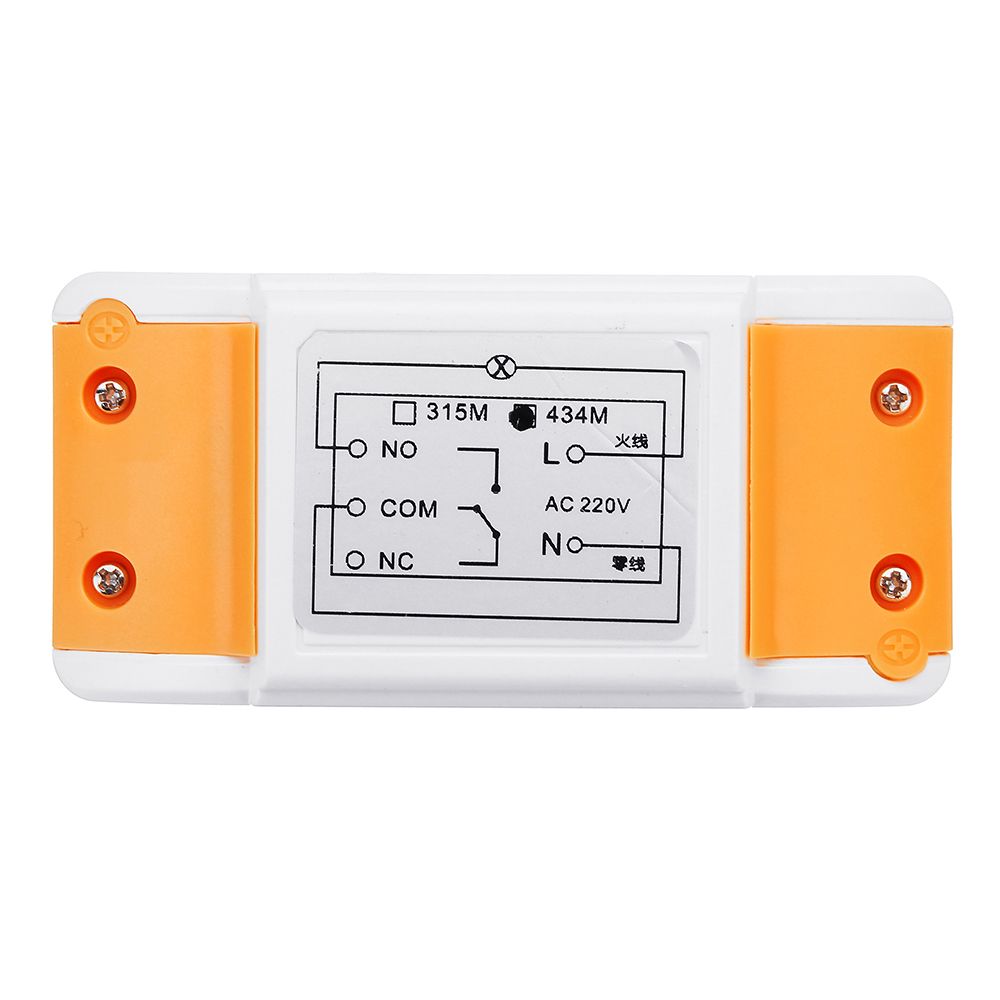

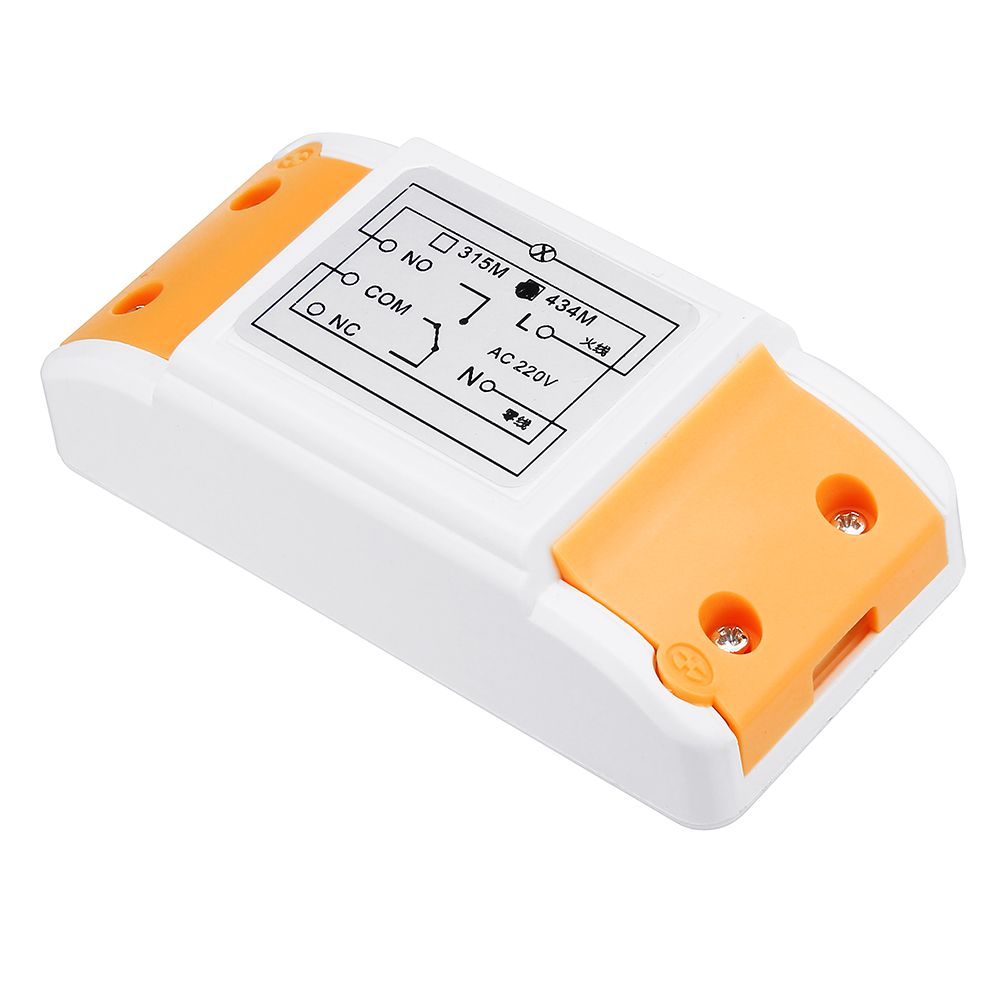

1 x 433 MHz Wireless Remote Switch Module

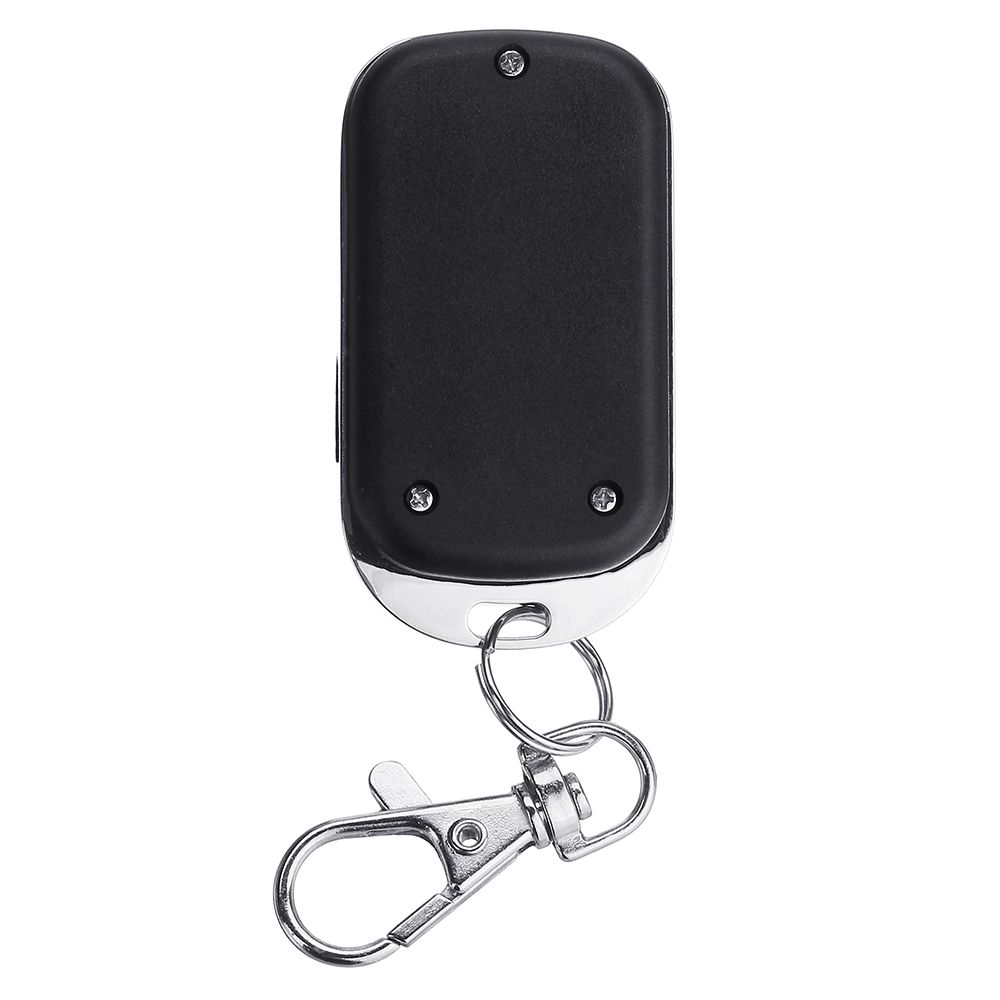

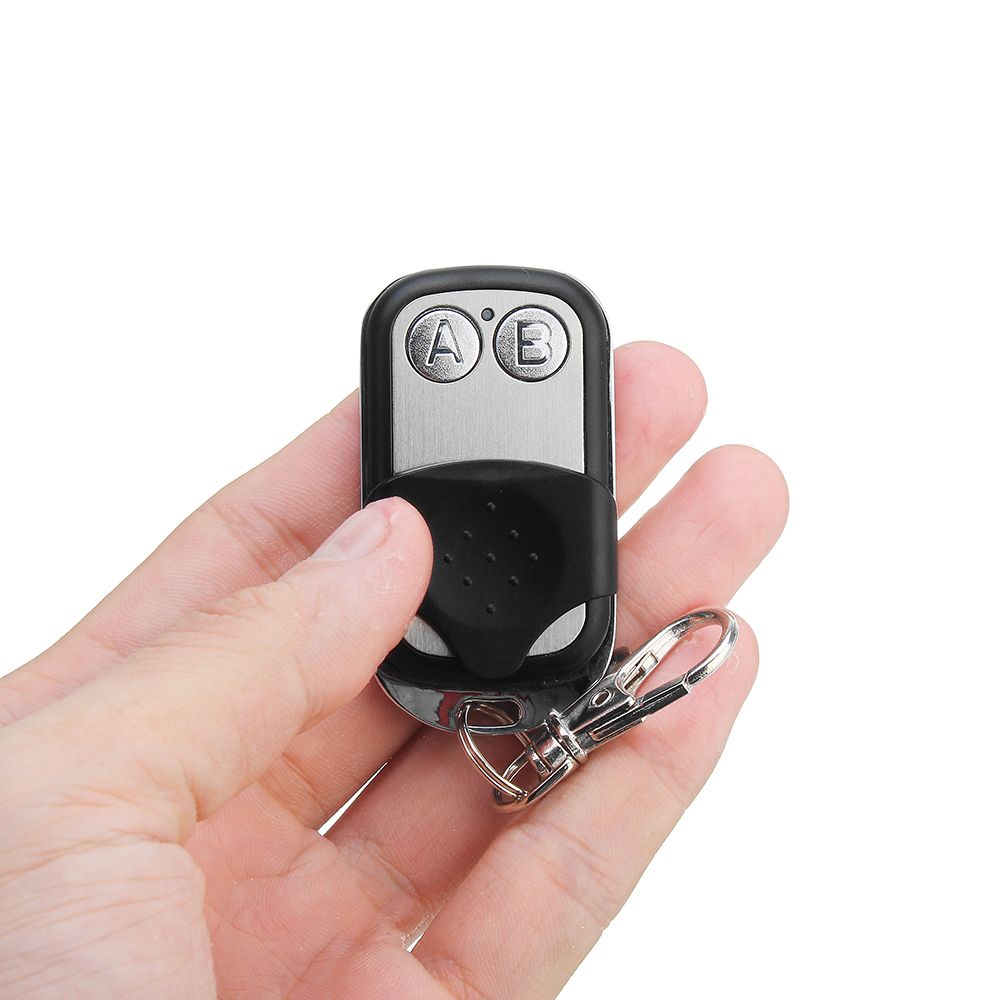

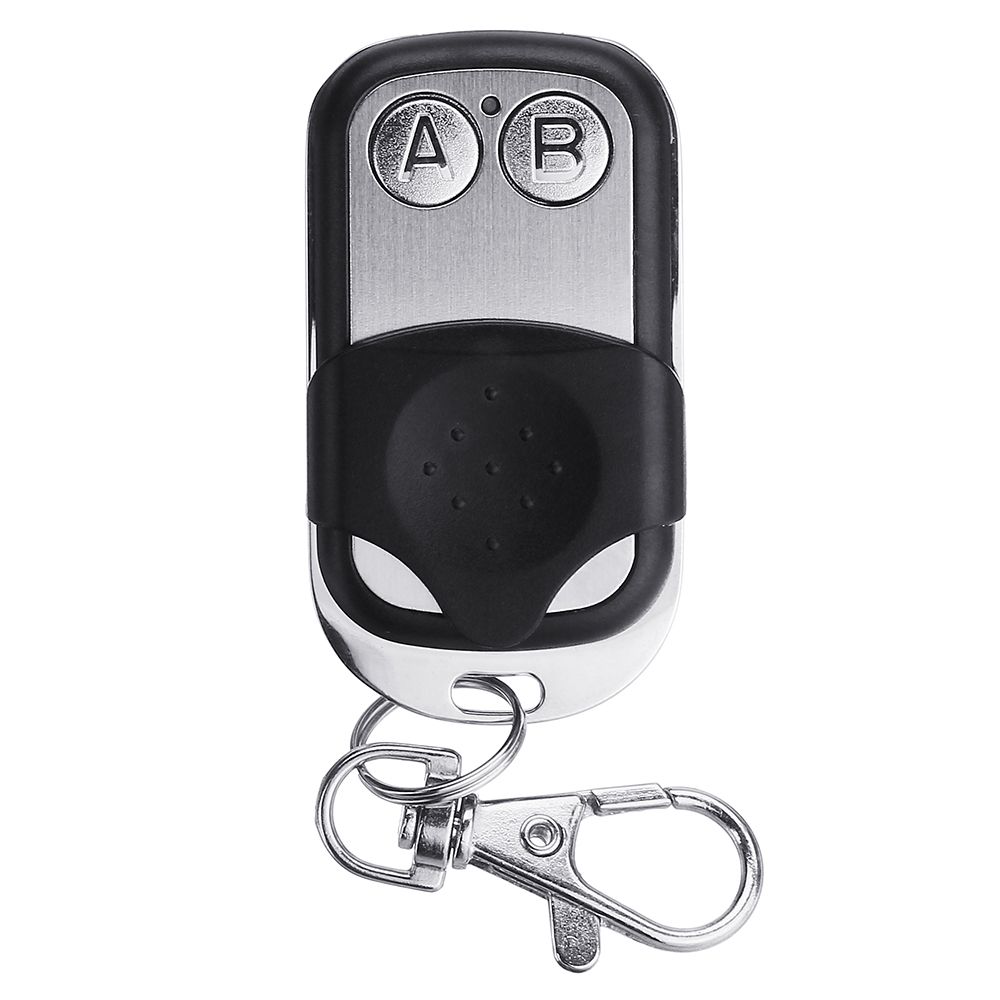

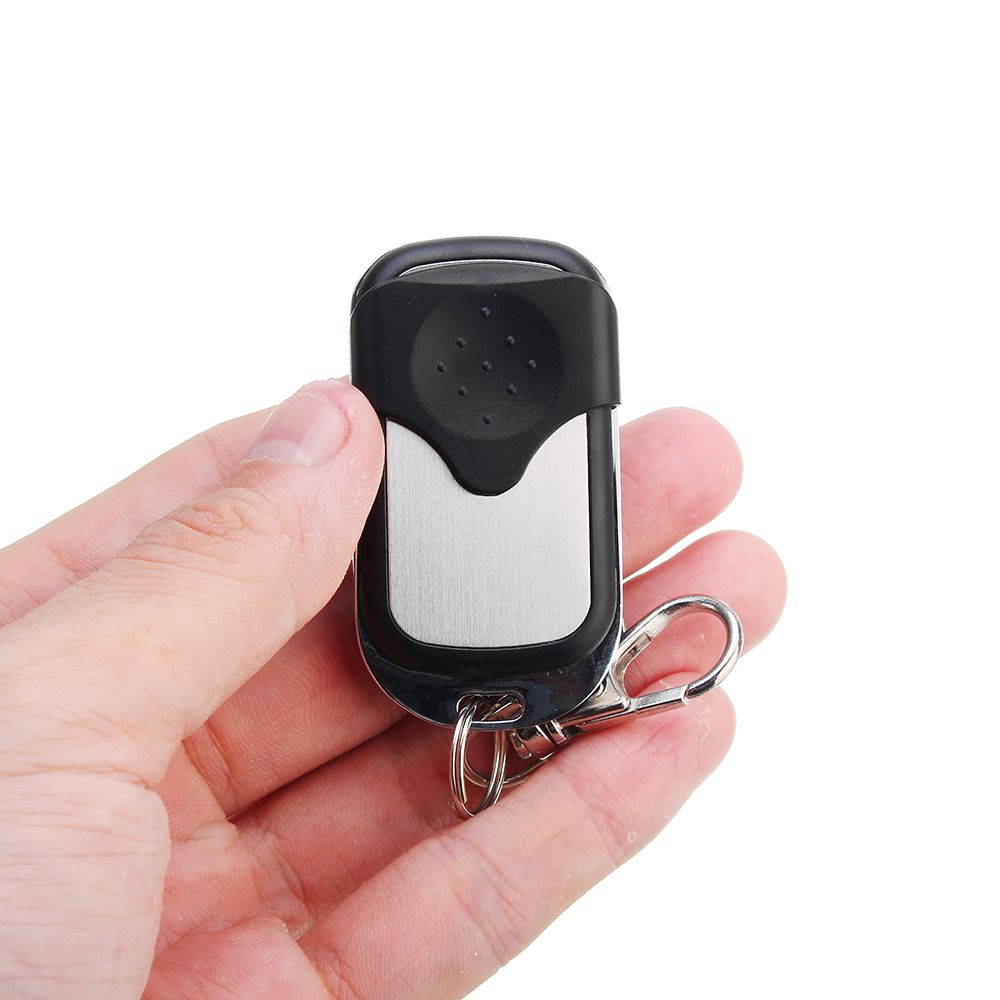

1 x Remote with battery
