$15.99
Ex Tax: $15.99
  • Stock: In Stock
  • Model: EB0042350
  • SKU: EB0042350
Features:

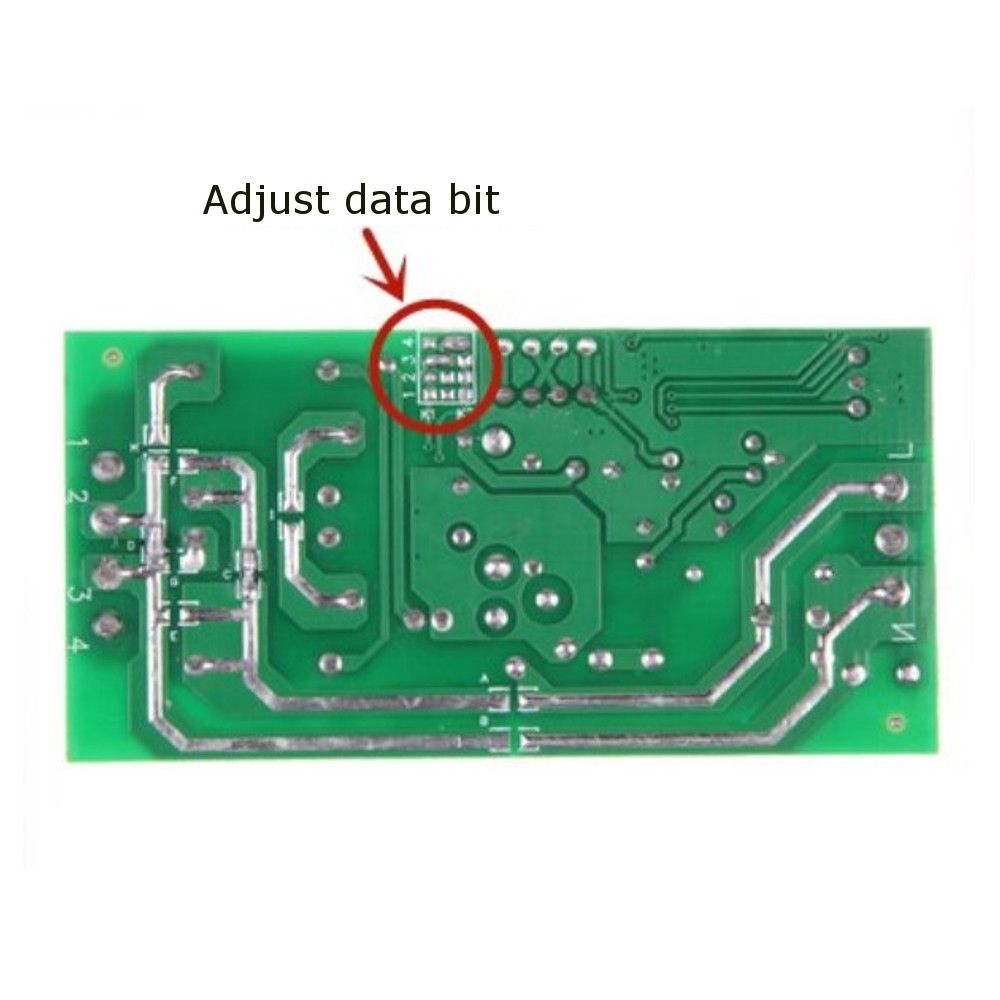

The multi-function two-way remote control switch of wide-voltage switching power supply adopts 10A relay, which can load high-power electrical appliances; the learning MCU decodes and can learn multiple remote controllers; the operation is simple and flexible; the output mode can be selected and used conveniently by jumping switch, point-switching, self-locking and interlocking at will, and it is suitable for various purposes in many fields; the data bit output adjustment port is reserved and can be accessed. It is convenient for customers to choose the corresponding key position values of remote controllers at different locations, and avoid the embarrassment that the old fixed key position can only be matched with a single type of remote controller. Output band voltage, easy to install.

Specification:

Operating Voltage: AC85-250V
Working frequency: 433 MHz
Standby Current: 10mA
Load: less than 1000 watts
Working mode: self-locking, point-moving and interlocking
Dimension: 91 mm x 52 mm x 11 mm

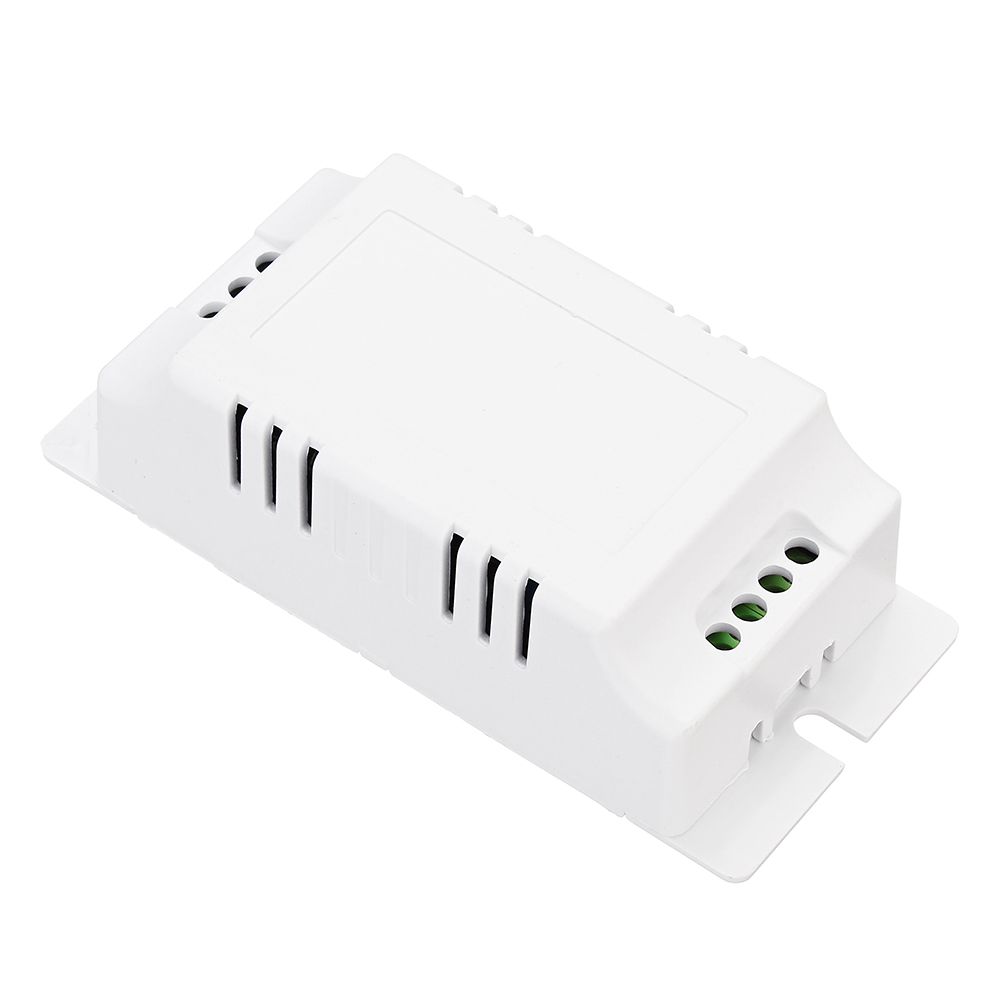

Shell size: 93 x 54 x 40 mm

Learing method:

Press and hold the learning button for three seconds, the indicator light is off (indicating that it has entered the learning state), release the learning button, press any button on the remote control, the indicator light flashes four times and then the light is always on to indicate that the learning is successful.
Note: This controller can learn 16 different coded remote controllers such as fixed code/learning code. If it exceeds, it will clear the earliest learned remote control.

Clear method:

Press and hold the learning button for about 8 seconds. The indicator will turn off and return to light.

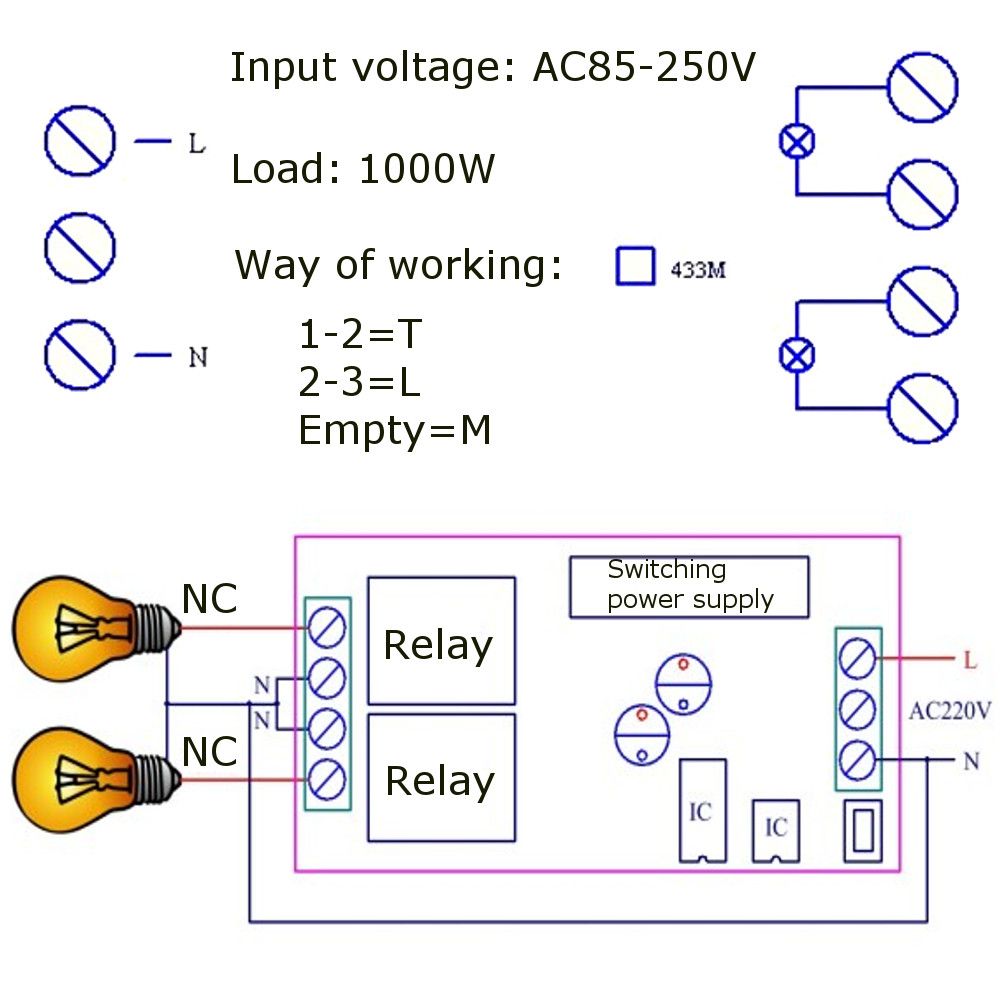

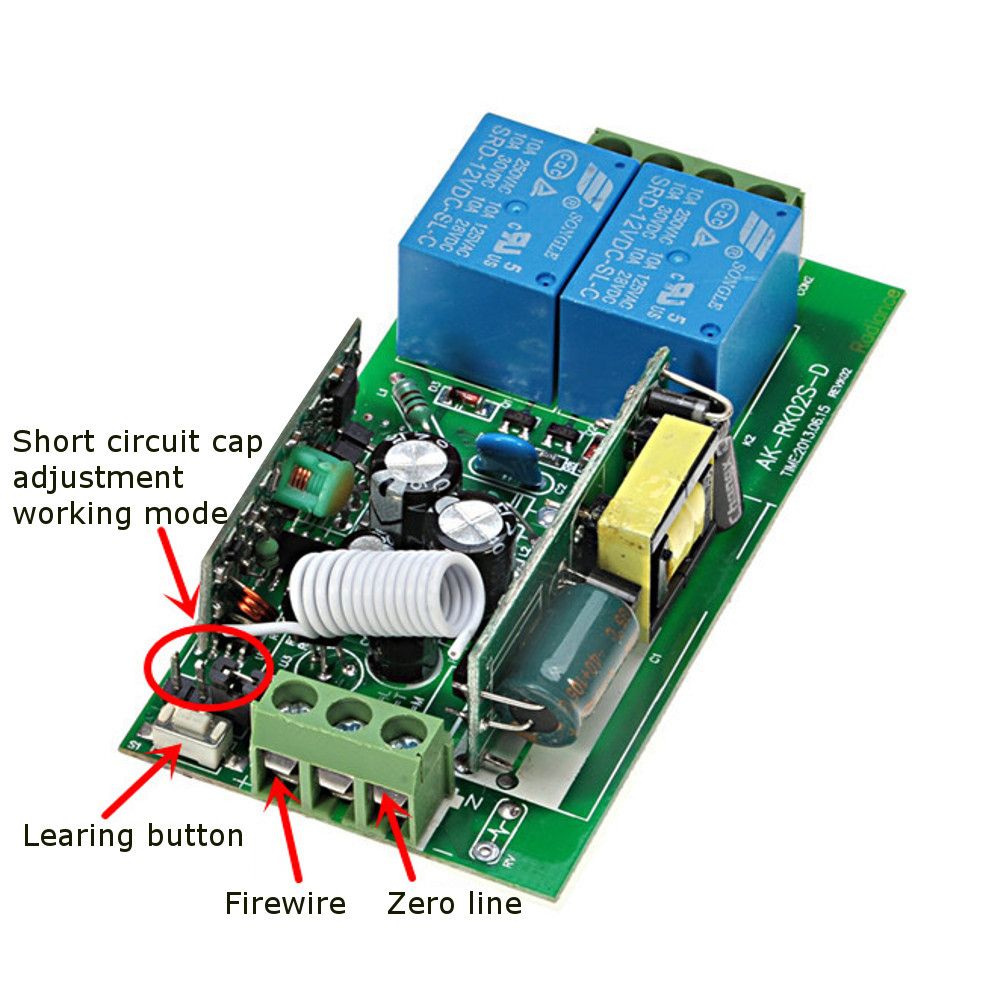

Work mode switching:

Switch the working mode by short circuit, short circuit 1, 2, 3 different places.
1. Jog - short circuit cap is vacant
2. Self-locking - shorting 1, 2
3. Interlock - shorting 2, 3

The meaning of self-locking/interlocking/jogging:

Interlock: Press the corresponding button of the remote control, the corresponding relay is turned on, and then press another remote control button; the relay is disconnected.
Non-lock, jog: Press the remote control button, the corresponding relay is turned on, release the remote control button; the corresponding relay is disconnected.
Self-locking: Press the remote control button once, the relay is turned on, press the remote control button again, the relay is disconnected.

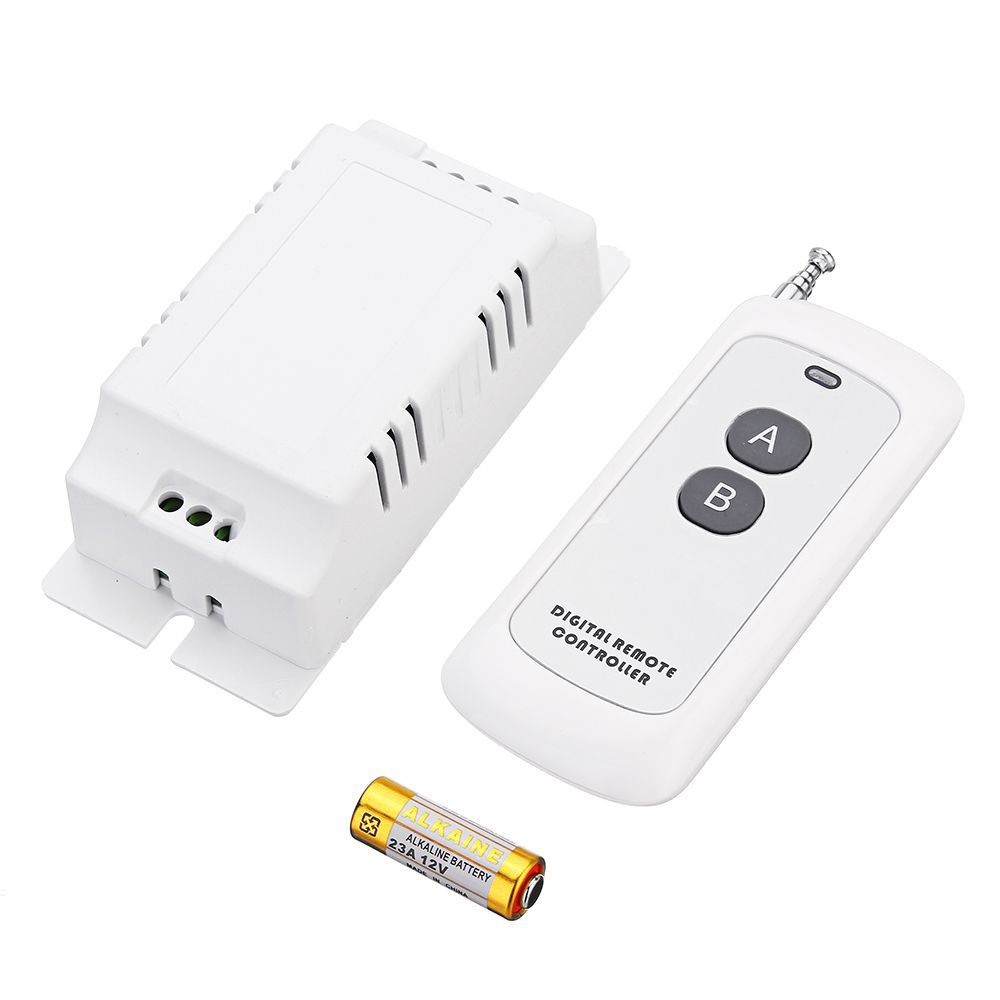

Package included:

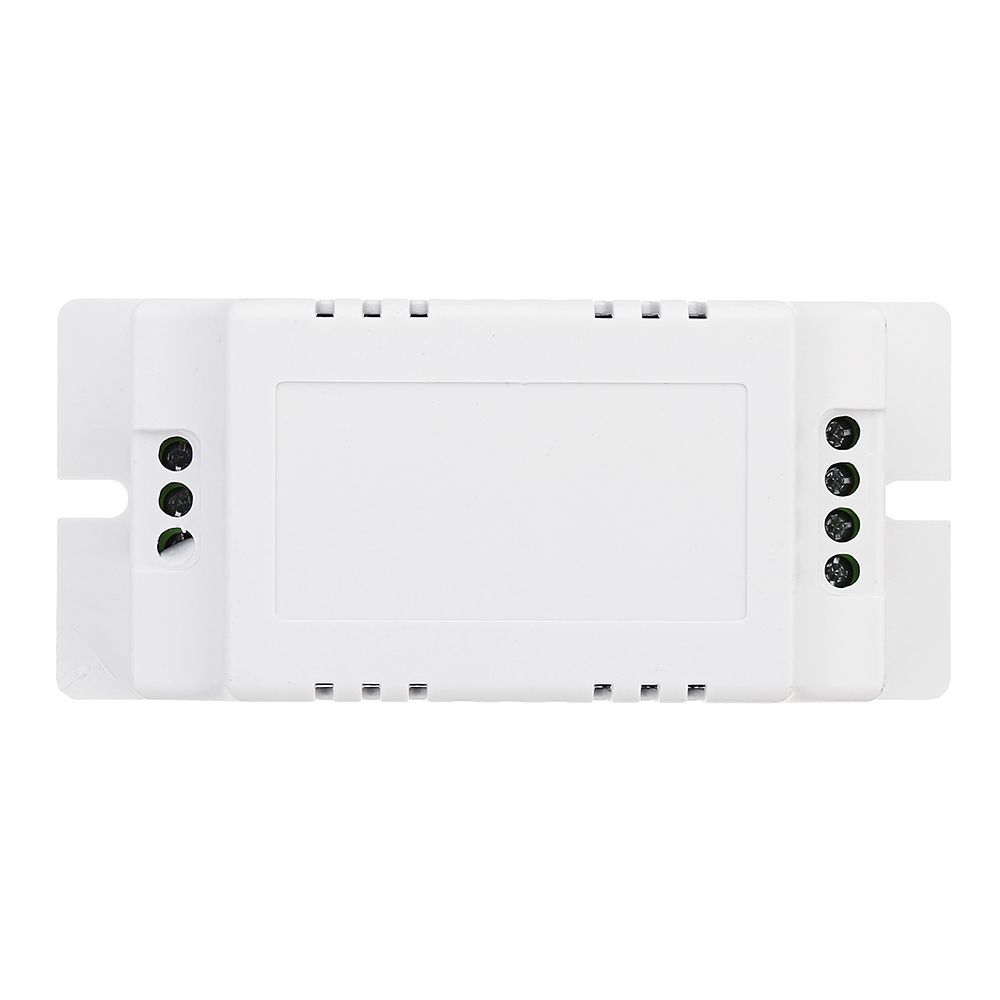

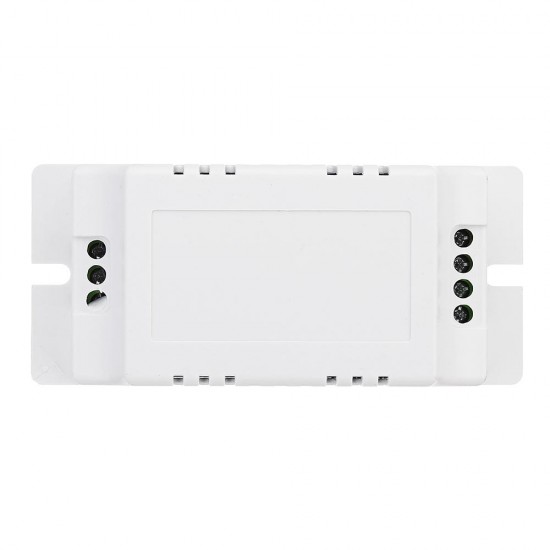

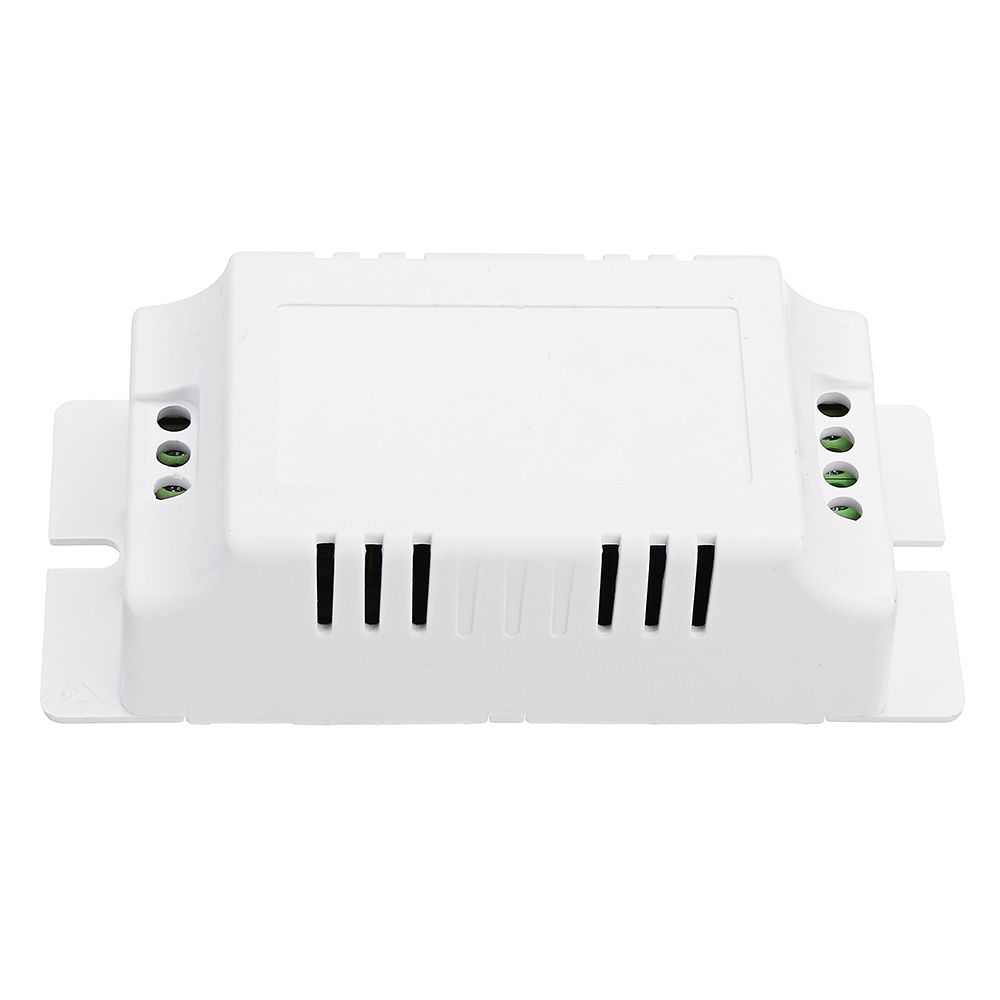

1 x Wireless Remote Control Switch
1 x

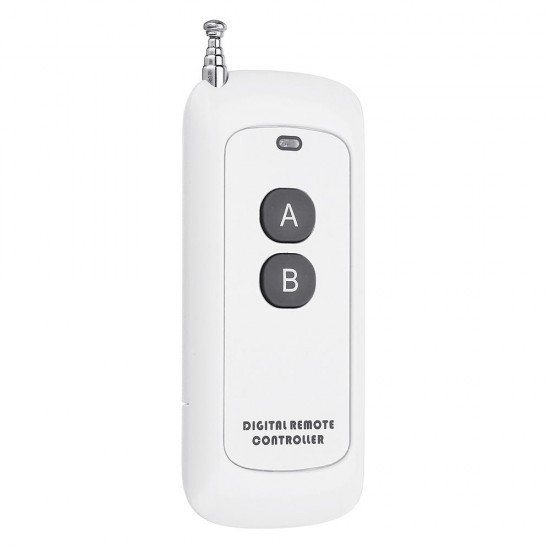

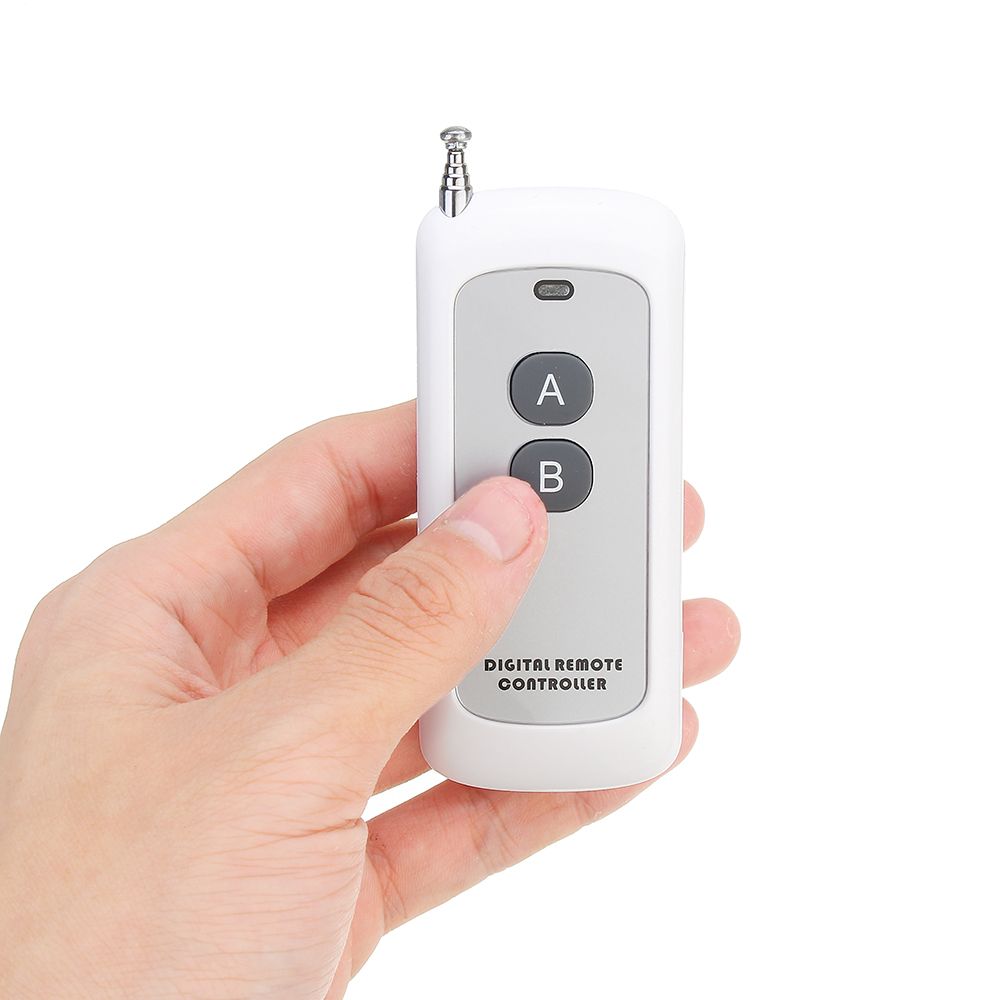

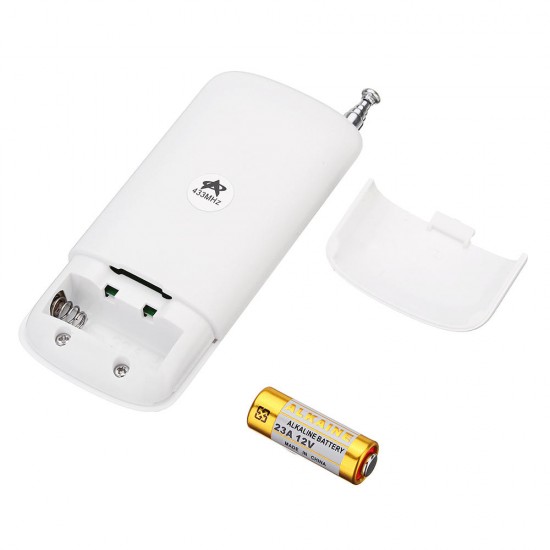

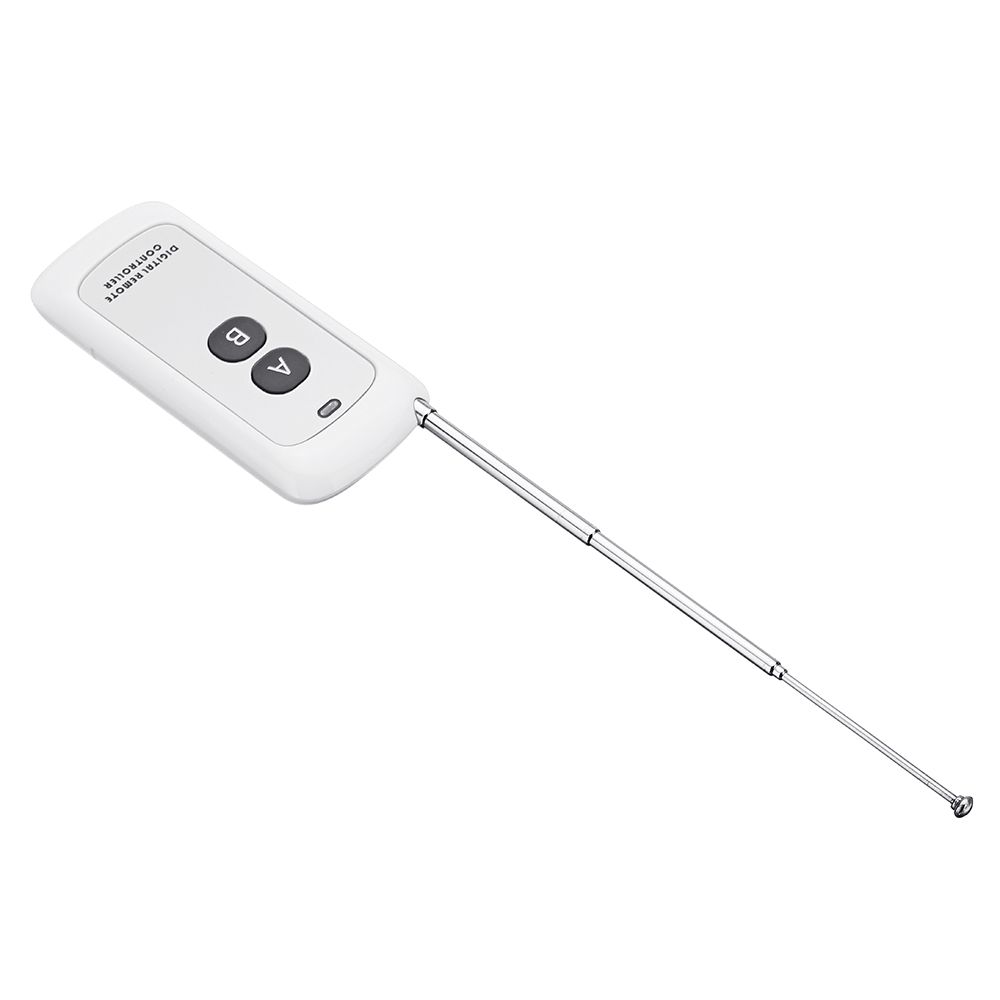

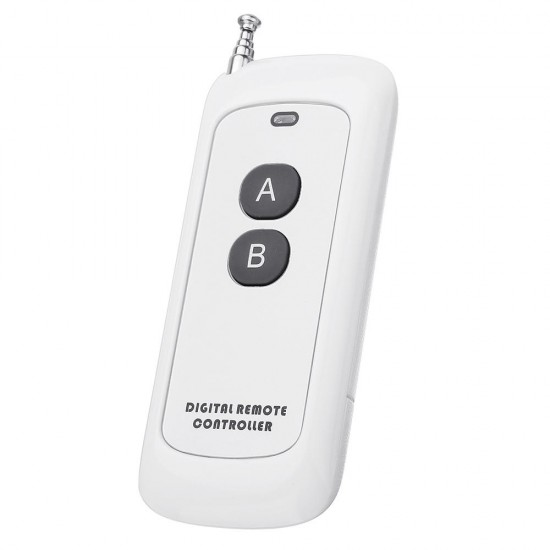

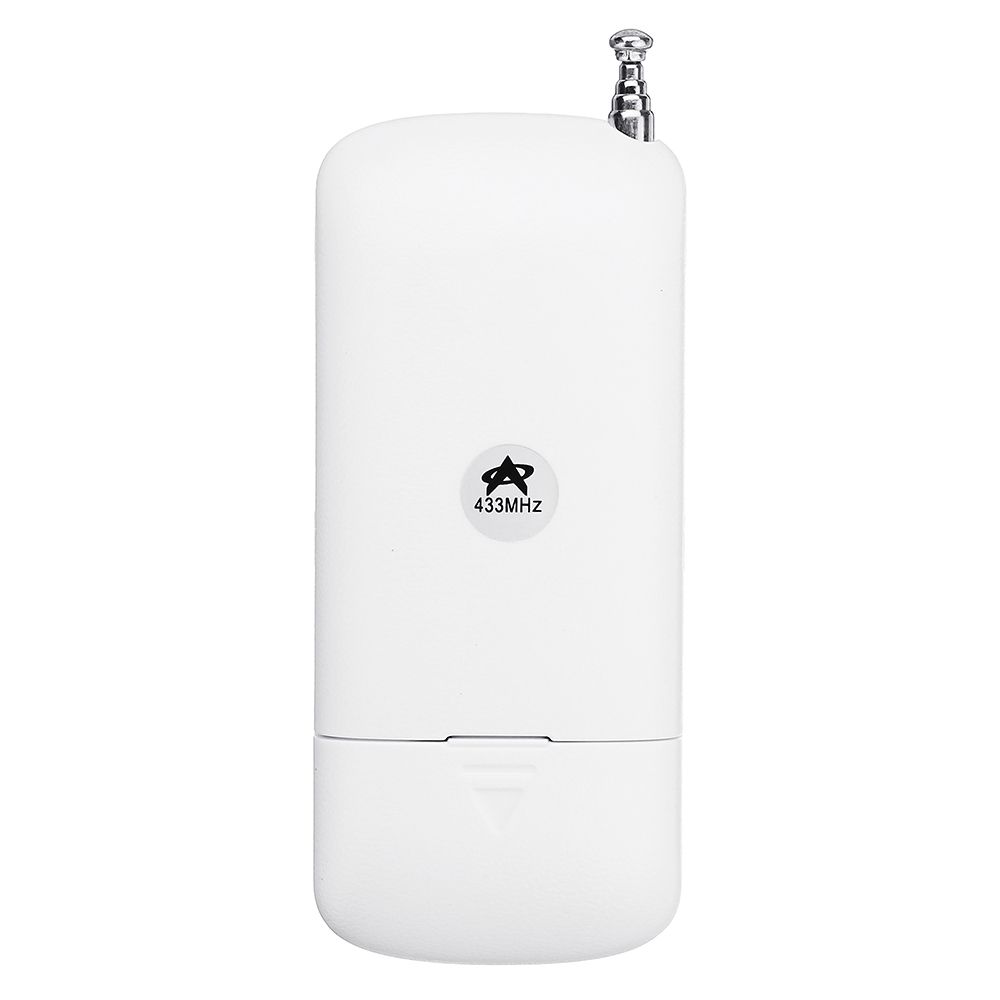

Remote Control
