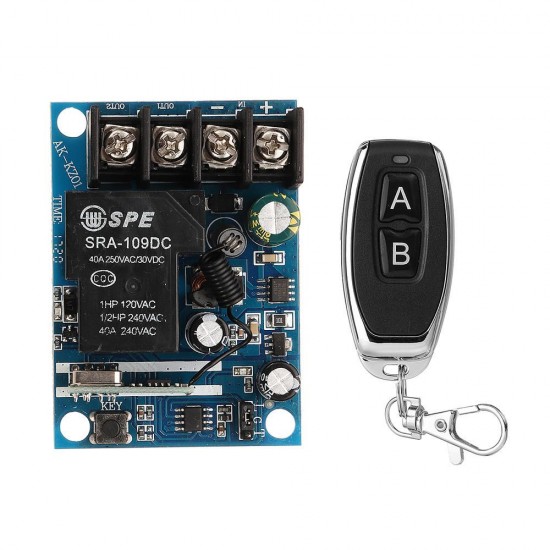

433MHz 12V 1CH 1 Channel Wireless Remote Control Switch 12V-48V Controller Interlock Learning Code Transmitter

Based on 0 reviews. - Write a review

$16.99

Ex Tax: $16.99

Stock: In Stock
Model: EB0042344
SKU: EB0042344

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

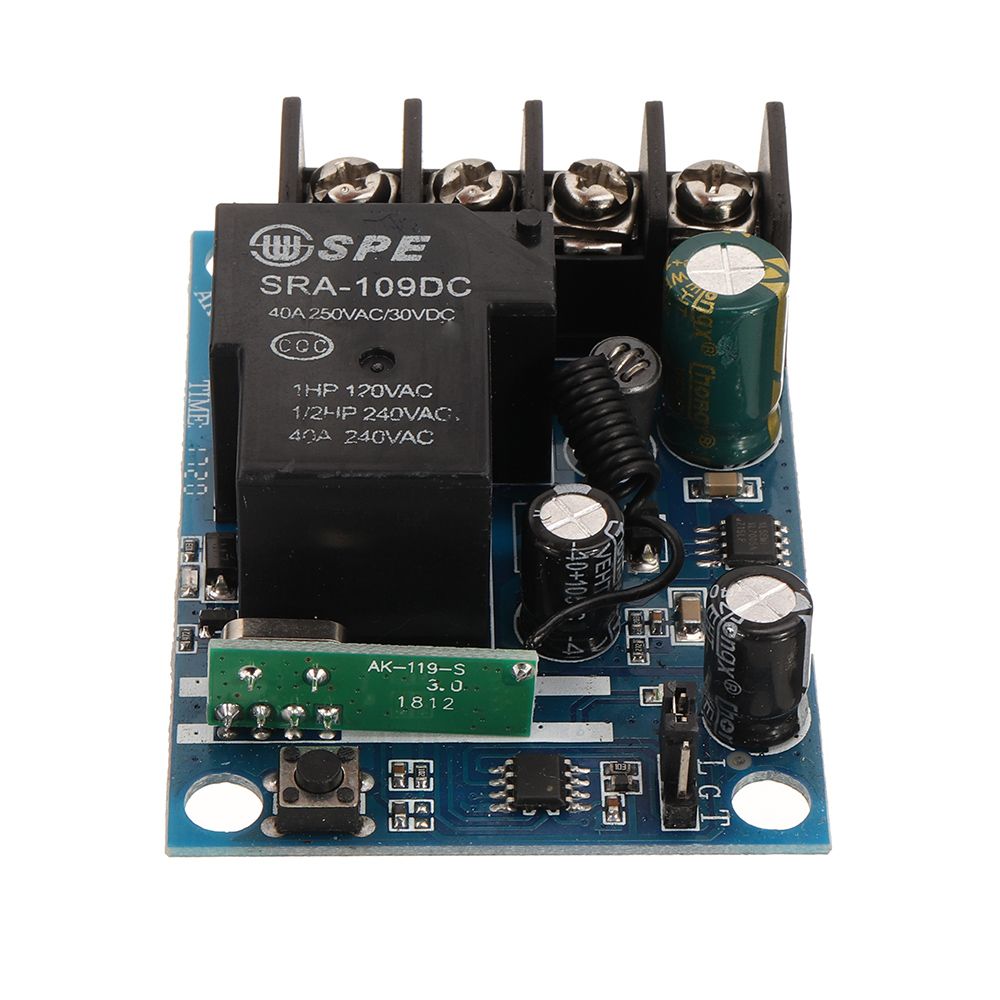

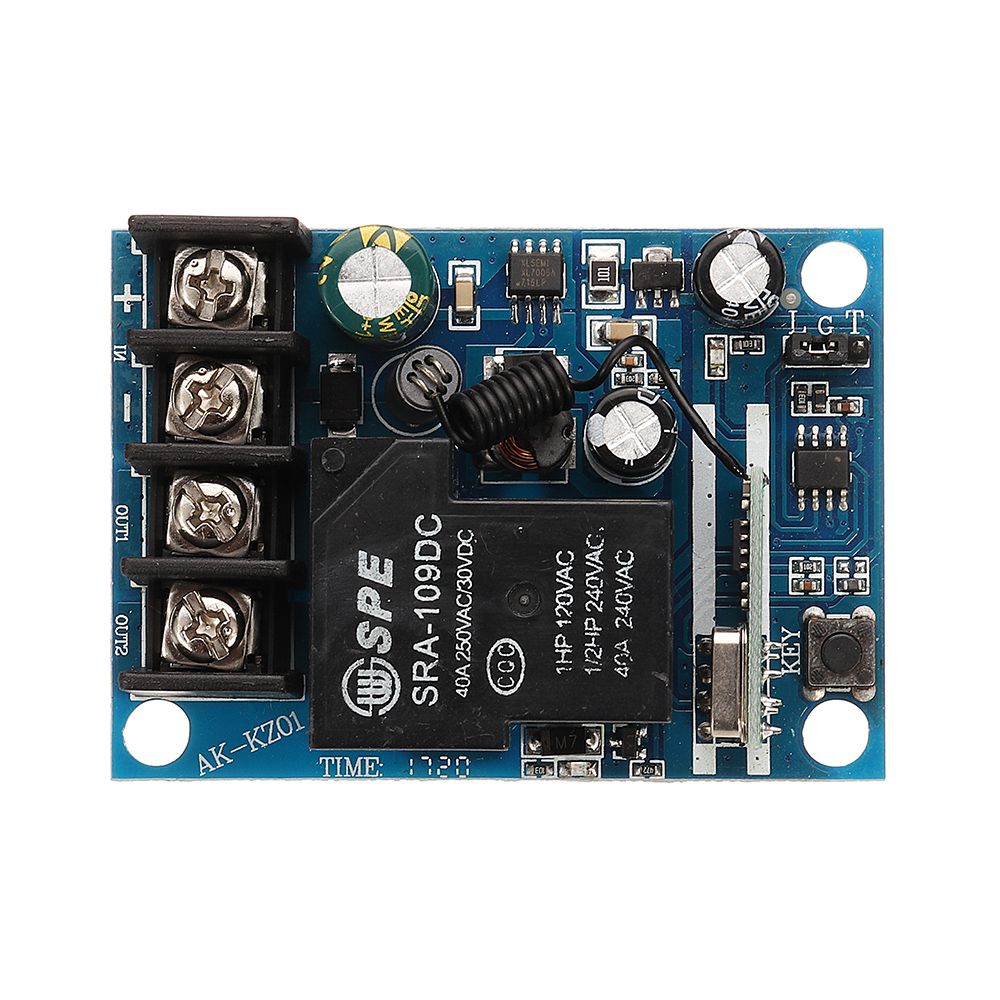

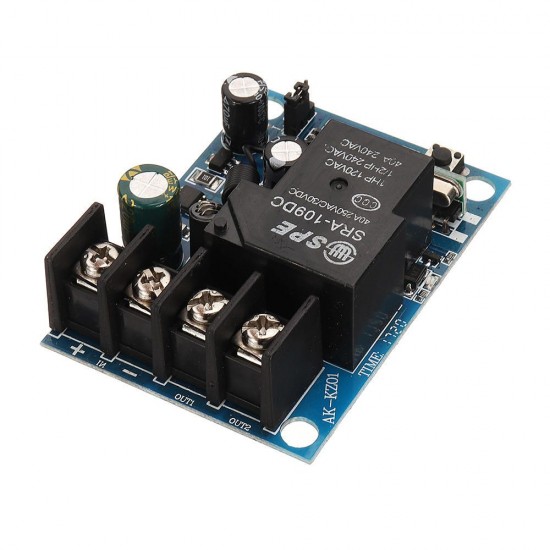

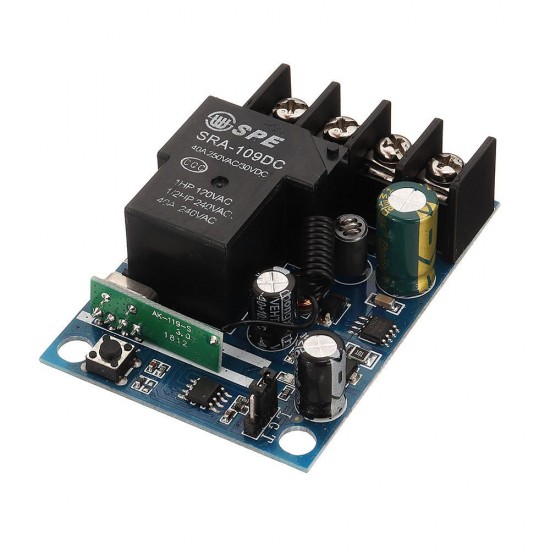

Introduction:

The wide voltage single-channel controller is a user-friendly, idealized practical wireless control device based on user requirements.

Learning function, single-chip decoding is convenient for customers to support a variety of remote controls.

The three working modes are freely set for users to use for different control functions. The input voltage range is wide, the output is charged, and the output switching signal is more convenient for users to use in different occasions, which increases the application flexibility of the product.

It can be applied to the field of lighting, motor shut-off, security industry machine wireless remote control lamp, with the advantages of convenient installation, simple and safe use.

Feature:

Working voltage: DC 12V-48V

Working temperature: -20°C ~ +60°C

Working frequency: 433MHZ

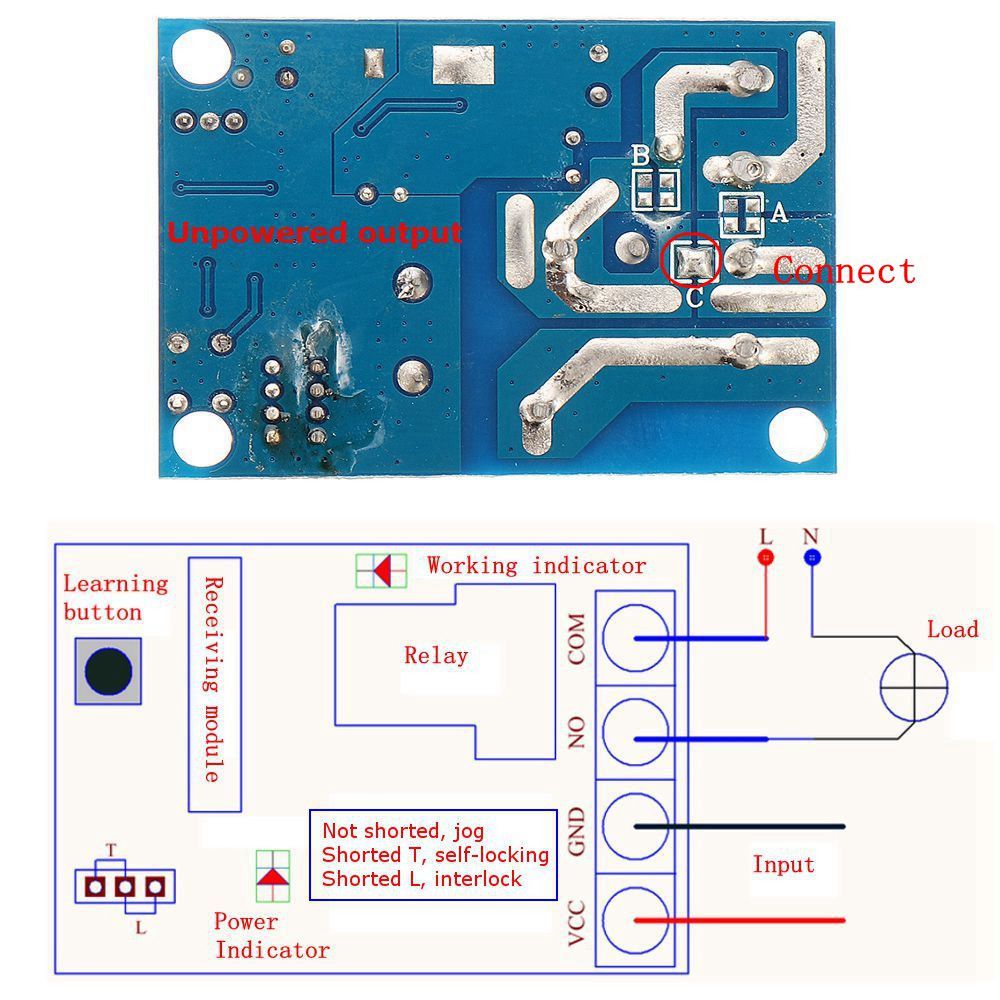

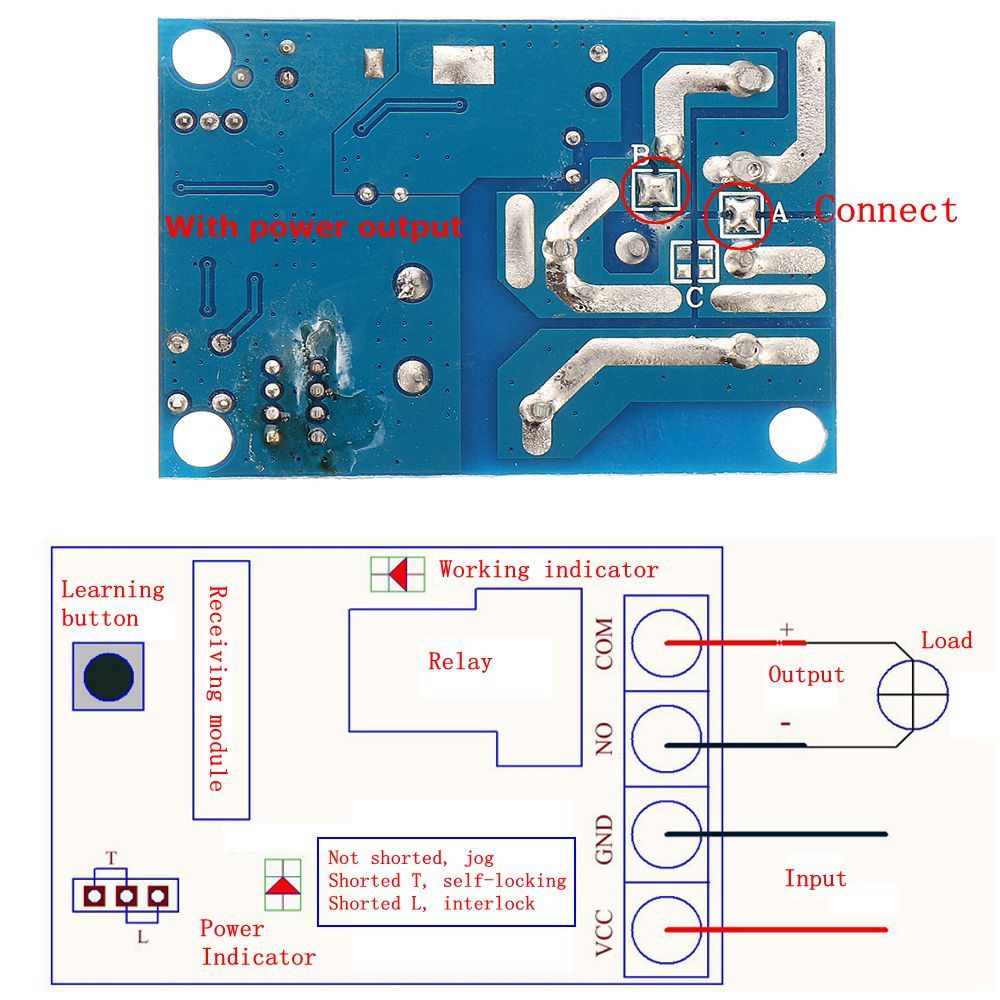

Working mode: Jog, self-locking, interlocking (jumping cap on pin)

Load: ≤30A

Operating mode:

1. Interlock: Press the corresponding button of the remote control, the corresponding relay is turned on, and then press another remote control button, the relay is disconnected.

2. Non-lock/jog: Press the remote control button, the corresponding relay is turned on, release the remote control button, the corresponding relay is disconnected.

3. Self-locking: Press the remote control button once, the relay is turned on, press the remote control button again, the relay is disconnected.

Instructions:

(1) Learning code

Press and hold the learning button, the indicator light is off, indicating that you enter the learning state; release the learning button, press and hold the remote control button that needs to be learned, the indicator light flashes five times and then lights up, indicating that the learning is successful.

(2) Clearing code

Press and hold the learning button, the indicator light will turn from on to off, then return to long light, indicating that the clearing is successful.

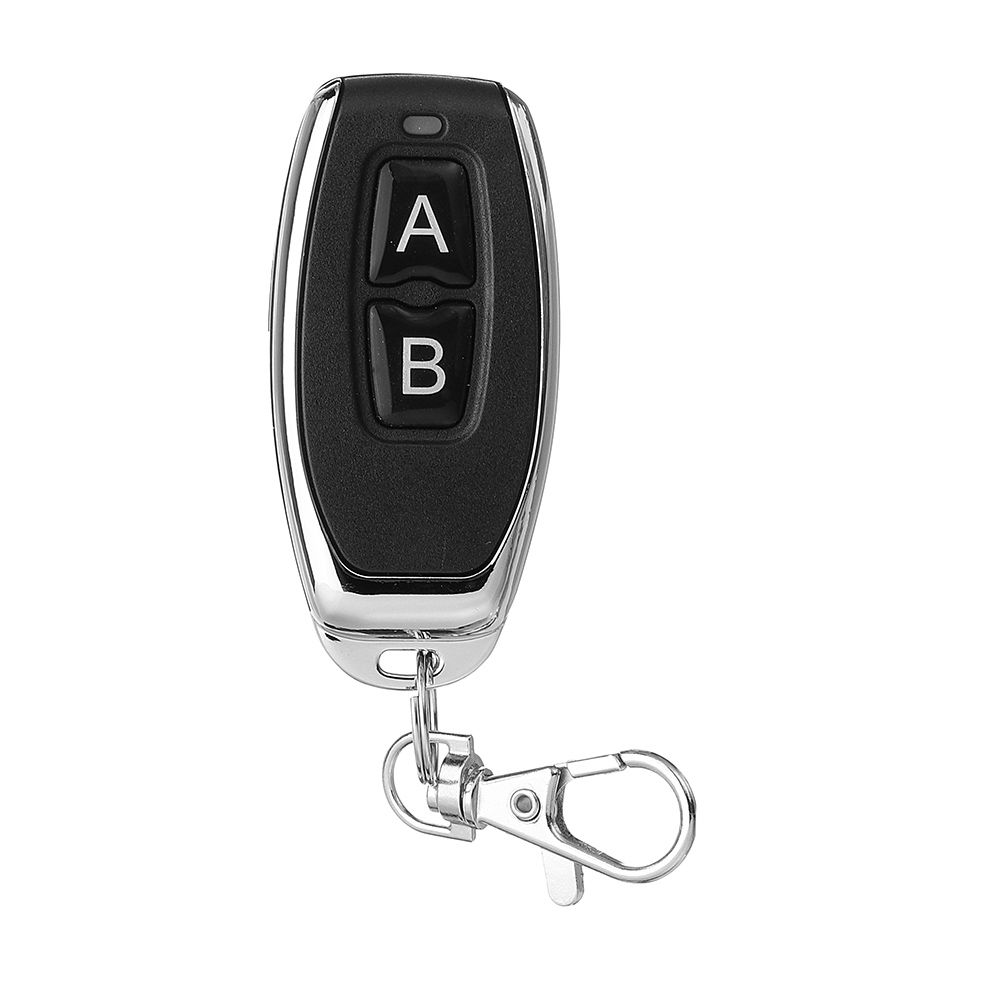

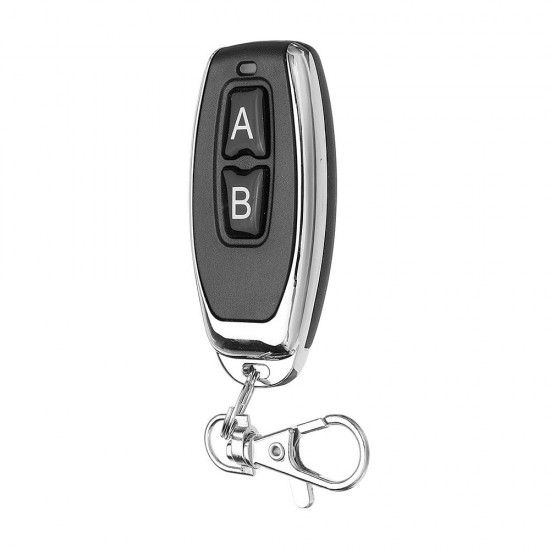

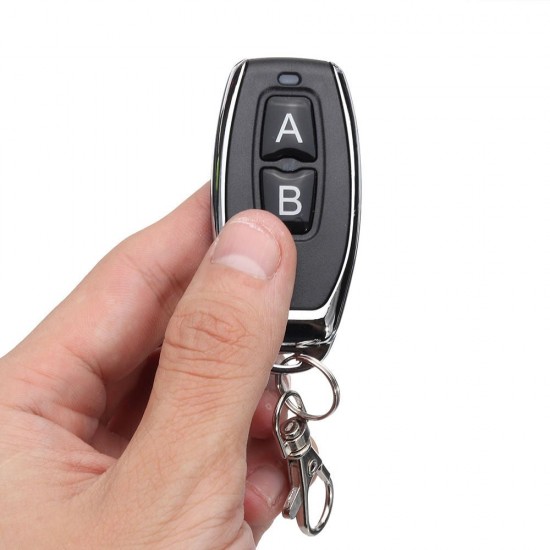

Remote control technical parameters:

Working voltage: DC6V (battery type: 2016 3V x 2PCS, includes)

Working frequency: 433.92MHz

Standby current: 0mA

Working current: 16mA

Coding method: Learning code (2260/eV1527/PT2240B chip)

Transmission distance: 20m (opening receiver sensitivity is above -103dBm)

Output power: 9dBm (8mW)

Transmission rate: <10Kbps

Modulation method: OOK (amplitude modulation)

Working temperature: -10°C~+70°C

Size: 55 x 30 x 15mm

Number of buttons: 2 buttons (A-Open, B-Close)

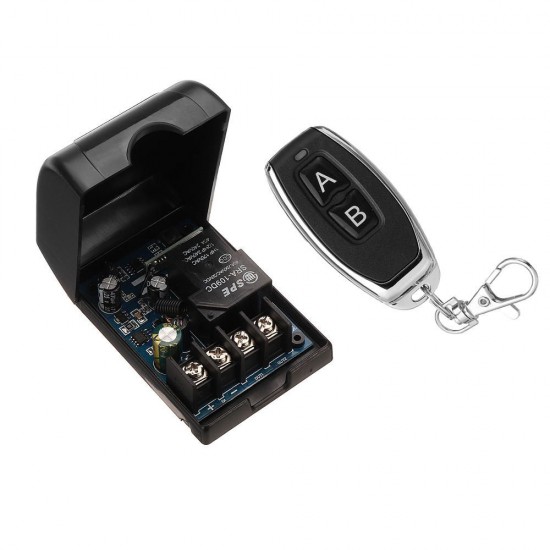

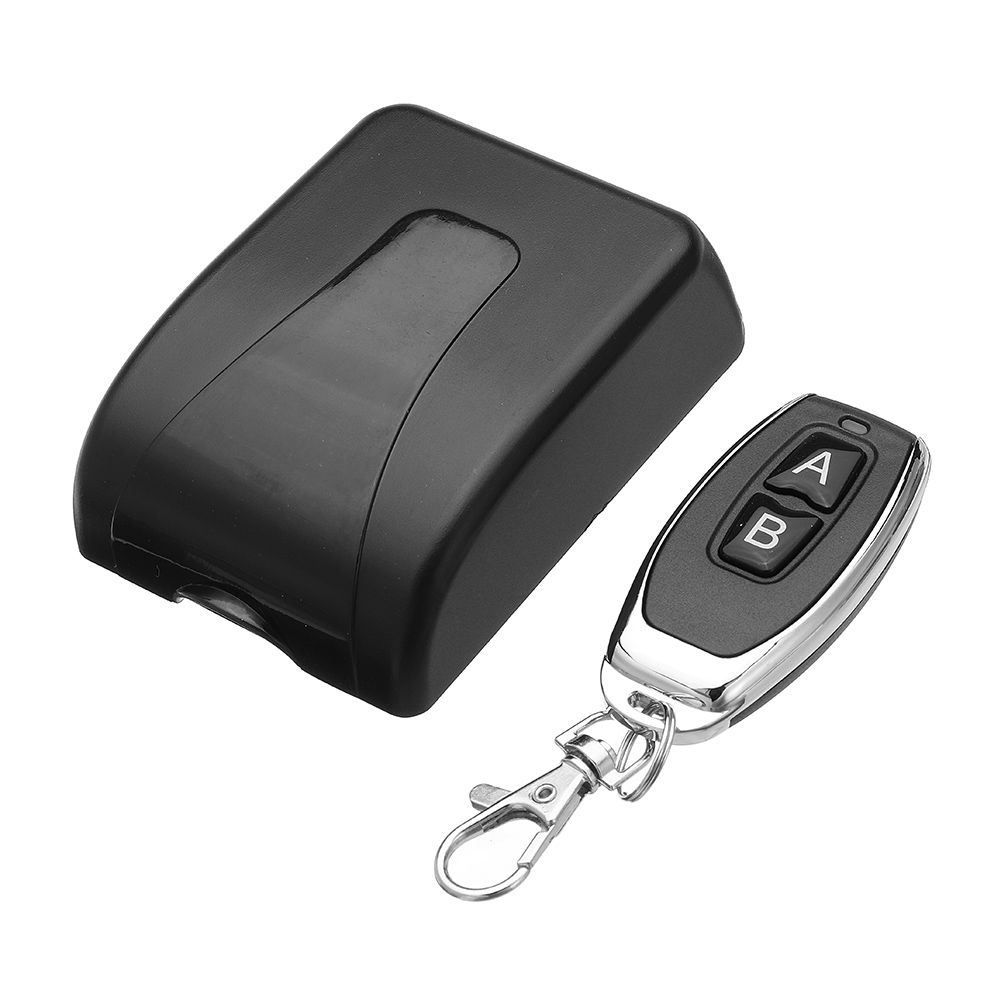

Package includes:

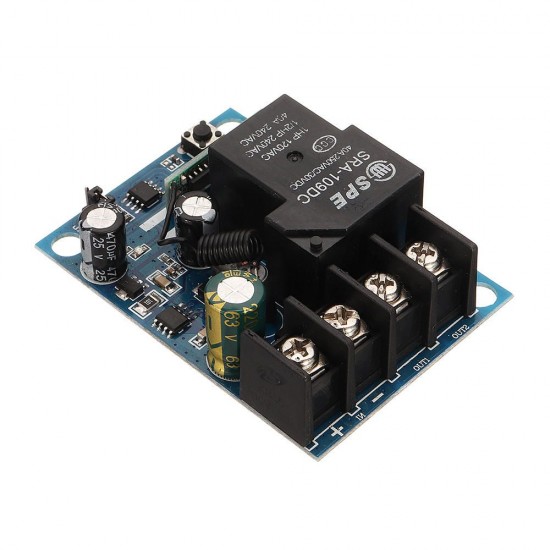

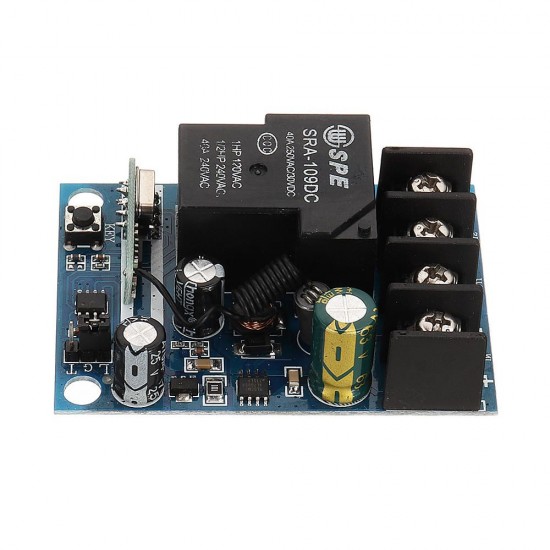

1 x Receive module

1 x Remote control
