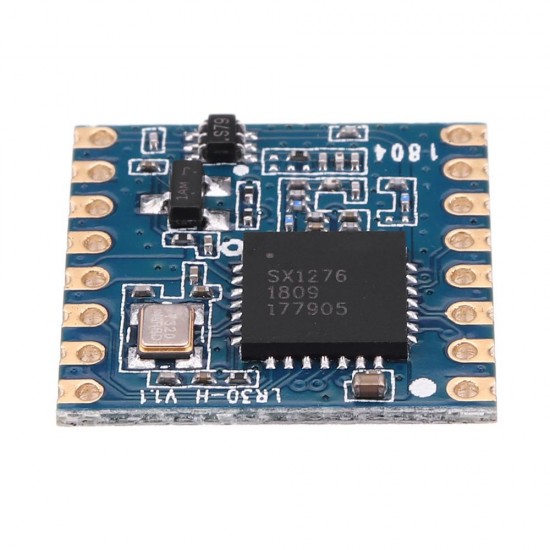

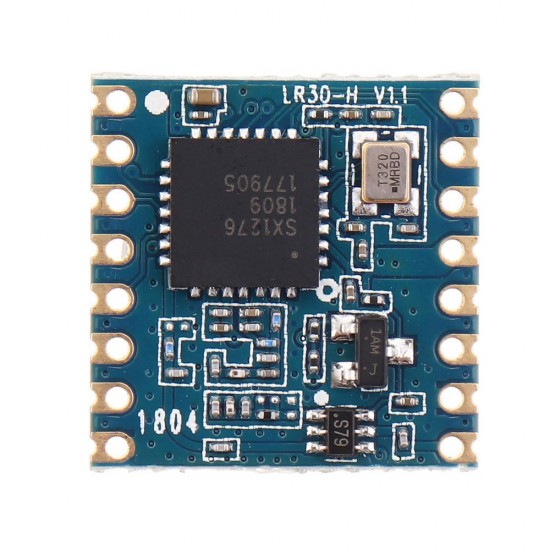

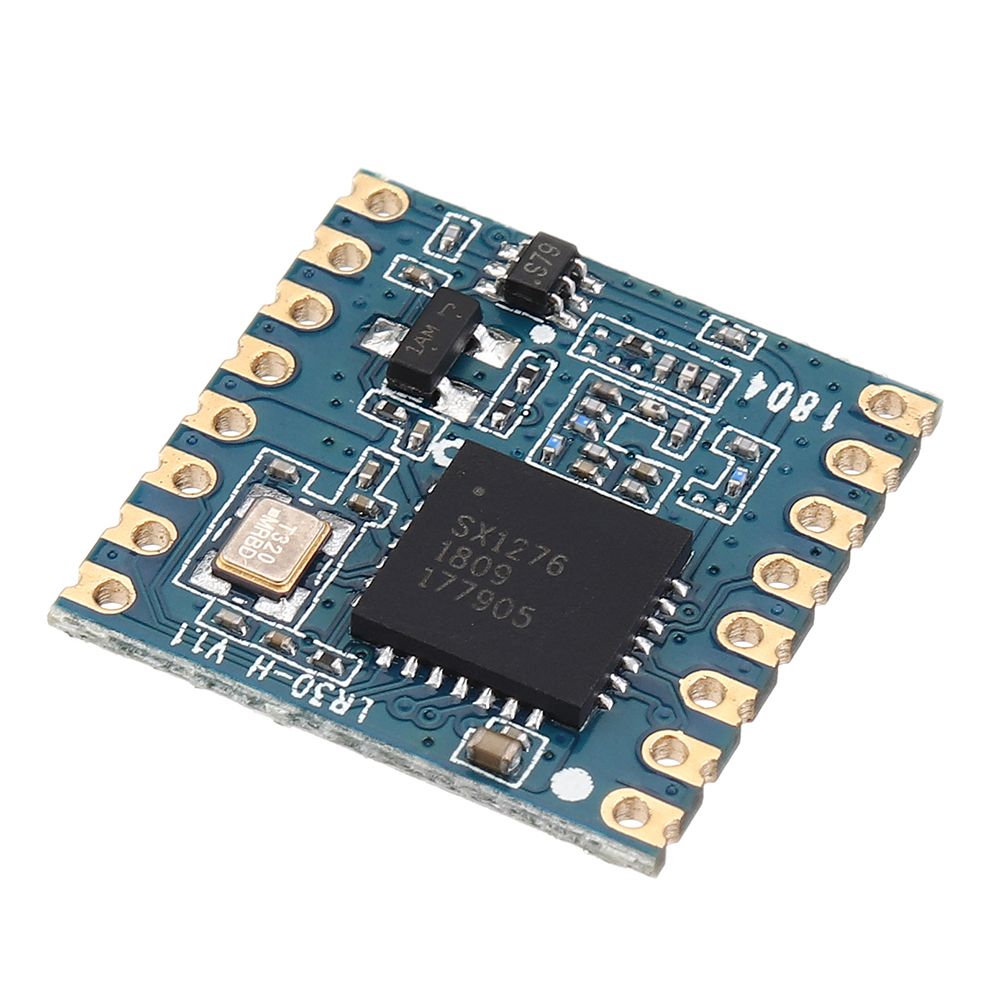

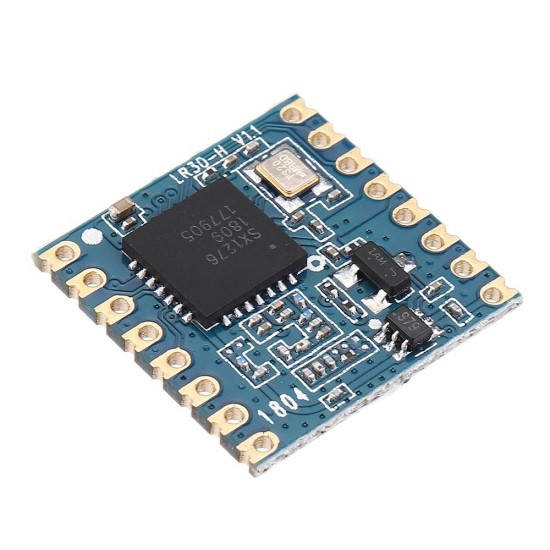

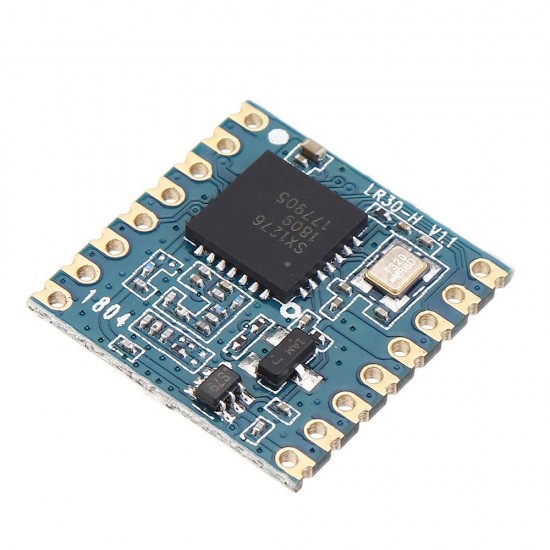

433MHZ Wireless Pure RF Chip Module Long Distance Transceiver Integrated LR30-L
- Stock: In Stock
- Model: EB0045325
- SKU: EB0045325
| Parameter | Value |
| Radio frequency chip | LR30-L: SX1278 |
| Module size | 16*16*2mm |
| Module weight | 3g |
| Working frequency | LR30-L: 169Mhz~525Mhz |
| Production Process | Lead-free process, machine stickers |
| Interface mode | 1*16*1.27mm |
| Supply voltage | 1.8~3.6V DC |
| Communication level | 0.7VCC~3.6V |
| Measured distance | 4500m |
| Transmit power | 20dBm maximum |
| Air speed | 0.123k ~ 1Mbps |
| Shutdown current | 3uA |
| Emission current | 130mA@20dBm |
| Receiving current | 20mA |

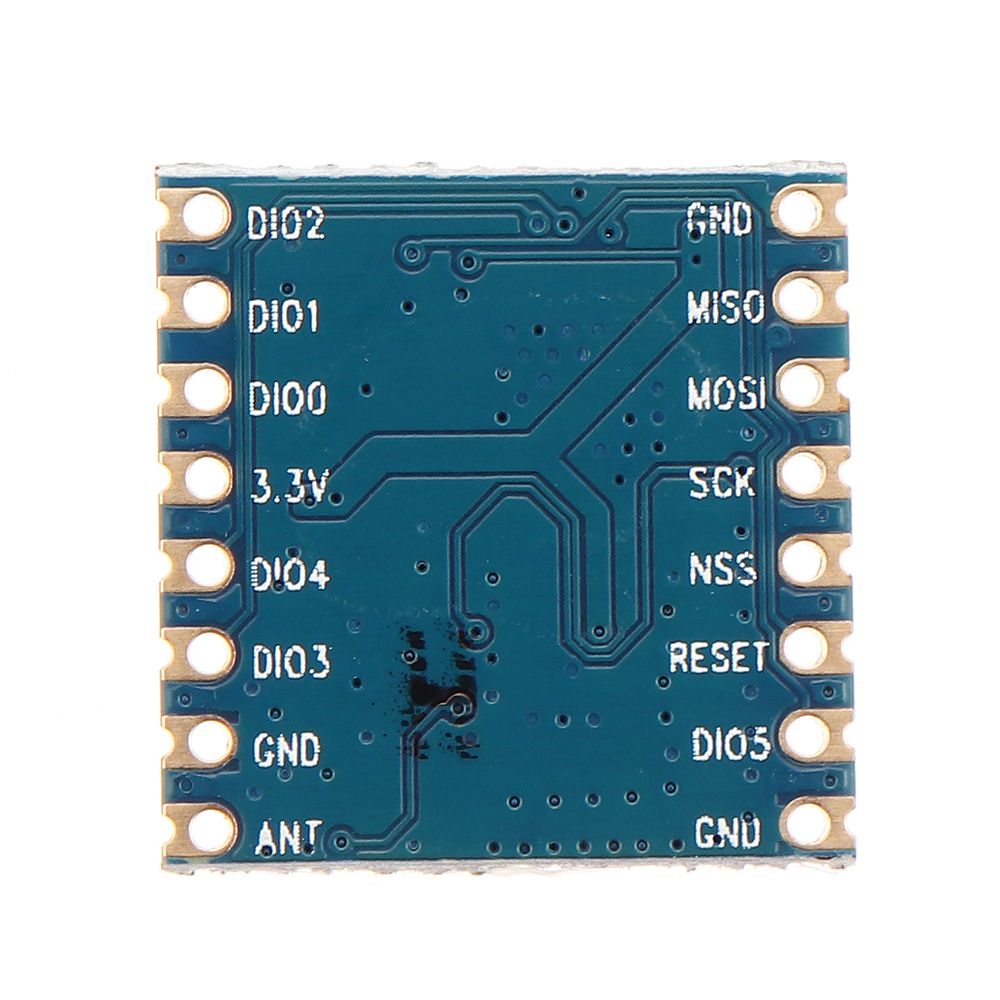

| Communication Interface | SPI |
| Launch length | a single packet of 256 bytes |
| Receiving length | a single packet of 256 bytes |
| RSSI support | Renhotec |
| Antenna interface | Stamp hole |
| Operating temperature | -40~85°C |
| Working humidity | 10%~90% |
| Storage temperature | -40~125°C |
| Receiving sensitivity | -138dBm@300bps |
Package includes:
1 x Module
